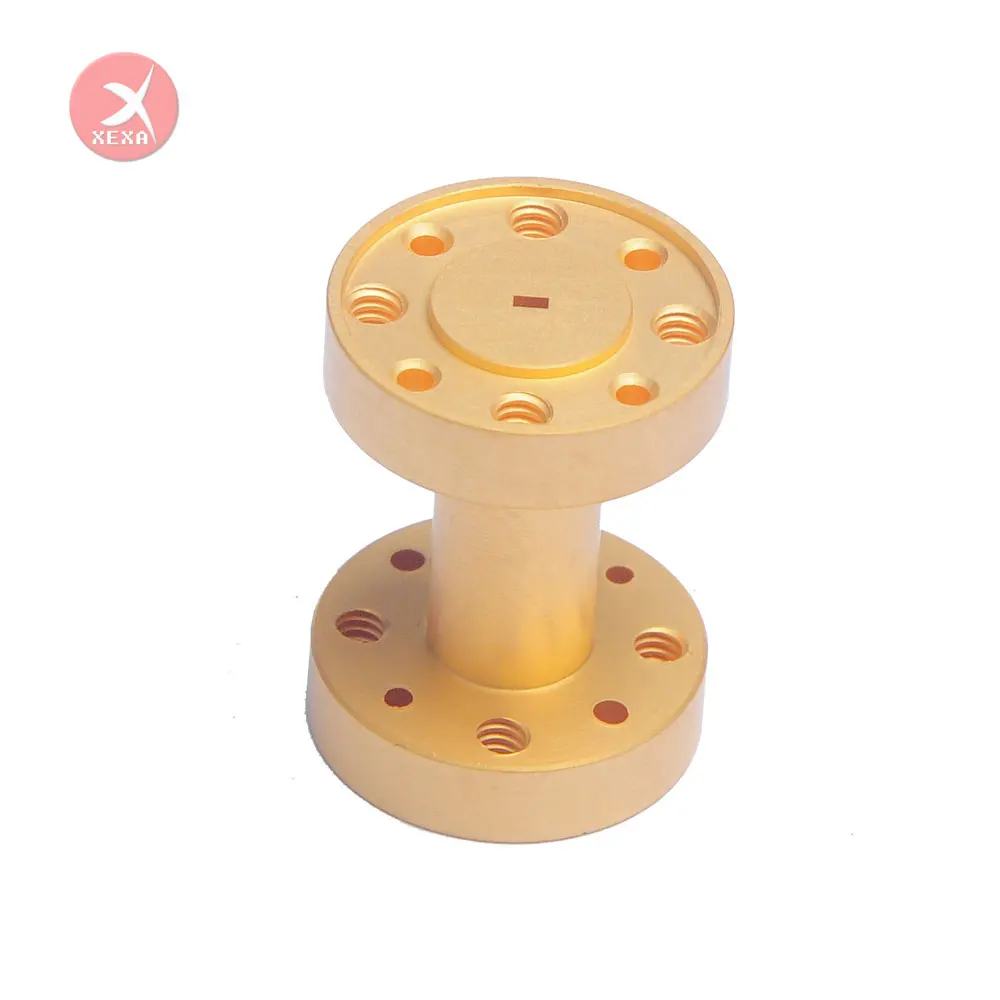

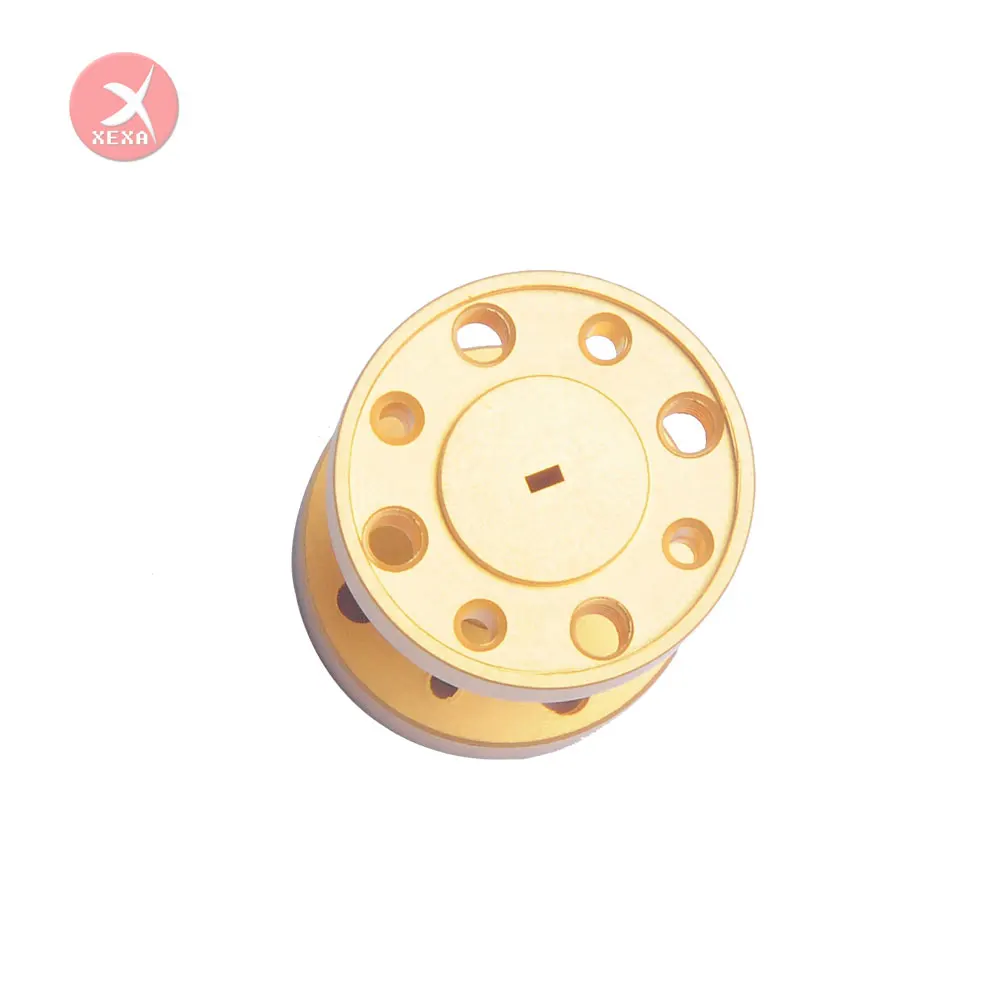

China supplier microwave waveguide
Product Introduction:

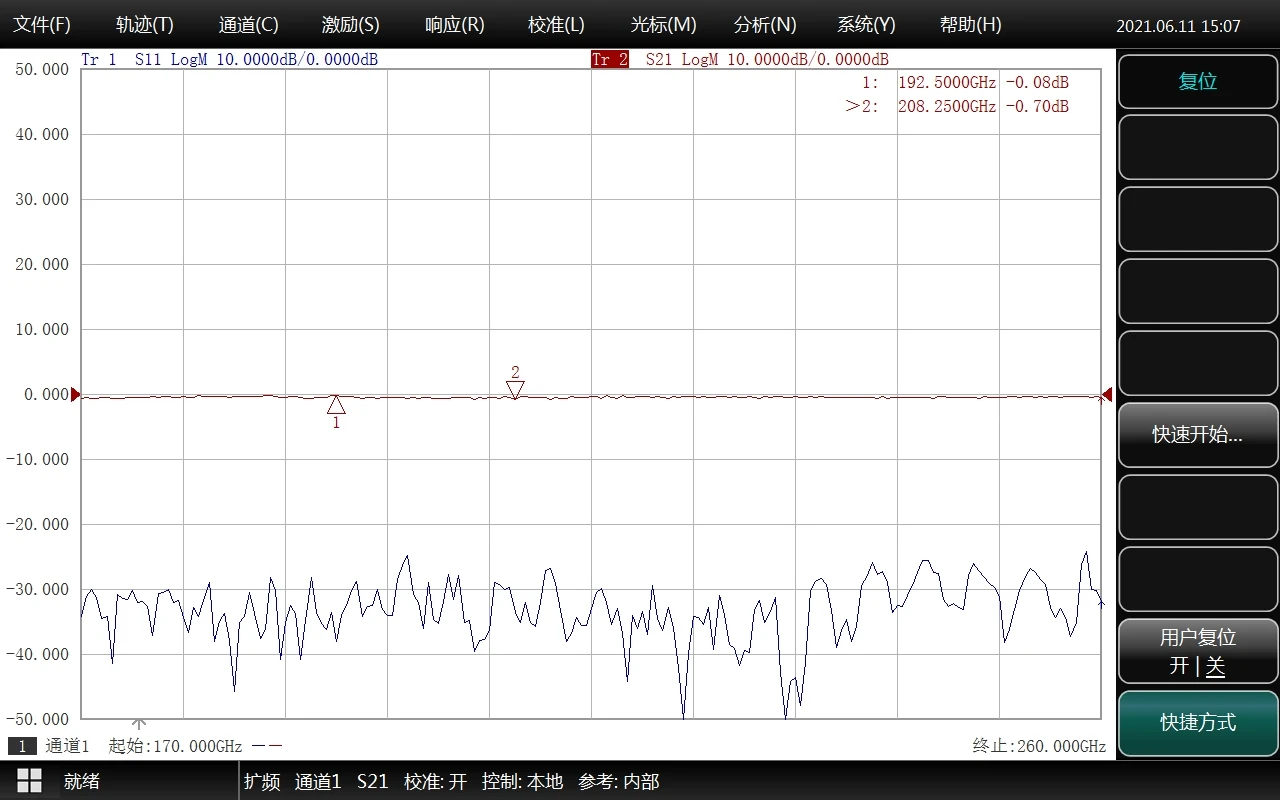

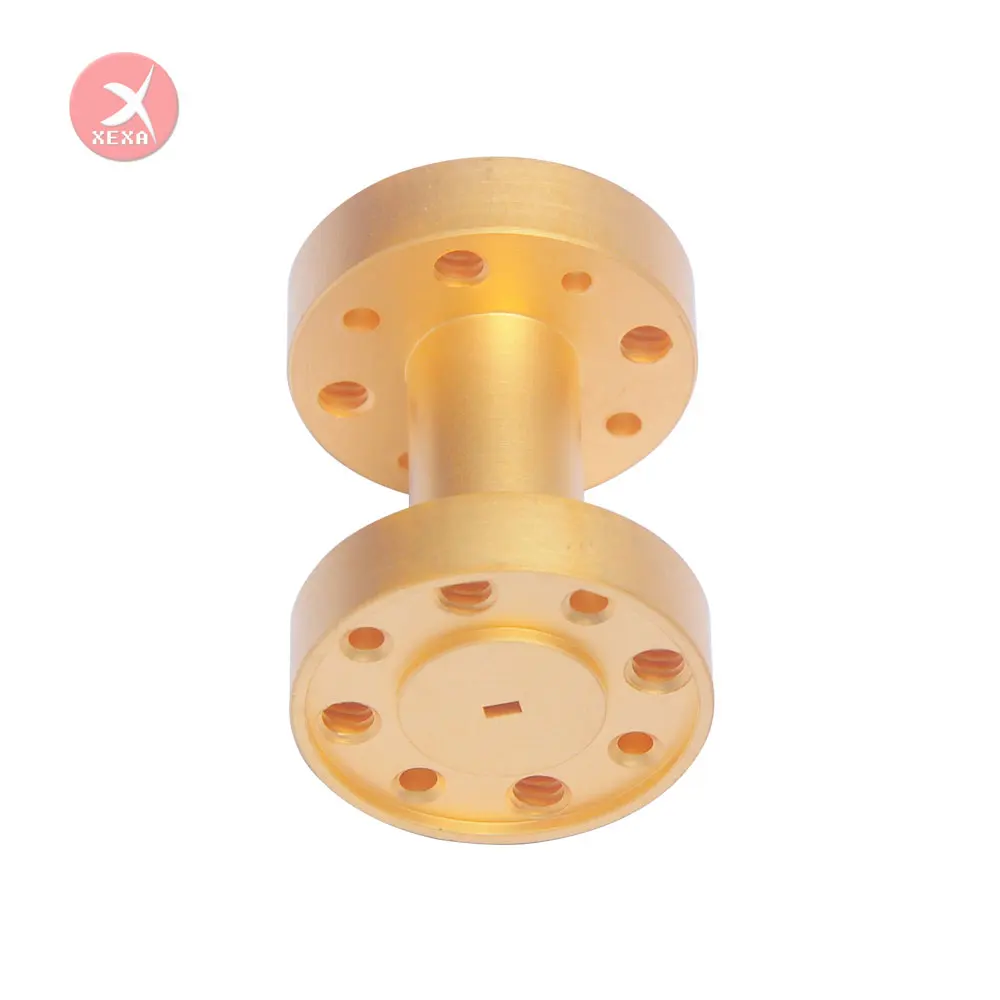

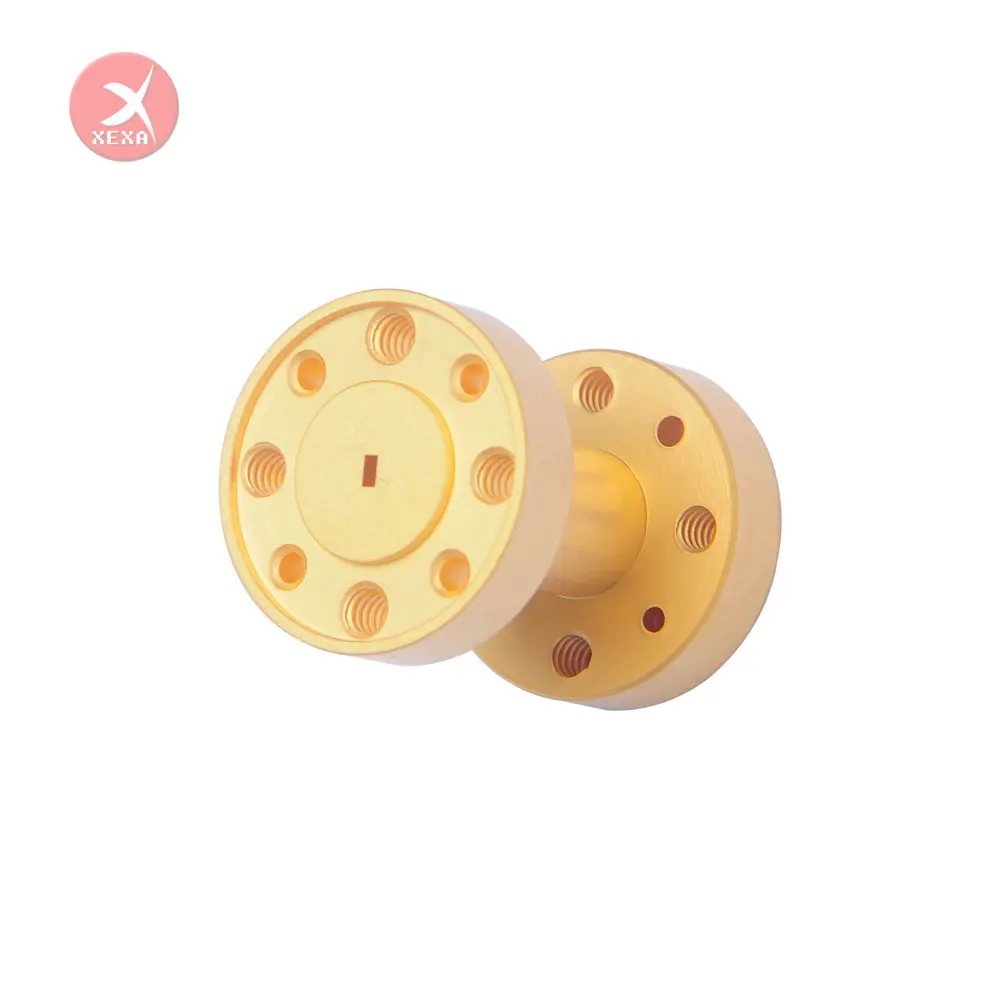

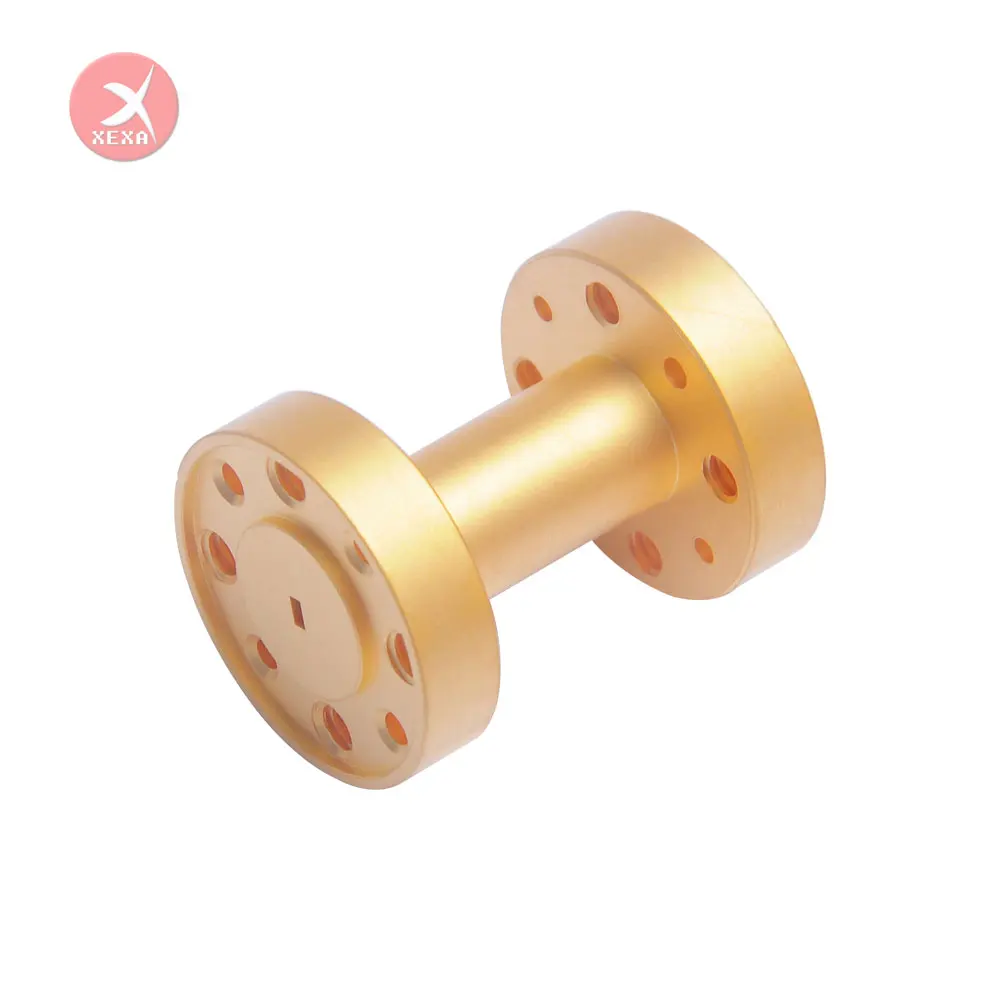

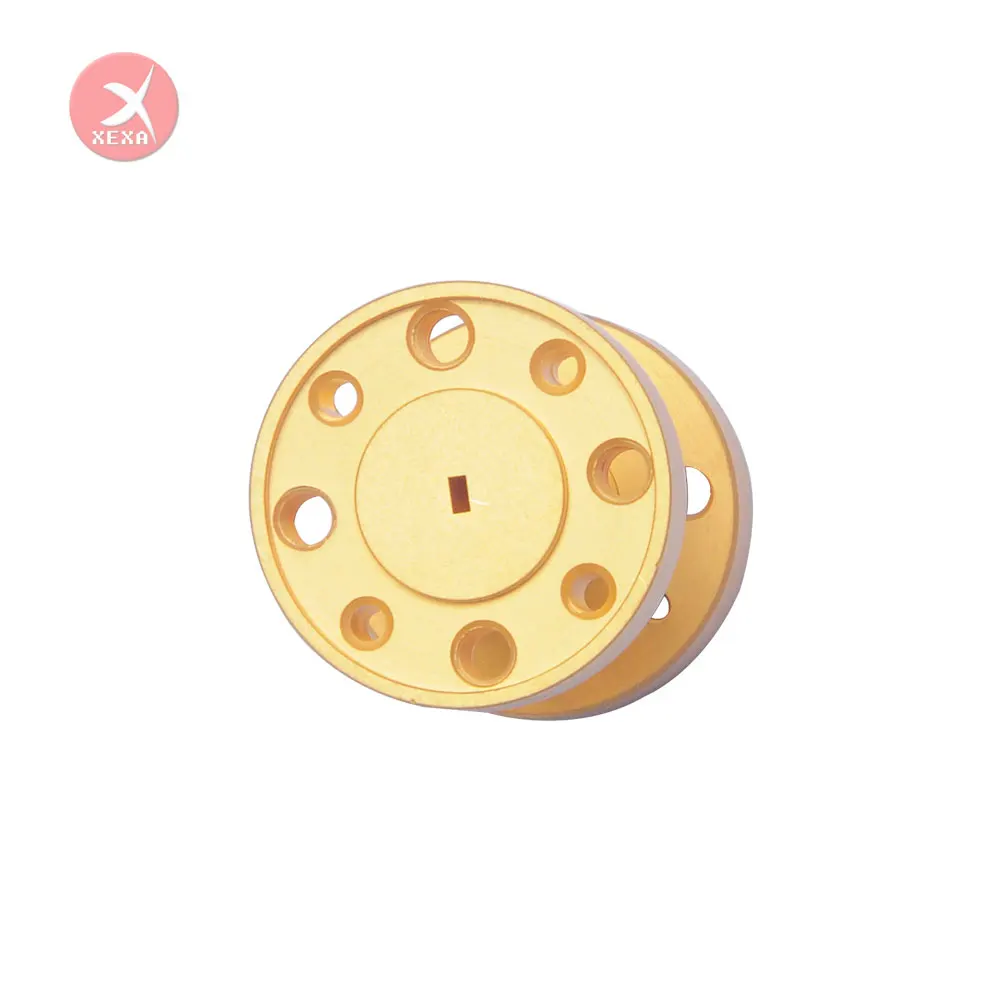

XEXA-WS4 rectangular straight waveguide, with frequency coverage of 170-260GHz, insertion loss of 0.3dB (Typ) and low VSWR 1.15:1 Max. WR-4 rectangular straight waveguide can cover all frequency bands of rectangular waveguide WR4(BJ2200), and its output is two APF4 flanges. It can withstand10W continuous wave power and 2kw peak power. Flange,surface treatment and material and length can be manufactured per customer request.
Product description:
Straight waveguide is the basic component of the waveguide feeder system. The main materials of the product are copper and aluminum, and the surface has various treatment methods such as silver plating, gold plating, nickel plating, passivation and conductive oxidation. The length, flange form, material, surface treatment method and electrical parameters of the product can be customized. The integrated solutions can be provided according to user requirements. The outline size can reach the national standard IT7-IT4, and the product flange: the accuracy of position and flatness can reach within 0.005mm. If you need more technical specifications of the product, please contact us directly.
Features:
Low VSWR, Low loss,High power, Serialization
Our Services
Industries serviced | Electronic and communication |
microwave and millimeter-wave communication systems | |
radar | |
Aerospace, Navigation,Radio astronomy | |
instrument and meter | |
Human body scanning security detector | |
Medical Equipment | |
Equipment | CNC Machining Center; CNC Lathes; CNC Milling Machines |
Punching and drilling machines; Stamping machines | |
Assembly lines; Whole set of measurement tools | |
Precision Processing | CNC machining; CNC milling and turning; laser cutting; drilling; grinding; bending; stamping; welding and so on |
Drawing format | JPEG; PDF; DWG; DXF; STP or according to your sample |
Material | Aluminum; Brass; Copper; Stainless Steel; Titanium; plastic or other exotic alloys |
Surface treatment | Andize; Polishing; Chrome/Zinc/Nickel/Silver/Gold Plating;Sand blasting etc. |
Tolerance | +/- 0.005-0.05mm |
Inspection | 100% inspection before shipping |
Payment Terms | 50% T/T in advance,the balance before delivery |
Also pay us by Alibaba on line,that's an assurance for overseas customers |
Company Information
About us
Chengdu Xixia Technology Development Co.,Ltd.is the dedicated developer, designer and manufacture of millimeter wave products.we has been engaged in the design and processing of precision mechanical parts in the field of microwave and millimeter wave technology for a long time,providing microwave cavity design and precision machining services for many domestic research institutions and key universities.

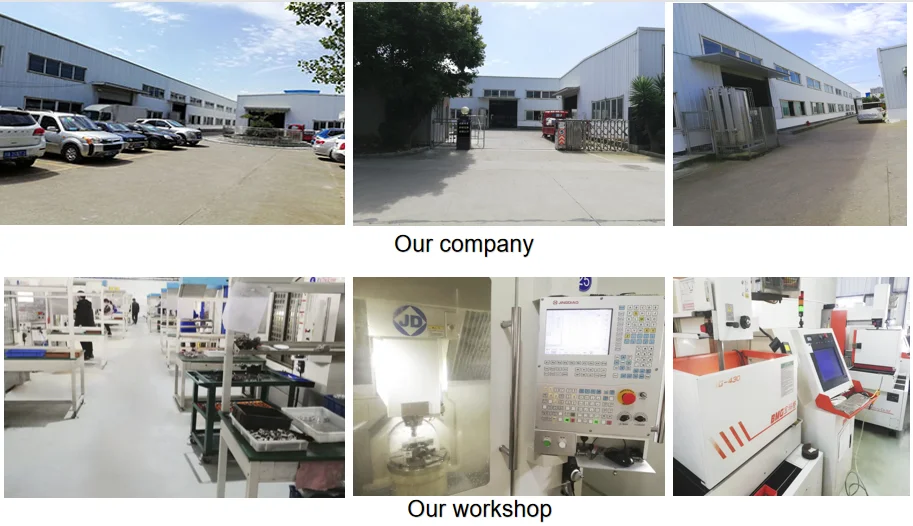

Our company is equipped with more advanced facilities and equipment,has a group of professional engineering and technical rich experience in precision machining.
There are office, supply and marketing department, production technology department, built a lathe workshop, milling workshop, assembly workshop, in company and strong processing capability.
our certification
FAQ
Q1. How many years have you engaged in this business?
A1: Xexa company have engaged in this business more than 15 years, and we professional in microwave passive devices (radio frequency isolators, circulators, RF resistors, attenuators, coaxial loads and attenuators) and microwave passive components research, production, sales and services.
Q2. What is your MOQ (minimum order quantity) ?
A2: 1 piece.
Q3. How do you ensure the quality of products?
A3: Each products we made are based on international standards.Meanwhile, every product is strictly checked before loading.
Q4. What price you can offer?
A4: EXW, FOB, DDU, etc.
Q5.What’s your delivery time ?
A5: Production finished within 10-30 working days after receiving the deposit.
