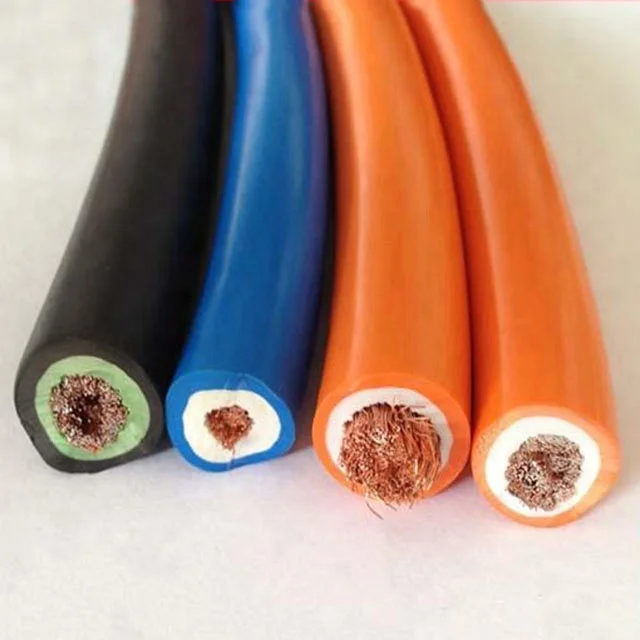

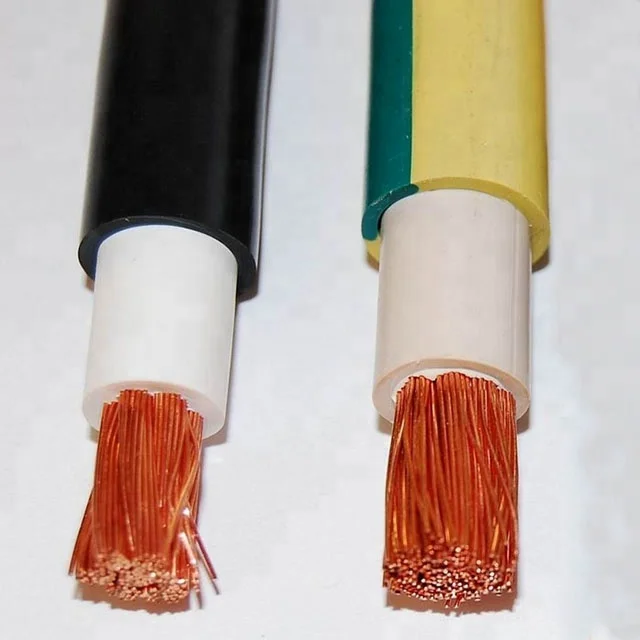

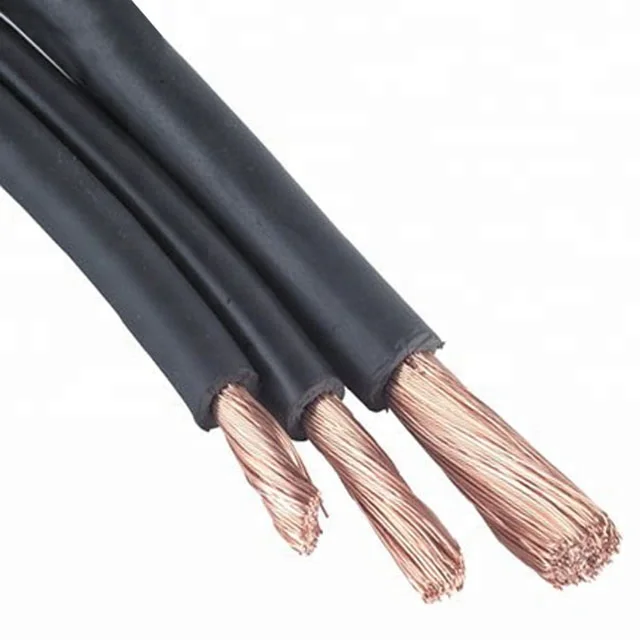

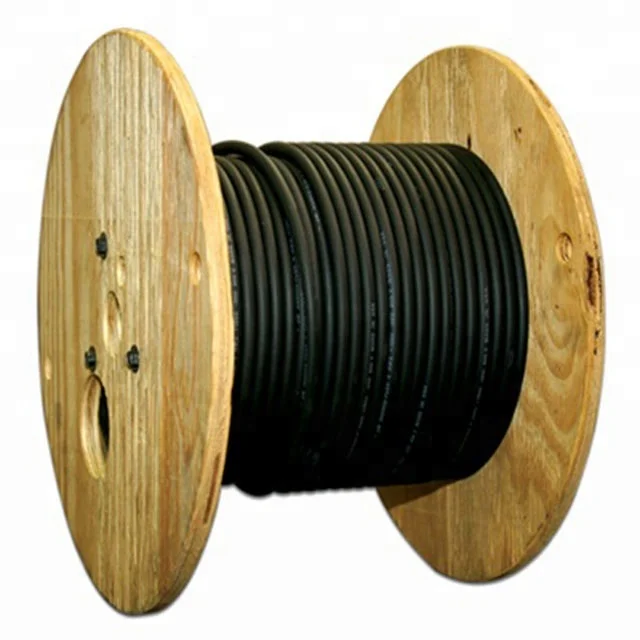

PVC Covered Copper Welding Wire 50 MM2
- Category: >>>
- Supplier: Henan Jinshui Wire& Cable Co. Ltd. [Henan China]Henan
Share on (60824952630):
Product Overview
Description
Product Description
Standard
IEC 60227-5: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Part 5, Flexible cables (cords)
IEC 60245-6: Rubber insulated cables - Rated voltages up to and including 450/750V - Part 6, Arc welding electrode cables
Application
This PVC covered copper welding wire 50 mm2 is used to connect the power supply and welding machine electrode. It can also be used in low voltage power applications where high flexibility is required. Using flexible class PVC as its insulation and sheath, it can reduce the cost compared with rubber welding cable.
Product Details
1) Conductor: class 5 annealed copper, 1596/0.20 mm
2) Insulation: PVC, 1.4 mm
3) Outer sheath: PVC, 1.4 mm
4) Sheath color: orange, blue or colors as per customer's requirements
5) Overall diameter: 17.5 mm
6) Net weight: 620 kg/km
7) Max. DC resistance @ 20℃: 0.554 Ω/km
8) Max. working temperature: 70 degrees
9) Features: oil resistance, flame retardant
