GMG21 Double Columns Metal CNC Milling Machine

Share on (60824959324):


Price:$50,000.00

Quantity:


Product Overview

Description


Double Columns CNC Milling Machine GMT21


(Designed and made in Qigdao, Shandong, China)






Product Description







1  Main Specifications:






































































































Item



Unit



Value



Spindle



Motor power



KW



22



Spindle speed



rpm



20-6200



Spindle taper




ISO50 (7:24)



Diameter of spindle bearing



mm



100



Travel



X axis travel(Worktable)



mm



3700



Y axis travel (spindle travel in crossbeam)



mm



1800



Z axis travel (Spindle vertical travel)



mm



1250/1500(option)



Distance from spindle nose to worktable



mm



1700



Distance between two columns



mm



1800



Worktable



Worktable size (L x W)



mm



3500x1600



Worktable loading capacity



kg



15000



Feeding



X axis rapid travel



mm/min



8000



Y axis rapid travel



8000



Z axis rapid travel



2000



Feeding rate



mm/min



5-4000



Accuracy

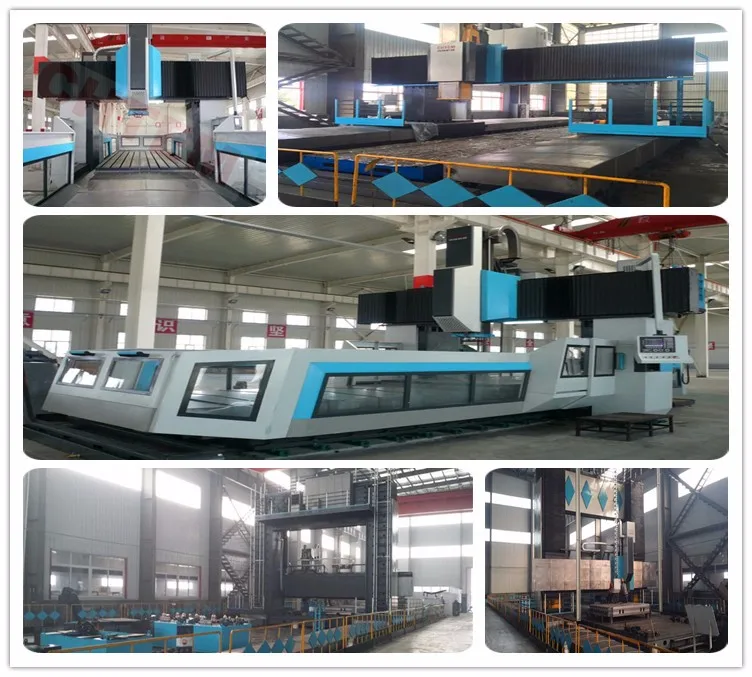

2. Pictures of gantry cnc milling machine





initpintu_1



Packaging & Shipping











1. Before shipment, every part of machine will be painted with a layer of anti-rust and


water-proof oil to prevent possible errosion during transportation.





2. A plastic cover to wrapp around machine parts to enhance corrosion prevention.





3. Export standard fumigated wood cases are measured and sepcially made for packing.





4. Steel wire will be used to tighten and strengthen the packages inside container.





5.  At seaprot, extra strengthen with wire ropes, bandages, wedges ect. to avoid packages leaning


or moving during transportation.







Company Information




4.jpg  QQ20170118152505.jpg





Our sales references










FAQ












1. MOQ?
    1 Set





2. DELIVERY TIME:
    About 2-4 months. the delivery time will be confirmed by different machines with different configura-


    tions





3. WARRANTY PERIOD:
    One year from the date of B/L, during the warranty period, daily damage parts will be supplied freely,


    the after sale service will be covered by dealer (if there will be problem, plsnotify). After warranty per-


    iod, the spare parts will be supplied with a factory price.





4. PAYMENT TERMS:
    30% of the whole contract value should be paid as the advance payment after the contract has been


    signed. The other 70% of the whole contract value should be paid before shipment.
