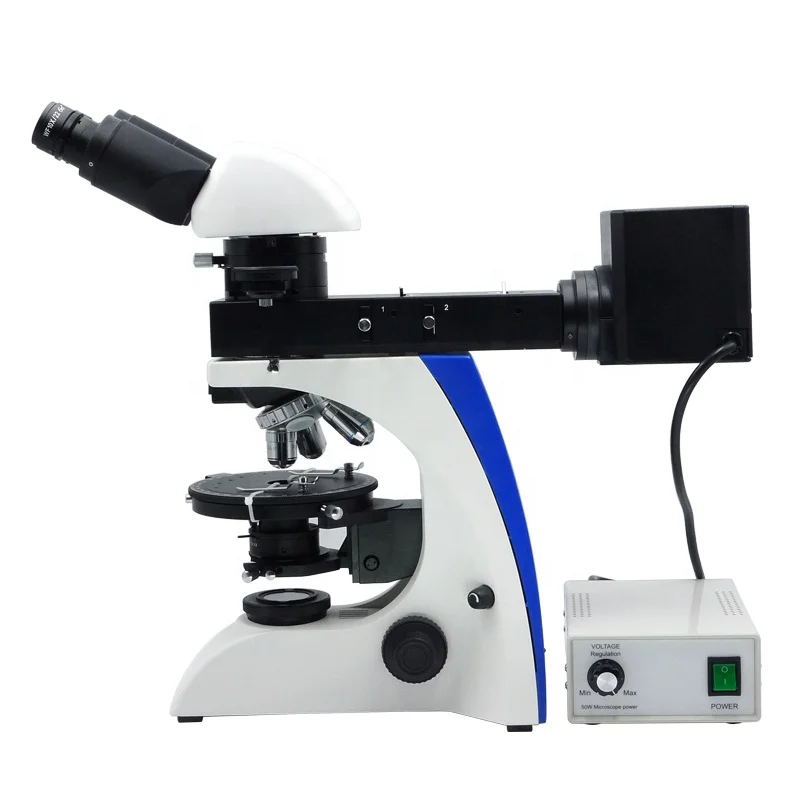

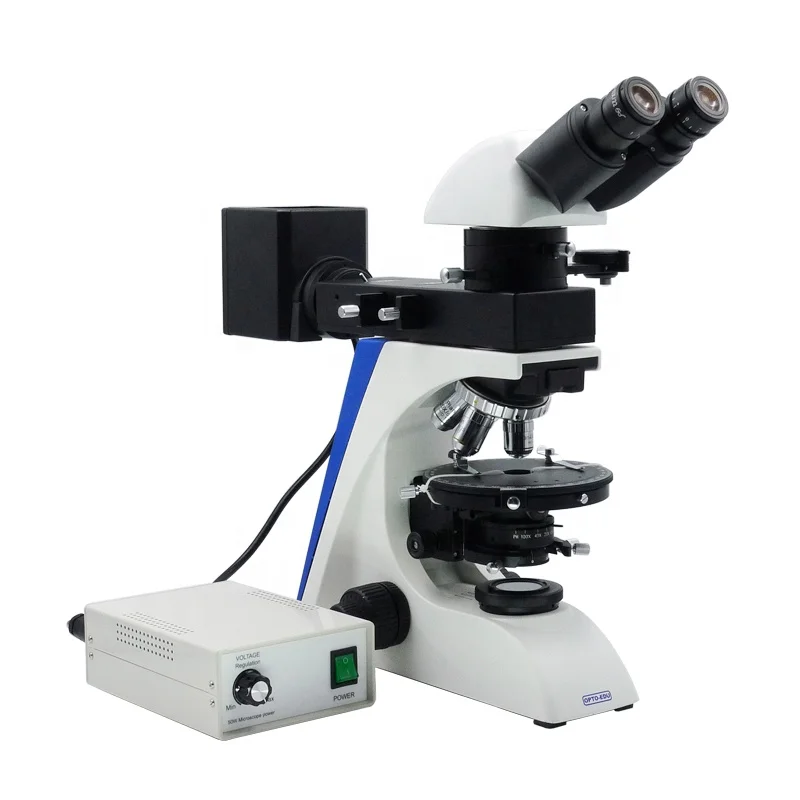

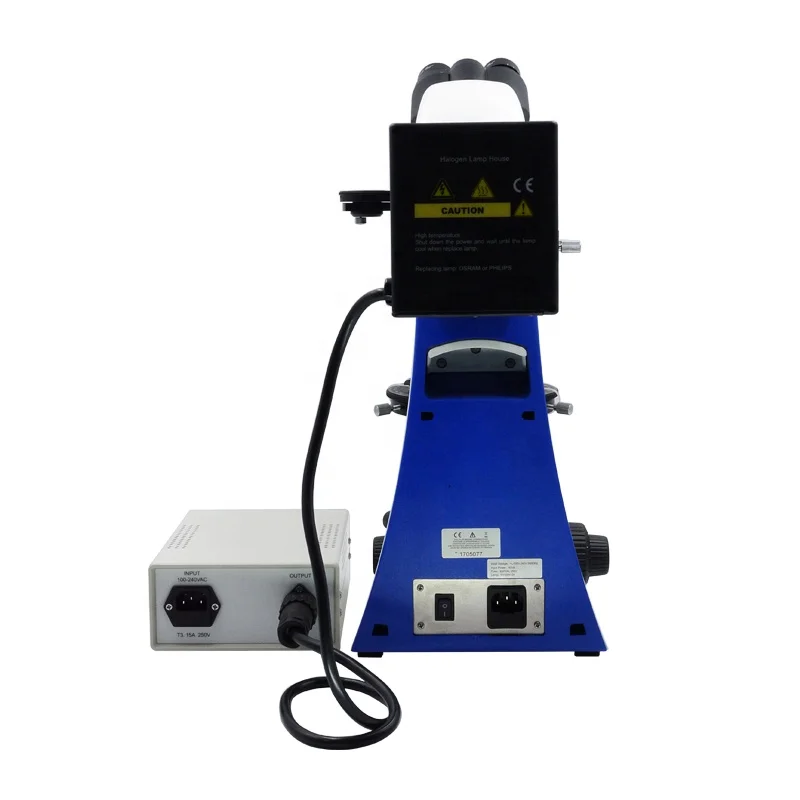

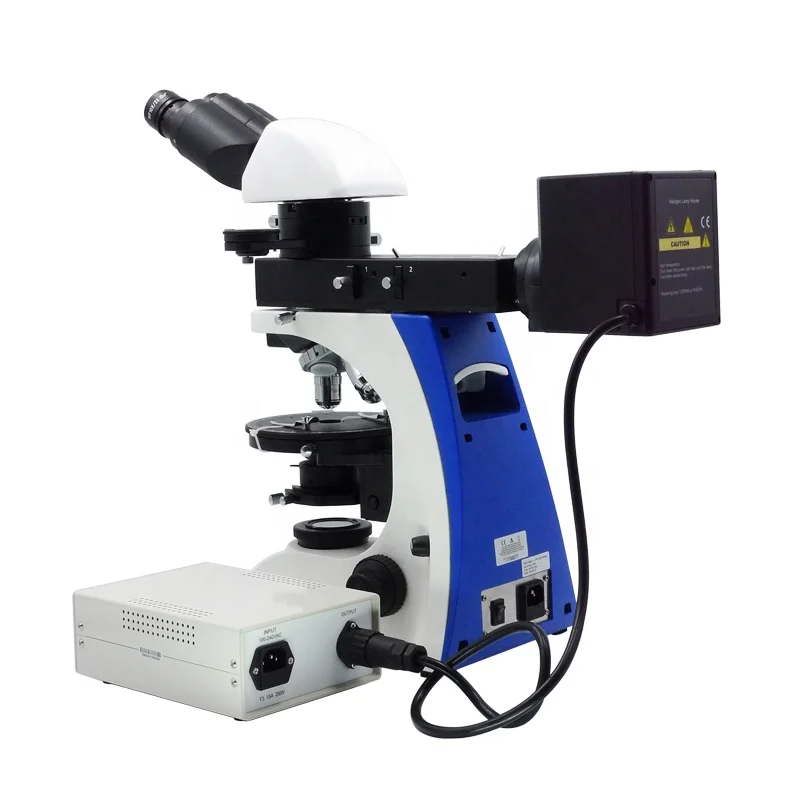

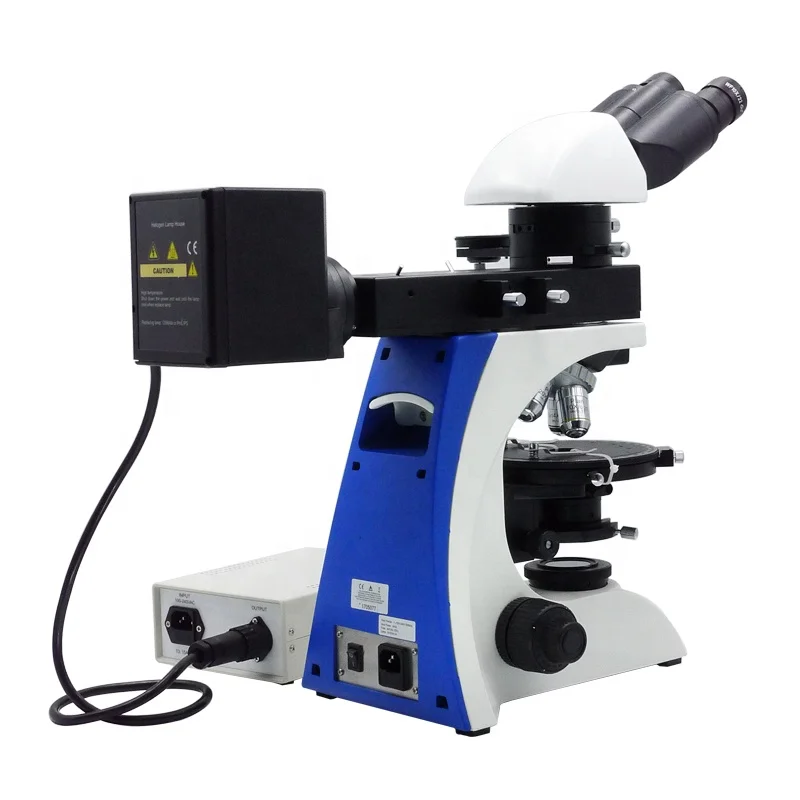

OPTO EDU A15.2601 RTB 640X Reflecting And Transmitting Professional Binocular Polarizing Microscope

Head

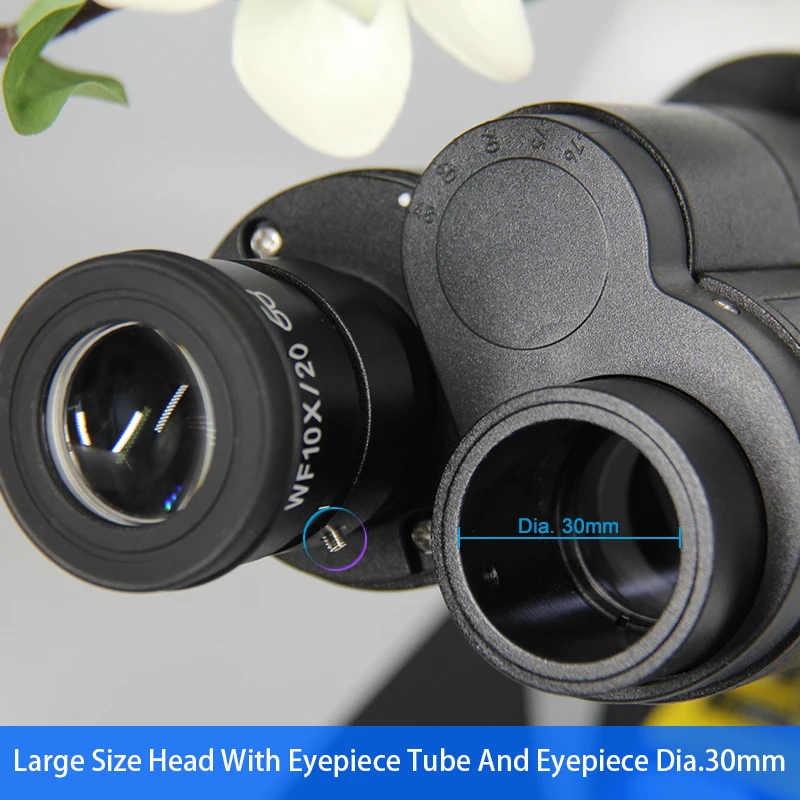

Professional Polarizing Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm, Eyepiece Tube
Dia.30mm,
Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction
Even When Eyepiece Tube Turned

●

●

●

A53.2625-B

Professional Polarizing Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance 48-76mm,
Light Split Switch E100:P0/E20:P80, Eyepiece Tube Dia.30mm
Joint Move Design: Speically For Polarzing Microscope, To Keep Right Side Eyepiece's Cross In View Field Keep Vertical Direction
Even When Eyepiece Tube Turned

●

●

●

A53.2625-T

Eyepiece

WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

●

●

A51.2621-1022

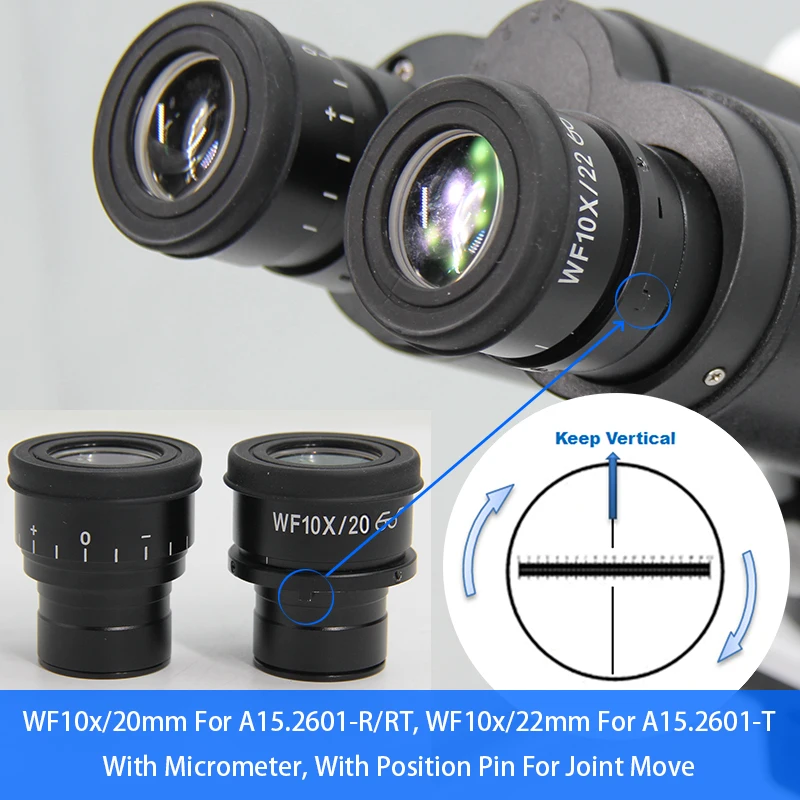

WF10x/22mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move

●

●

A51.2622-1022P

WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustable

●

●

●

●

A51.2621-1020

WF10x/20mm, Dia.30mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable, With Position Pin For Joint Move

●

●

●

●

A51.2622-1020P

Nosepiece

Quintuple, Center Adjustable

●

●

●

●

●

●

A54.2610-N02

Non-Stress

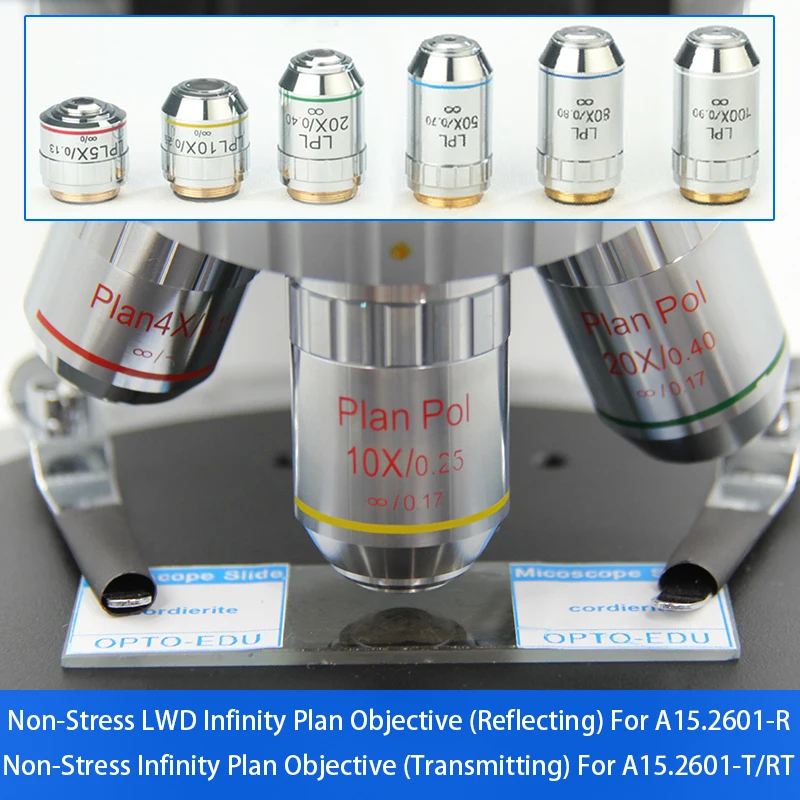

Infinity Plan Objective
(Transmitting)

PLAN 4x/0.10, W.D.=12.1mm

●

●

●

●

A5P.2630-4

PLAN 10x/0.25, W.D.=4.64mm

●

●

●

●

A5P.2630-10

PLAN 20x/0.40(S), W.D.=2.41mm

●

●

●

●

A5P.2630-20

PLAN 40x/0.66(S), W.D.=0.65mm

●

●

●

●

A5P.2630-40

PLAN 60x/0.8(S), W.D.=0.33mm

A5P.2630-60

PLAN 100x/1.25(S,Oil), W.D.=0.12mm

A5P.2630-100

Non-Stress
LWD Infinity
Plan Objective
(Reflecting)

LPL5x/0.13, W.D.=16.04mm

●

●

○

○

A5M.2633-5

LPL10x/0.25 W.D.=18.48mm

●

●

○

○

A5M.2633-10

LPL20x/0.40 W.D.=8.35mm

●

●

○

○

A5M.2633-20

LPL50x/0.70(S) W.D.=1.95mm

●

●

●

●

A5M.2633-50

LPL100x/0.90(S,Dry) W.D.=1.10mm

○

○

○

○

A5M.2633-100

Working Stage

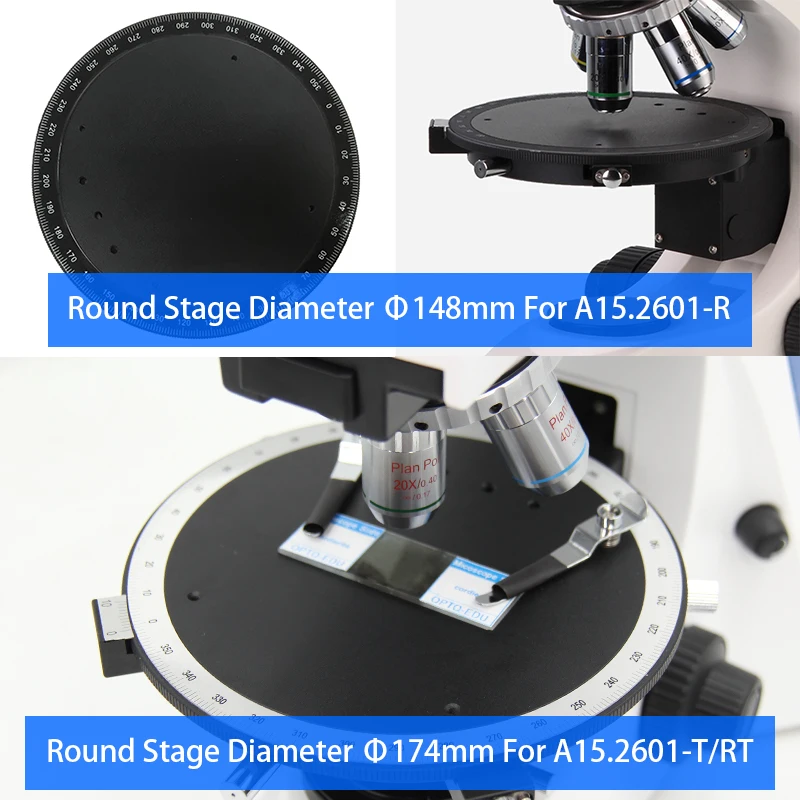

Round Stage Diameter Φ174mm, For Transmit Light,
Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked

●

●

○

○

●

●

A54.2602-S06

Round Stage Diameter Φ148mm, For Reflect Light,
Rotatable 360°, Division 1', Vernier Division 6', Can Be Locked

●

●

A54.2602-S06a

Attachable Mechanical Stage For Polaring Microscope, Moving Range 40x40mm

○

○

○

○

○

○

A5P.2616

Attachable Mechanical Stage For Polaring Microscope, Moving Range 30x45mm, Lecia Type, Avoid Hitting Objective Lens

○

○

○

○

○

○

A5P.2616-LK

Condenser

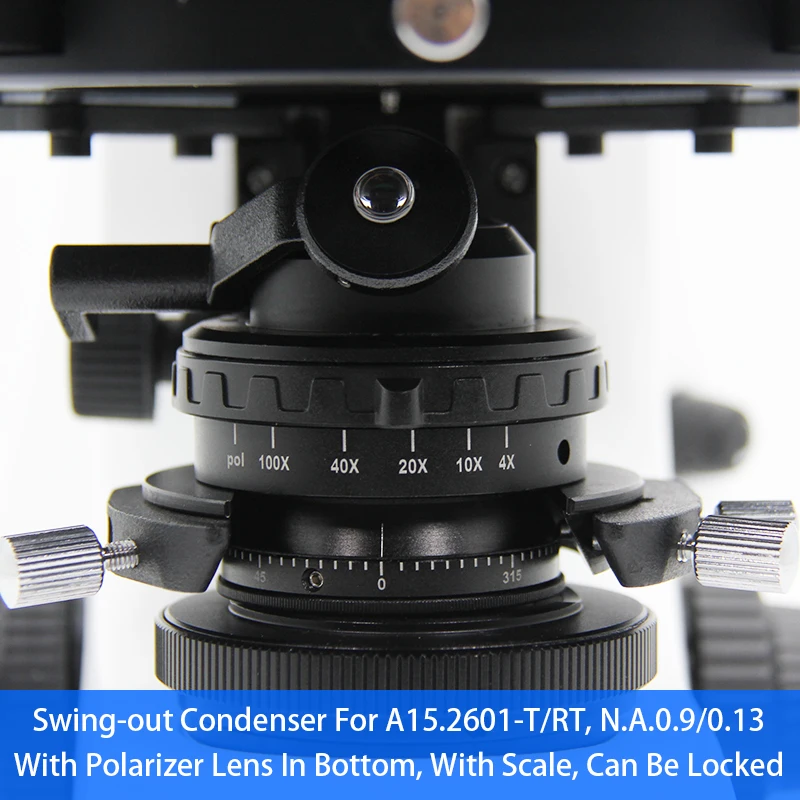

Swing Out Condnser, N.A.0.9/0.13, With Polarizer Lens In Bottom, With Scale, Can Be Locked

●

●

●

●

A56.2614-C10

Polarizing Unit

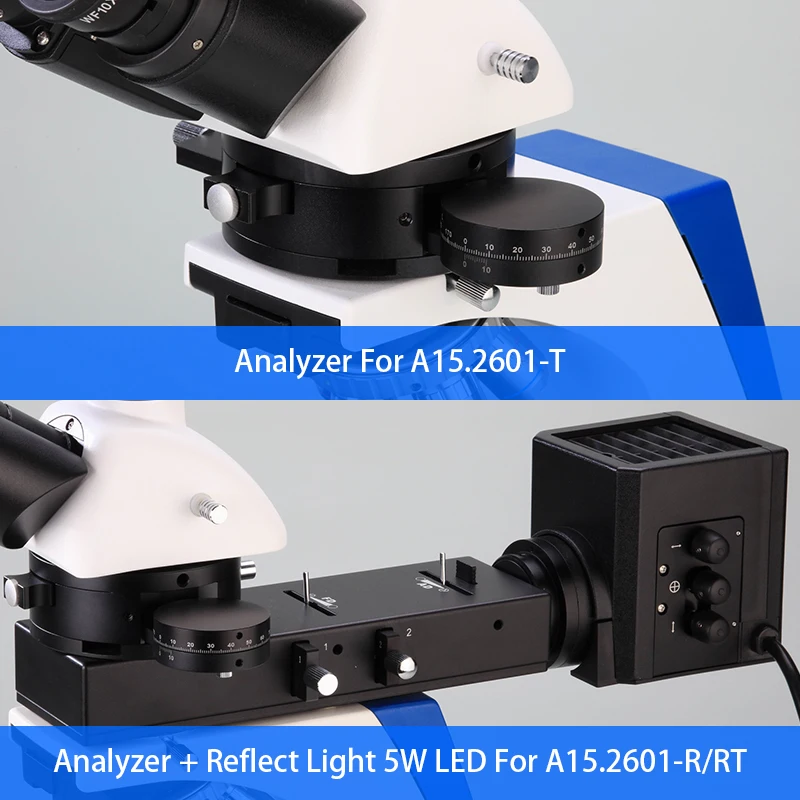

Analyzer Media Unit, Between Head And Body,
Analyzer 0~360° Adjustable, Can Be Locked,
With Betrand Lens Built-in Focus Adjustable,

●

●

●

●

●

●

A5P.2621-BK

Compensator Slide, With λ Slip (First Class Red)

●

●

●

●

●

●

A5P.2614-16a

Compensator Slide, With λ/4 Slip

●

●

●

●

●

●

A5P.2614-15a

Quartz Wedge Slide (I-IV Class)

●

●

●

●

●

●

A5P.2615-17

Quartz Wedge Slide (0-IV Class) Long Type

○

○

○

○

○

○

A5P.2615-17a

Polarizer Lens, Bulit-in Bottom Part Of Condenser

●

●

●

●

●

●

A5P.2610-BK

Focusing

Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm

●

●

●

●

●

●

Illumination

Transmit Light 5W LED
Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply
For Outdoor Use

●

●

●

●

A56.2612-5W

Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V

○

○

○

○

A56.2613-30W

Reflect Light 5W LED
Koehler Illumination, Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply
For Outdoor Use

●

●

●

●

A56.2612-5W

Reflect Light 12V50W Halogen
Koehler Illumination, Wide Voltage 100V~240V

○

○

○

○

A56.2613-50W

Field Diaphragm

For Kohler Illumnation

●

●

●

●

●

●

A56.2615-BK

Power

ECO, Auto Power Off System.
Power Off Automatically Upon User Leaving 10 Minutes,
Power On Automatically Upon User Approaching Detected,
This Function Can Be Shut Down Manually

○

○

○

○

A56.2660

Filter

Dia.45mm, Blue

○

○

○

○

○

○

A56.2616-45B

Dia.45mm, Green

○

○

○

○

○

○

A56.2616-45G

Dia.45mm, Yellow

○

○

○

○

○

○

A56.2616-45A

Adapter

C-Mount 0.5x, Focus Adjustable

○

○

○

A55.2601-05

C-Mount 0.75x, Focus Adjustable

○

○

○

A55.2601-75

C-Mount 1.0x, Focus Adjustable

○

○

○

A55.2601-10

Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm

○

○

○

A55.2610

Package & Weight

Carton Size 520×470×285mm, 1 Unit/Ctn, Gross Weight: 12.5 kgs, Net Weight: 10.0 kgs

A15.2601-TB,TT

Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 16.0 kgs, Net Weight: 12.5 kgs

A15.2601-RB,RT

Carton Size 520×470×430mm, 1 Unit/Ctn, Gross Weight: 15.0 kgs, Net Weight: 11.5 kgs

A15.2601-RTB,RTT

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories
