Ватерная машина из нетканого полиэстера
- Category: Nonwoven Machines >>>
- Supplier: Dongyang Aolong Nonwoven Equipment Co. Ltd.
Share on (60824992825):
Product Overview
Description
Product Description

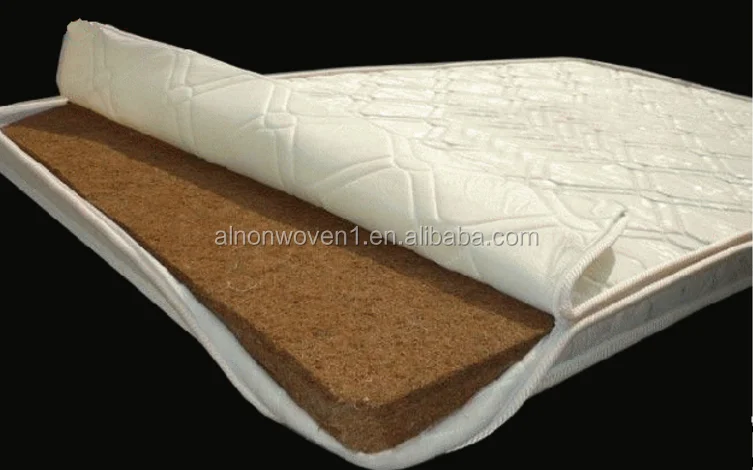

Needle punching machine can convent the fleeciness textile fiber into Acupuncture cotton,high-density and high-spring such as Thermal insulation blanket,Greenhouses quilt raw materials,Shoes materials,Mattresses,Sofa cushion,Car mats,Chemical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acupuncture process,Strengthening process.
Main Features
1) Net product width: 2300mm, 2500mm, 3200mm
2) Product specification: 80-1000g/m2.
3) Production capacities: 80-200kg/h.
4) Heating source: heat-conducting oil, direct ignition.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Certifications
Detailed Images

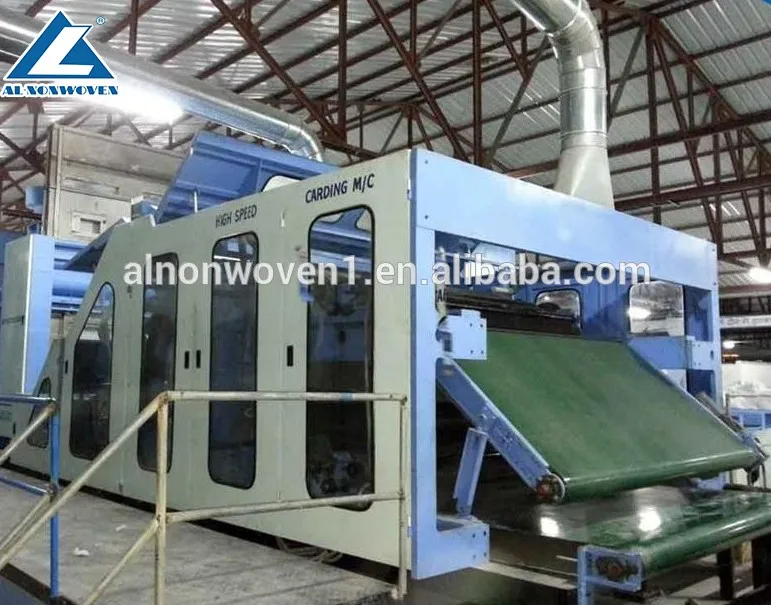

Double cylinder double doff carding machine
Working Width: 1850mm
Mechanical type: double cylinder double doffer four random
Proper fiber specification:1.5D-7D
Main cylinder diameter 1230mm with 5 sets working zones.
Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function.
ALHM- -150 Big cabinet blender
Conveying Lattice is PVC material
Machine with the modular structure
Connecting with main opener linkage controlling
Directly dropping style
Installed capacity:4.71kw
ALHX, OVEN MACHINE
OVEN length: 6000-8000mm
Working width: 2800mm-2800mm
Working temperture: ≤220℃
Working speed: 1-10m/min
Feeding type: gas, heating,oil,electricity

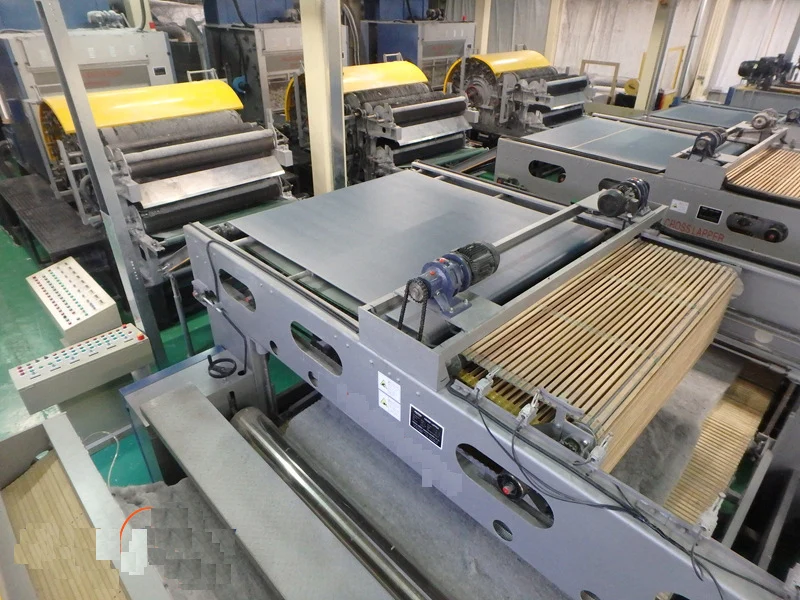

Cross Lapper machine
Effective output width≤3000mm
Input Lattice length: 2000mm(anti-skidding PVC belt)
Output Lattice length:2900mm
Bottom lattice: Bamboo lattice, lift range: 500mm
All the horizontal moving rollers adopt seamless steel pipes
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
