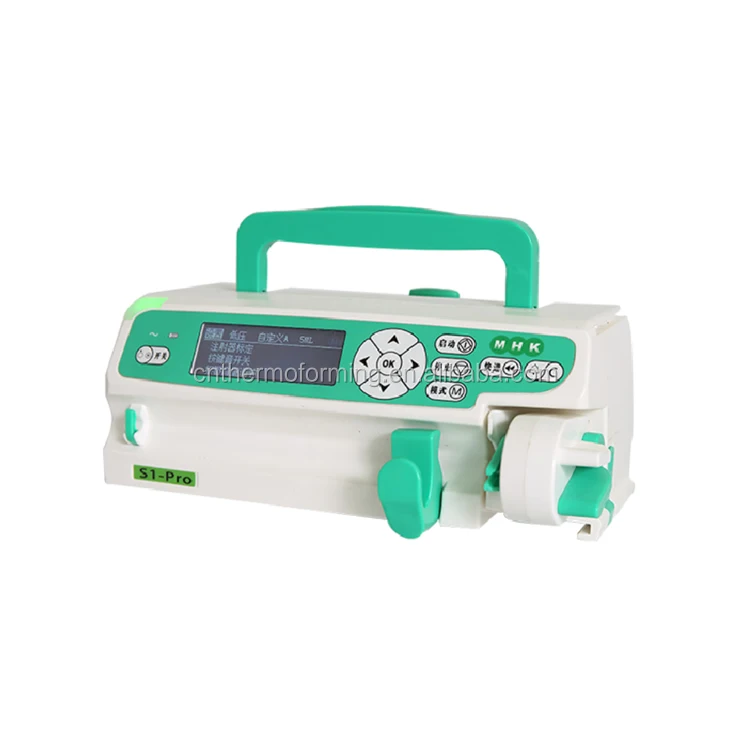

Perfusor Compact Electric Syringe Pump
- Category: >>>
- Supplier: Guangzhou Sme Plastic Corp.
Share on (60824995342):
Product Overview
Description
Simple to use
Different parameter setting with numeric key lead to easier using and less mistake.
Various infusion modes preseted to meet different types of medicine transfusion.
Specification parameters of 10 kinds of syringe preseted. User defined syring parameters can be set.
Professional design

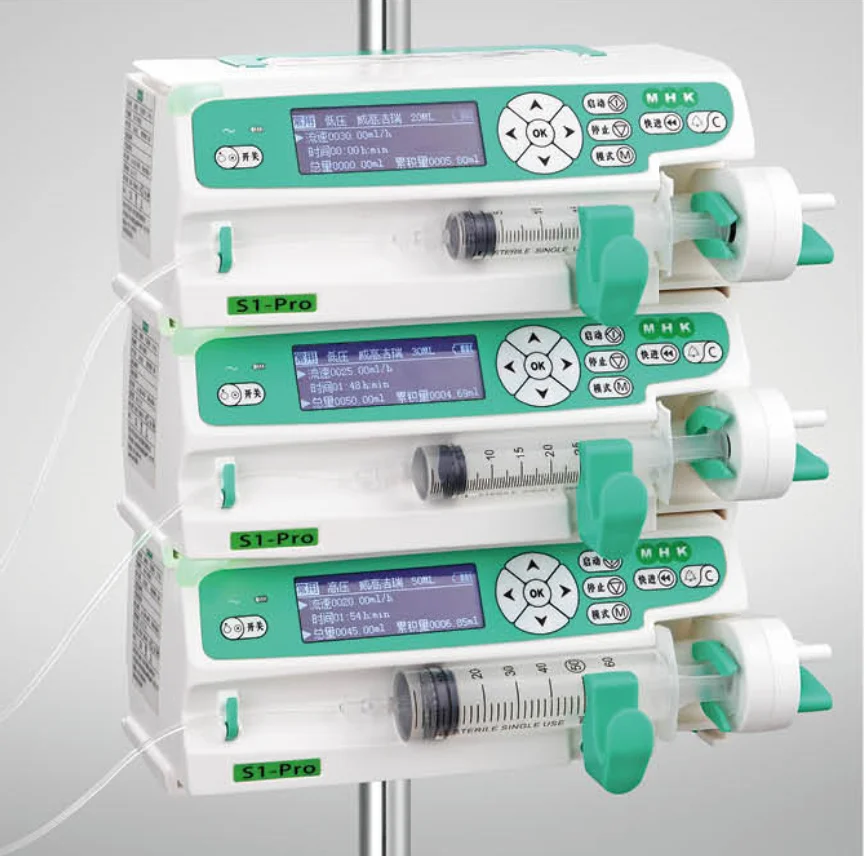

Capable of multi machines piling up to work.
With fastener for extension tube

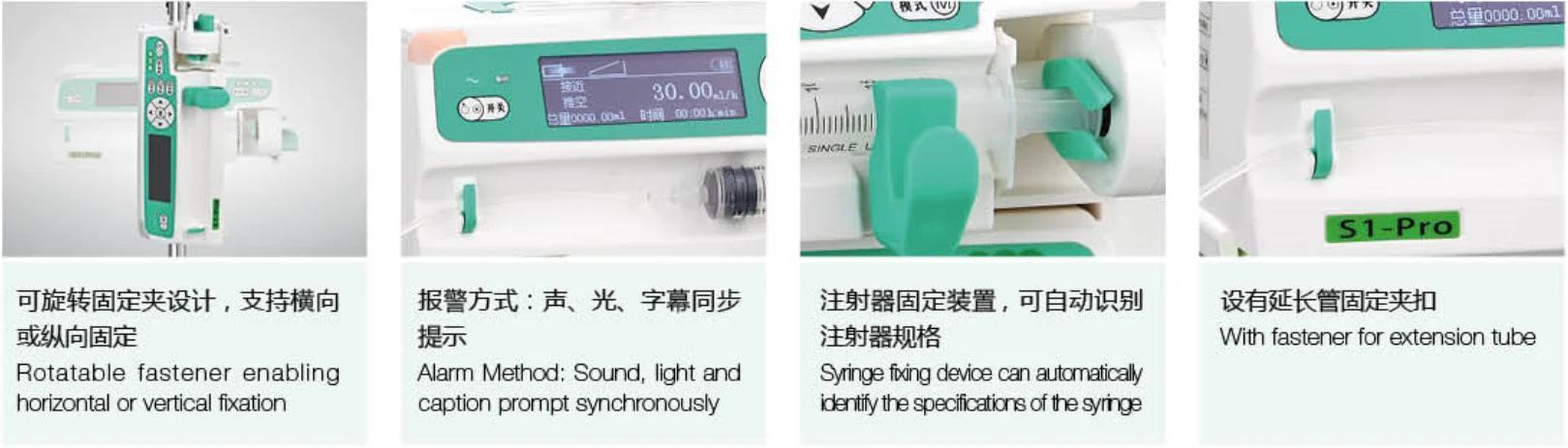

Rotatable fastener enabling horizontal or vertical fixation.
Integrative environmental friendly design prevents the internal leakage of medicine.
Safety and reliability
Special pressure alarm with shift key of high; medium and low, perfect alert function; Sound, light and caption prompt synchronously.
Function of pressure relief allows the relief of pressure automatically after occlusion alarm.
Function of display and setting for velocity of flow and infusion volume
Function to display the completed iniection volume.
Intellectualized management of battery extends the battery life.
Technical Parameters: | Applicable for 5ml, 10ml, 20ml, 30mi, 50/60ml syringe |
Injection Accuracy: | ±2.5% |
Range of injection velocity: | 5 ml syringe: 0.1-150ml/h, |
Range of Cumulative volume: | 0-9999.99ml |
KVO velocity: | Flow rate>10ml/h, KVO=3ml/h; flow rates10m/n, KVO=1mlh |
Rapid Injection: | Yes |
Bolus Injection: | Yes |
Occlusion Pressure: | 25kPa-137kPa, with High, Medium, Low adjustable shift |
Alarm Function: | Preseted injection volume, completed, occlusion, wrong placement of syringe, low battery voltage, battery exhausted, motor module malfunction, pressure module malfunction, and the like 13 kinds of alarm function |
Alarm Method: | Sound, light and caption prompt synchronously |
Power Supply: | AC100V-240V, 50/60Hz, 12V built-in rechargable lithium battery, able to work continuously not less than 6 hours (actual working time subject to the battery capacity and loss) |
Power: | 30VA |
Size: | 260x140x110 (mm) |
Classification of Safety: | Type CF, Class II |
Grade of water resistance: | PX4 |
Product Life | 5 years |
Executive Standard | IEC_60601-2-24-2012 & IEC 60601-1_3ed_2005 |
