1000 KW load banks 3 phase cutomed load bank for generator testing
- Category: Battery Testers >>>
- Supplier: Hebei,Kaixiang,Electrical,Technology,Co.,Ltd
Share on:
Product Overview
Description
1000 KW load banks 3 phase cutomed load bank for generator testing
Introduction
1000KW Load bank consists of 1 sets of 1000kW resistive load bank.1000KW Load bank is made up of two parts of measurement and control and load, mainly including AC dry load, automatic data acquisition system, automatically loading and unloading control system, the cooling device, auxiliary control, PC software and so on.
Specification
AC400-1000kW Automatic Load Bank | |
Rating Voltage/Frequency | 400VAC, 3 phase 4 wire, wire voltage 400V, phase voltage 230V 50Hz |
Rated Load Power | Resistive load: 1000kW |
Installed Capacity | Resistive load: 1000kW |
Load Step | 1,2,2,5,10,10,20,50,100,200,200,200,200kW, min step load: 1kW |
PF(Power Factor) | 1 |
Load Tolerance (each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power | External 380VAC/50Hz, 3 phase 4 wire, 220V 1-phase |
Wire Connection | Load power supply input——Copper bar (star coupling) Control power supply input——Connector-bar |
Insulation | F |
Duty Cycle | Continuous |
Cooling Type | Force air cooling, horizontal air inlet and vertical air outlet |
Transportation | Hoisting, there are lifting lug on top and castors at the bottom of casing |
Dimension | About 2440mm*1400mm*1680mm(L×W×H) |
Weight | About 1200kgs |
Casing Color | Grey(RAL7035)or as required |
Operating Environment Parameter | |
Workplace | Indoor |
Ambient Temperature | -20℃~+50℃ |
Relative Humidity | ≤95% |
Altitude | ≤2500 meter |
Atmospheric Pressure | 86~106kPa |
Certificate and qualification
Company structure
Overview of company
What We Can Do
1. Professional technical team with more than 20 years design experience.
2. Customized technical solutions meet customer’s individual requirements.
3. Skilled workman insure the reliable assembly technology.
4. Strict inspection procedures throughout the whole production flow.
5. Prompt delivery & custom clearance make sure the customers receive the goods on time.
6. Perfect after sales service create good user experience.
7. Reliable quality & competitive price help customers to maximize profits.
8. Timely feedback save valued time for the customer.
9. Humanized management system build homelike work atmosphere.
10. Continuous devote to public welfare undertakings strive for harmonious society.

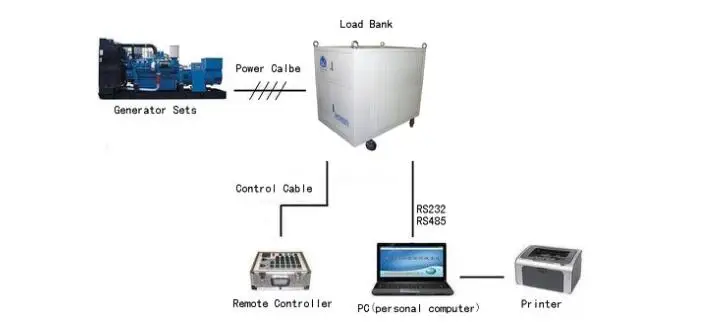

Application
