Product Overview
Description
ZHEJIANG OYAD PUMP CO.,LTD
MODEL :class A circulation pump AUTO25-4 A 180
| MODEL | Length | Power | Head | Flow rate | Inlet/outlet |
| AUTO25-4 A | 180mm | 5-22W | 1.2-4M | 44l/min | 1 1/2 inch |
| AUTO25-6 A | 180mm | 5-45W | 1.2-6M | 60l/min | 1 1/2 inch |
The Technical data:
1.Fluid temeprature range:-10℃ to 110℃
2.Max.working pressure:10bar
3.Max Permissible ambient temperature:+40℃
Motor data:
1.degree of protection:IP42
2.Insulating class:F
3.Ennegy Class:A
4.Noise<45dB
Material for pumps:
1.Ceramic shaft
2. impeller:PP
3.Pump body:Cast iron
4.Connectors:cast iron connectors (or brass connectors)
5.100%Copper wire
6.Therminal box:LDPE
7.Rotor:Stainless steel material
8.Bearing:Ceramic
our pumps
factory
ZHEJIANG OYAD PUMP CO.,LTD is the new company name of Wenling Chentai Pump CO.,LTD.
Histroy:Our company was established in the year of 2007,is specialized in the hot water circulation pump and home use booster pump design ,development ,production and manufacturing enterprises.
Scale: Cover working area of 4000 square meters,have more than 50 employees.
Equipment: Automatic wiring machine for motor parts, Professional test mechine to test every pump.
Production capacity: 30000 pcs/month;
Marketing network: Europe,Asia,America,etc.

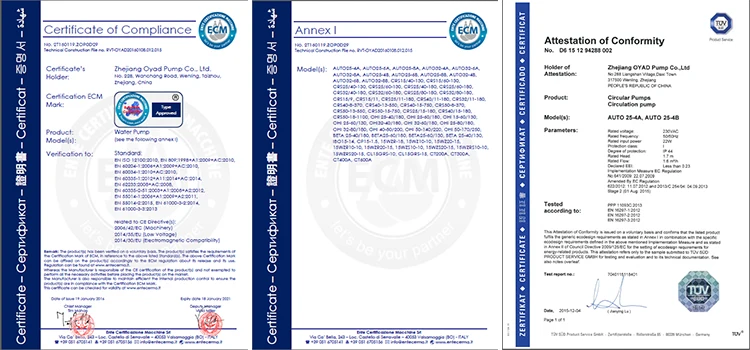

Certificate
