Plywood Machine Core Veneer Dryer Machine Roller Woodworking Machinery Woodworking Planer Automatic 20 Layers
- Category: Wood Based Panels Machinery >>>
- Supplier: Linyi,Ruifeng,Machinery,Factory
Share on:
Product Overview
Description
Plywood machine core veneer dryer machine roller veneer dryer
Product Description
Whatever the method of veneer, eventually the veneer must be dried. Its moisture content must be reduced to between 6% to 12%. Considering that the veneer has a moisture content well above FSP, this step requires a lot of energy. The two most common dryers are roller dryer and belt dryers. the later allows veneer to be fed in to the dryer with its grain angle perpendicular to the sense of feed. Consequently, they can be used to dry continuous ribbons of veneer. Roller dryers are energetically efficiend because the rollers arre heated and since these carry the veneer through the dryer the direct contact with the dryer permits heating through conduction, which is more effiecient than by convection. The rollers are typically 100mm in diameters.

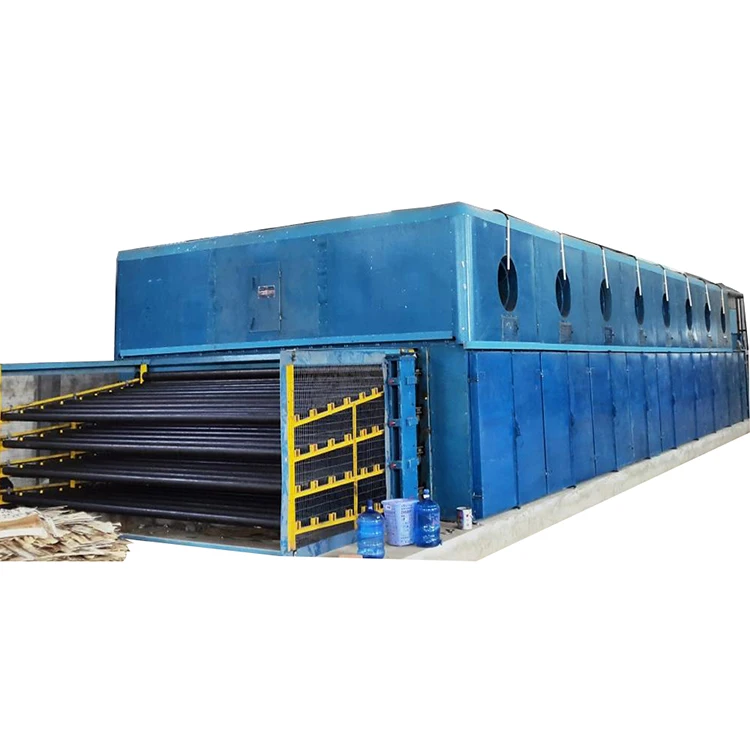

Roller type core veneer dryer
| Model | BG1633-13 roller type |
| Veneer thickness | ≥1.5mm |
| Veneer density | 550kg/m³ |
| Initial moisture content | 0.8 |
| Final moisture content | 0.1 |
| Working width | 2800mm |
| Working decks | 3 layers |
| Length of heating section | 13*2000mm |
| Drying capacity | 5.5m³/h |
| Conveyor motor | 3*7.5kw |
| Hot air motor | 13*7.5kw |
| Cooler motor | 7kw |
Plywood making wood veneer drying machine
Plywood making wood veneer drying machine
Net face veeer net type dryer machine
| Model | BG1632F |
| Veneer thickness | 0.3mm--1.0mm |
| Veneer density | 550kg/m³ |
| Initial moisture content | 0.7 |
| Final moisture content | 10% |
| Working width | 2650mm |
| Working decks | 2 layers |
| Length | 25m |
| Drying capacity | 1.7m³/h |
| Conveyor motor | 4 kw |
| Conveyor speed | 1.5m/min - 15m/min |
| Heating motor | 4 kw*3 |
| Veneer swing motor | 1.5 kw |
Plywood making wood veneer drying machine
Plywood making wood veneer drying machine
Plywood making wood veneer drying machine
Veneer dryer hot press
The machine is a new type of veneer dehumidity dry hot press which is based on many years experience and development of our company. It has already been proved by many customers in forestry industry to be a most efficient and energy saving dry equipment. It suits the dehumidification and flatting of the core boards. The veneer is very flat after drying with sufficient shrinkage. The synchronized closing device with lever spring is installed symmetrically at the hot press, this device can make the hot pressed plates between each layer and the cores can touch or separate at same time. The specially produced hot pressed plates enjoys below features:fast dehumidification and fast steam removing. The frame strcture is used for this device. The cylinder has upper oil inlet which can be installed very conveniently. The saturated steam is used as the heat source to heat the hot pressed plates with high efficiency and low energy consumption. The automatic electric control system is used for the whole process of the dehumidification of the plates as per the set up programme. The operation is very simple.
| Model | BG1448J | BG1448H |
| Veneer thickness | ≥1.0mm | ≥1.0mm |
| Pressure of hydraulic system | 50KN | 1000KN |
| Hot platen material | Q235 square tube | Q235 grooved heat platen |
| Hot platen size | 2700*1370*40mm | 2700*1370*42mm |
| Qty of hot platen | 21 layers | 16 layers |
| Qty of daylight | 20 | 15 |
| Cylinder of hydraulic | 2*φ125 | 4*φ125mm |
| Closing time | less than 5 seconds | Less than 10 seconds |
| Main motor power | 5.5kw | 11kw |
| Simultaneous closing device | No | Yes |
Plywood making wood veneer drying machine
Plywood making wood veneer drying machine
Company Information
Founded in year of 1993, LINYI RUIFENG MACHINERY FACTORY now is one of the professional wood-based panel machinery manufacturers in China. 25 years’ hard work and innovation, RUIFENG becomes to the most reliable brand in domestic market. We do produce all kinds of wood machinery, especially the Forming machine, Cold press, Hot Press, Dryer as well as other machines. And we are capable to produce whole production lines like OSB Line, MDF/HLD Line, Particle Board Line, Block Board Line as well as Plywood Line. We successfully installed wholes lines in Russia, Uzbekistan, Vietnam, Ethiopia as well as other countries.
We have Engineering team to make layout design for customers and to supply reasonable solutions according to request like the raw materials, the designed annual output, the environment policy as well as other facts. And we have Technician team to supply customers professional after-sales service like overseas installation, worker’s training, equipment adjustment and equipment maintenance.
From domestic market to overseas market, RUIFENG grows up to be stronger and will be much more stronger in the cooperation with more and more customers all over the world.
FAQ
1. Q:A FACTORY OR A DEALERS?
A:We are a factory who have been producing wood based panel machinery for 25 years.
2. Q:QUALITY CONTROL?
A: Each machine will be tested three times before delivery.
3. Q:DELIVERY TIME?
A: 30-90 days upon receiving deposit.
4. Q:Factory Layout Design?
A:We have engineer team to make layout drawing for customers for free.
5. Q: After-sales Service?
A: We have technician team to help customers on installation.
6. Q:WARRANTY?
A: One-year warranty,and we supply parts and service all the time.
7. Q:PAYMENT TERMS?
A: T/T, L/C are accepted.
8. Q:MOQ?
A: The MOQ is 1 set.
9. Q: How to go to your factory?
A: There’s three flights per day from SHANGHAI, one flights per day from GUANGZHOU. It takes 45 mins from airport(LINYI AIRPORT) to our factory.
