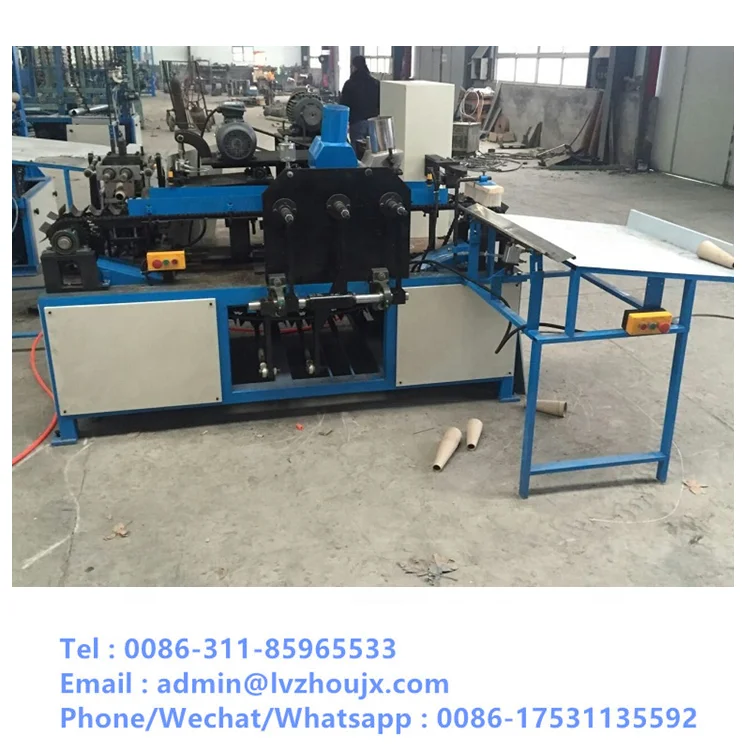

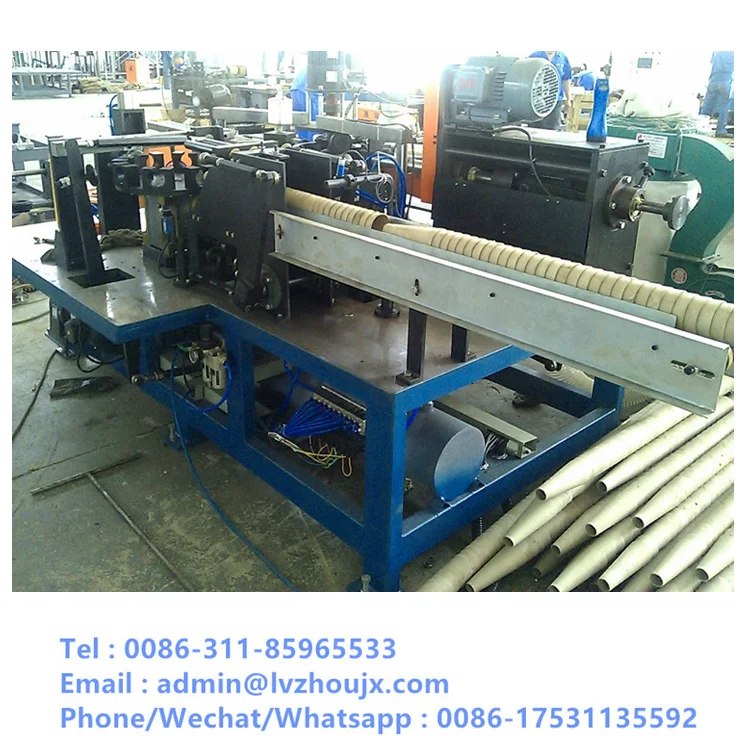

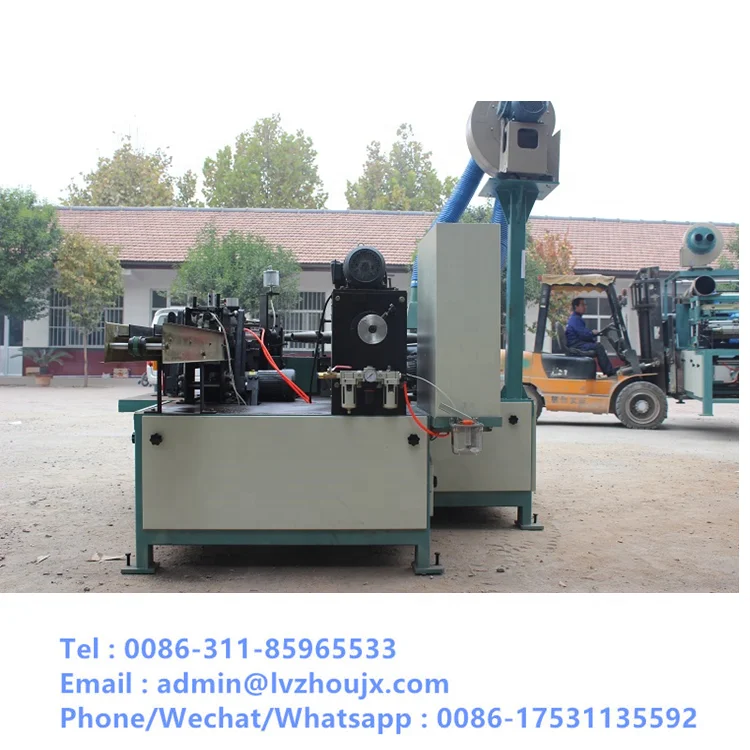

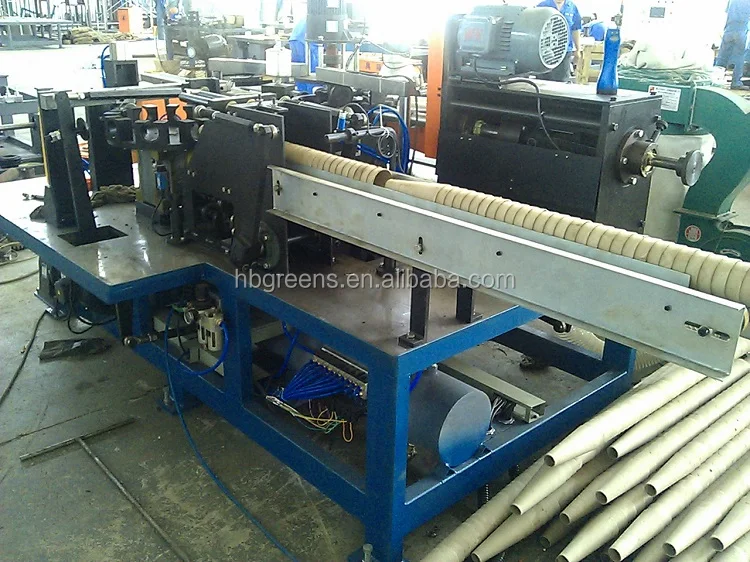

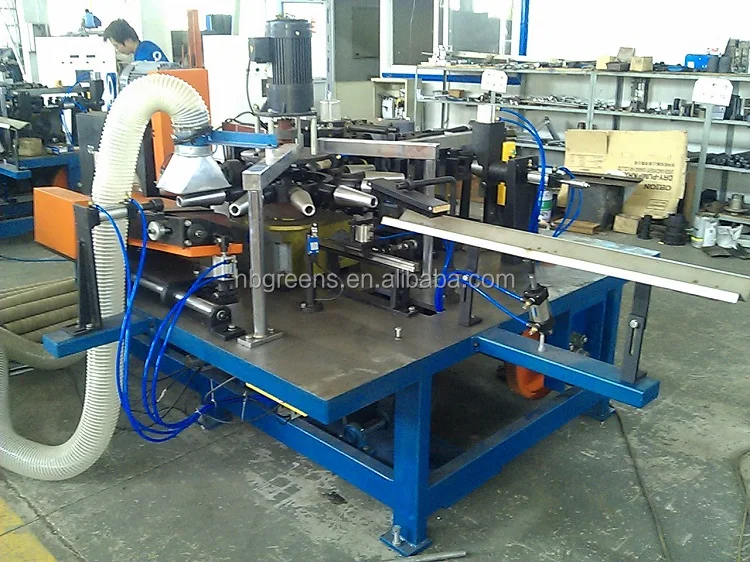

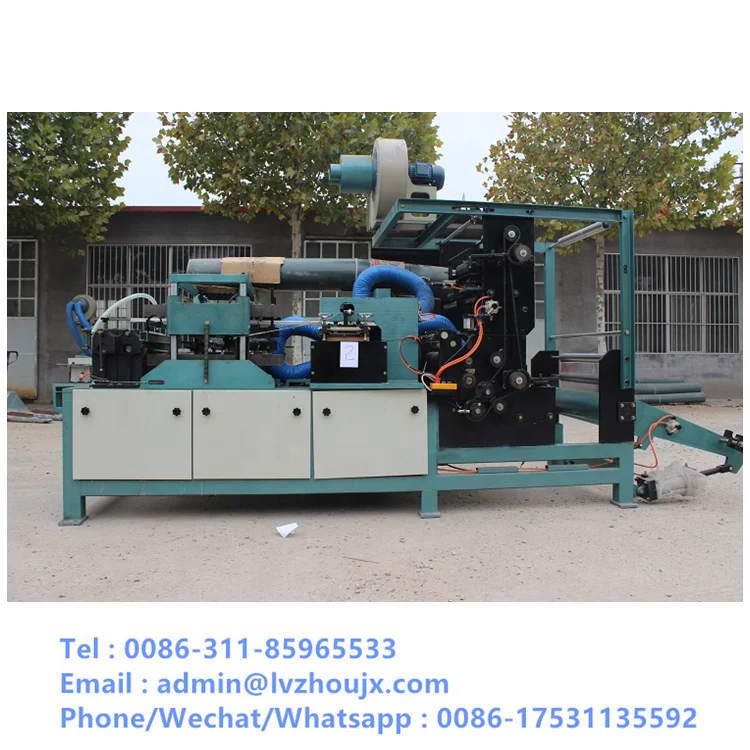

automatic paper cone making machine for yarn

Share on (60825137173):


Price:

Quantity:


Product Overview

Description


20 YEARS PROFESSIONAL MANUFACTURER FROM 1998

WELCOME TO VISIT OUR FACTORY

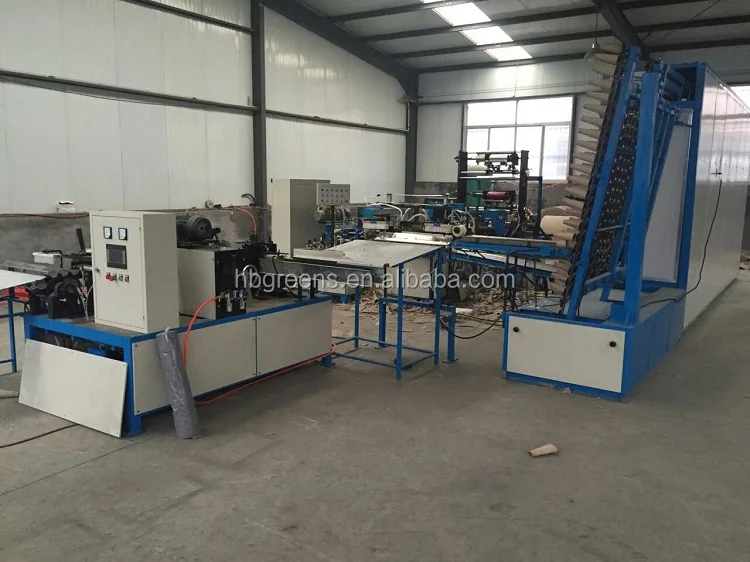

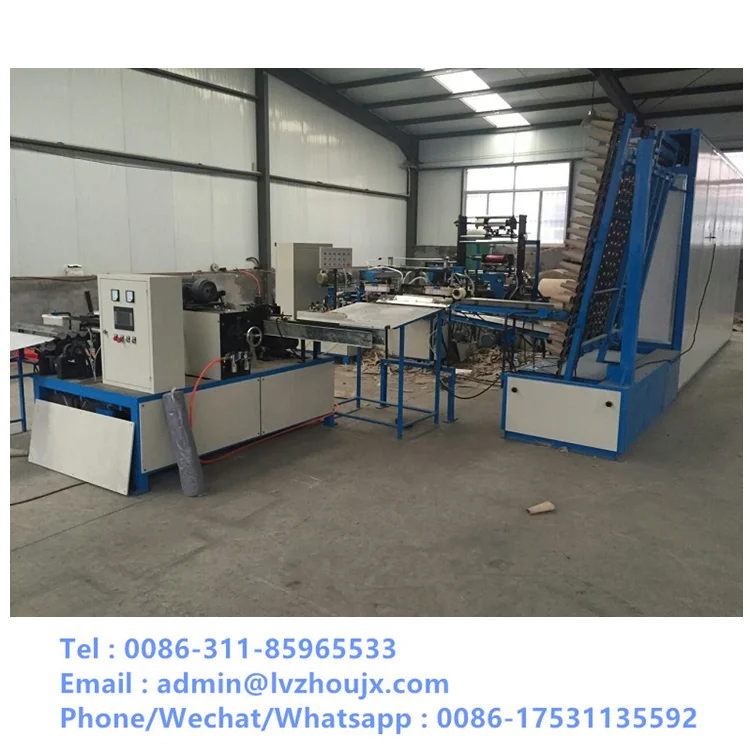

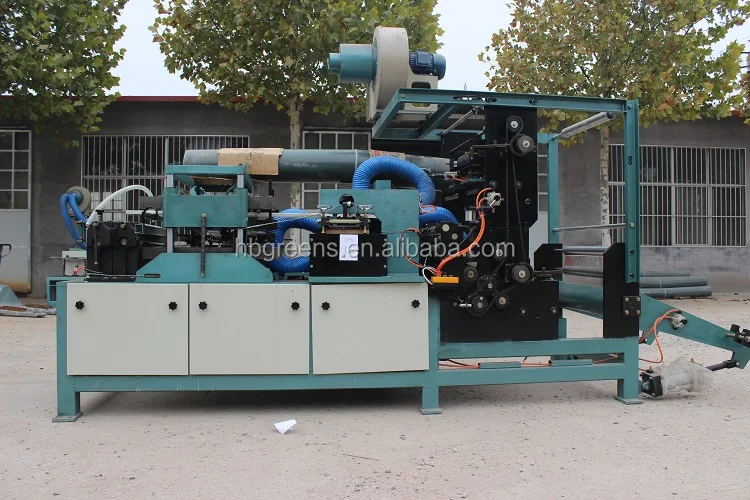

LVZD Automatic paper cone production line

Product Description


Function description:



LVZD automatic paper cone production line does not need any manual manipulation after feeding raw material paper into. The production progress is operated by PLC system. The principal machine transmission uses cam to distribute time structure. Mechanotronics is made up by different service position working principle. Double speed variable frequency control and photo-electric detection approach control, pneumatic time delay control, this machine completes the function of labor-saving, energy saving, high efficiency, and high quality of paper cone production.



Automatic chart:



Paper raw material unwinding-- inside and outside printing-- edge grinding-- paper cutting--glue coating-- rewinding--paper core cutting-- unloading pipe-- counting-- dust collecting-- drying--arranging-- V-shaped opening-- opening polishing-- line pressing-- reflect head-- napping- finished product



Main parameters

  1. Applicable paper: 320-450gsm
  2. Applicable glue: white glue/Tapioca starch glue
  3. Compressed air: 1.2m3/min, 0.8MPa
  4. Operator: 2~3persons/shift



Paper cone machine

  1. Rewinding machine dimension: 5000*6000*3800mm
  2. Heating room: 6040*1700*4100mm
  3. Weight: 8000kg
  4. Speed : 38-55m/min



Napping machine



1. Dimension: 2400*1500*2400mm

2. Motor: 12.6kw

3. Speed: 38-55 m/min

















Other Tape Making Machines We Supply :




Packaging & Shipping




Company Information

Hebei Greens Machinery Manufacturing Co.,Ltd(Hebei Lvjoe Machinery Manufacturing Co.,Ltd) was established in 1998, it’s a diversified development enterprises with researching,designing,manufacturing,project equipment integration. We are a strong company nationally of comprehensive strength in the adhesive tape machinery manufacturing. GREENS had won a lot of national awards, such as high-tech enterprise certificate, many self-patent certificates, the European Union issued CE quality system certification, and ISO9001 quality system certification. We are praised as a municipal civilization group inHebeiProvince; the contract and promise keeping group.



Our company got equipment manufacturing base, adhesive tape making base and machinery importing and exporting company. Our machineries are sold far to Asia, Europe,Africaand other place internationally. We got more than 300 workers, from which, 6 are professor level senior engineers, 40 are intermediate and senior technicians. We mainly undertake varies of adhesive tape making machines, slitting machines, and other whole set of production lines. Depending on our own strength and design, research experience, we can put the new technology from abroad and domestic into use promptly. We got advantages of integrated design, manufacturing and operation till output style to undertake the projects of great difficulty in technology. That’s also why we can ensure the project design quality, raw material saving, cost reducing and to improve the entirety profit of the engineering project.



Our company survives by quality and credit, develops by realistic attitude and innovation. We established a whole set of strict working system and quality management system.We won the praise and recognition from the customers through all the employees’ highly professional dedication and good service attitude under the intense competitive environment. Our company would like to provide good quality products and service to the customers from domestic and abroad by our good reputation and superb technology.



Since it is a good project – we aim to be more professional and achieve win-win!




Our Services

1). Any inquires will be replied within 24 hours

2). Before-sale and after-sale service, overseas engineer service is available
      All products have been strictly quality test in our factory before packing

3). Free technical training,

     until customers can operate independently and qualified tape production produced

4). 12 months warranty

5). long-term providing quick-wear parts

6). life time technical support service
