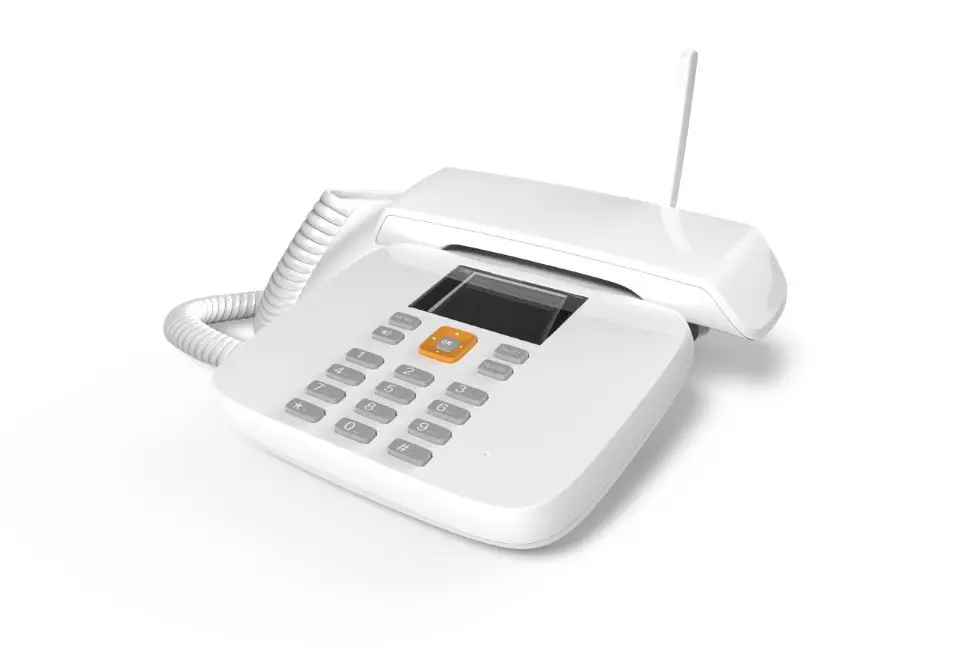

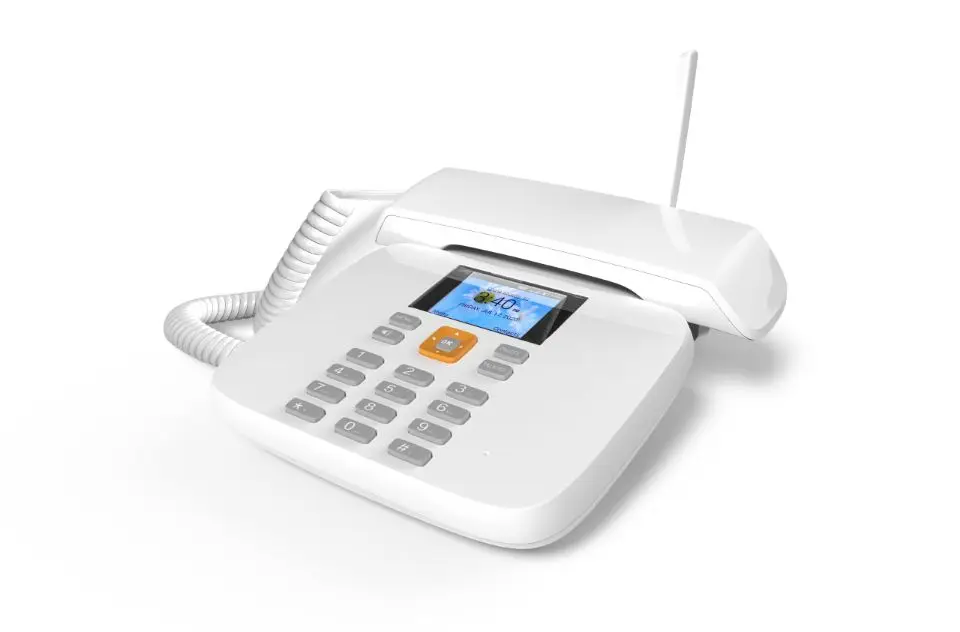

WiFi Hotspot/VoLTE lte 4g gsm desktop phone with RJ45 port

System

Android 4.4

Mention Chipset Brand

Spreadtrum SC9820E

Antenna Type

Built-in antenna

External antenna gain

2.0-3.0dB

Netowrk port

RJ45

Internal antenna type

FPC or PCB antenna

Maximum output

LTE-FDD/TDD: Power Class 3( ≥+20dBm)

HSPA/UMTS :≥+21 dBm (PowerClass 3)

EGSM/GPRS 850/900 MHz≥+31dBm (power Class 4)

EGSM/GPRS 1800/1900 MHz ≥ +28 dBm (Power Class 1)

802.11 b/g 2.4GHz: +11 dBm

Network Type

WCDMA / LTE CAT4

Band types

4G -LTE FDD / TDD

3G - WCDMA(HSPA/UMTS)

2G -EGSM/GPRS

Voice Coding

FR/EFR/HR/AMR

high-quality voice service FR= Full Rate, HR= Half Rate, EFR= Enhanced Full Rate y AMR=AdaptativeMultirate

AMR Coding ARM

YES

SIM Card Reader function SIM

YES

Language

English,Portuguese,Spanish etc.Language can be customized

Missed Calls and incoming call

100 (dialed/missed/received)

contact storage

Up to 1000 items

message storage

Up to 1000 items

Clock & Stop Watch

YES

Alarm Clock

YES

Calendar

YES

Calculator

YES

Redial

YES

Radio FM

YES

MP3

YES

SMS

YES

MMS

YES

Caller ID

YES

Call duration

YES

Speed dial

YES

Hands free mode

YES

Volume control of the speaker

YES

Missed Calls and incoming call

YES

Call Forwarding

YES

Call Waiting

YES

Conference Call

YES

Call barring

YES

Treatments of calls

CSFB and VoLTE(optional)

Redial,Transferencia,Diverse,Retention

HSPA /UMTS 900: compliant

with 3GPP TS 25.101 (R5)

GPRS/EGSM 850/900/1800/1900

MHz: compliant with 3GPP TS 05.05 (R99)

802.11 b/g 2.4GHz: compliant with IEEE 802.11b/g

Sensitivity: -105dB;

Display

LCD  Display:TFT 320X240 Dots

ROM

4G

RAM

521MB

Dual Core Processor

YES

Apps CPU: 4*Cortex-A53, 1 GHz

Cortex A53  Dual-core, Clock: up to 1.3GHz;Support DVFS

Supports VOLTE (HD Voice Calling service on 4G LTE)

YES

Ringtones  Selection

YES

Image format

JPEG, PNG, BMP, GIF,

WiFi

802.11b/g/n

Frecuencia 2.4Ghz

WiFi Hotspot capability (up to 7 users)

Blue-tooth

optional

Support WLAN

YES

Voice mail

YES

Web Browser

YES

OS(Android)

YES

Digital Voice Recorder

YES

Audio/Video Player

YES

DC Conector DC

5.0V/1.0A

Battery Capacity

Li-ion Rechargeable

3.7V, 1000mAH capacity

Conversation time: at least 3.0 Hrs

Stand-by time: Max to 80 Hrs

SIM CARD

Support SIM Card 1.8/3.0V

No. of SIM slots

SIM,SD card

SIM lock,Network lock & PIN lock

 YES

Administration and Configuration

through the display and the menu. Or through a web browser and Computer friendly. Compatible operating systems: Windows XP, Windows Vista, Windows 7,10de 32 or 64 bit Linux and Mac OS.
