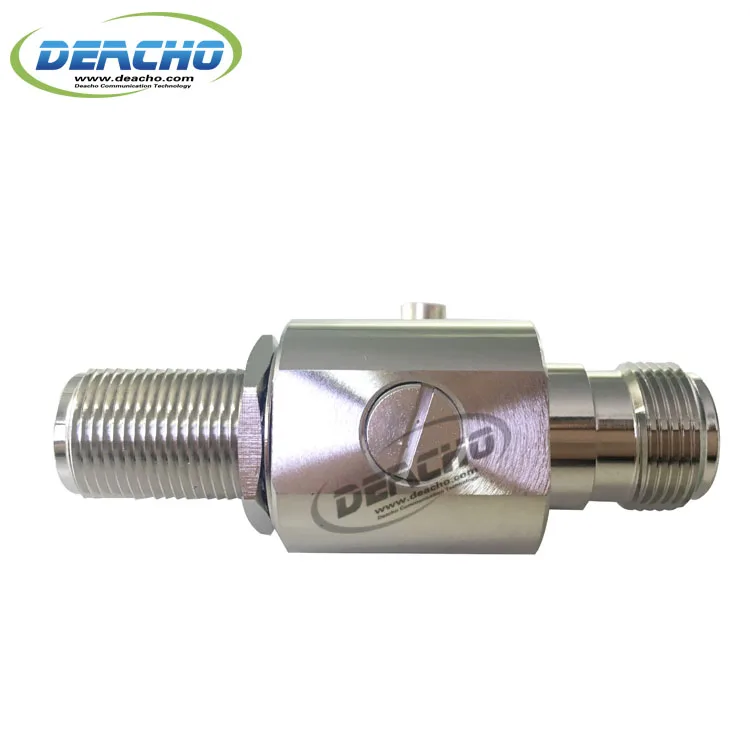

3G gas discharge tube EMP lightning surge arrester protection in rf coaxial engineering N connector bulkhead chassis
- Category: >>>
- Supplier: Xiamen Dianchang Communication Technology Co. Ltd.
Share on (60825297948):
Product Overview
Description
Product Description

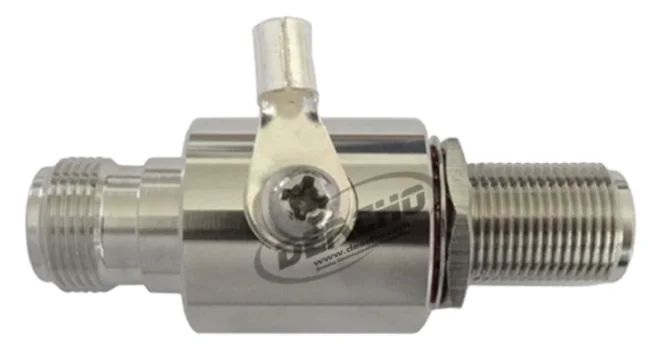

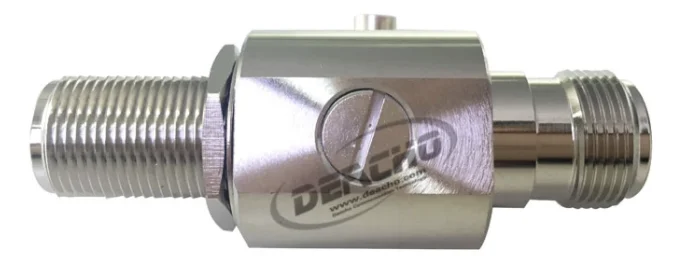

3G discharge tube surge arrester N type female to female bulkhead chassis
Description.
Surge protector (or surge arrestor or lightning arrestor) is an device designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the unwanted voltage supplied to an electric device by either blocking or shorting to ground. Surge arrestor provide excellent lightning protection and outstanding RF performance. All designs have low return loss, low insertion loss and low intermodulation. We offer quarter-wave type and gas discharge tube.
Feature.
● Broad frequency
● Outstanding RF performance
● Complete weatherproof
● Available with N/DIN/4.3-10/BNC/TNC/SMA interface
________________________________ SPECIFICATION ____________________________________
Electrical | ||
Item No. | LAG-NFF-B-2.5G-G07 | |
Impedance | 50 ohm | |
Frequency | DC~3 GHZ | |
VSWR | ≤1.20 | |
Insertion Loss | ≤ 0.2 db | |
Pressure AC(V min) | 4000V 1min No breakdown and no arcing phenomenon | |
Insulation Resistance | ≥1x104 MΩ | |
Center contact resistance | ≤0.4m Ω | |
Outer contact resistance | ≤0.2m Ω | |
Rated Power | 200 W | |
Initial discharge voltage | 75/90/150/230 V | |
Peak discharge voltage (1×40μS) | 1000 V | |
Peak discharge current | 20 KA | |
Material and plating | ||
Body | Brass / Tri-alloy plating | |
Center conductor | Brass or bronze / Au plating | |
Insulator | PTFE | |
Environmental | ||
Temperature range | -40℃~+85℃ | |
Watertightness | IP67 | |
Rosh-compliance | Full Rosh-compliance | |
