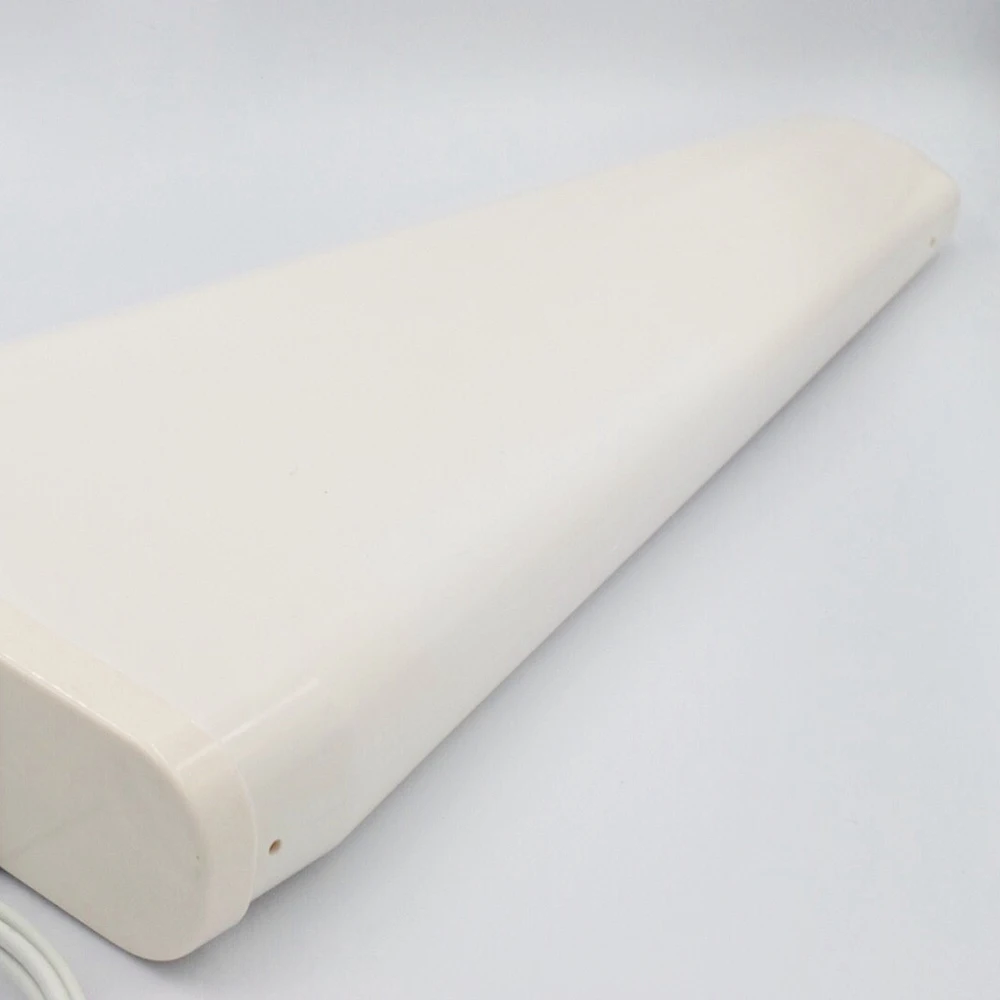

communication 5G Products Indoor/Outdoor Wide band Log Peridoc coverage 698MHz 4000MHz directional antenna
- Category: >>>
- Supplier: Kaiping Taitong Communication Technology Co. Ltd.
Share on (60825362912):
Product Overview
Description
Product Description
Faa-450 analyze lora high range wireless wifi 2.4ghz grid antenna
Features
1, Broad band, low PIM, low VSWR, high power
2, Good appearance
3, Installation is simple, flexible and high efficiency
Electrical Performance Index | |
Product model | G13104C |
Frequency range | 698-960/1710-2700MHz |
Gain | 11/12dBi |
Standing in Bobby | ≤1.5 |
Input impedance | 50Ω |
Polarization mode | Vertical polarization |
Horizontal / vertical semi-power angle | H 65°/50° V 45°/35° |
Third-order Mutual adjusted | ≤-85dBm(@2W) |
Maximum output power | 50W |
Lightning Protection | DC grounding |
Mechanical indicators | |
Operating temperature | -40℃~65℃ |

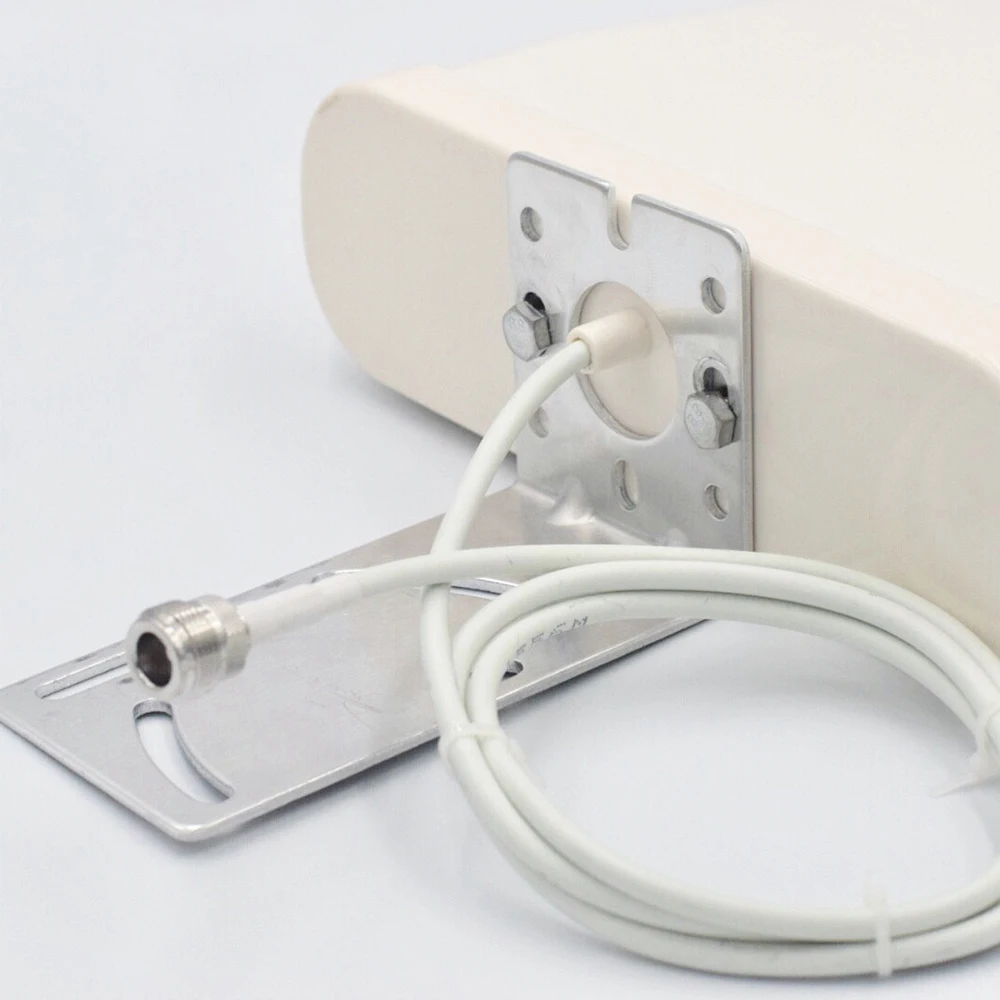

Interface Models | N mother-Head needle |
Wire type | RG58U White |
Wire length | 1M |
Antenna weight | 600g |
Antenna size | 440x205x60mm |

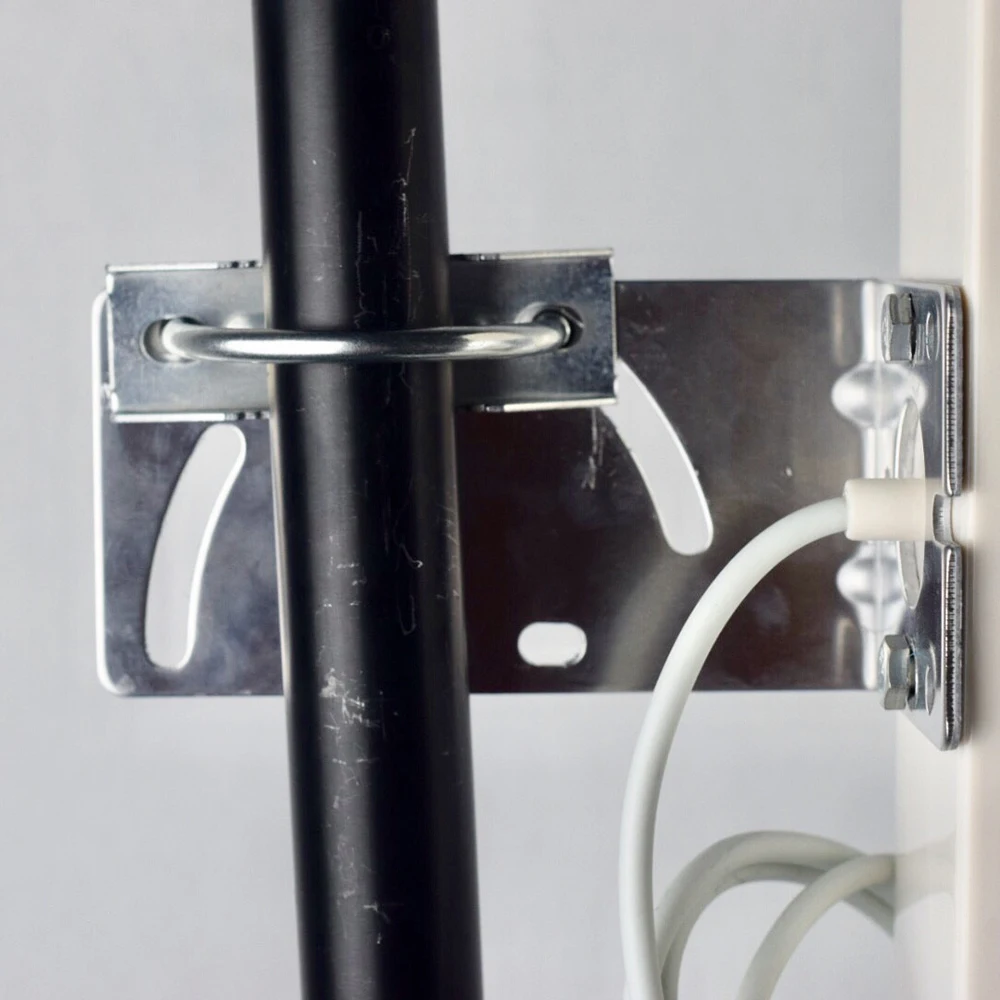

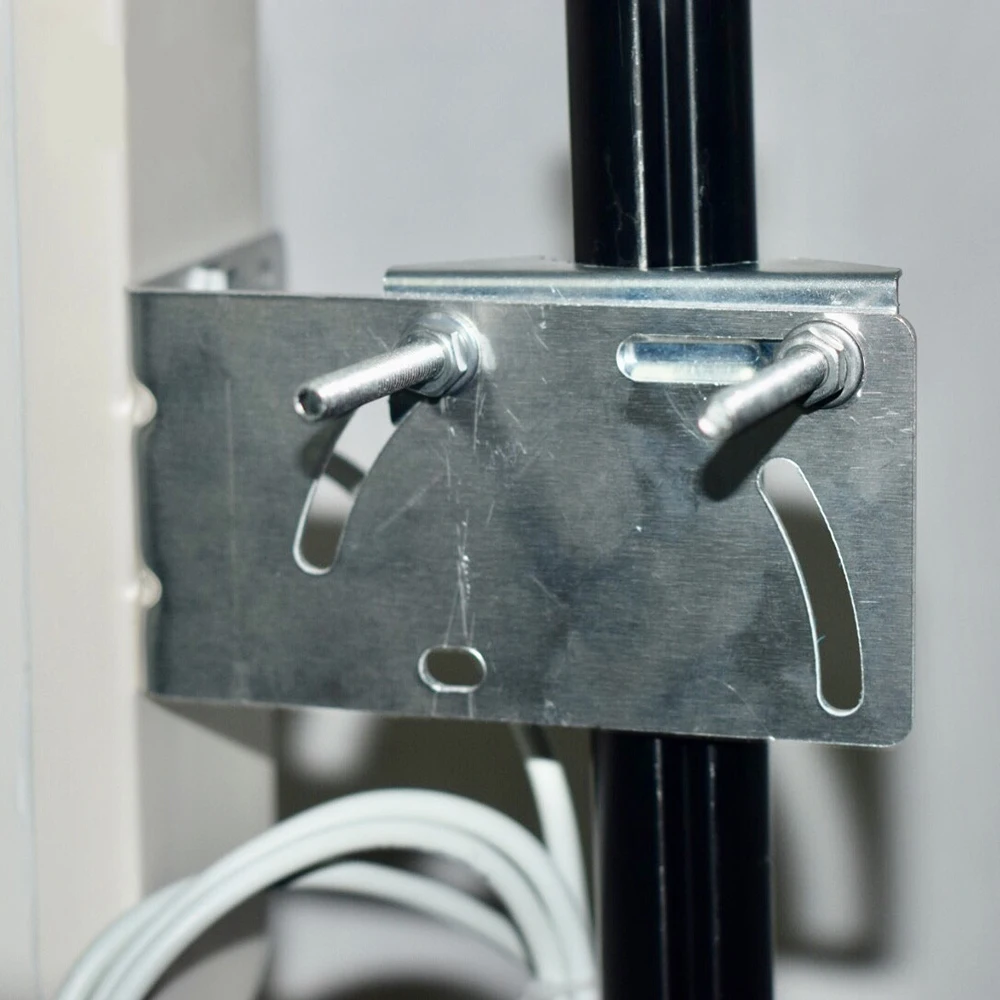

Support Rod | Φ38~55mm |
Wind strength Resistance | 210km/h |
Antenna cover Materials | ABS |
Color | White |
Packaging size | 79*59*45.5CM/20PCS |
Packaging weight | 16.8KG |
