VWS006 Outdoor Air Pollution Air Quality Sensor Monitoring Ultrasonic Weather Station

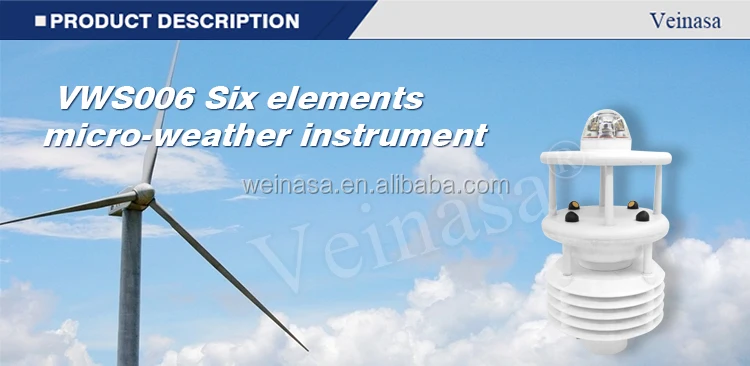

Products Description
VWS006 Outdoor Air Pollution Air Quality Sensor Monitoring ultrasonic weather station is a six elements micro weather meter and it is developed by the company to monitor the many fields of meteorological parameters.
The equipment creatively realizes the weather standard six parameters (ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure, rainfall) through a highly integrated structure, which can realize 24 hours continuous on-line monitoring of outdoor meteorological parameters. The six parameters are output to the user at one time through the digital communication interface. In addition, the product can be extended to add other environmental protection parameters (AQI six parameters: carbon monoxide, nitrogen dioxide, sulfur dioxide, ozone, PM2.5,PM10,etc.).
Monitoring parameter | Measuring range | Resolution | Precision | |||
Temperature | -40-60℃ | 0.1℃ | ±0.3°C (@25°C, typical) | |||
Humidity | 0-100%RH | 0.1%RH | ±3%RH (0-90%RH） | |||
Air pressure | 300-1100hpa | 0.1hpa | ±0.5hpa（0-30℃） | |||
Wind speed | 0-60m/s | 0.01m/s | (0-30m/s) ±0.3m/s or ±3% (30-60m/s)±5% | |||
Wind direction | 0-360° | 0.1° | ±2° | |||
Rainfall | 0-200mm/h | 0.2mm | Error <10% | |||
☆ Parameters | Solar radiation, AQI six parameters (carbon monoxide, nitrogen dioxide, sulfur dioxide, ozone, PM2.5, PM10) | |||||
Technical parameters (☆ represents optional equipment) | ||||||
Monitoring principle | Wind speed and direction (ultrasonic), rainfall (optical) | |||||
Output signal | RS485 communication, Modbus communication protocol | |||||
Power supply | DC12-24V, solar battery | |||||
Fixed form | A) Barrel type fixing; B) Flange transfer plate fixation | |||||
Power consumption | ＜1W@12V | |||||
Shell material | ASA engineering plastics (anti-ultraviolet, weatherproof, anti-corrosion, perennial application of the same color) | |||||
Protection level | IP66 | |||||
☆Fixed bracket | 1.5 m, 3 m flange fixed; 1.8 m tripod fixed | |||||
☆GPS | Device tracking | |||||

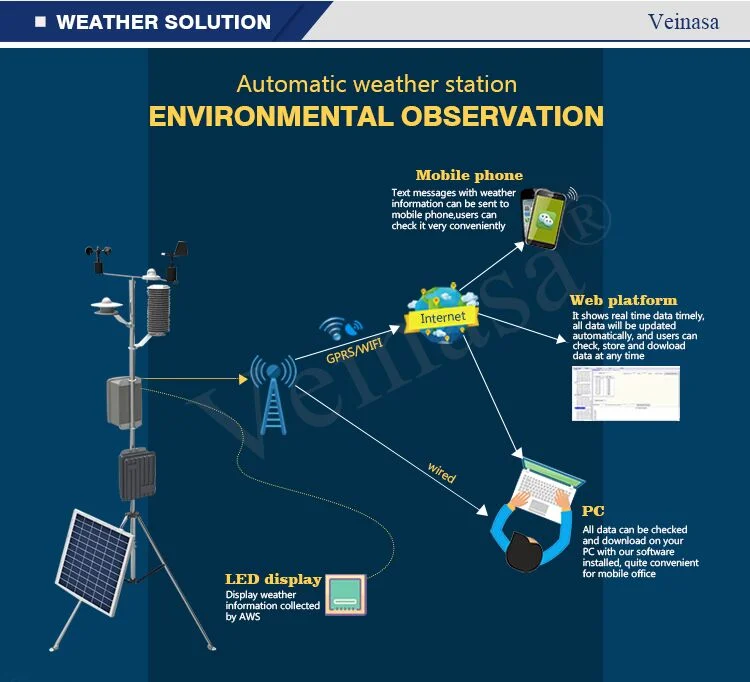

☆ Data release | PC, mobile APP, LED display, LCD TV display, etc. | |||||
Fixed bracket | 1.5 m, 3 m flange fixed; 1.8 m tripod fixed | |||||
GPS | Device tracking | |||||
Data release | PC, mobile APP, LED display, LCD TV display, etc. | |||||

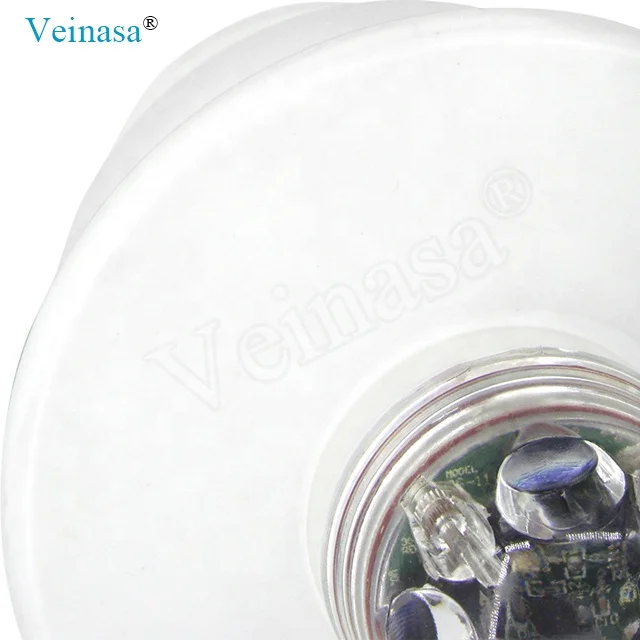

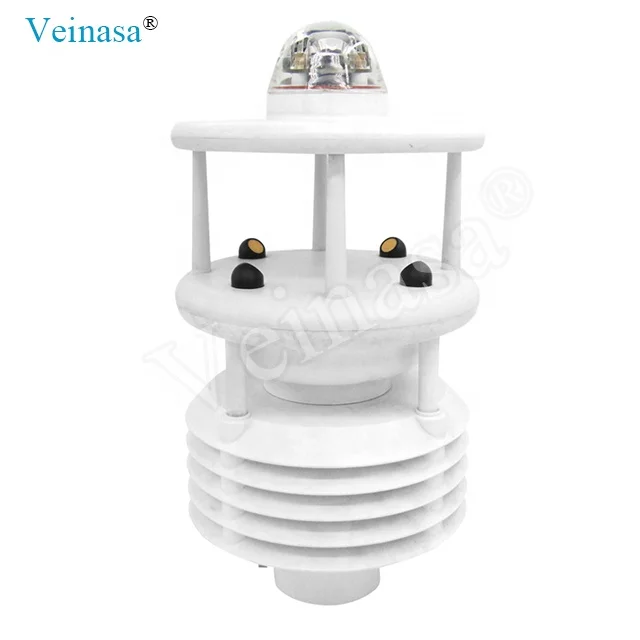

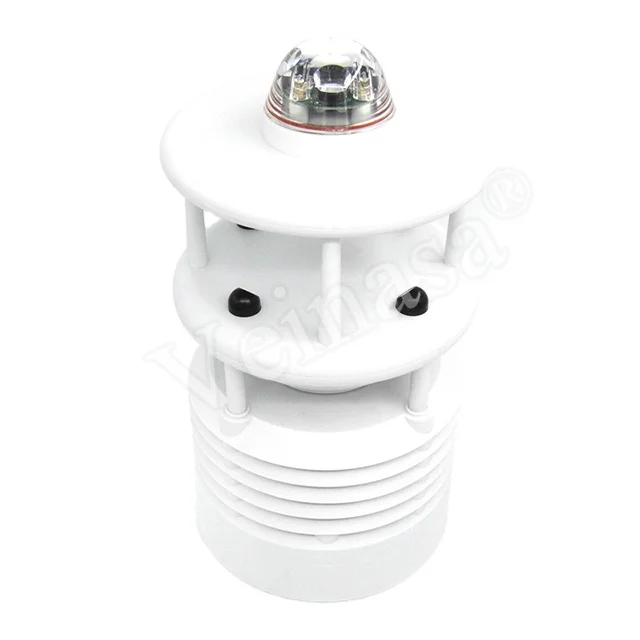

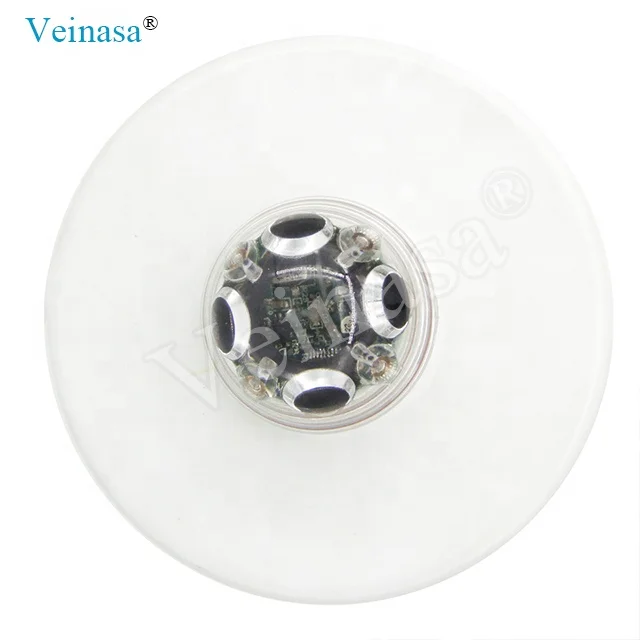

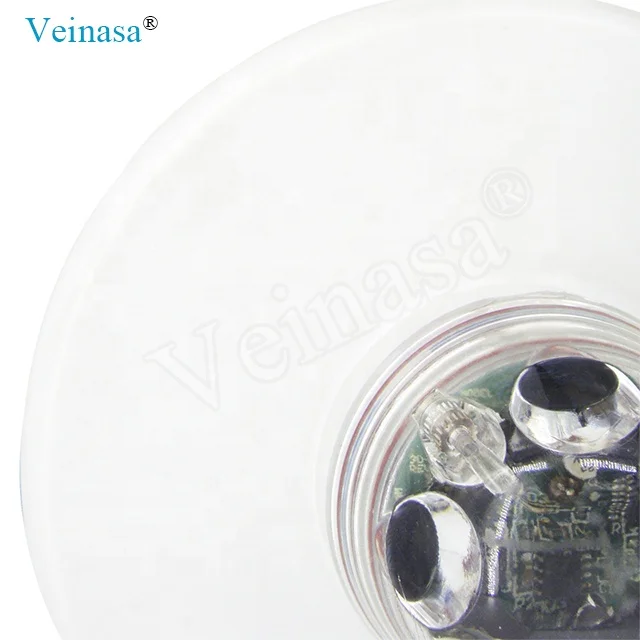

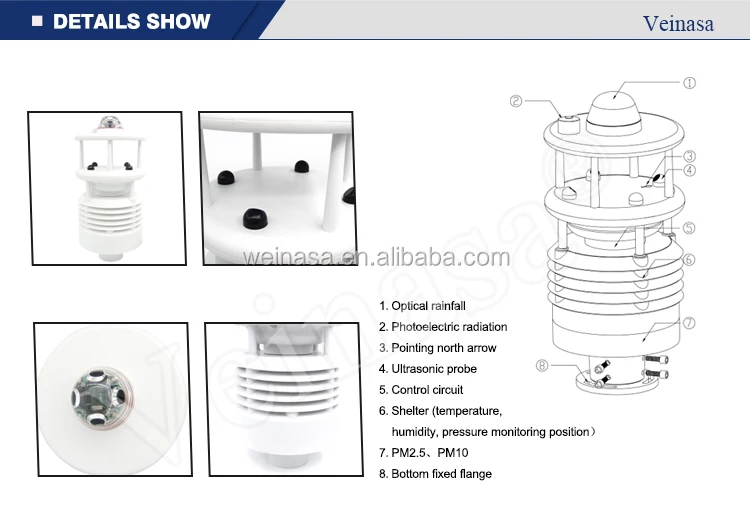

Product Display
Features of VWS006 Outdoor Air Pollution Air Quality Sensor Monitoring ultrasonic weather station
1. High precision, reliable performance, suitable for outdoor weather and severe environment
2. The data to upload the network platform automatically
3. Real-time monitoring of meteorological environment data, low cost, suitable for grid placement
4. Small size, modular design, flexible layout
5. Optional GPS positioning, to achieve the device tracking function
6. Data acquisition adopts 32-bit high-speed processing chip which is stable and anti-interference
2. The data to upload the network platform automatically
3. Real-time monitoring of meteorological environment data, low cost, suitable for grid placement
4. Small size, modular design, flexible layout
5. Optional GPS positioning, to achieve the device tracking function
6. Data acquisition adopts 32-bit high-speed processing chip which is stable and anti-interference
Core Advantage

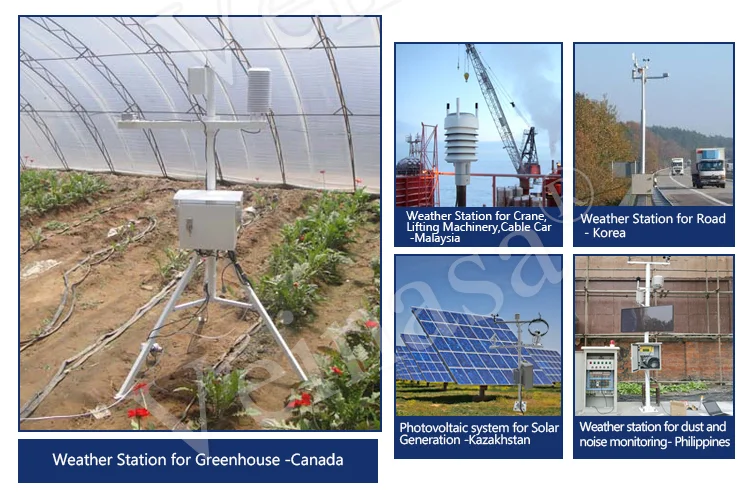

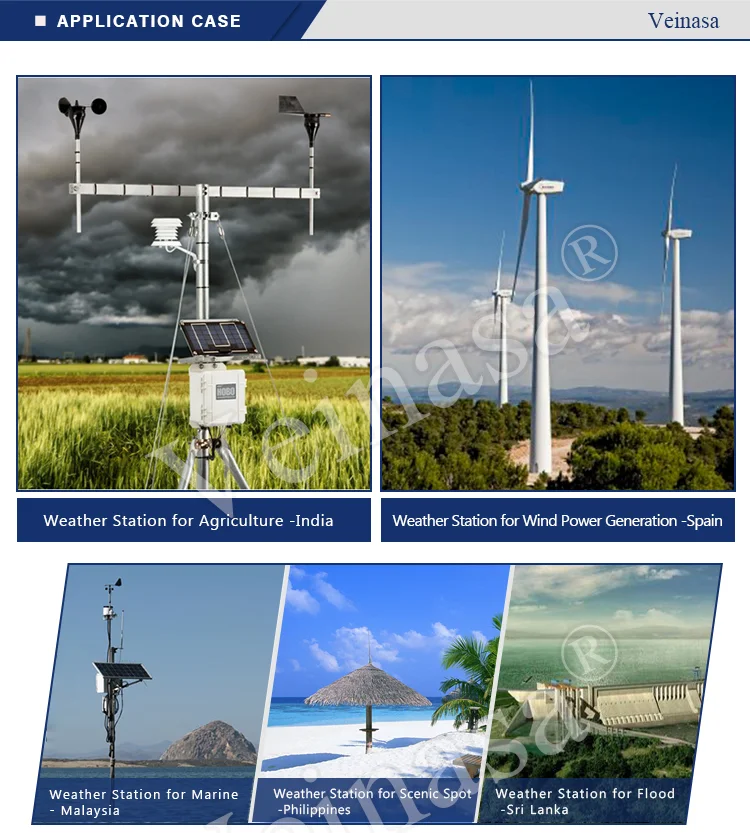

Application case
Application Field of VWS006 Outdoor Air Pollution Air Quality Sensor Monitoring Ultrasonic Weather Station:
* Urban grid environmental monitoring and control
* Intelligent street lamp
* Scenic spot environmental monitoring
* Agrometeorology
* Water conservancy meteorology
* Highway meteorological monitoring
* Urban grid environmental monitoring and control
* Intelligent street lamp
* Scenic spot environmental monitoring
* Agrometeorology
* Water conservancy meteorology
* Highway meteorological monitoring
Related Products
Company Information
FAQ
A. This model only measures ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure and rainfall.
It's our hot sale one and has special offer, but we can customize for you if other sensors needed.
Q: Do you have cloud/web platform?
A: Yes, we have English cloud/web platform. We'll add it if relative functions needed, such as real-time monitoring and send alarm, etc.
Q: Can you provide technical support?
A: Yes, we usually will provide remote technical support for after-sale service via email, phone, video call, etc.
Q: Can you provide service like installation and training for tender requirements?
A: Yes, if needed, we can dispatch our professional technicians to install and make training at your local place. We have related expierence before.
Q: What's the lifetime of main parts?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report issued by
professional testing institute.
Q: May I have detailed installation video?
A: Yes, we have specific installation video as per brackets(tower) of different height.
If needed, we can send it to learn about the automatic weather station, or learn how to install after receiving goods.
Q: How can I read data?
A: First, you can read data on he LDC screen of data logger. Second, you can install our included software to read, inquire and download data. We have detailed manual for you.
Q: What kind of power supply we could choose?
A: Basically DC12-24V, also can use solar battery as power supply, but battery not supplied because of strict international transportation requirement.
VWS006 Outdoor Air Pollution Air Quality Sensor Monitoring ultrasonic weather station
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
VWS006 Outdoor Air Pollution Air Quality Sensor Monitoring ultrasonic weather station
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
Q: Do you have cloud/web platform?
A: Yes, we have English cloud/web platform. We'll add it if relative functions needed, such as real-time monitoring and send alarm, etc.
Q: Can you provide technical support?
A: Yes, we usually will provide remote technical support for after-sale service via email, phone, video call, etc.
Q: Can you provide service like installation and training for tender requirements?
A: Yes, if needed, we can dispatch our professional technicians to install and make training at your local place. We have related expierence before.
Q: What's the lifetime of main parts?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report issued by
professional testing institute.
Q: May I have detailed installation video?
A: Yes, we have specific installation video as per brackets(tower) of different height.
If needed, we can send it to learn about the automatic weather station, or learn how to install after receiving goods.
Q: How can I read data?
A: First, you can read data on he LDC screen of data logger. Second, you can install our included software to read, inquire and download data. We have detailed manual for you.
Q: What kind of power supply we could choose?
A: Basically DC12-24V, also can use solar battery as power supply, but battery not supplied because of strict international transportation requirement.
