pet bottle blowing machine maker,pet bottle 1 liter/5 liter blow molding machine price
- Category: >>>
- Supplier: Taizhou Longer Machinery Co. Ltd.
Share on (60825519754):
Product Overview
Description
Product Description

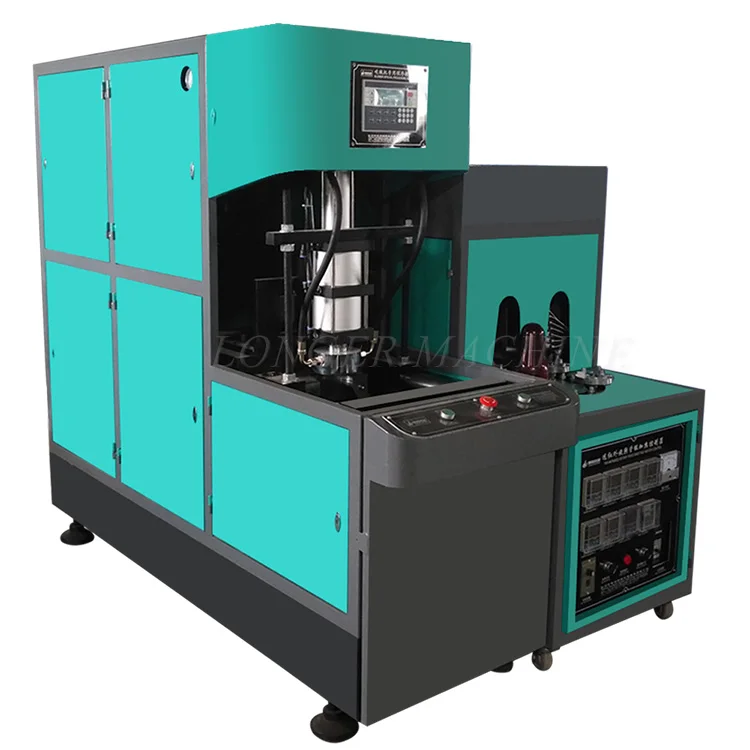

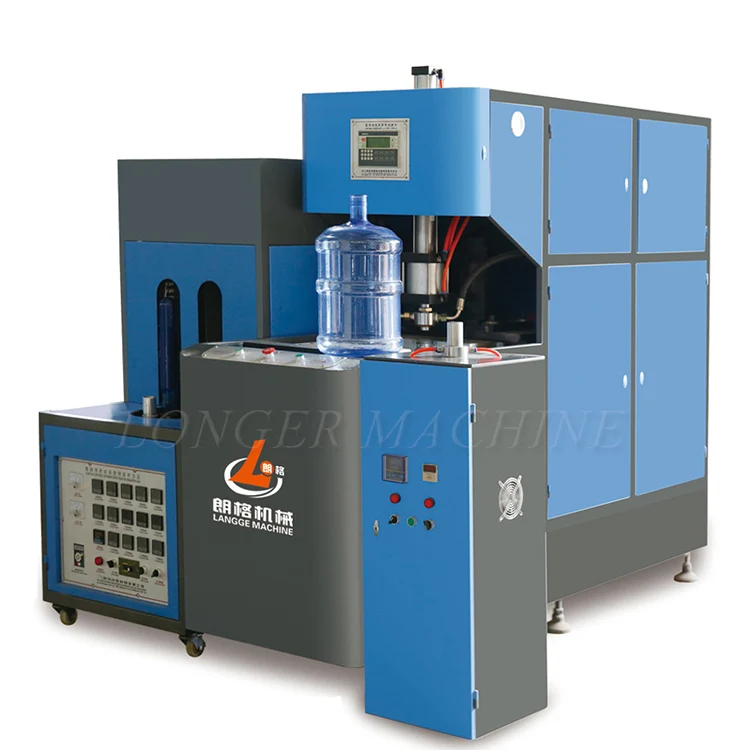

Brand | Longer | Model | LGC-6L | Type | blow molding machine |
Applicable materials | PP,PET | Product aliases | semi-automatic oil bottle blowing machine | Product use | Used for blowing various plastic bottles |
Production capacity | 450-500pcs/hr | Overall dimensions | 2000x600x1650(mm) | Diameter of screw | standard(mm) |
Screw l/d ratio | / | Product thickness | 0.1-3(mm) | Power of electric motor | 16.8(kw) |

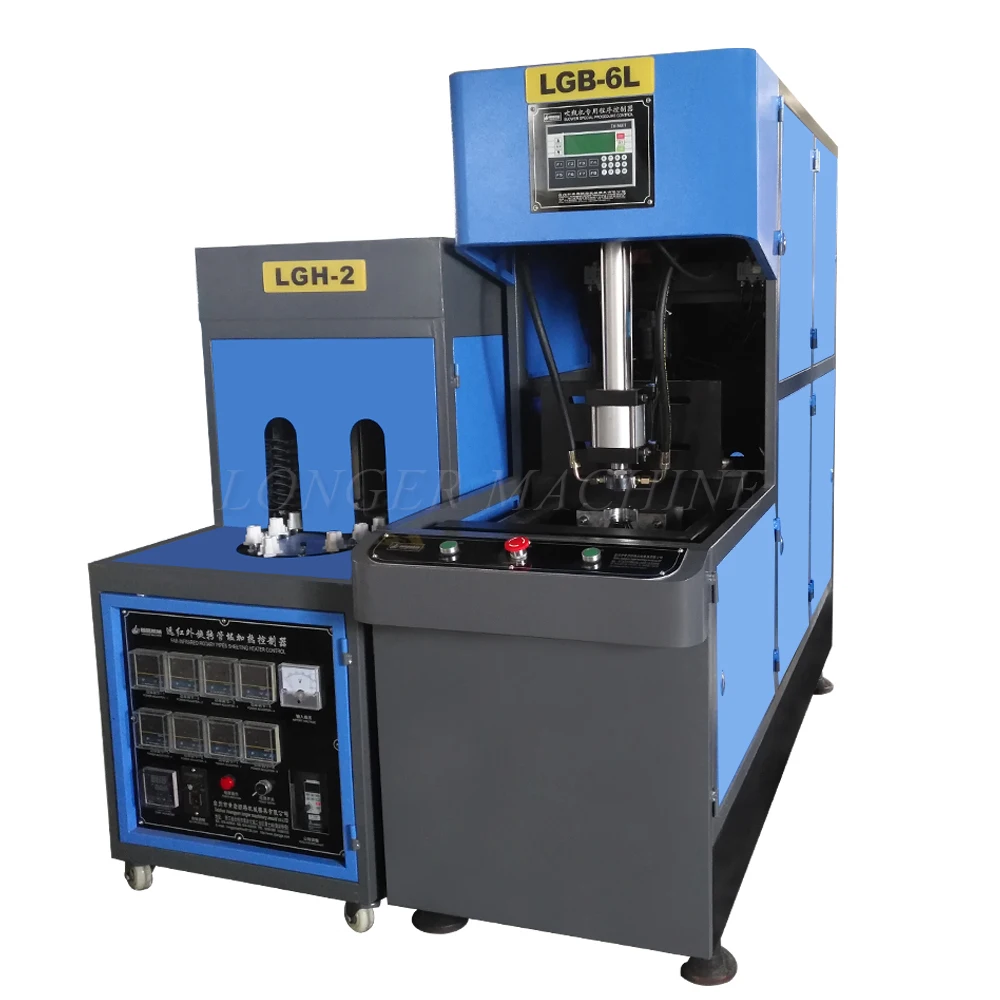

Product Showing
| ITEM | UNIT | LGB-6L |
| Theoretical Output | pcs/hr | 450 |

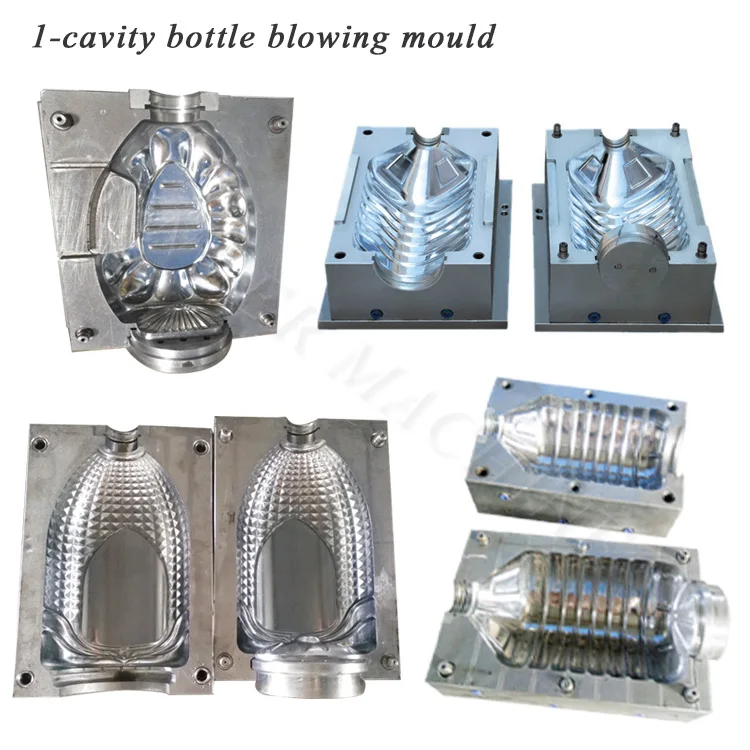

| Max.container volume | L | 6{1-cavity} |
| Max.neck diameter | mm | 140 |
| Max.container diameter | mm | 200 |
| Max.container height | mm | 370 |
| Mould Thickness | mm | 110-250 |
| Mould Stroke | mm | 220 |
| Heat Lamp Amount | pcs | 28 |
| Max.heating power | kw | 22.4 |
| Power of Main Blower | kw | 23 |
| Actual power consumption | kw | 10-15kw |
| Working Pressure | Mpa | 0.8 |
| Low pressure consuming | Ltr/min | 800 |
| Blowing pressure | Mpa | 3 |
| High pressure consuming | Ltr/min | 800 |
| Measurement of Main Blower | mm | 1970*610*1650 |
| Measurement of preheater | mm | 1700*600*1380 |
| Weight of Main Blower | kg | 1700 |
Related Production

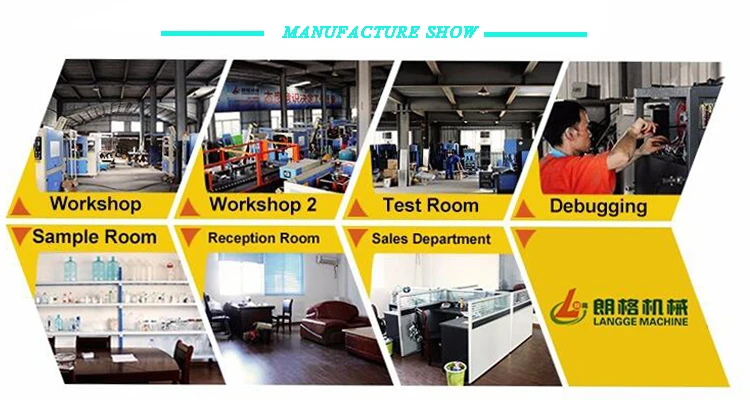

Company Information
Packaging & Shipping
Contact
Welcome all friends to Longer, Huangyan, Taizhou Mould machinery company to visit, guidance and business negotiation
Longer, Huangyan, Taizhou Mould Machinery co.LTD
