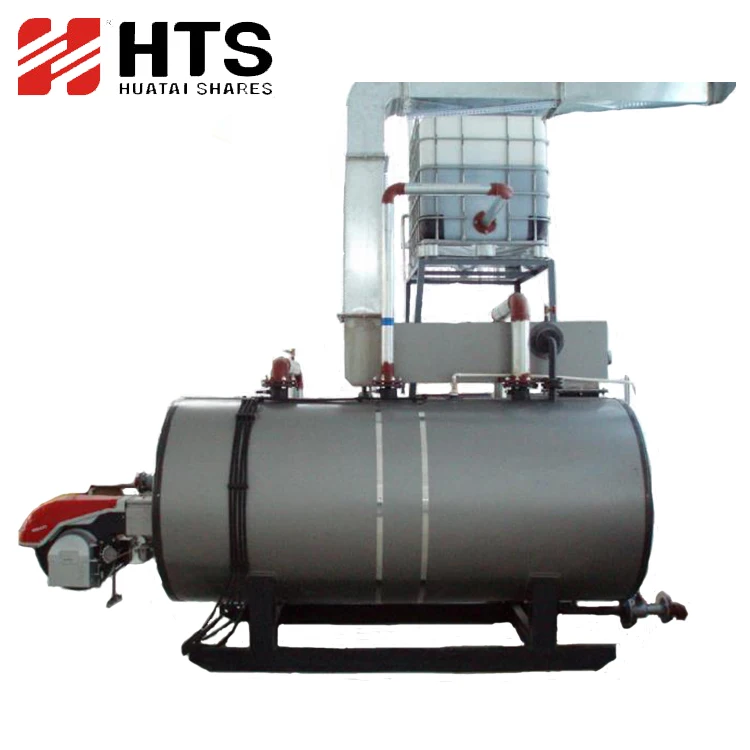

Hot sale & high quality industrial steam generators manufacturers
Product Description
oil boiler adopts horizontal three return wet back structure,which improves boiler operation environment, boiler efficiency and service life; all the flue gas pipes are arranged in the water, the tail part is equipped with a waste heat water tank and sound insulation external packing design, gas chamber is sealed with labyrinth type structure,which can avoid gas leakage phenomenon in the gas chamber.It adopts corrugated furnace with good expansion, furnace and flame size is consistent so as to reduce the flue gas circulation area and ensure uniform flue gas flow speed, guarantee the heat exchange time of high temperature flue gas in the furnace in order to achieve optimal heat transfer effect;Combustion machine(burner) with high performance is matched with the boiler, which can realize full automatic control,more sufficient combustion,fuel saving and pollution reducing.
Technical Parameters
Boiler Item
Boiler Model
WNS1
WNS2
WNS4
WNS6
WNS10
WNS15
WNS20
Capacity
t/h
1
2
4
6
10
10
20
Pressure
MPa
1
1.25
1.25
1.25
1.25
1.25
1.25
Steam Temperature
℃
184
193
193
193
193
193
193
Feed Water Temperature
℃
20
20
20
20
104
104
104
Boiler Efficiency
%
92%
Fuel
/
Natural Gas,Liquefied gas,City Gas,Naphtha
Fuel Consumption
Natural Gas
NM³/h
75
149
298
446
738
1125
1500
Liguefied Gas
kg/h
60
119
237
359
597
893
1191
City Gas
NM³/h
160
318
634
950
1585
2377
3174
Naphtha
kg/h
63
126
247
370
619
934
1248
Gas Supply Pressure
Natural Gas
mbar
50-100
50-100
50-100
50-100
100-200
150-300
150-300
City Gas
mbar
70-200
70-200
70-200
70-200
100-200
150-300
150-300
Anvantages
1.Multiple control protections are set to protect boiler pressure,water level and gas overtemperature ,which ensures safe boiler operation.
2.Boiler combustion is lower-position arranged, water level is in line with national regulations, and strictly in accordance with water level fluctuation time requirements of international standard, which offers a safety drawdown space so as to ensure the safe boiler operation.
3.Manhole arranged on boiler top and handhole arranged in the bottom of the boiler front and rear parts ensures convenient inspection of boiler.
4.Boiler heating area is configured as per more than 25 square meters / ton ,which can fully absorb the effective heat, reduce exhaust temperature and heat loss,ensure adequate output and high thermal efficiency.
5.Adopt SIEMENS controller with reliable performance,English menu LCD display, touch screen and remote control.

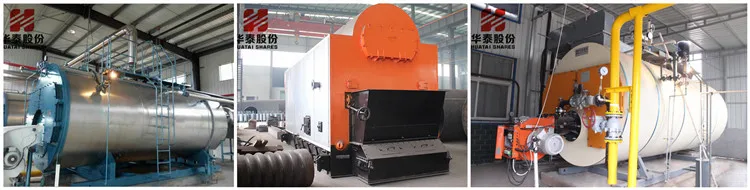

Product Show
Technology

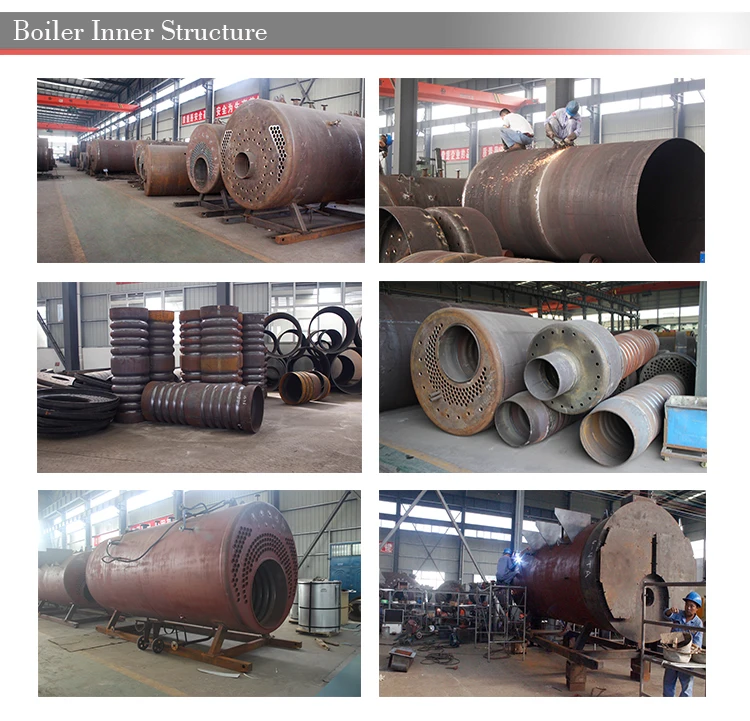

HTS puts its long-standing belief in providing customers with high quality boiler products with superior performance,we pursue every detail of boilers to achieve flawlessness so as to provide customers with the most satisfactory products,while advanced and sophisticated machining and fabricating equipment is one of the most important factors affecting product quality.Till now,HTS owns more than 200 sets of equipment, including Gantry CNC drilling machine,hydraulic swing shearing machine,welding positioner,boiler welding upender,three roll symmetric plate bending machine,etc. as well as a threaded pipe production line.We are sure your will be satisfies with our products!
1.What can you get from us before quotation? A: After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
2.Below are the details need your confirmation before quotation?
A: 2.1. What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?
2.2. What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?
2.3. What is the requirement for oil/steam temperature and pressure?
2.4. What is the evaporation capacity of boiler required?
3.What are the available fuel for the oil gas fired boiler?
A:Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
4.How long can we get the reply with detailed information for our project ?
A: For single boiler,usually you can get the detailed offer within 1 day after detail confirmed;For whole set project;the time takes longer.
Our Services
Pre-sales service
We have professional sales service team. They have abundant experience, which can help our After-sales servicecustomers to choose and work out the most reasonable solution.
After-sales service
We have professional after-sales service team. And we will be equipped with professional service staff in accordance with different areas. What’s more, we have 24 hours service hot online, which can deal with customers’problem at any time.
