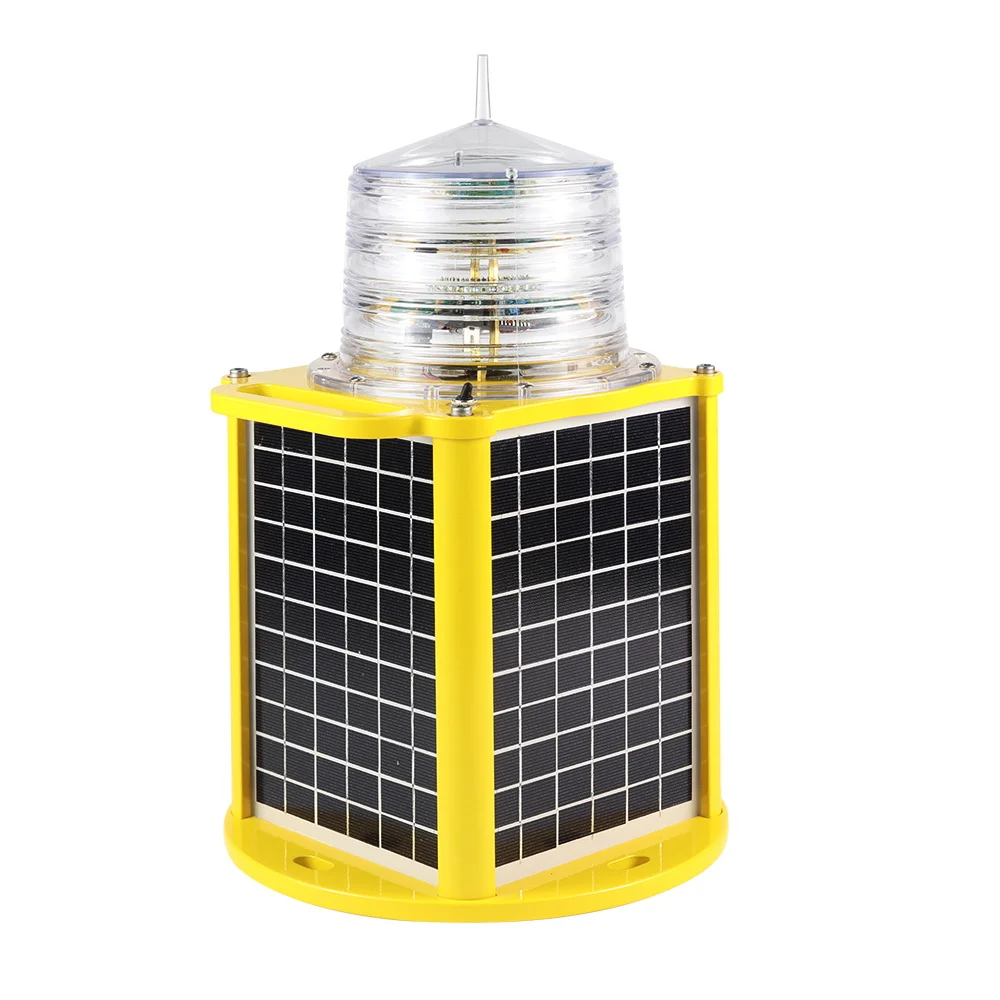

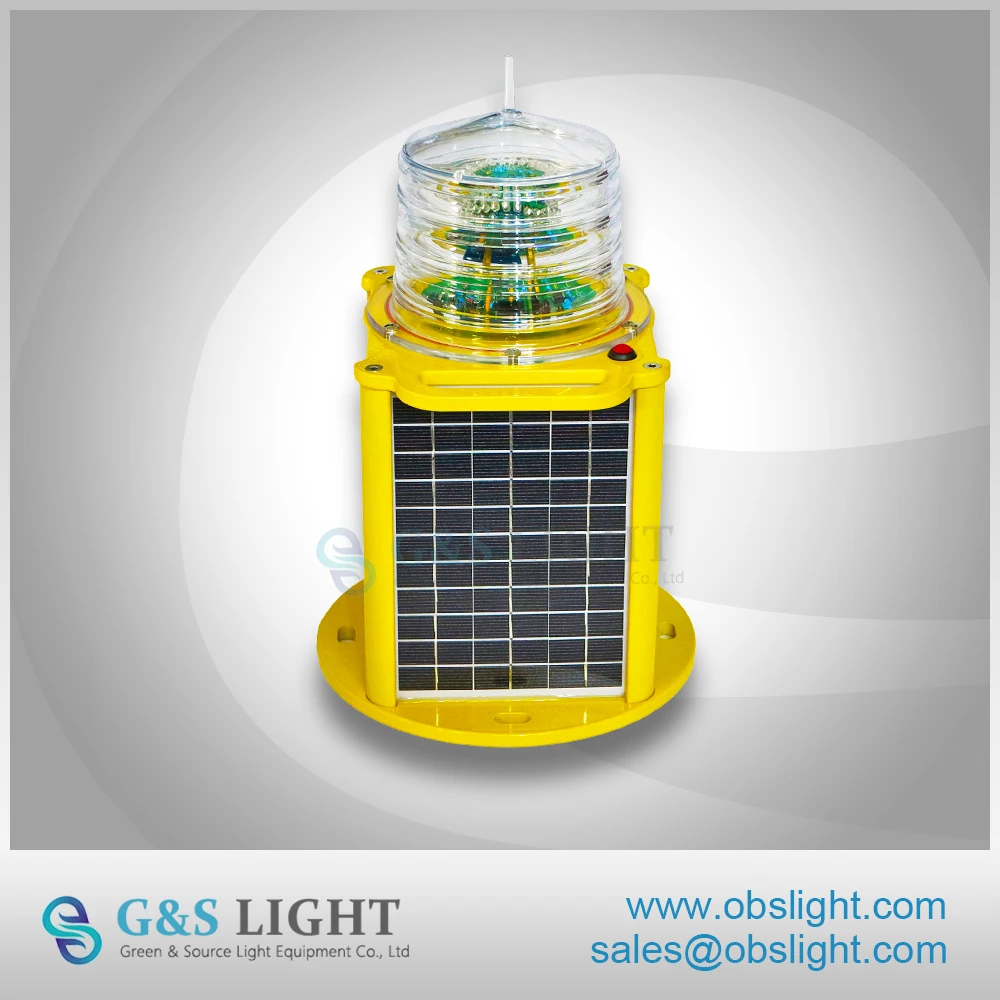

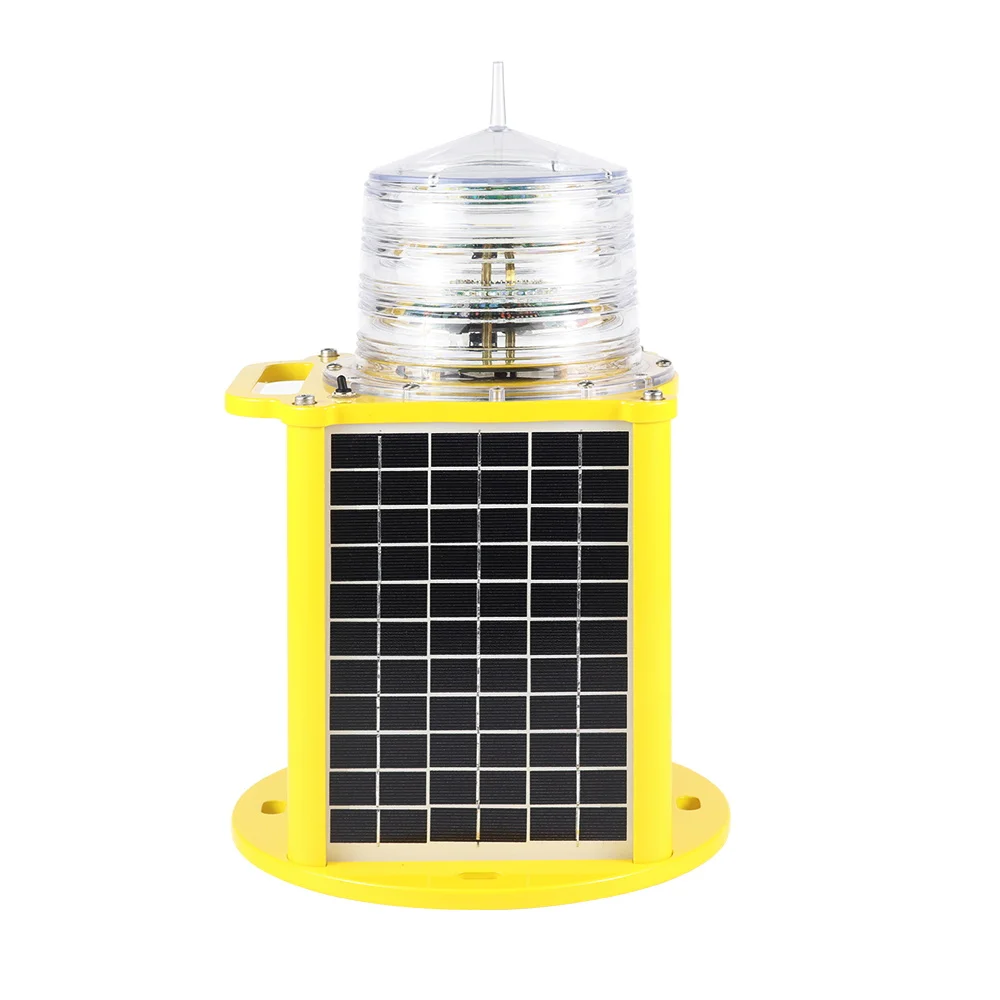

IP67 Solar Powered Marine Lanterns Led Light

Share on (60825557657):


Price:RUB 22,223.81

Quantity:


Product Overview

Description

Product Details



GS-LS/S LED Solar Powered Marine Lantern used advanced structure design, adopts 4 groups of solar panels and high efficiently, co-operate with solar dedicated battery as power supply.

Advanced power management system will be used to charge the power in a comprehensive protection. In order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.

The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.
Its shell is die casting with aviation aluminum ,this material has the specific of light weight and corrosion resistance ,which can reduce the weight of light equipment, it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion ,anti-UV, anti-shock an so on.



Specification

Name

Parameter

Name

Parameter

Type

GS-LS/S

Light Source Life

>100000 hours

Power Provider

Mono-crystalline silicon solar panel

Optional Emitting Light Colors

Red, Amber Yellow, Green, Blue, White

Battery Capacity

12V14AH

Battery Type

Sealed lead-acid battery

Solar panel power

6W x 4pcs

Solar panel voltage

16.5V

Power Consumption

2W

Vertical Divergence

>7°

Visual Range

6~12 NM

Horizontal Out-put

360°

Light Source

LED

Overall Size(mm)

260×260×420 mm

Working temperature

-40℃~70

Installation Size(mm)

Pitch circle 220 mm distributed 4M12 holes

Storage temperature

-40℃~70℃

Wind-speed Ability

80m/s

Sun Switch Illumination Threshold

300LUX±100LUX

Working mode

Customer specified light characteristics

Continuous Burning Time in rainy days

>20 days

(12 hours a day)

IP Protection

IP65

Weight

8.5kg

Light Characteristics

 IALA standard 350 lights Characteristics adjustable



Dimesion Drawing

2D-MS-B


_20200109165611

Our Company


Feedback

2



FAQ
Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
