231KW DEUTZ Water Cooled Diesel Engine for Generator Sets

Share on (60825563289):


Price:

Quantity:


Product Overview

Description


Product Description

1015 Diesel engine designed by Deutz featuring advanced technology,these generator set engines have a power range from 208kw to 500kw.The generator engines adopt an inner oil-line and water channel structure that removes the need for external pipes that can lead to potential failtures and efficiency lossed ,The service life of the engine is about 15,000 working hours,The single cylinder ,single head structure make for easy maintenance,The special technology on the crankshaft,noise-dampening crankcase and accessory bracket allow the engine to operate at minmal noise levels(<96dB/m).The engine adopts an inlet heating device so as to maintain generation at temperatures as low as -35℃.

Product Main Data
\t
Gen-set engine performance data
\t
Engine Model:BF6M1015-LA GA
\t
Control System:Mechanical/Electronic
\t
Displacement:11.906L         No.of Cylinder:6
\t
Aspiration Model:Turbocharged
\t
Cylinder Arrangement:V-form 90 angle
\t
Cylinder Type:One-cylinder-one -head
\t
Inter-cooling Method:Without Inter-cooler
\t
Rotation speed  specification
\t
1500rpm   50Hz
\t
Power
\t
231kw(LTP)
\t
Effective pressure
\t
15.5bar
\t
MAX.exhaust gas temperature
\t
580℃
\t
Charge air temperature
\t
160℃
\t
Inlet air(25℃/1000mbar)
\t
1027m3/h
\t
Emission
\t
1252kg/h
\t
Engine Data
\t
231kw/1500rpm
\t
Dry weight
\t
850kg
\t
Max.engine width
\t
932.2mm
\t
Max.engine length
\t
1043.1
\t
Bore*stroke
\t
132*145mm
\t
Compression ratio
\t
16.5
\t
Rotation direction (view from flywheel)
\t
Anti-clockwise
\t
Flywheel housing
\t
SAE1
\t
Flywheel
\t
14#
\t
No.of flywheel teeth
\t
167
\t
Engine support
\t
Rigid
Packing & Delivery

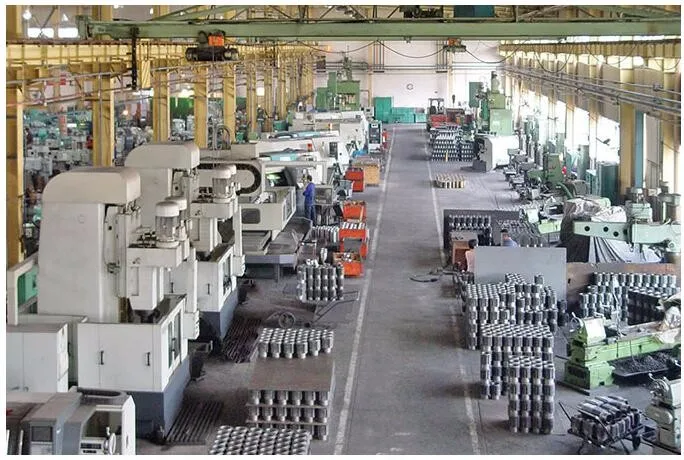

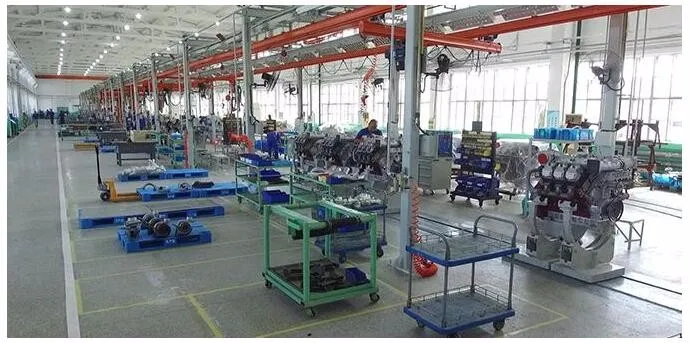

Production Line
FAQ

Q1. What is your terms of packing?



A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered

patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q2. What is your terms of payment?



A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.


Q3. What is your terms of delivery?



A: FOB, CFR, CIF


Q4. How about your delivery time?



A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time

depends on the items and the quantity of your order.


Q5. How do you make our business long-term and good relationship?



A:1. We keep good quality and competitive price to ensure our customers benefit

2. We respect every customer as our friend and we sincerely do business and make friends with them, no


matter where they come from.

Related Products

YUCHAI MARINE DIESEL ENGINE YC6A SERIES

YUCHAI MARINE DIESEL ENGINE YC6MK SERIES

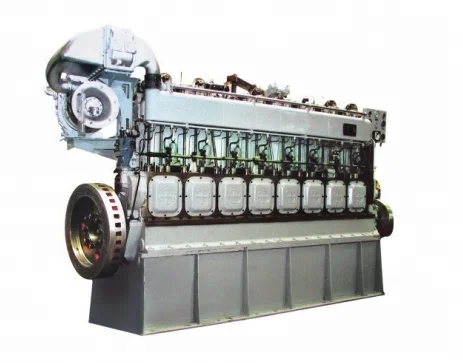

8 CYLINDER ZICHAI LC8250 MARINE DIESEL ENGINE
