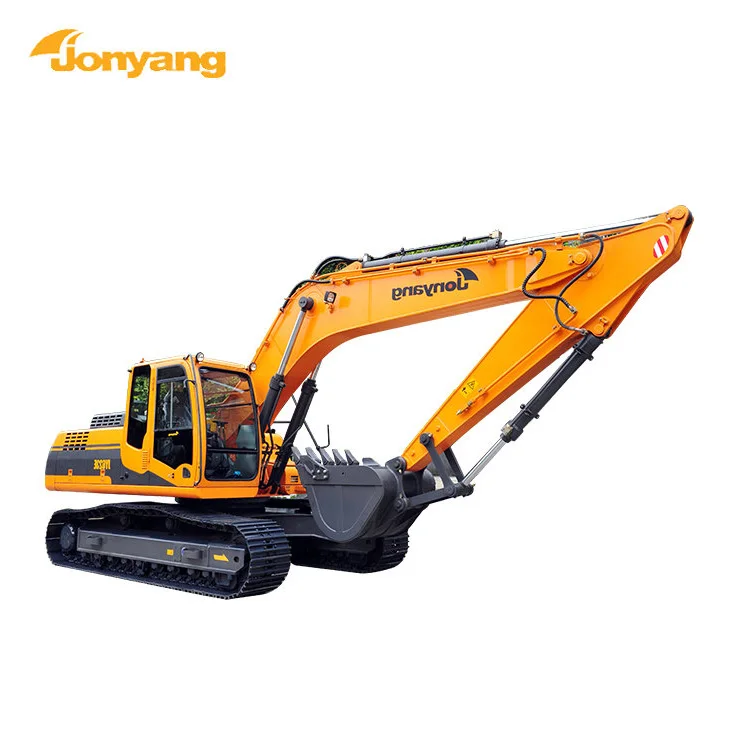

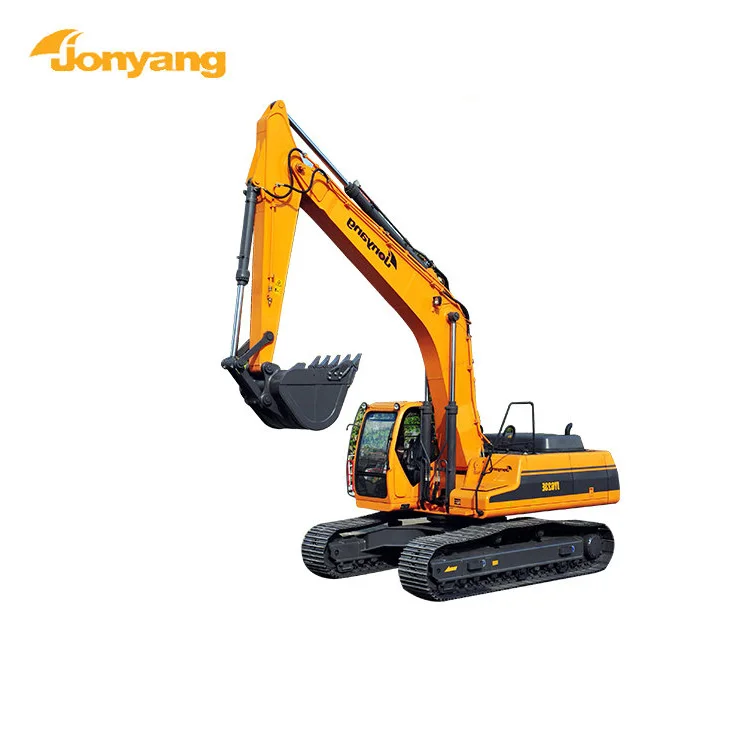

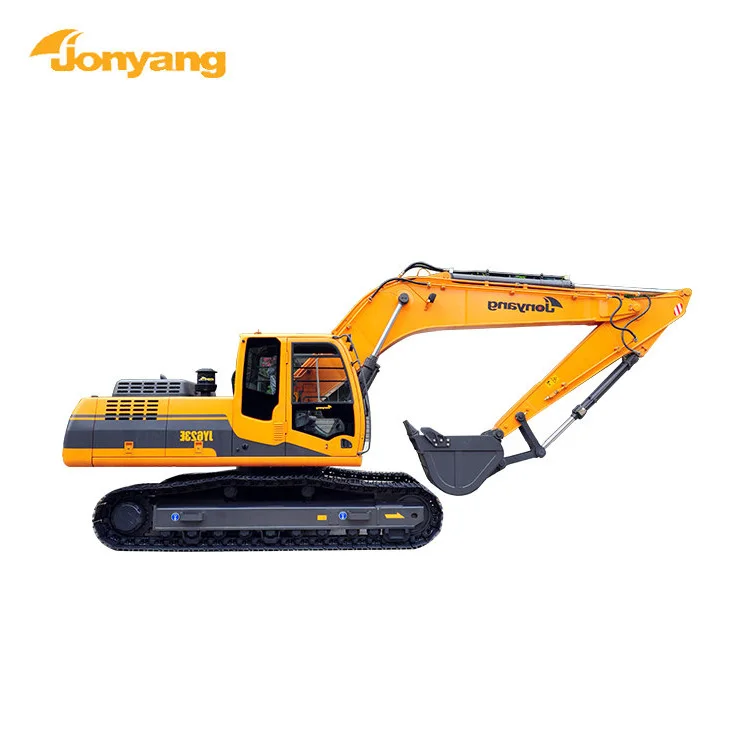

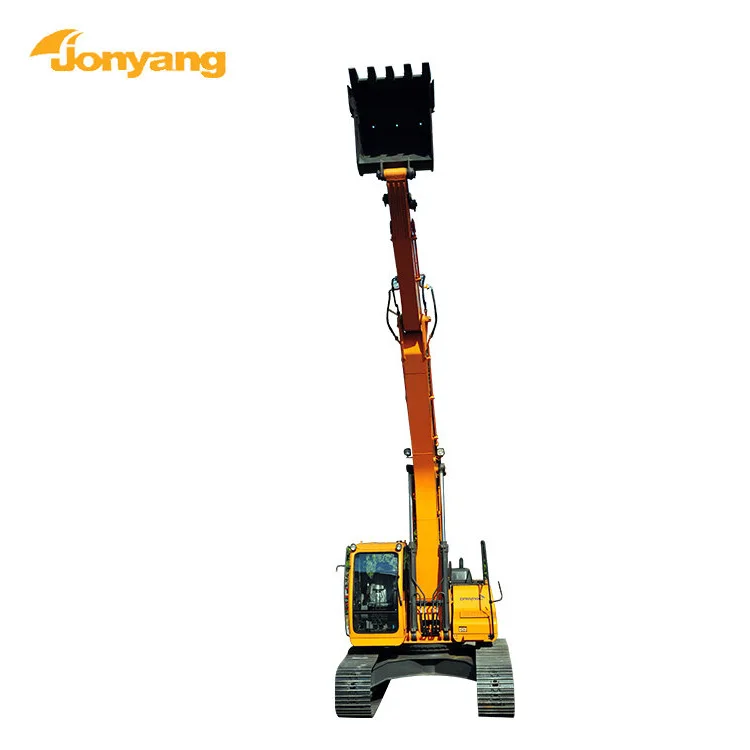

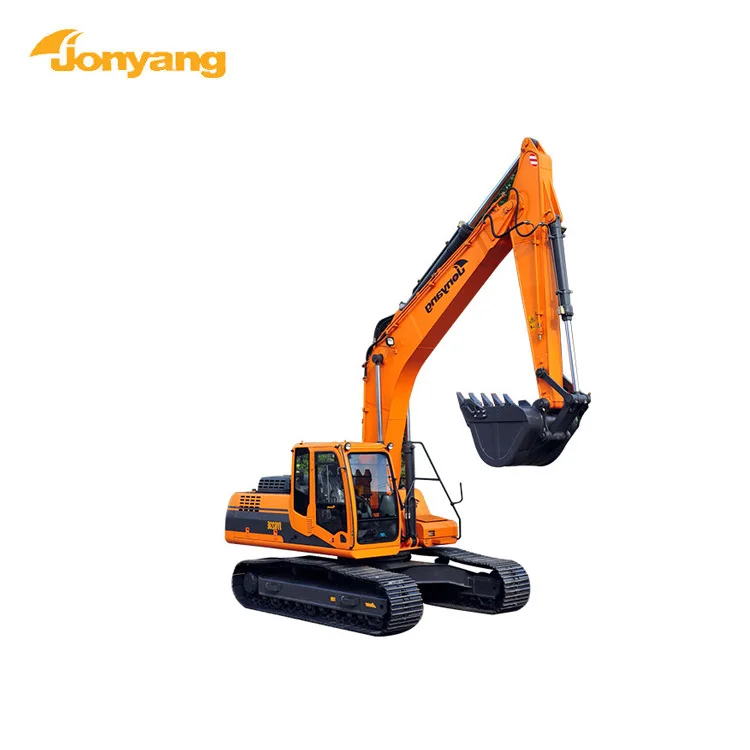

High quality cheap price 23t hyundai crawler excavator
- Category: >>>
- Supplier: Guizhou Jonyang Kinetics Co. Ltd.
Share on (60825609605):
Product Overview
Description
• The original imported Cummins engine meets Euro II emission standards, has large torque and strong power, and is especially suitable for heavy-duty working conditions.
• The main hydraulic components are international famous brands. The hydraulic system has been optimized and customized. The compound action is more smooth and the micro-control is good.
• The optimized reinforced work device and chassis frame are durable.
• Configuration of a large space driver's cab, wide vision of the driver's cab to meet the European FOPS/ROPS standard, open vision in front of the machine, blind spot minimum to a minimum, high job security.
• The use of series and combination of large-scale coolers makes it adaptable to high-temperature environments and ensures that the excavator is working at high temperatures and the excavation is still powerful.
• Air filter, oil filter, fuel filter, etc. are at your fingertips, convenient for routine maintenance and maintenance, spare parts for operation and maintenance of spare parts for vehicles, convenient disassembly, and good proximity.

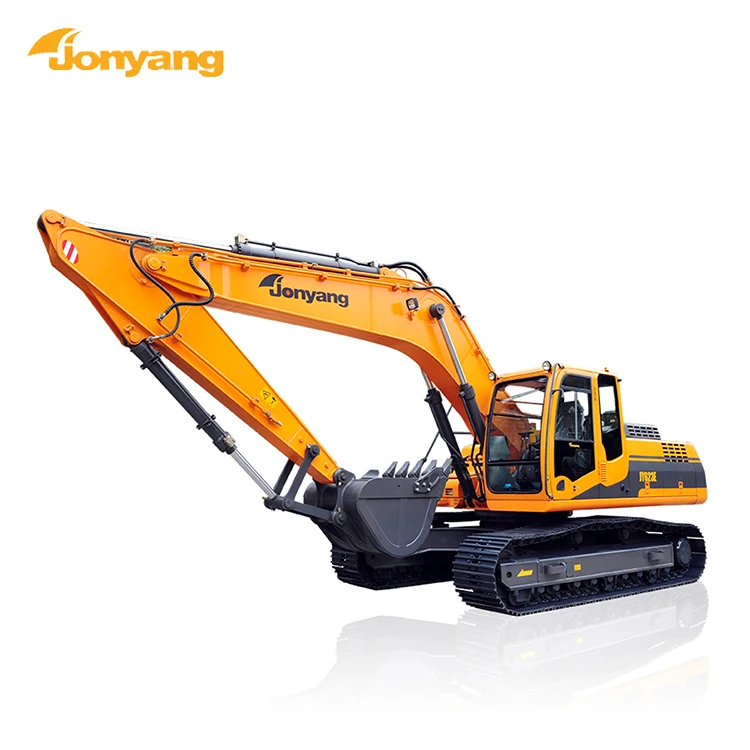

| Specifications | JY623E |
| OperingWeight(Tons) | 23 |
| Standard bucker Capacity(m³) | 1 |
| Engine manufacturers | Cummins |
| Engine type | B5.9-C |
| Engine power(kw) | 133 |
| Hydraulic flow(L/min) | 2*224 |
| The hydraulic pressure(Mpa) | 32 |
| Walking speed(Km/h) | 2.6~4.6 |
| Climbing ability(%) | 65 |
| Rotary speed (r/min) | 13 |
| Arm digging force(KN) | 115 |
| The bucket digging force(KN) | 146 |
| Overall Length(mm) | 9845 |
| Overall Width(mm) | 3000 |
| Overall Height of Boom(mm) | 3300 |
| Overall Height of Cab(mm) | 2930 |
| Overall Height To Engine Cocer(mm) | 2350 |
| Counterweight Ciearnce(mm) | 1090 |
| Ground clearance(mm) | 465 |
| Upperstructure width(mm) | 2710 |
| Rear End Swing Turning radius(mm) | 2990 |
| Overall Track Length(mm) | 4530 |
| Track Length on ground(mm) | 3740 |
| Gauge Width(mm) | 2400 |
| Track Length(mm) | 600 |
| Gauge Pressure)Mpa) | 0.045 |
| Stick length(mm) | 3000 |
| Maximum Cutting Height(mm) | 9520 |
| Maximum Dumping Height(mm) | 6800 |
| Maximum Digging Depth(mm) | 6830 |
| Maximum Reach(mm) | 10020 |
As the technology is constantly updated, all parameters are subject to the actual product.
Guizhou Jonyang Kinetics Co.,Ltd is located in Guiyang city, Guizhou Province.A well-konwn construction machinery company with hydraulic excavator manufacturing technologies and sales management experience accumulated in more than 40 years experience,is the first to develop and manufacturing hydraulic excavators in China.We are a high and new technology enterprise that have already established a construction machinery research center in Guizhou,and a postdoctoral workstation and a provincial technical center.
At present,our products have formed a large scale and series.We assure the efficient performance of products and that the products can always meet the demand of customers due to the advanced and mature hydraulic technology,the mechanical processing technology and mechanics technology in the world,also the professional mechanical manufacturing capacity, testing capacity in process and excellent quality system(Jonyang obtained the quality management system certificate of ISO9001:2008 and national military standard of GJB9001N:2009).
Our main products include wheeled hydraulic excavators from 6 to 35 tons,crawler hydraulic excavator from 3.5 to 75 tons and special machinery equipments.The areas of application include the traffic infrastructure construction of road,railway,airport and port,include the mineral energy development of coal,iron ore and non-ferrous metal,include the infrastructuring construction of urban context and the new rural construction,include the natural disaster emergency rescue of earthquakes and floods.
Jonyang has set up sales and service network covering both home and abroad markets, which can provide machinery sales ,spare parts supply and maintenance and relevent training with comprehensive service.we have been entitled to engage in the import and export business and our small excavator have been sold to europe,America,Africa,Oceania,Southasia,Central Asia,etc.
Pre-Sales Service
* Inquiry and consulting support
* View our Factory
After-Sales Service
* Training how to instal the machine,training how to use the machine
* Engineers available to service machinery overseas
Q: What are our advantages compared with other factories?
A: 1.State owned enterprise, Military standard quality.
2.Competitive price, Stable and prompt delivery time.
3.More than 40 years excavator R& D experiences, overseas engineer available.
4.First producer of the scientific investigation heavy machine to the South Pole.
Q: What payment terms can we accept?
A: T/T, L/C/, Cash, Paypal, Credit Card, Money Booker, Money Gram, West Union
Q: What trade terms can we work?A: EXW,FOB,CIF,CFRQ: What the validity of our price quotation?
A: Always 30~60days.
Q: What logistic ways we can work for shipment?
A: By sea, road, railway.
Q: Any after-services we can provide?
A: Yes, engineers overseas services available.
