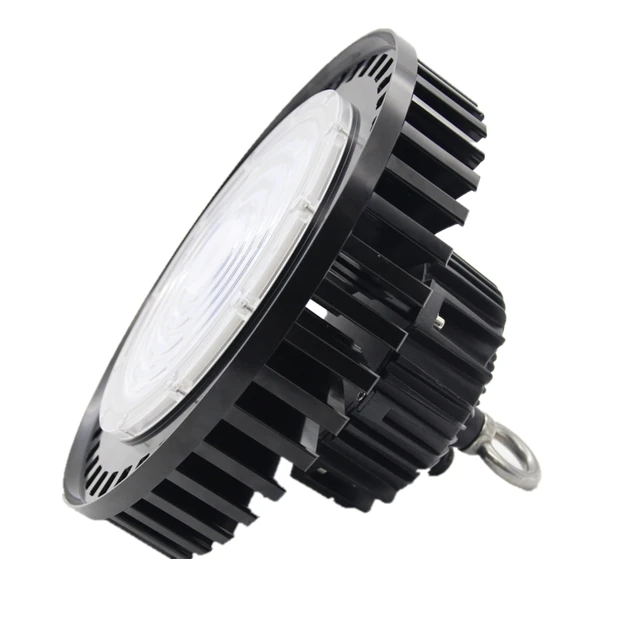

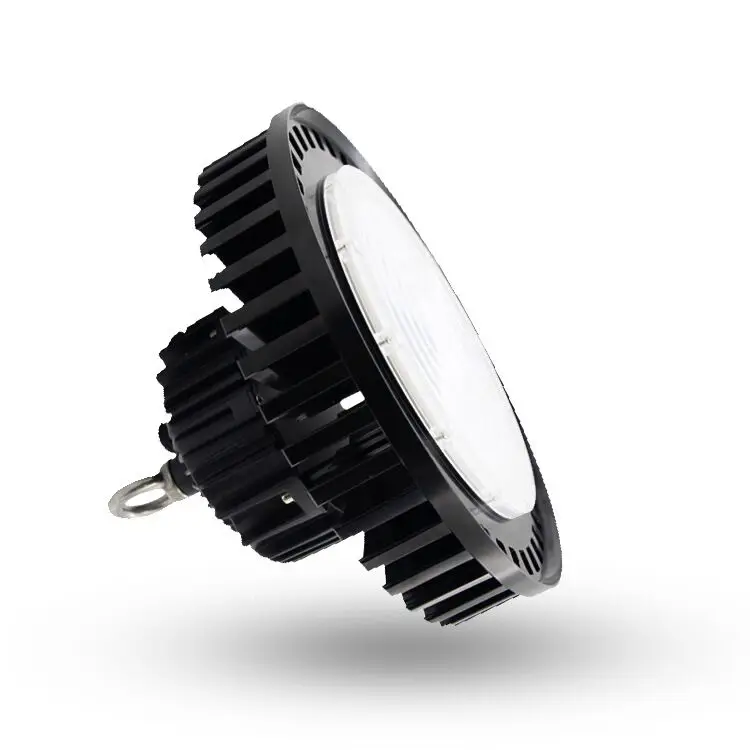

High quality SMD3030 MeanWell power supply 140lm/w 200W UFO Led High Bay Light with CE CB SAA approved

Product Overview

Description

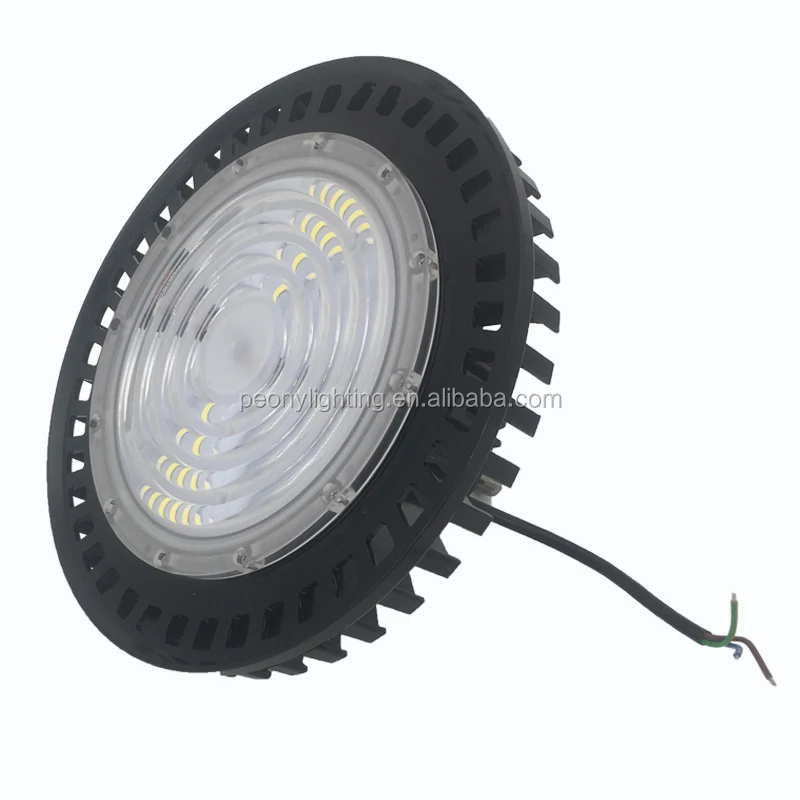

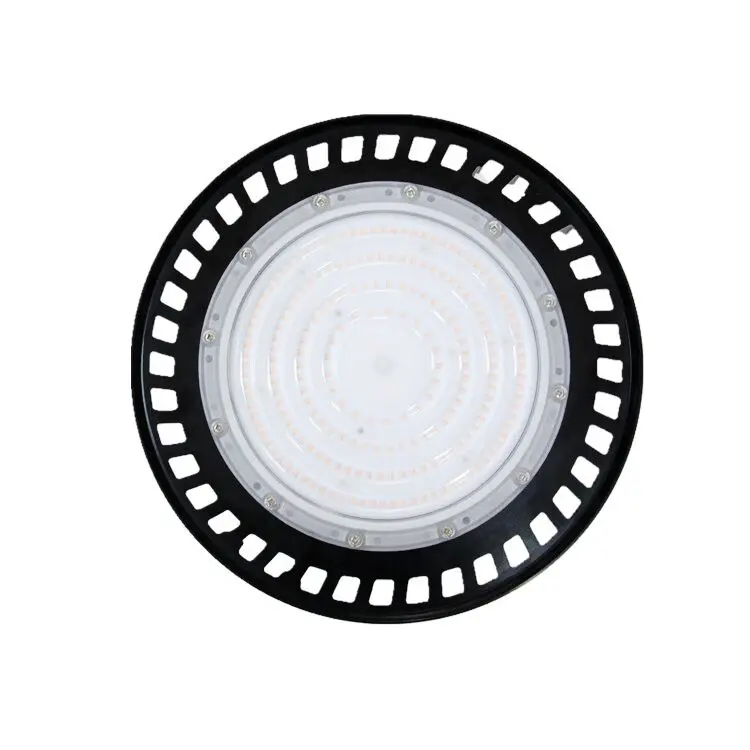

High quality SMD3030 MeanWell power supply 200w UFO Led High Bay Light







 PEONYLIGHTING UFO led industrial lighting ufo led highbay light



With the improvement of LED technology, LED high bay light, as the



main luminaries of industrial lighting, are widely used.  With better





performance, it is inevitable trend to use LED replace traditional lamps.



 PL LED high bay light, adopting high efficiency optical system, uniform and good vertical light distribution, lower glare, is the ideal solution for LED high bay lighting.







Key Features



• Unique designed UFO shape , lighter and smaller


•  CREE /Lumileds 3030 SMD , Ra> 70/80; LM80 standard


• Luminous efficiency: 150 lm/w


• Meanwell  Series led driver


• Configurable Smart Dimming


• Glass cover or PC convex cover


• Wide aluminum plate design, heat dissipation fast and evenly

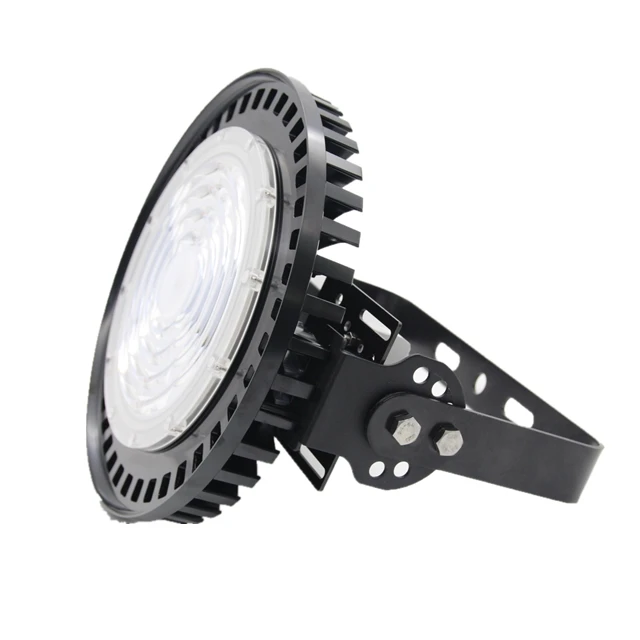

• Angle for flexible bracket : 30°, 60°, 90°, 60/90/120°, 150° .

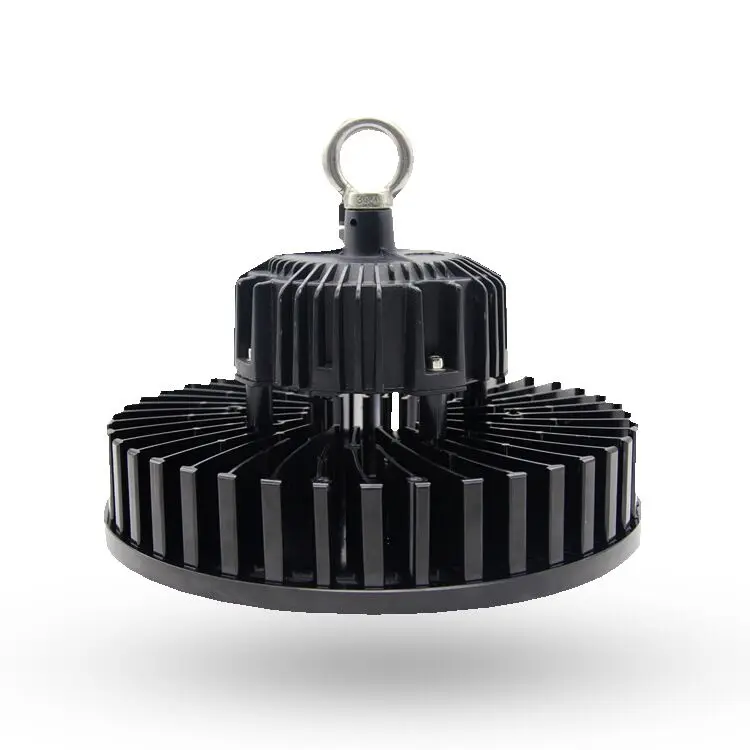

• Installation: Rack mounting & Hook hanging


• Working temperature: -30°C ~ + 45°C


• IP65 protection level





Datesheet



Model	PL-UFO-09-100W	PL-UFO-09-150W	PL-UFO-09-200W
Power	100W	150w	200W
Luminous efficiency(lm/w)	140lm/W±5%
LED Source	CREE /lumileds 3030smd
LED qty	133pcs	210pcs	259pcs
Inpuct Voltage	AC100~277V
Demenions(mm)	250*172.15mm	250*191.15mm	280*199.75mm
Frequency Range	50~60Hz
Total Harmonic Distortion	<15%  (Typical : 8%)
Color Temperature	3000K,4000K, 5000k, 5700K,
Color Rendering Index	CRI>70/80
IP Rating	IP65
Beam Angle	60/90/120°
Housing Color	Black/White/Gray
Working Life	>50,000 hours
Warranty	5 years
Working Environmment	-30ºC~+50ºC, 10%~90% RH
Body & Shade Material	Cold Forging Aluminum housing & steel glass

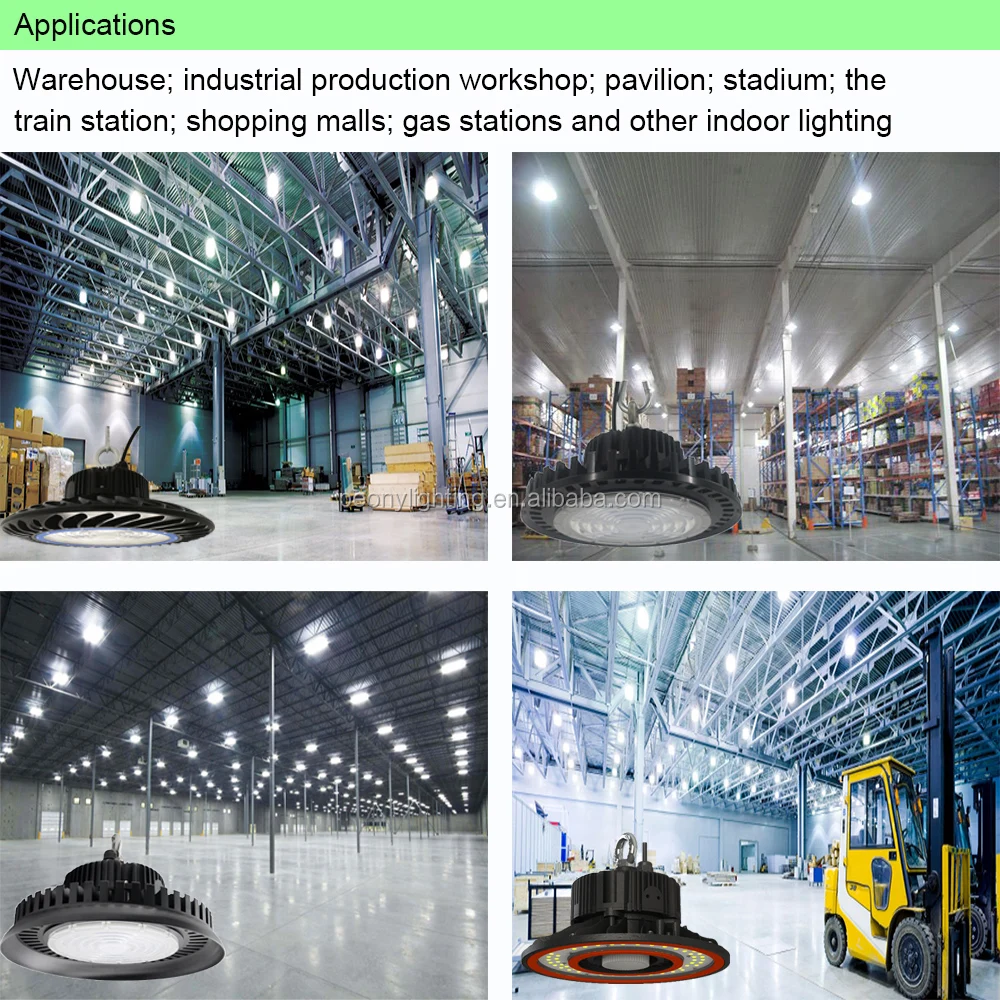

Where Can Use	Warehouse; industrial production workshop; pavilion; stadium; the             train station; shopping malls; gas stations and other indoor lighting
