High Precision Fiber cleaver 1716 Cable Cutting Knife FTTT Fiber Optic Knife Tools cutter Cleavers with 16 surface blade
- Category: >>>
- Supplier: Zhejiang Guangsu Communication Technology Co. Ltd.
Share on (60825726219):
Product Overview
Description
Product Description

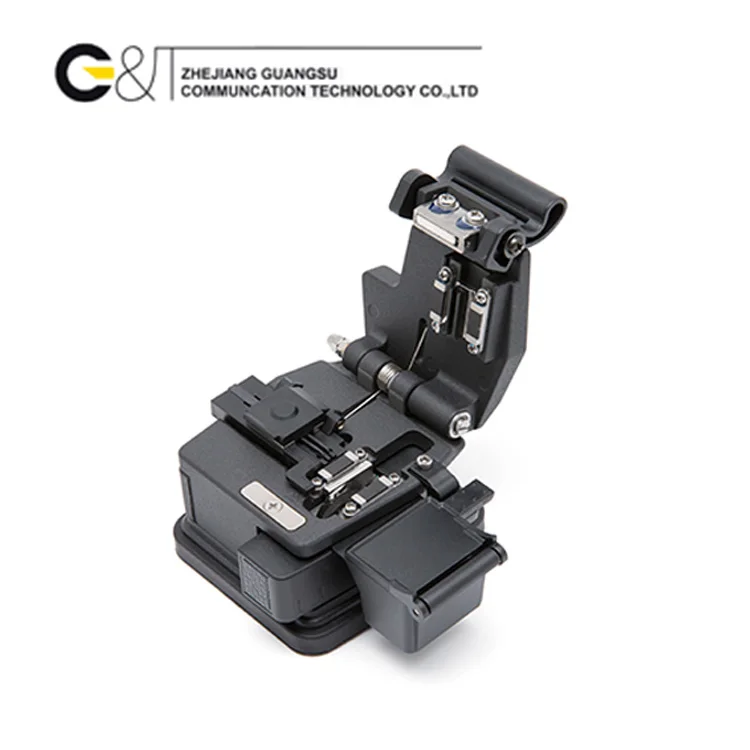

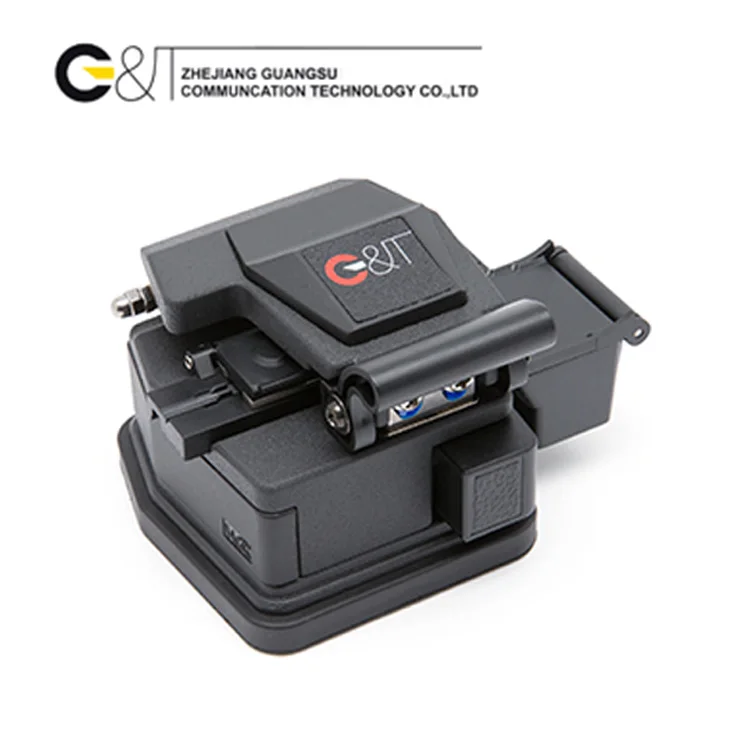

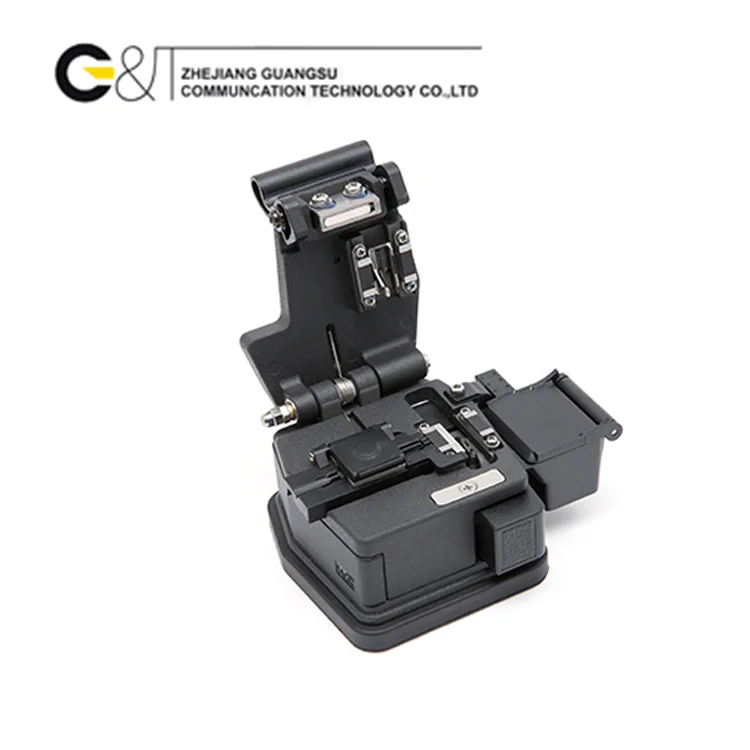

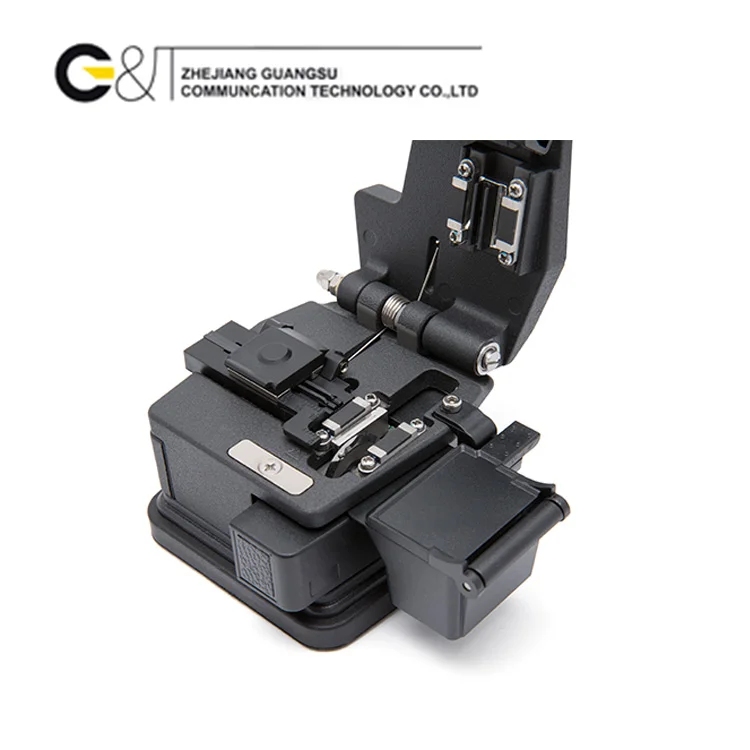

G&T 1716 high precision optical fiber cleaver is used for precision cutting single core fiber tool. And it not only apply to 250μm coated fiber, but also 900μm coated fiber, cutting angle is smaller and more precise, do not need special skill with a sliding block automatic spring back function,optional fiber collector and convenient installtion. Otherwise, we provide 3 type jip for your choice.First,125μm bare fiber and 900μm tail fiber. Second,125μm bare fiber ,900μm tail fiber and 3*2 cable. Third, 125μm bare fiber ,900μm tail fiber, 3*2 cable and ø3 tail fiber.
| The average cleave angle: | 0.5 degrees |
| Blade position: | 16 position |
| Blade life: | ≥48000 fiber core(1000 fiber core*6 position*3 height) |
| Cleave length: | 5-20mm |
| Optical fiber cladding diameter: | 125μm |
| Coated outer diameter: | 0.25&0.9mm |
| Dimensions: | 73*80*61(mm)(mm) |
| Weight: | 420g |
| Blade model: | RB-325 |
| Customized | YES |
| Material | Aluminum alloy |
| processing technic | Die casting |
| Certification | CE RoHS FCC ISO9001:2008 |
| Application | FTTH FTTB FTTX Network |
Pay Attention
1.Please use the fiber cleaver carefully, because the cleaver is precision machinery, percussion and landing (strong impact) may damages the machinery and reduce performance.
2.Please carefully and wear the protective glasses when you operation the fiber cleaver. Because the fiber and fiber optic chips are very thin and sharp, and it will be damage you when it into your hands or eyes.
3.Please leave the fiber-optic chips in a separate place that is separate from the common trash.
4.Please don't touch the blade in the cleaver, because of very sharp.
5.It's one of fault reasons that the lever capbe impacted
6.If mechanical failure or abnormal behavior, please stop using. Do not disassemble or refit, and contact the service department of the manufacturer.
G&T 1716
G&T 1716
G&T 1716L
G&T 1716L
