IP 68 Factory Price DC DC converter 24V to 12V 10A Power Converters 120W WS 24T1210

Product Overview

Description



 DC 24V to DC 12V 10A Power Converters 120W



Features



1. 100% full power & stable current output



2. 100% Imported components



3. Wide input voltage from 16-36Vdc



4. 100% waterproof & anti-shock protection, Ultra compact size, light weight



5. Industry grade DC24V to DC12V step-up/down converter, efficiency up to 92%



6. Waterproof level: IP68



7. Plastic shell, epoxy potting, Cooling by free air convection,



8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery when device is back to normal operating



9.   Non-Isolated Module



10.1-year warranty, lifetime up to 100,000 hours.

Specifications



Model	WS-24T1210
Input rated voltage	24V DC
Input voltage range	16-36V DC
Efficiency	94% (half load) ; 92% (full load)
Output voltage	12V DC
Output current	10 Amps
Output rated power	120 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 50mV
No-load current	< 25mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Over-voltage, Short-circuit

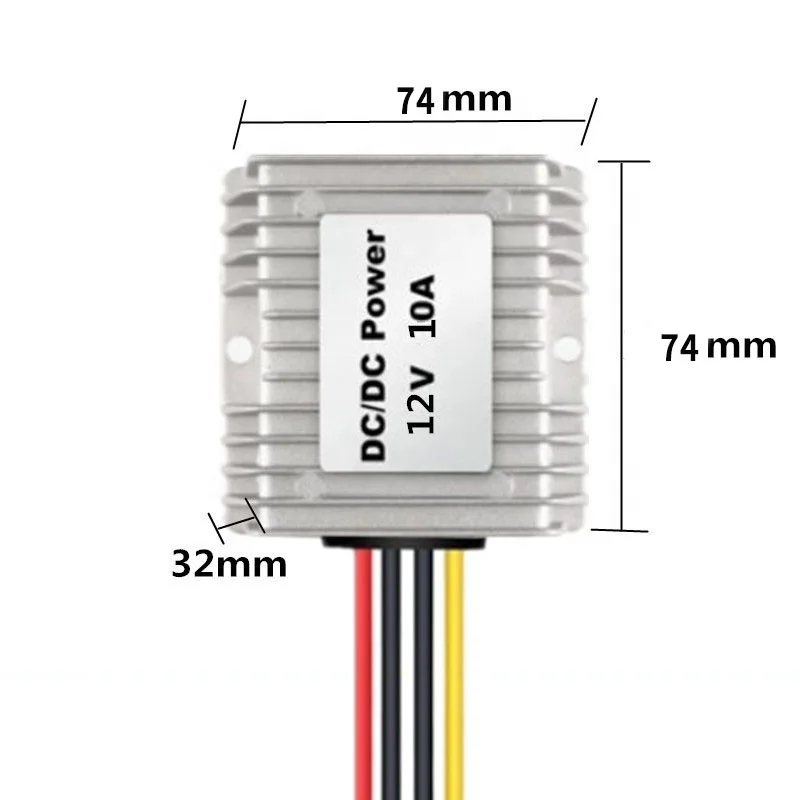

Machine size	74*74*32mm
Package size	98*82*34mm
N. Weight	290g
W. Weight	300g
Cooling way	Free air convection
Other	White box packing

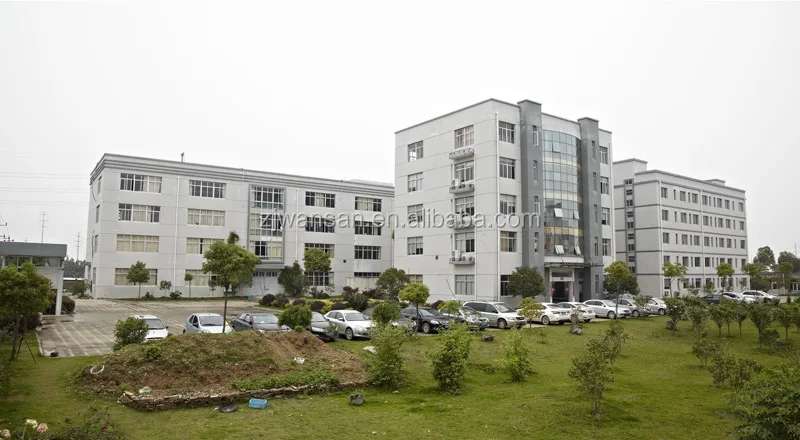

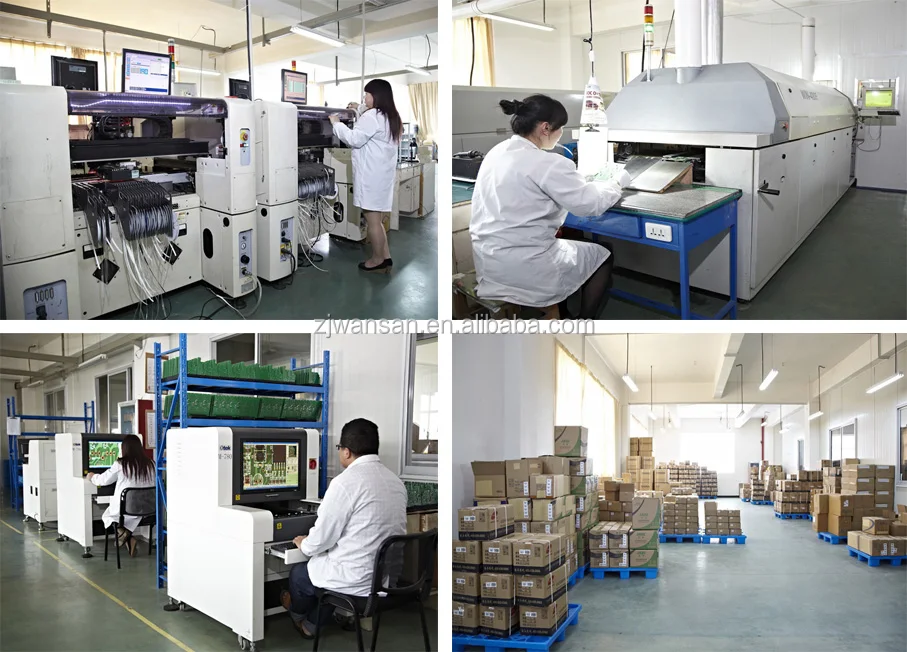

COMPANY INFORMATION

FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converters.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
