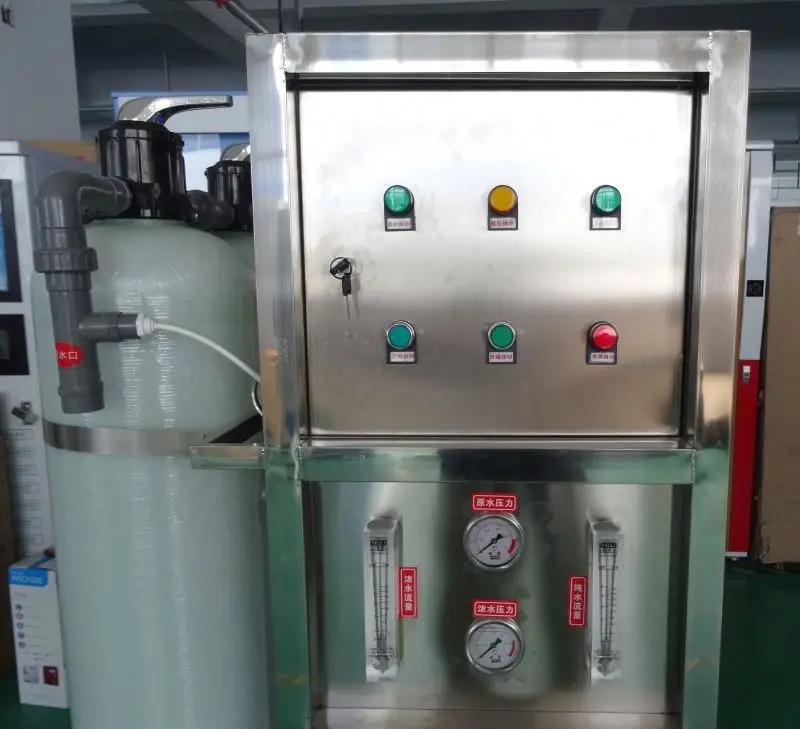

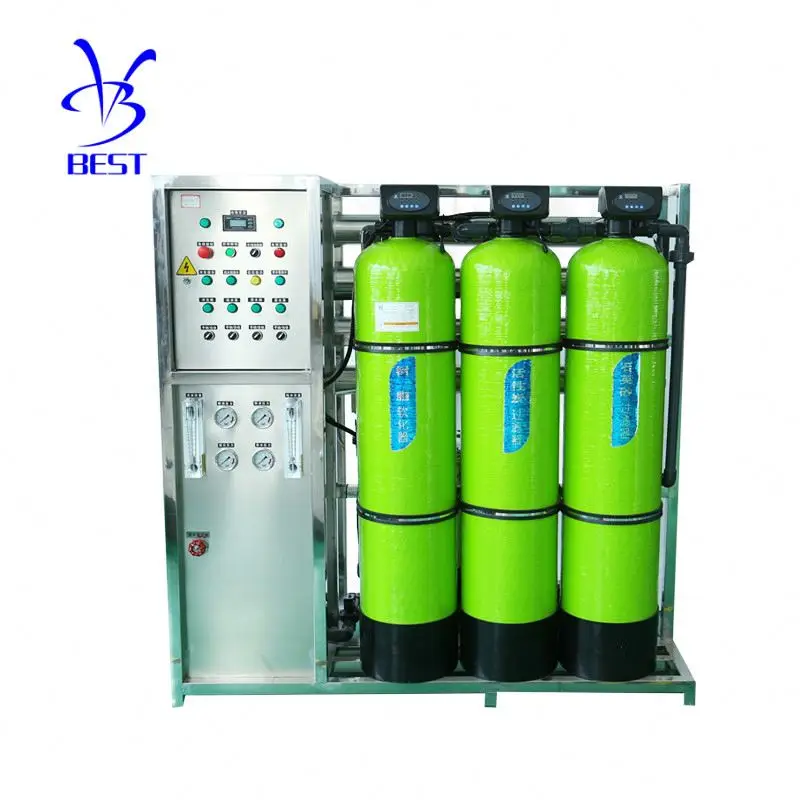

Конкурентоспособная цена чистый промышленный завод обратного осмоса промышленный фильтр воды Ro завод

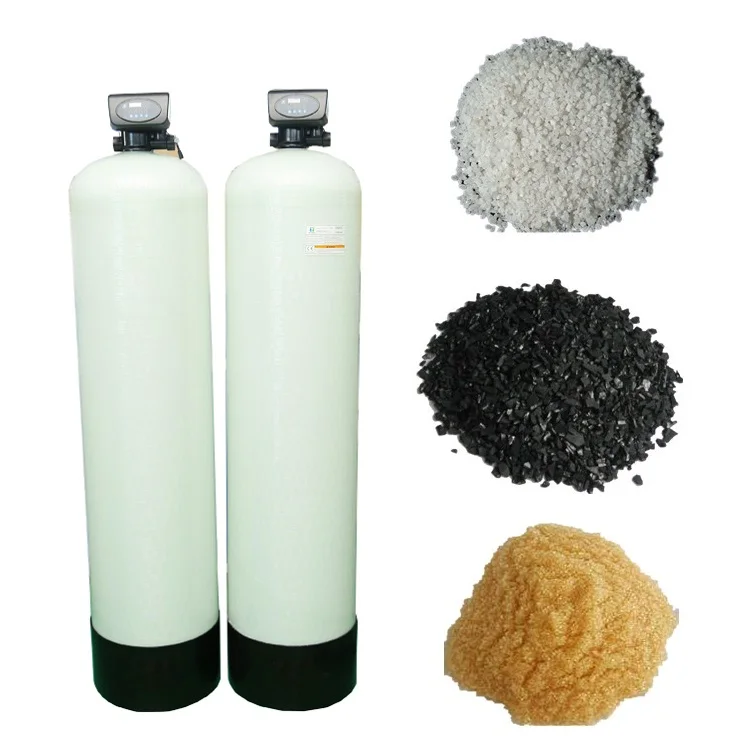

1---Quartz sand filter

Function:Mainly remove the mud, suspended solids and large particles in the tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Filter material: Fine quartz sand

Filter material Size: 1-2.5mm and 2.5-4.5mm

2---Active carbon filter

Function:mainly remove organic substances, residual chlorine and odor in tap water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Fine active carbon

Filter material Size: 20-40mesh

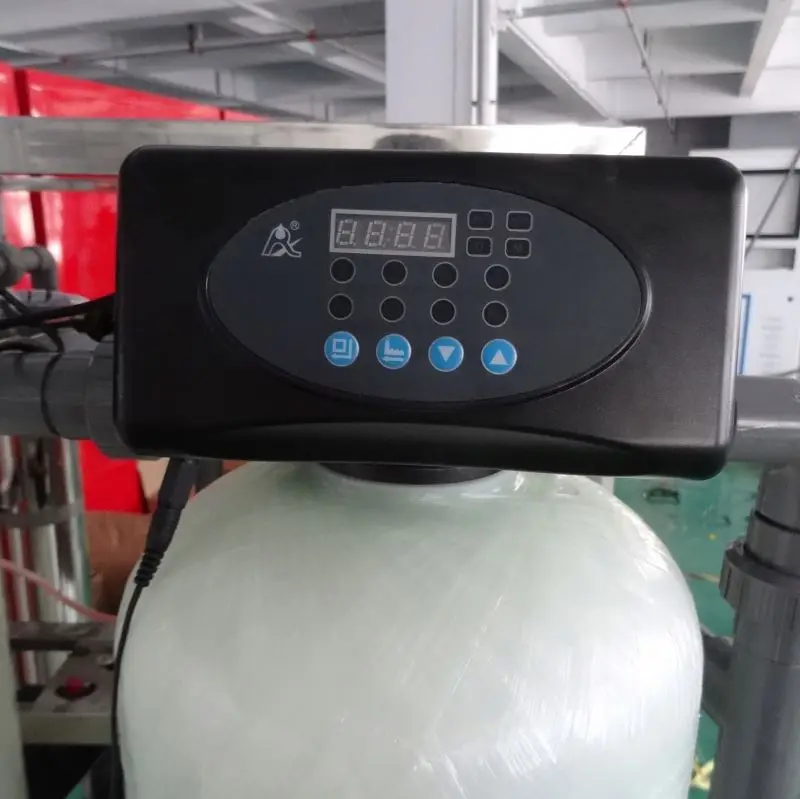

3---Resin softening

Function: mainly remove the calcium and magnesium in tap water, reduce the hardness of water

Flow rate: 5m3/h

Design pressure: 0.3Mpa

Thickness: 2mm on body and 3mm on top

Material: FRP

Filter material: Resin 0.315-1.25mm

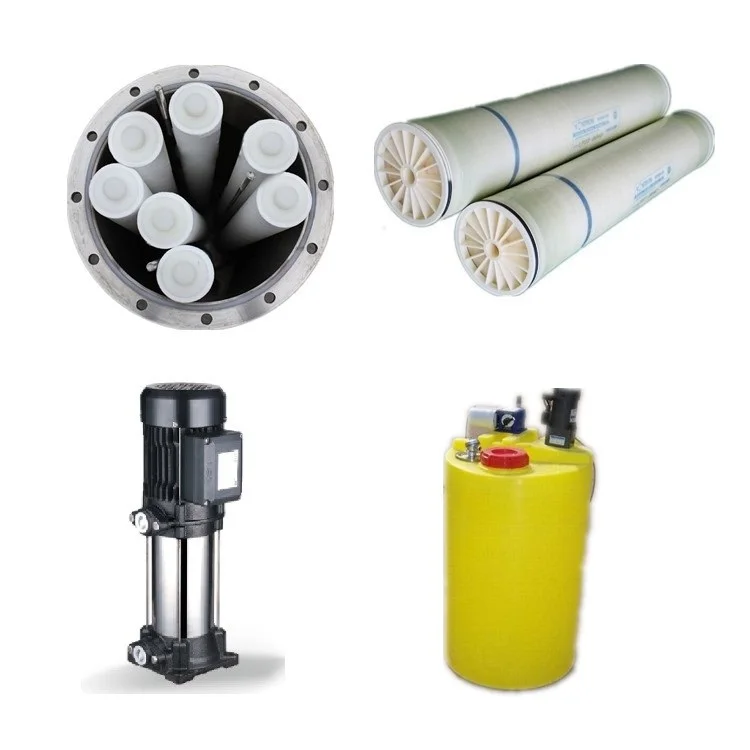

 4--Security filter:

Function: Further filtration, to avoid quartz entry into RO to break the membrane

Shell Material: SUS304

Cartridge material: Spray-fusing polypropylene 5um 20’

Cartridge Qty: 5pcs

5---RO membrane:

Function: the core part of pure water equipment, the production of high-purity water.

Parameters:

Model: ULP31-4040

Flow rate: ≥7.2m3/h 25℃

Desalination rate %:99.4%

Max Inlet Water Temperature: 45 ℃

Max Working Pressure:600pai=4.14Mpa

Effective membrane area ft2(m2) :85(7.9)

Operation: automatic control, automatic flush

Membrane material: aromatic polyamide composite membrane

Membrane housing material: SUS 304

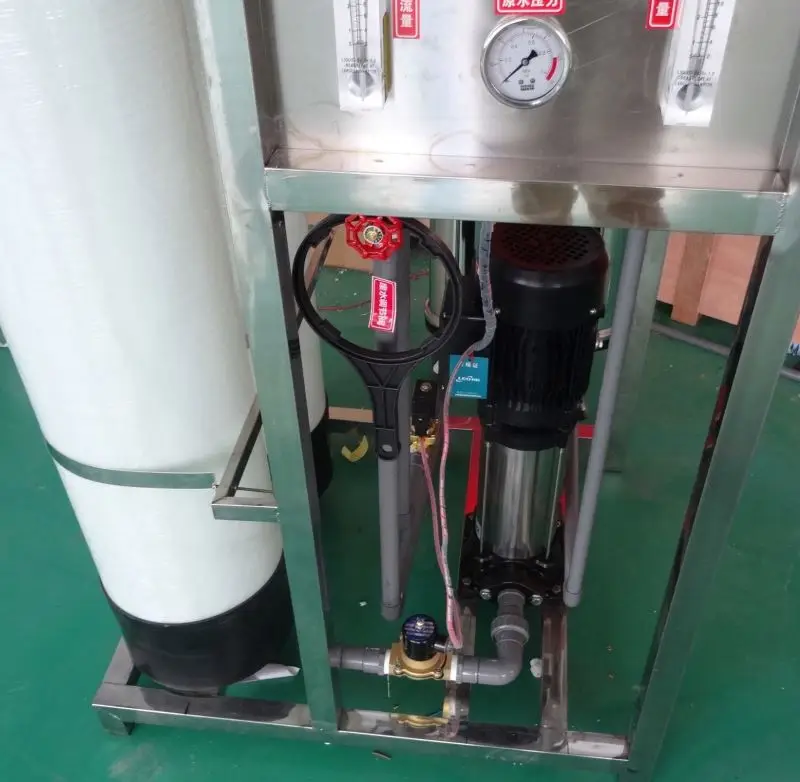

6--- High-pressure pump:

Function: provide enough pressure for reverse osmosis system

Model:CVF2-13T 1.5kw

Material: SUS304

Flow: 3.2m3/h

Lift: 60m

7---Anti-sludging agent dosing device

Function: According to a certain proportion of adding reverse osmosis antiscalant dosing, prevent reverse osmosis caused by dirt plugging in the long-running surface node membrane element, It can effectively disperse fouling. And prevent the deposition of iron and aluminum oxide

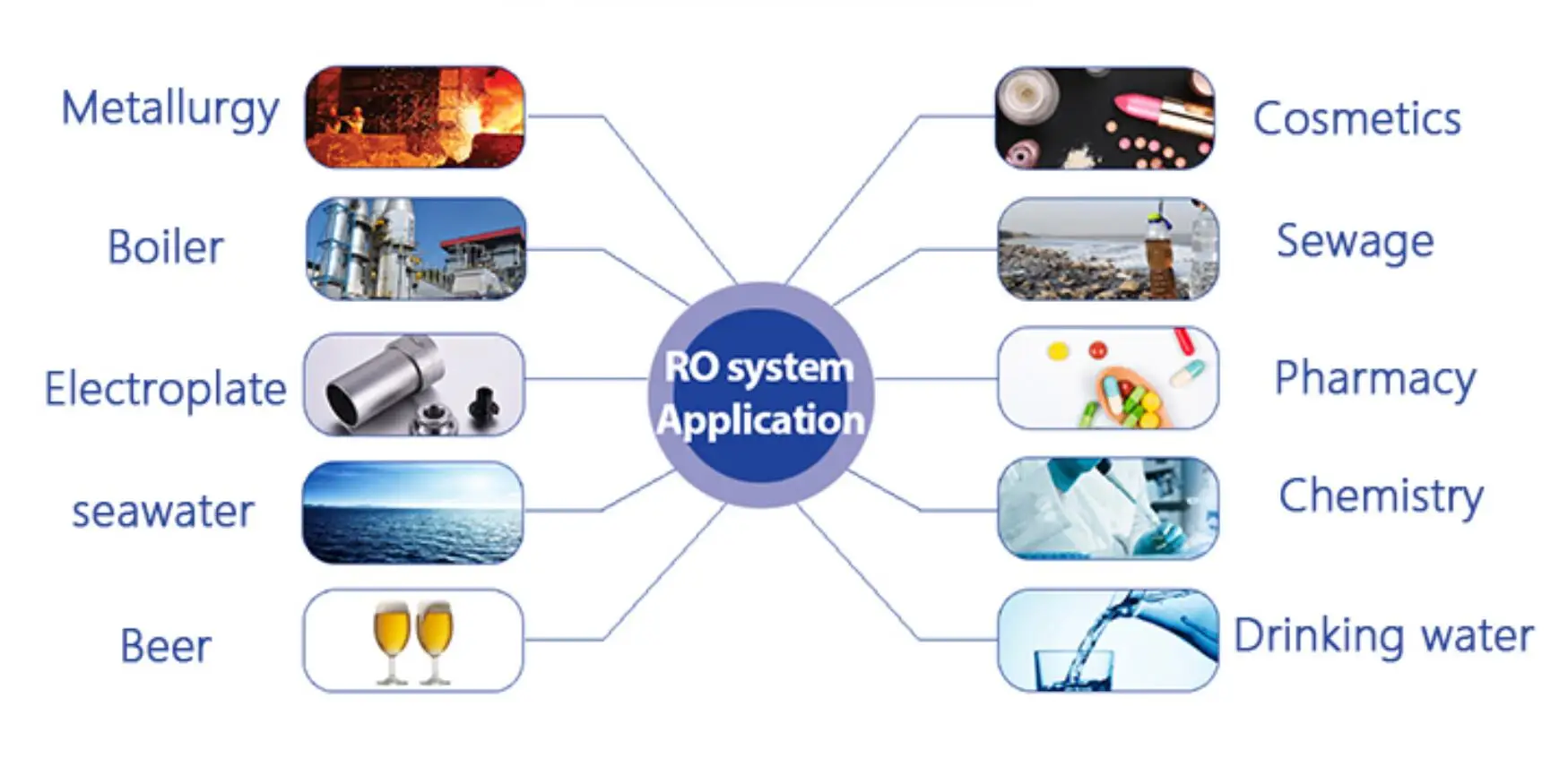

 The industrial reverse osmosis water filter sysytem can be used the following field :
1)Food and Beverages
2)Tube and Micro Circuit manufacturing
3)Pharmaceuticals
4)Hotels & Resorts
5)Hospitals, Mineral Water Processors
6)Power Generation
7)Electronic Component manufacturing
8)Semiconductors

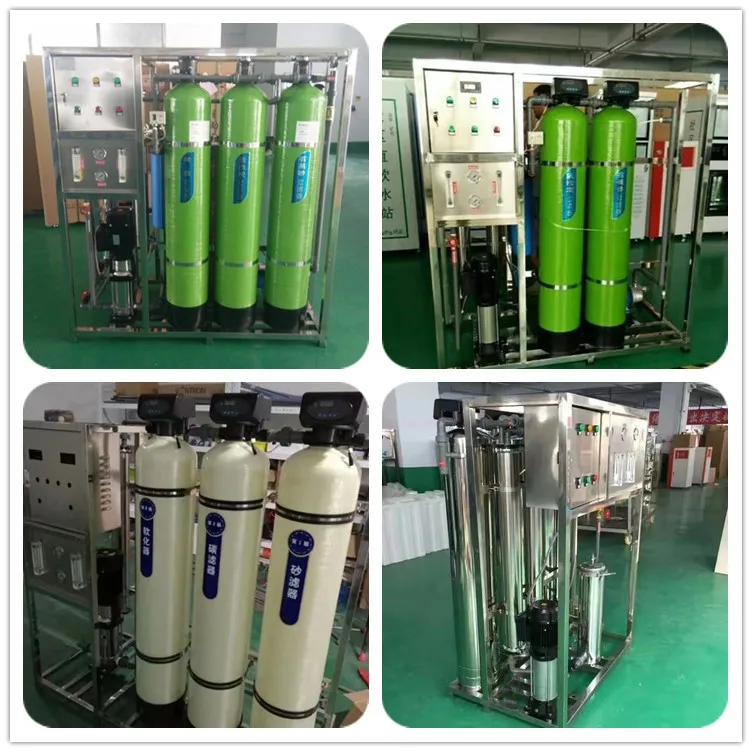

Our water purifier factory can produce household and office water purifer,commercial water filter for school,ro water purifer for hotel, industrial ro water system for factory pure water.and we also manufacture the water filter spare parts such as water purifer cartridge(pp, cto, gac, t33), water filter tank, water filter housing etc.
