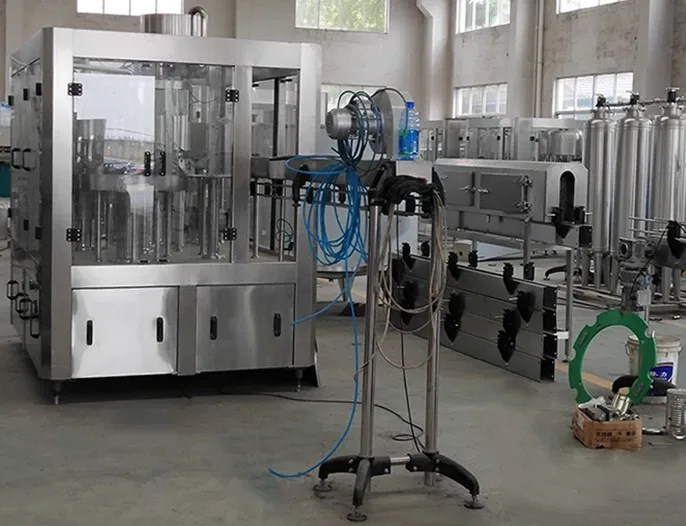

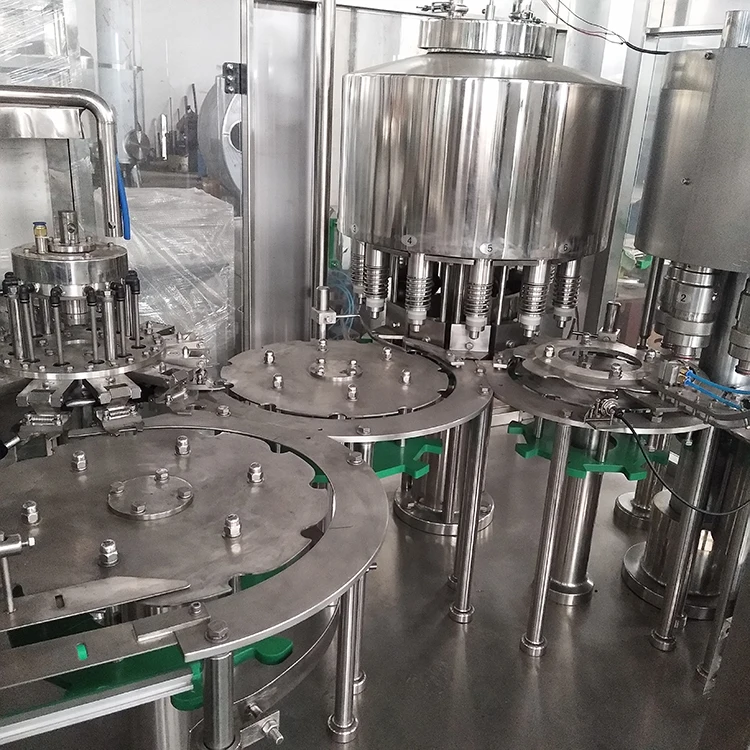

Automatic Filling Machine Used Bottled Water Plant Equipment
Product Application:
This machine has washer,filler,capper three functions in one body, it is automatic in total process and suitablefor PET bottled juice and tea drink which can resistant high temperature.It also can be used for mineral water,pure water and many other no gas containing drinks. It makes by high quality SUS304, key parts are precision machined by NC tool.The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Technical parameters
Model | CGF8-8-3 | CGF14-12-5 | CGF18-18-6 |
Production Capacity | 2000bph | 2000-4000bph | 4000-6000bph |
Washing Heads | 8 | 14 | 18 |
Filling Heads | 8 | 12 | 18 |
Capping Heads | 3 | 5 | 6 |
Power | 2KW | 2.5KW | 3KW |
Overall Dimension | 1800x1280x1900MM | 2200X1280X2000MM | 2400X2000X2200MM |
Weight | 1500KG | 2000KG | 2500KG |

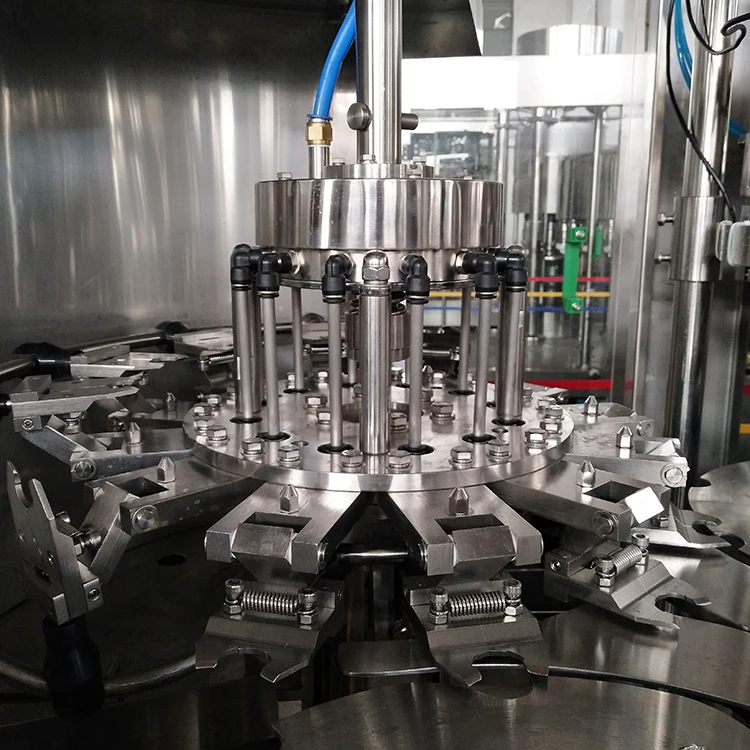

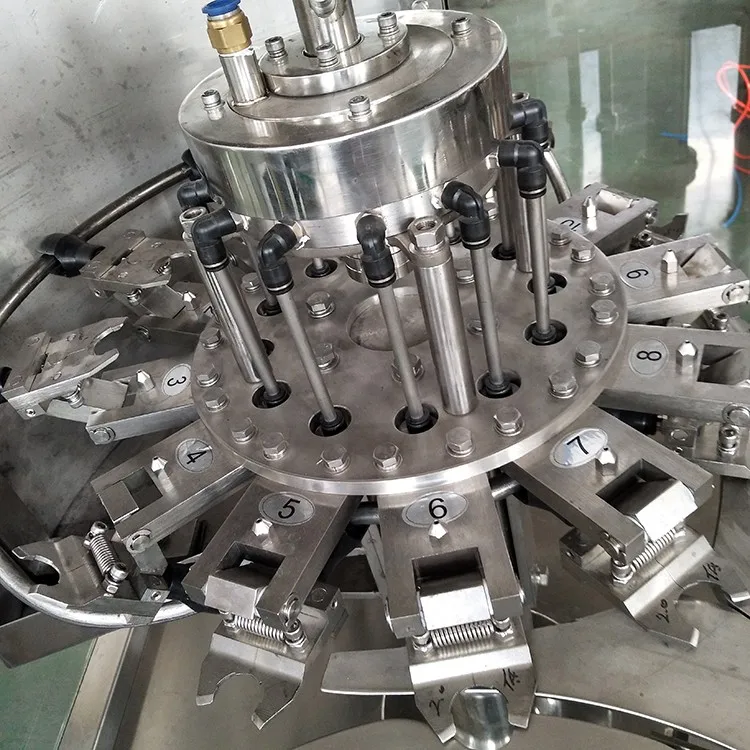

Rinsing Part
Into bottle way is air conveyor direct connection with Bottle dial .All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing, 304/316 stainless steel washing pump make the machine more durable .

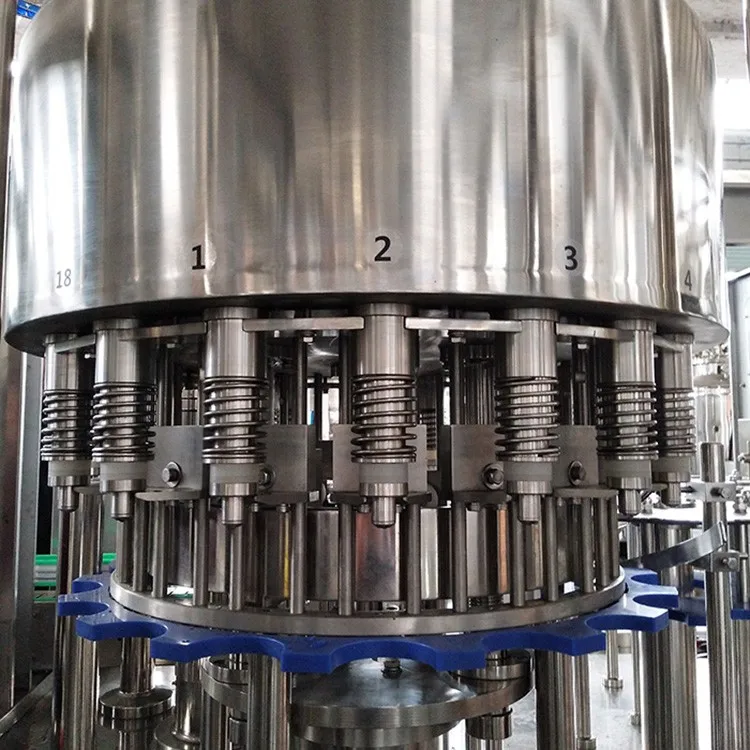

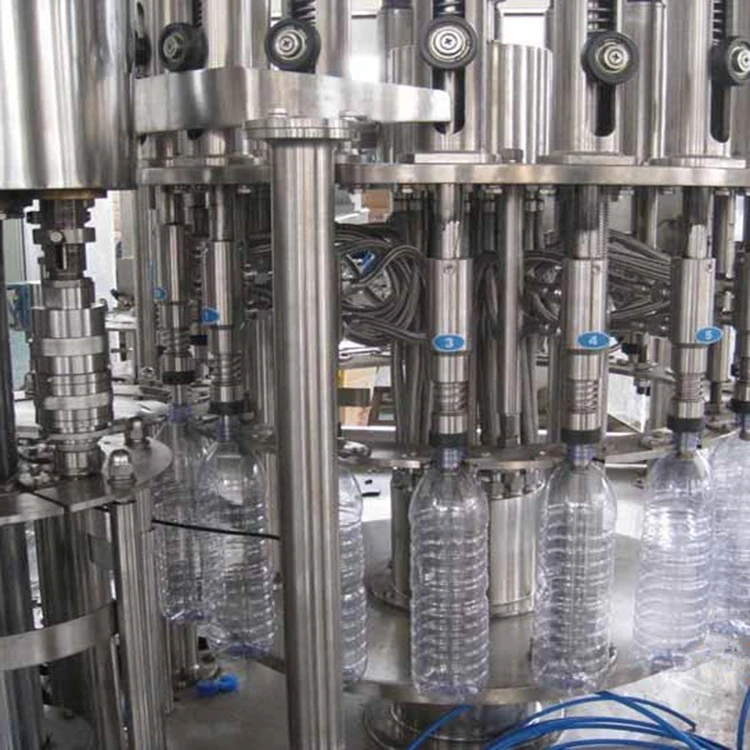

Filling Part
304/316 Stainless steel high precision filling nozzle,Filling volume adjustable in fine rank, same liquid level after filling, All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean,304/316 stainless steel filling pump, Efficient spray nozzle rinse thoroughly and save water for flushing

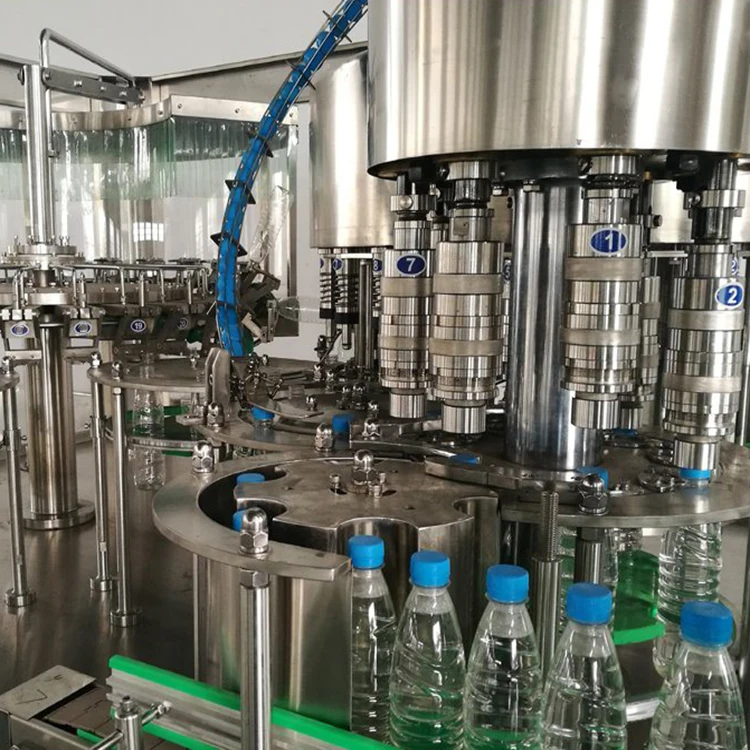

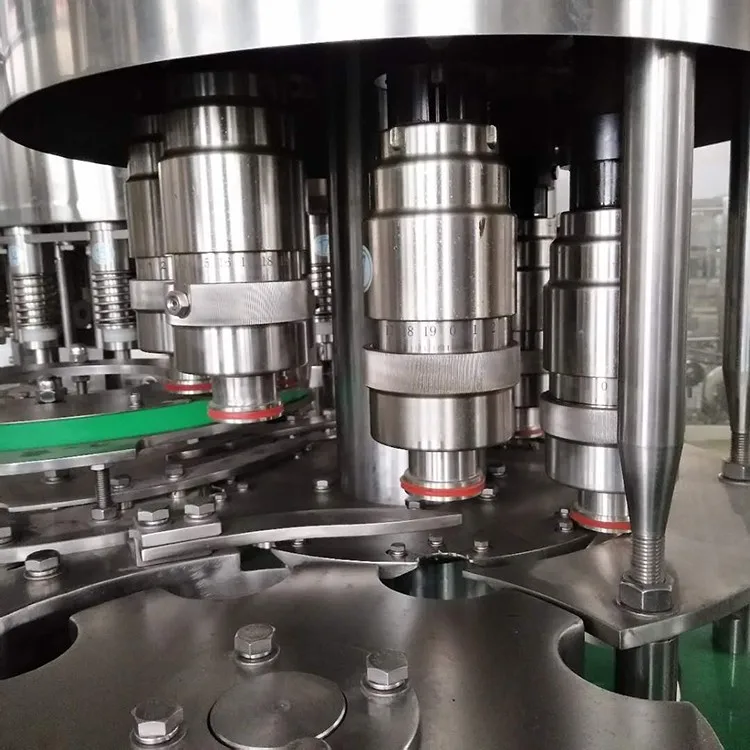

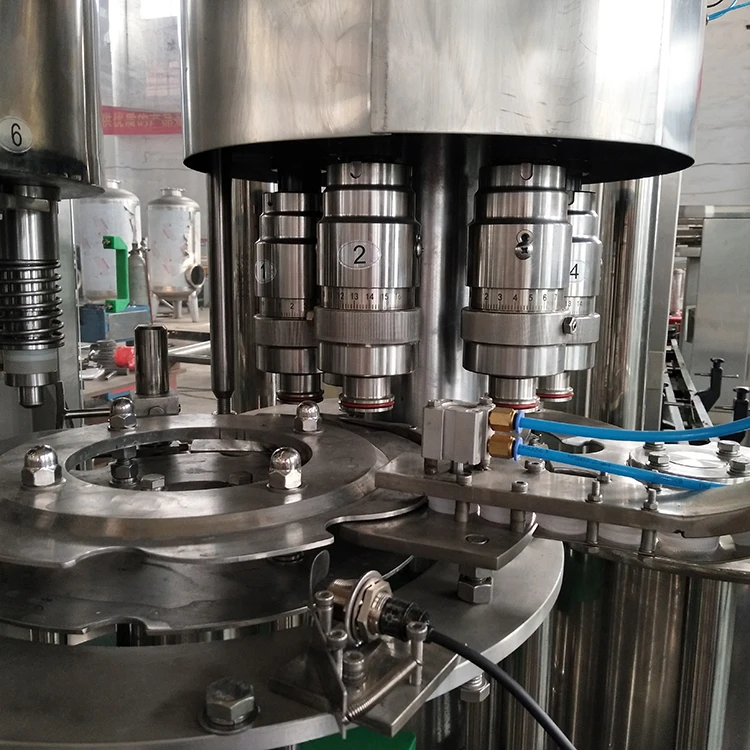

Capping Part
Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is an separate part. Change cap is only need to change capping head, easy for change and operation. The whole machine is made from SUS304, long shelf time.

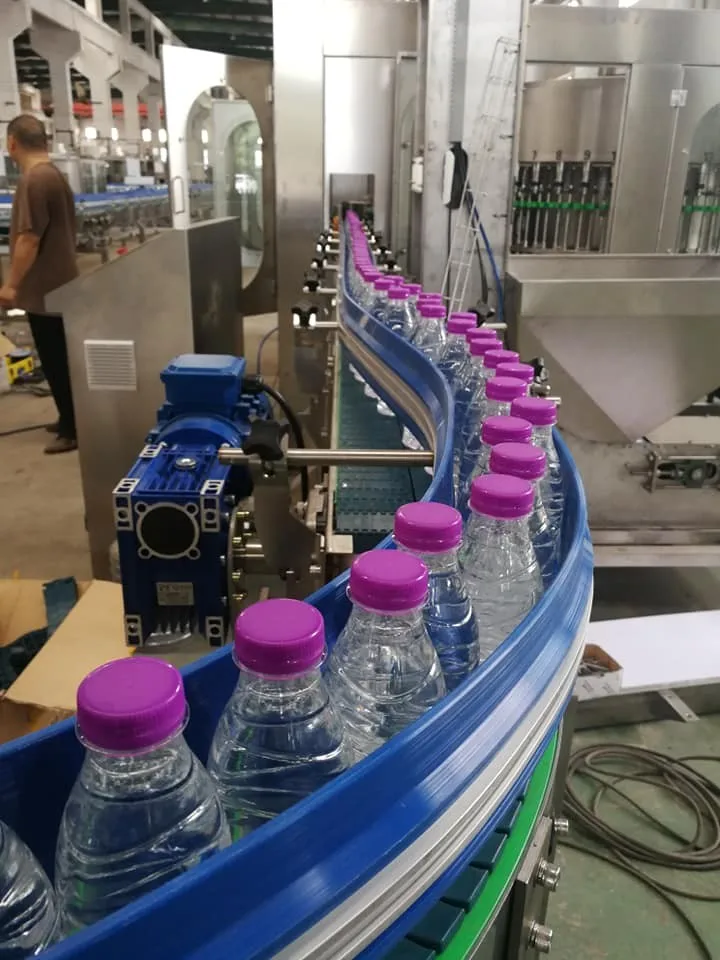

Flat conveyor
Energy saving. High efficient. Adapt to customer factory layout,Special lubrication system, keep products clean, health, safety,Extended service life,Electric eyes design keep whole line running safety and quickly,Overload protection mechanism to effectively ensure the safety of the machine
Related Products
PET Bottle Blowing Machine Bottle Unscrambler
3 In 1 Pure Water Filling Machine Automatic Sleeve Labeling Machine
PE Film Packaging Machine 600 BPH 5 Gallon Water Filling Maching
If you want to know more products! Please click " here '' to return to the home page, All products!
Our Company
FAQ
Q. Are you a trading company or manufacture?
A: We are manufacture ,we have our professional manufacturing teams and technicians.
Q: Do you have technical support?
A: Our company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operation training for user operator.
Q: How is your delivery time?
A: Generally speaking, the sample order takes 5-7 days, and it takes 15-20 working days for the bulk order after receiving the payment. The exact delivery time depends on the project project and the number of orders.
Q: How do you make our business long-term and good relationship?
A1. We maintain good quality and competitive prices to ensure our customers benefit;
A2. We respect every customer as our friend, we sincerely do business with them and make friends with them, no matter where they come from. We are partners.
Packing & Delivery
Transport Port : Shanghai Port.
Transportation: By van ,by train, by plane.
Packaging Details :Machine will be packed by PVC film+ standard wooden case or carton.
Wooden case suitable for long distance ocean shipping.
