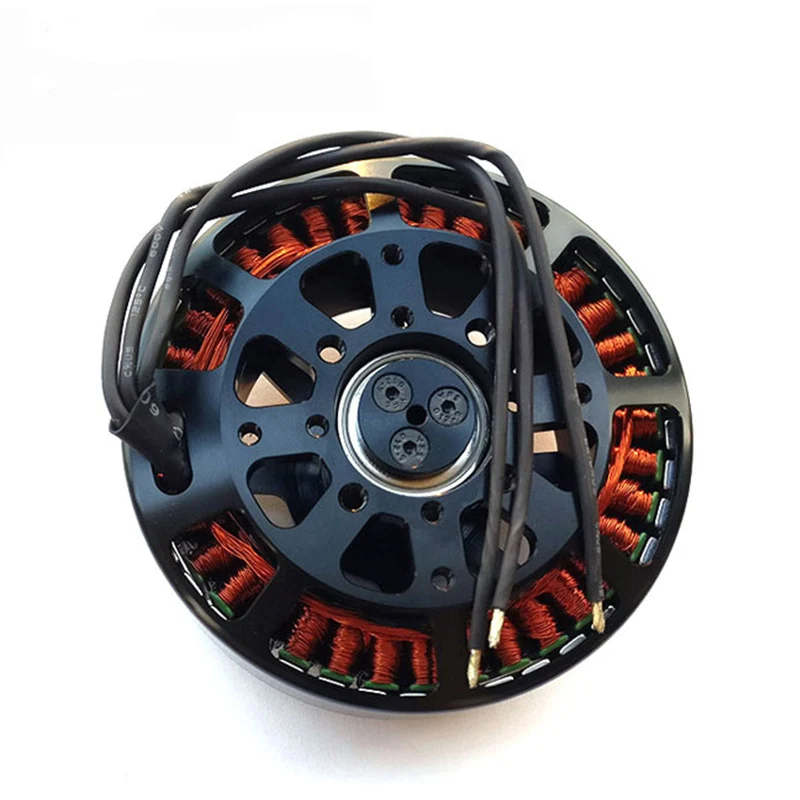

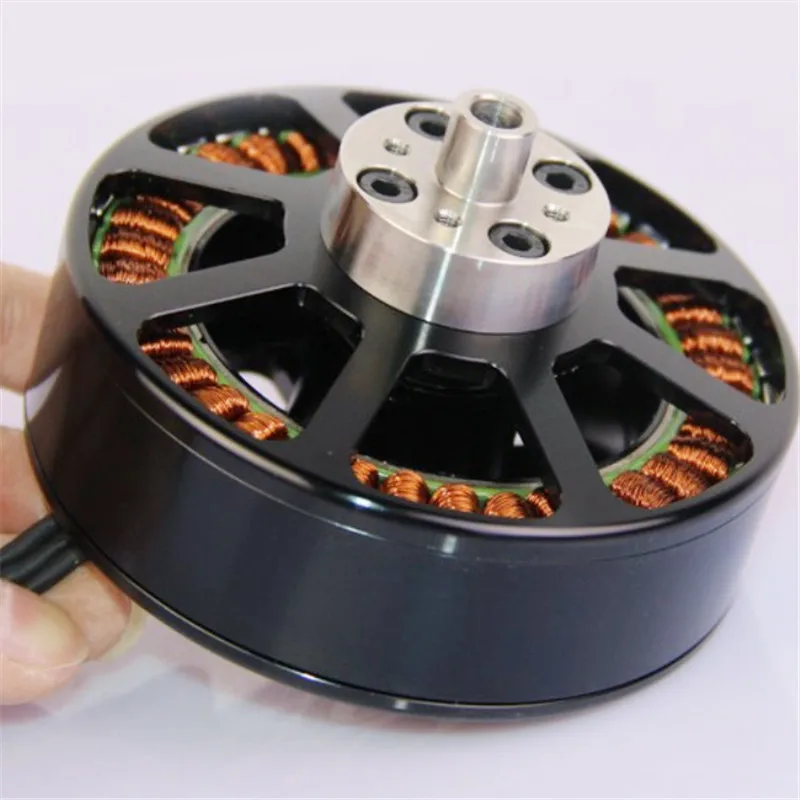

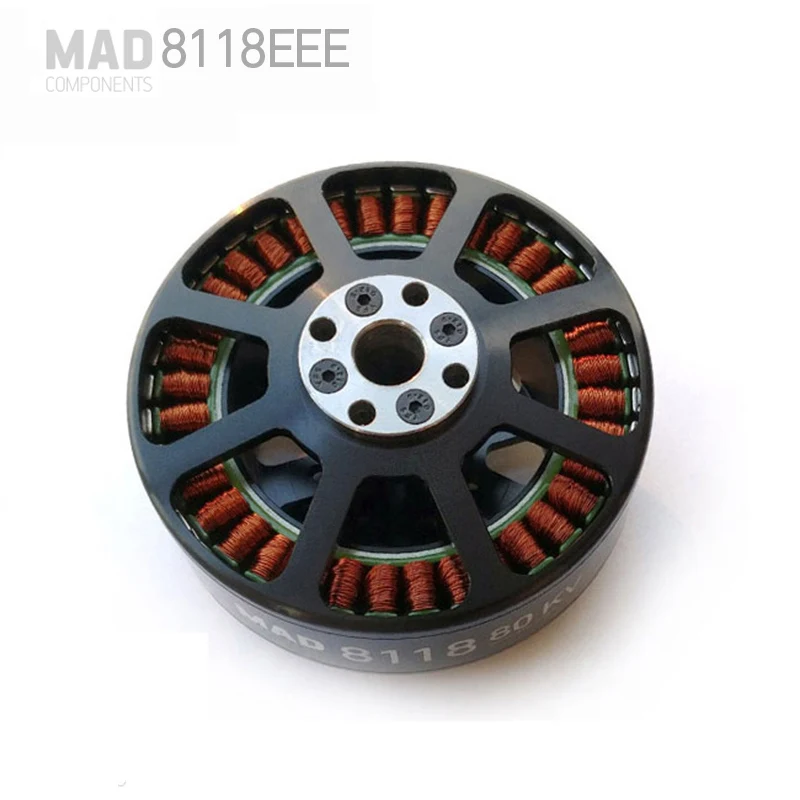

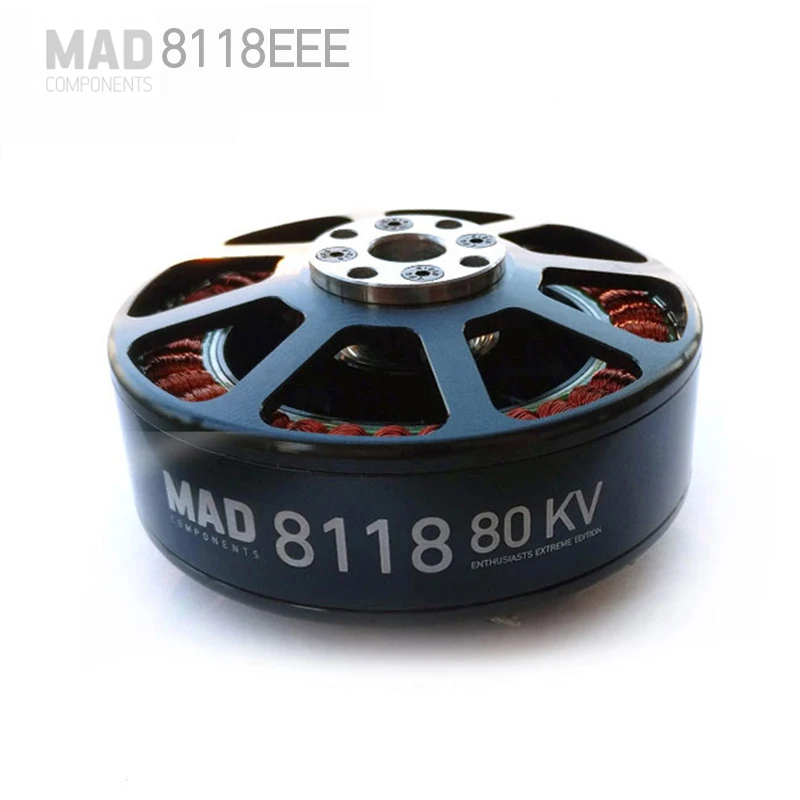

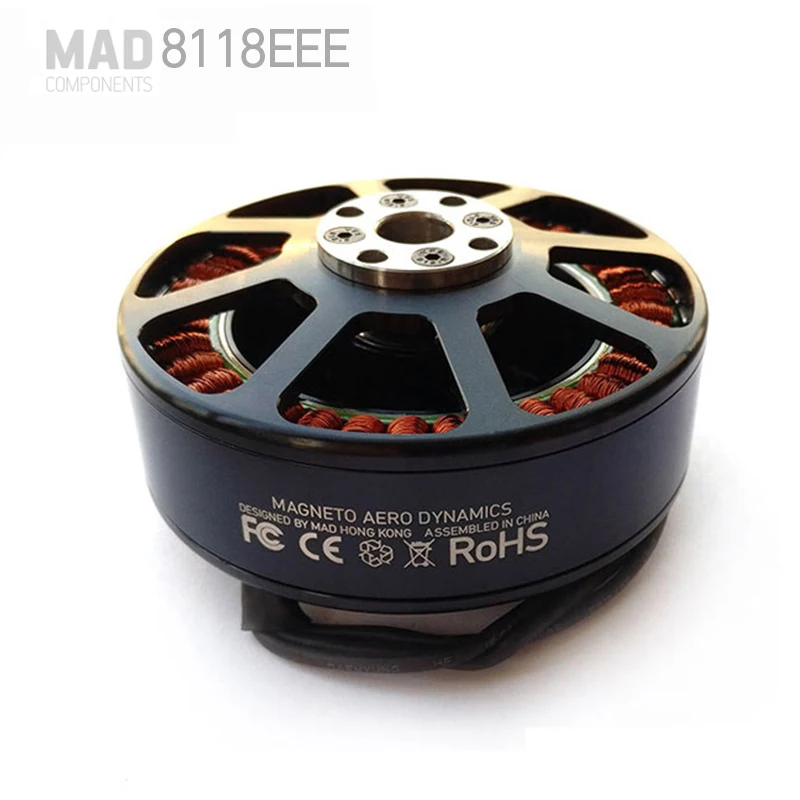

MAD8118 EEE 100KV RC Electric Engine for Aircraft
- Category: >>>
- Supplier: Nanchang HSD Machinery Co. Ltd.
Share on (60825812374):
Product Overview
Description
MAD8118 EEE 100KV RC Electric Engine for Aircraft
Product Description
Key features
l Reduced motor weight
l Open body design for better passive heat dissipation
l Compatibility for propeller installation
l Motor mounting holes standarization
l Repairable
l Maximized performance
l Low power consumption
l Designed for 10S-14S voltage
SPECIFICATIONS
MAD8118 |
EEE |
EEE |
Configuration | 36N40P | 36N40P |
RPM/V | 80KV | 100KV |
Stator Size | 81 x 8 mm | 81 x 8 mm |
Motor dimensions | 88.6 x 38 mm | 88.6 x 38 mm |
Bearing | EZO | EZO |
Shaft Diameter | 10 mm | 10 mm |
Continuous(60 min) | 800 W | 1000 W |
Maximum Power (60 secs) | 1500 W | 1800 W |
Maximum Current (60 secs) | 33 A | 41 A |
Idle Current at 6.8 V | 0.8 A | 1.1 A |
Internal Resistance | 93 mΩ | 79 mΩ |
Motor Weight | 500 g | 500 g |
Product Boxed Weight | 775 g | 775 g |
Product dimension | 110*110*50 mm | 110*110*50 mm |
Heat dissipation | Passive | Passive |
Rotor balanced | Yes | Yes |
Heavy duty design | No | No |
Degree of Protection | Rain proof | Rain proof |
Maximum Thrust | 10150 g(12S) | 12811 g(12S) |
Efficiency at 750 g thrust | 12.6 g/W | 12.6 g/W |

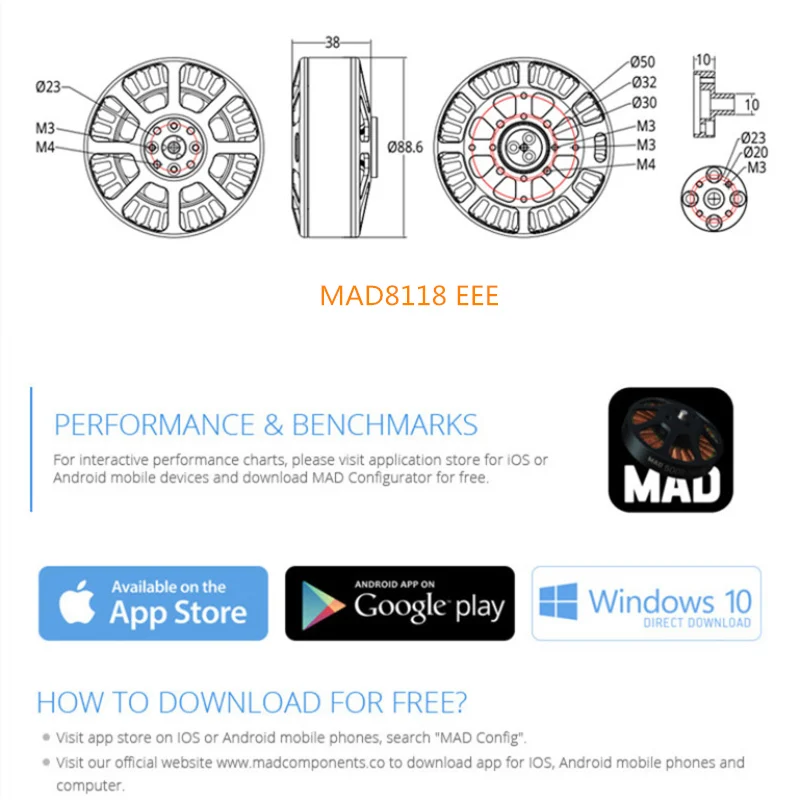

Propeller Mounting Holes | 4 x M3 Ø20 mm | 4 x M3 Ø20 mm |
Motor Mounting Holes | 4 x M3 Ø30 mm, 4 x M3 Ø50 mm 4 x M4 Ø32 mm | 4 x M3 Ø30 mm, 4 x M3 Ø50 mm 4 x M4 Ø32 mm |
Wire | Winding Extended 150 mm | Winding Extended 150 mm |
Propeller Adapter | No | No |
Additional accessories | 3x bullet connector, 3x Hot sleeve, 2x M3 10mm screws, 1x propeller seat, 1x MAD sticker | |
RECOMMENDATIONS |
| |||
MAD8118 EEE | 80KV | 100KV | ||
Propeller size | 26” - 34” (6S) | 12 S | 26” - 29” | 12 S |
Takeoff Weight | 4000 - 6500 g/rotor (6S) | 12 S | 6500 - 8500 g/rotor | 12 S |

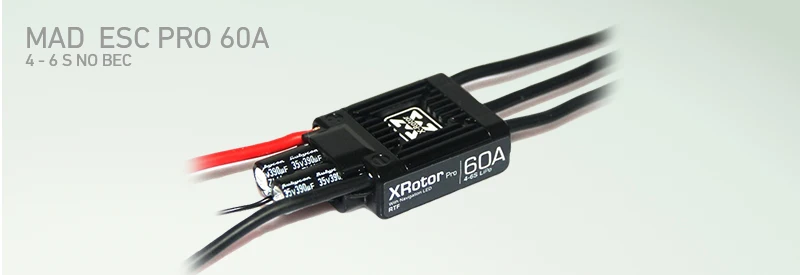

Recommended ESC

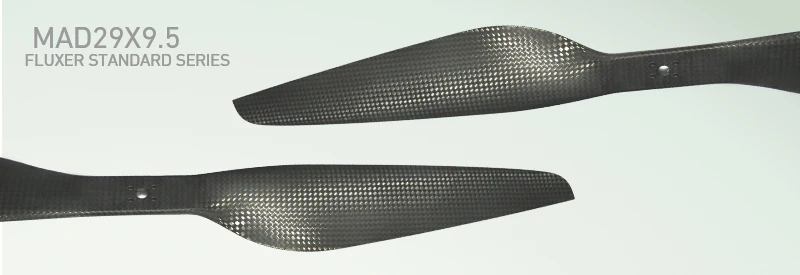

Recommended PROPS

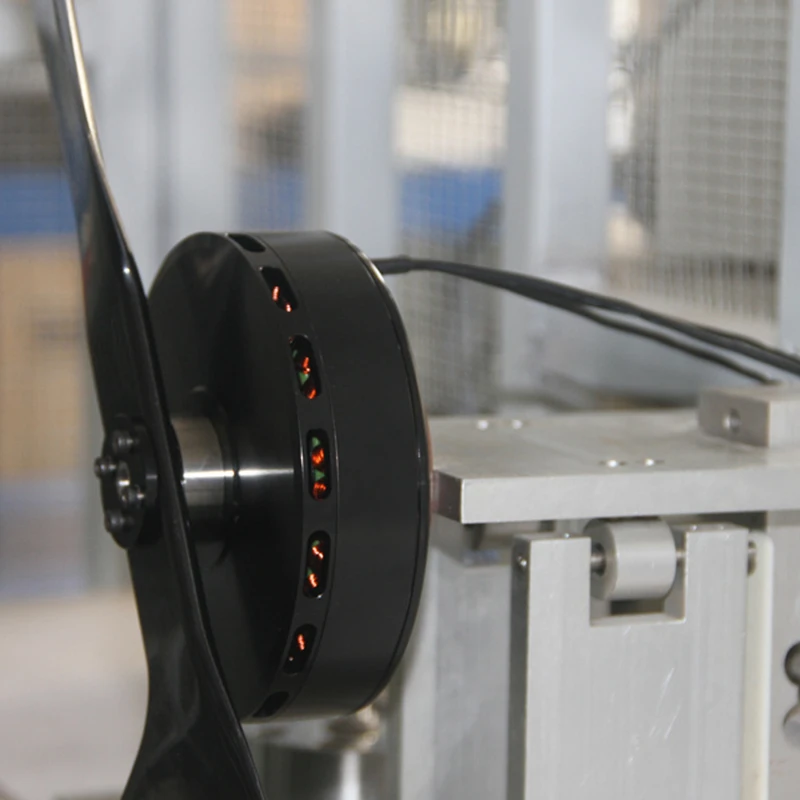

Test Parameter
Propeler Size | Voltage ( V ) |
Throttle | Current ( A ) | Thrust ( g ) |
RPM | Power ( W ) | Efficiency ( g/W ) | Temperature ( °C ) |
26*85 |
48 | 10% | 3.7 | 1940 | 2066 | 177.6 | 10.9 |
55℃ |
20% | 7.4 | 3310 | 2696 | 355.2 | 9.3 | |||
30% | 11.1 | 4520 | 3090 | 532.8 | 8.5 | |||
40% | 14.8 | 5450 | 3430 | 710.4 | 7.7 | |||
50% | 18.5 | 6525 | 3683 | 888.0 | 7.3 | |||
60% | 22.2 | 7365 | 3910 | 1065.6 | 6.9 | |||
70% | 25.9 | 8210 | 4119 | 1243.2 | 6.6 | |||
80% | 29.6 | 8930 | 4283 | 1420.8 | 6.3 | |||
90% | 33.3 | 9440 | 4443 | 1598.4 | 5.9 | |||
100% | 37.3 | 10140 | 4598 | 1790.4 | 5.7 | |||
27*88 |
48 | 10% | 4.2 | 2185 | 2060 | 201.6 | 10.8 |
59℃ |
20% | 8.4 | 3835 | 2653 | 403.2 | 9.5 | |||
30% | 12.6 | 5040 | 3048 | 604.8 | 8.3 | |||
40% | 16.8 | 6300 | 3359 | 806.4 | 7.8 | |||
50% | 21.0 | 7450 | 3637 | 1008.0 | 7.4 | |||
60% | 25.2 | 8350 | 3855 | 1209.6 | 6.9 | |||
70% | 29.4 | 9175 | 4042 | 1411.2 | 6.5 | |||
80% | 33.6 | 10020 | 4212 | 1612.8 | 6.2 | |||
90% | 37.8 | 10680 | 4365 | 1814.4 | 5.9 | |||
100% | 42.0 | 11620 | 4526 | 2016.0 | 5.8 | |||
28*92 |
48 | 10% | 4.6 | 2605 | 1985 | 220.8 | 11.8 |
62℃ |
20% | 9.2 | 4285 | 2595 | 441.6 | 9.7 | |||
30% | 13.8 | 5460 | 2973 | 662.4 | 8.2 | |||
40% | 18.4 | 6840 | 3274 | 883.2 | 7.7 | |||
50% | 23.0 | 7930 | 3513 | 1104.0 | 7.2 | |||
60% | 27.6 | 8935 | 3789 | 1324.8 | 6.7 | |||
70% | 32.2 | 9945 | 3903 | 1545.6 | 6.4 | |||
80% | 36.8 | 10750 | 4072 | 1766.4 | 6.1 | |||
90% | 41.4 | 11660 | 4219 | 1987.2 | 5.9 | |||
100% | 45.6 | 12450 | 4341 | 2188.5 | 5.7 | |||
29*95 |
48 | 10% | 4.8 | 2774 | 1934 | 230.4 | 12.0 |
66℃ |
20% | 9.6 | 4559 | 2459 | 460.8 | 9.9 | |||
30% | 14.4 | 6.28 | 2818 | 691.2 | 8.7 | |||
40% | 19.2 | 7344 | 3109 | 921.6 | 8.0 | |||
50% | 24.0 | 8568 | 3355 | 1152.0 | 7.4 | |||
60% | 28.8 | 9537 | 3530 | 1382.4 | 6.9 | |||
70% | 33.6 | 10598 | 3708 | 1612.8 | 6.6 | |||
80% | 38.4 | 11526 | 3866 | 184302 | 6.3 | |||
90% | 43.2 | 12342 | 3997 | 2073.6 | 6.0 | |||
100% | 48.0 | 12811 | 4068 | 2304.0 | 5.6 |

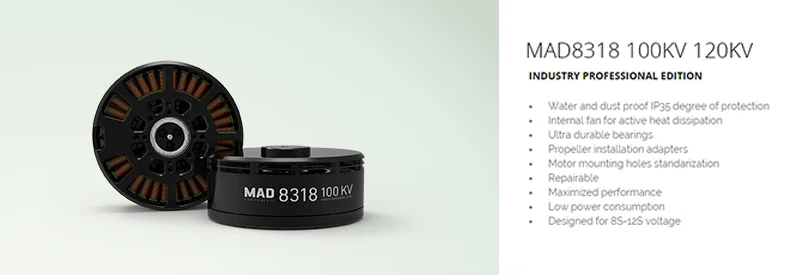

Similar Motors
Packaging
No accident shipping term:
DHL: 3-5 working days;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

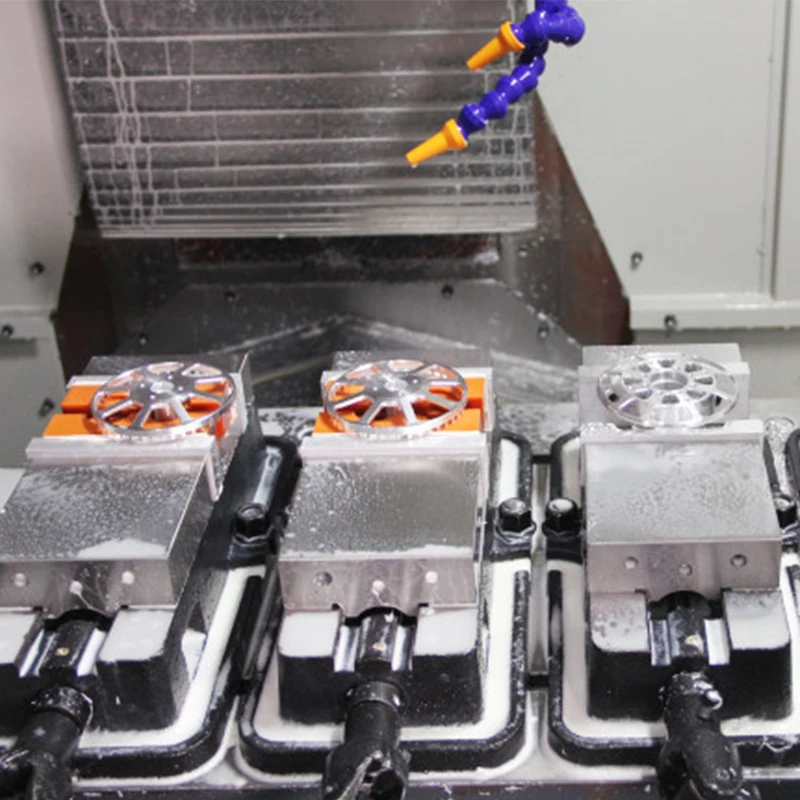

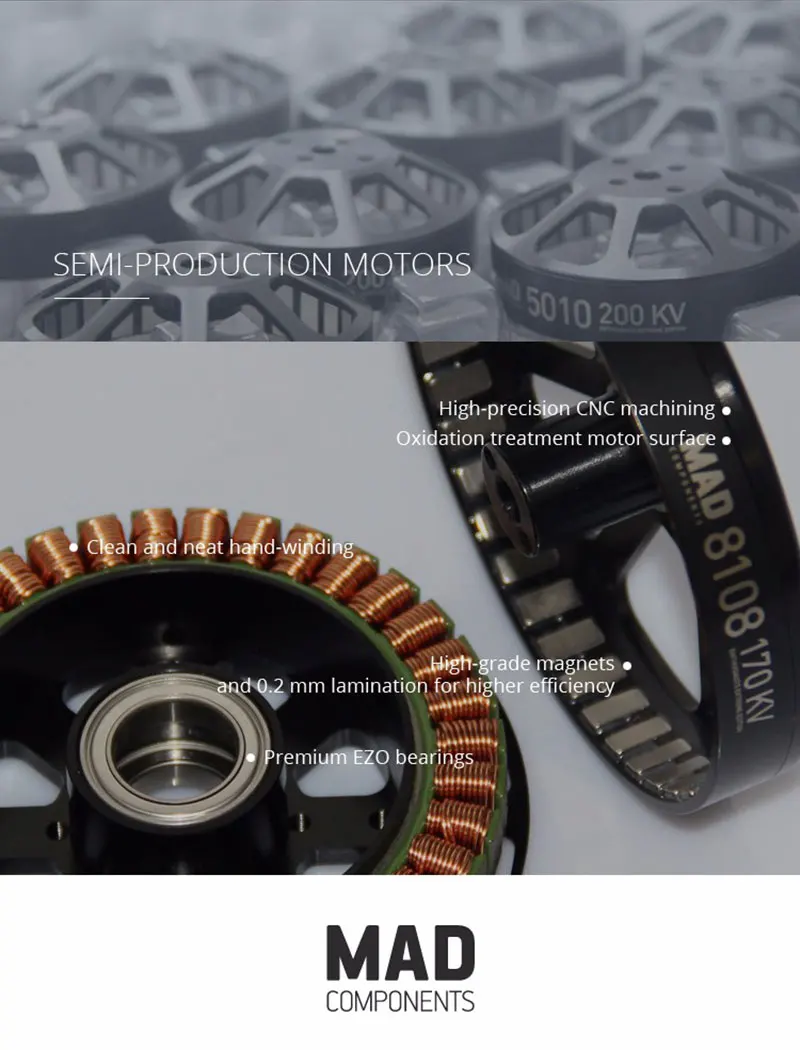

Production Showcase
Who We Are
MAD Components is technology division of Magneto Aero Dynamics, newly established innovative company, designing, developing and manufacturing propulsion systems for wide range of multirotor aerial vehicles (UAVs, drones, etc.).
Our Research and Development team provides new concepts of building efficient propulsion systems, motors, ESCs, and propellers to meet the unique needs of clients from around the world. Experience, motivation and perfect engineering stay behind reliability and effectiveness of propulsion systems we offer.
Now, we are focused on even more reliable and efficient motors and propellers for professional, industrial or military use.
We do not forget about demanding enthusiasts and hobbyists. Wide range of our products is made for them and is commercially available.
Our offices and stores are located in Warsaw, Poland and Hong Kong.
We dispatch orders to EU zone countries from Poland - no customs procedure in recipients country and no customs fees.
For other countries shipment is made from Hong Kong and occasionally from Poland. Local customs fees can be expected
INDUSTRY SOLUTIONS
MAD offer made-to-order products as well as designing and developing motors, propellers and ESCs from scratch according clients requirements and demands.
We are open for cooperation, our Research and Development team provides new concepts of building efficient propulsion systems, motors, ESCs, and propellers to meet the unique needs of clients from around the world.
Our focus is to maximize efficiency and reliability of the products we offer with caring of highest possible quality.
The R&D teams work in Warsaw, Poland and Hongkong. Manufacturing facilities are located in Shenzhen, China.

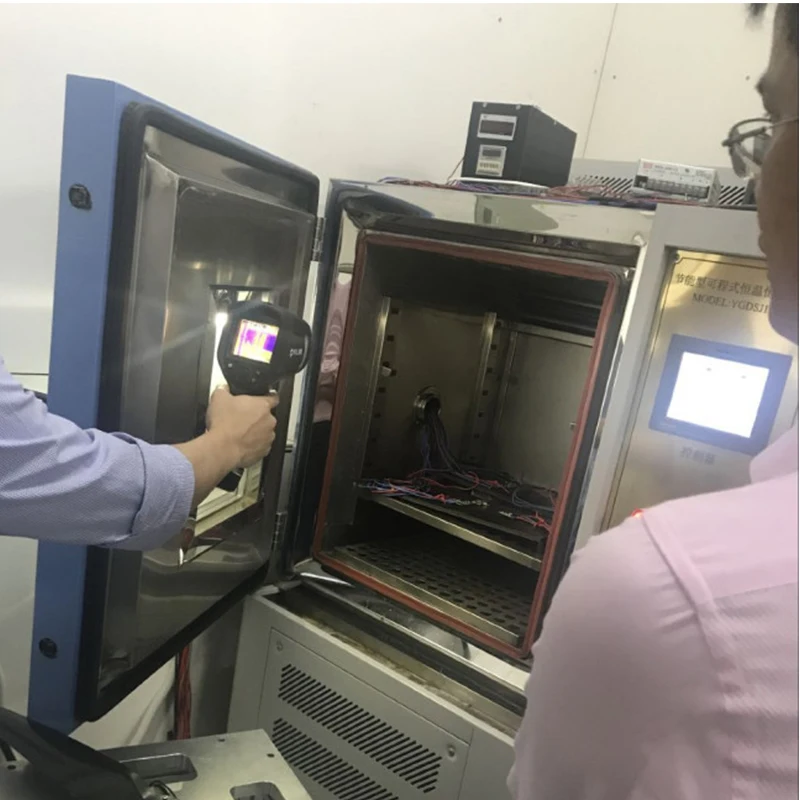

Our Quality Control is strict.
If you need propulsion system for your platform, please fill in form below with your requirements. Please give us as many details as you can and estimated required quantity. We respond ASAP, usually withing 3 working days, and present you options of our offer.
Certifications
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer and do both OEM and ODM. We have our own R&D team.
Q2: How to order?
A: Send inquiries → Reply you quotations → Discuss details → Confirm samples →
Deposit → Mass production → Cargo ready → Balance/Delivery → More cooperations.
Q3: What is your payment method ?
A: We accept T/T, Western Union, Paypal and MoneyGram, those depend on specific cases.
Q4: How long is your delivery time?
A: Usually 1-3 working days for products in stock. If we do special offer, it usually takes
4-6 weeks. Also delivery time is according to your quantity of order.
Q5: How to transport?
A: DHL, UPS, FedEx, TNT, EMS, China Post and Sea are available.Also other shipping ways are
available. Please feel free to contact us for other shipping ways.
Q6: How is your warranty service?
A: We do strict test before shipping and guarantee for 365 days. If quality problem you
could send us pictures or video clips about problem. Then we deal with the problem ASAP.
