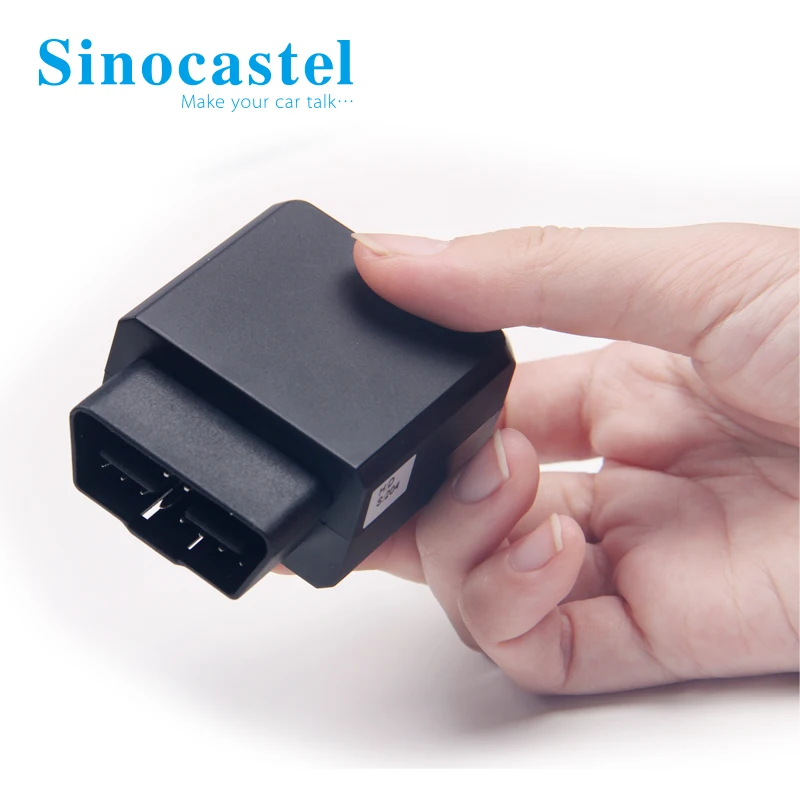

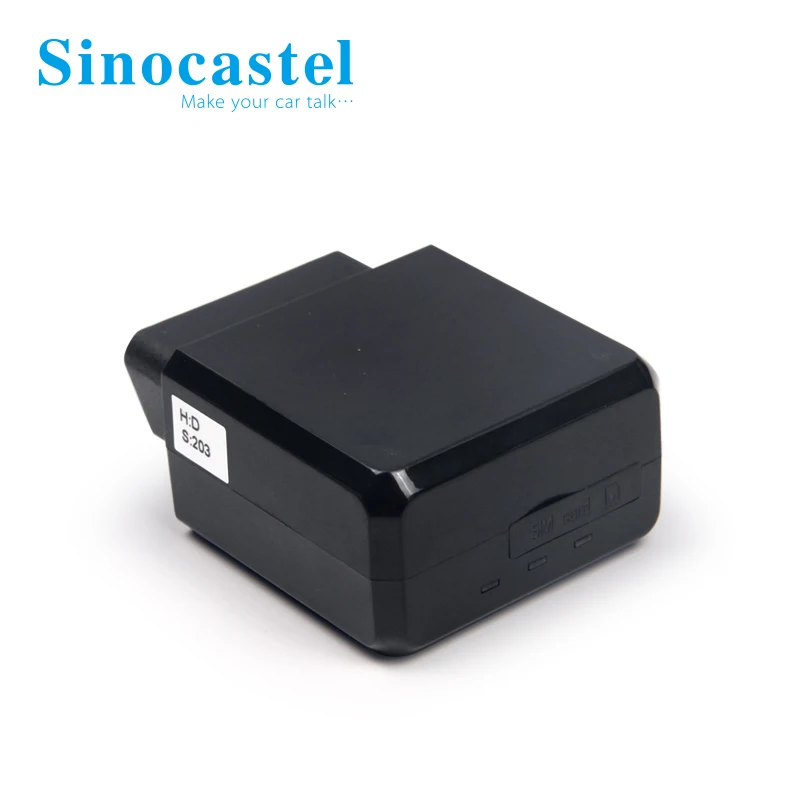

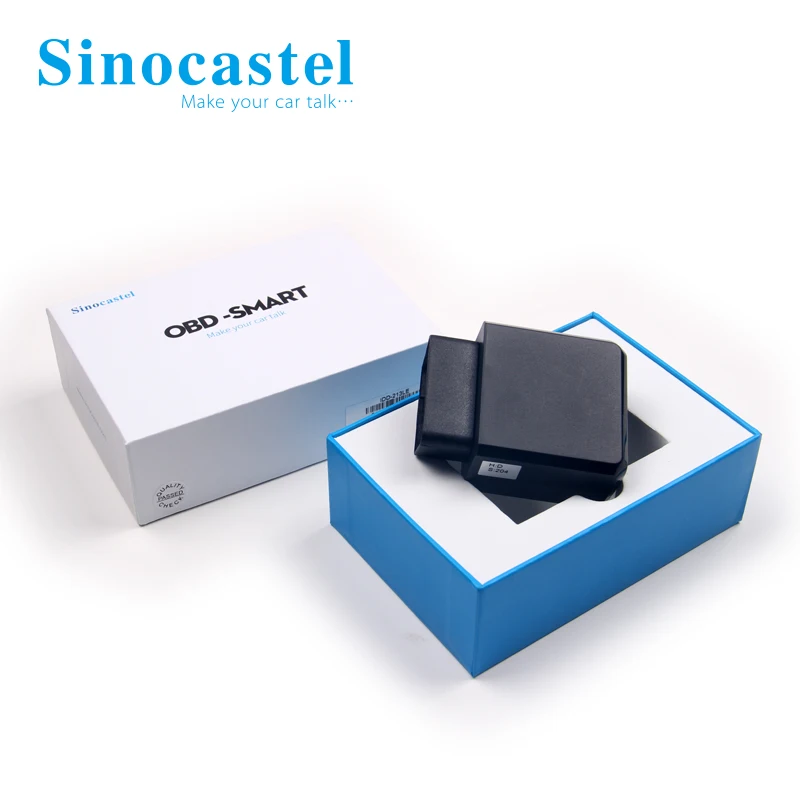

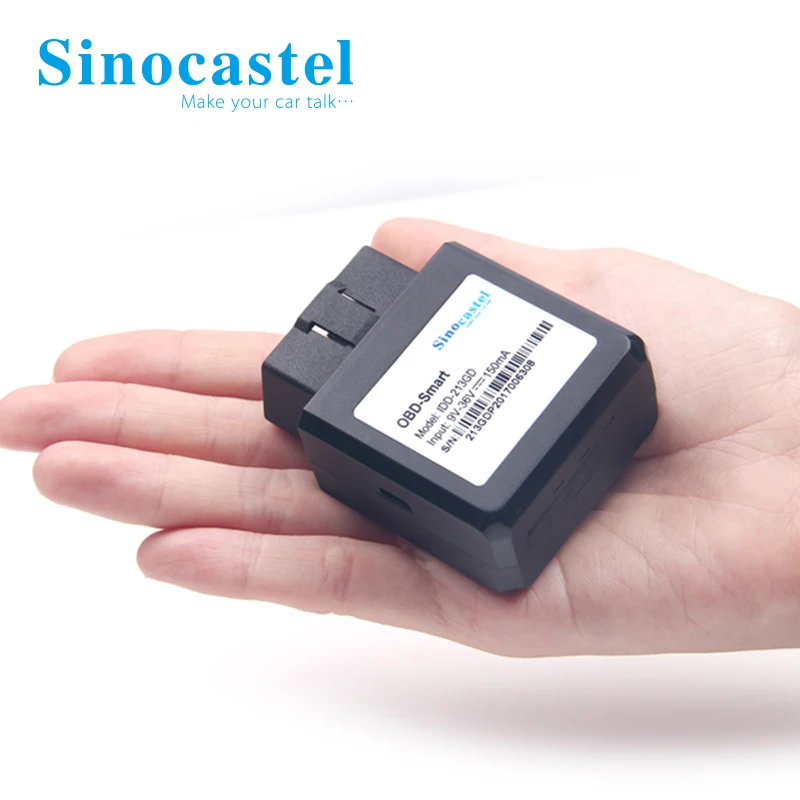

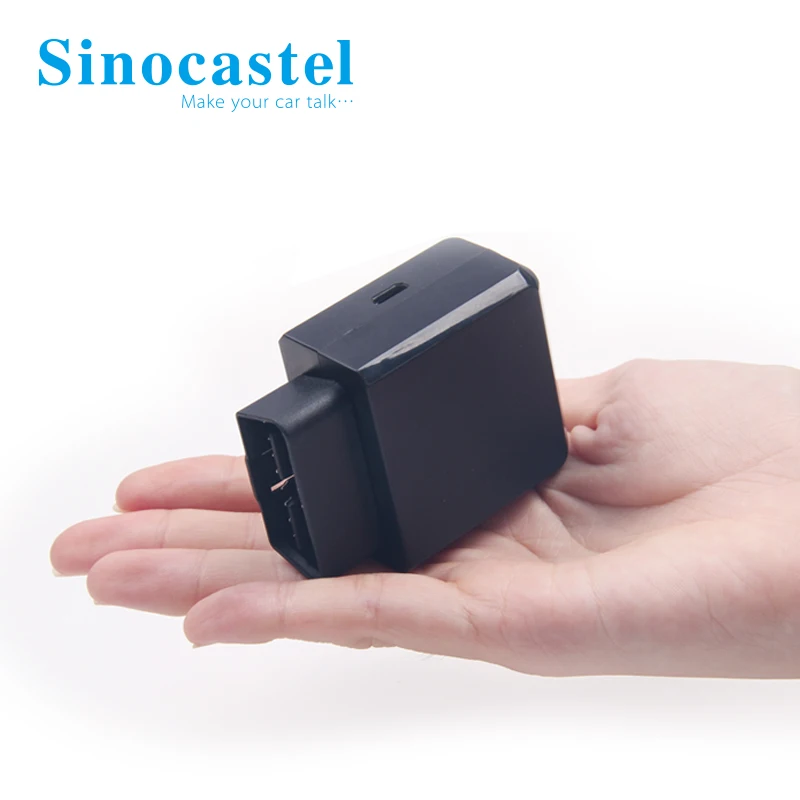

Remote engine cut off obd2 gps tracker for American ELD project
- Category: >>>
- Supplier: Sinocastel Co. Ltd.
Share on (60825848385):
Product Overview
Description
Products Description
Size | 63mm (L) x 48mm (W) x 28mm (H) |
Weight | 50g |
Interface | OBDII interface: 16 pin standard OBDII Configuration interface: Micro-USB SIM card interface: Push-Push Type |
Data Transmission | GPRS/SMS |
Positioning Method | GPS |
Storage | 2MB FLASH, up to 24,000 GPS data |
Working Voltage | 9-36V DC |
Working Current | Max.: <200mA@13.8/27.6VDC Average: <150mA@13.8/27.6VDC Sleep mode: <10mA@12/24VDC |
Backup Battery | 3.7V/160mAh |
Cellular | Frequency: GSM/GPRS: 900/1800MHz |
Optional Accessories | Configuration cable OBDII extension cable 9-Pin deutsch wiring harness 6-Pin deutsch wiring harness Power cable |
Working Temp. | -30℃ ~ +70℃ |
Storage Temp. | -40℃ ~ +85℃ |
Humidity | 5%～95% (no fog) |
