Product Overview

Description


Product Description
Towei 3900-4 interlocking push button switch supplier 1A~120V 1(0.5)A~250V 4 pin 3 speed keyboard switch for range hood

Technical Parameter

   Electrical Rating

1A ~120V.AC.   1(0.5)A~250V.AC.

   HZ

  60/50
   Load  Res/ Mot
   Temp(C)  75°C
   Pol/Thr  1/ 1
   PP/Circuit --/A
   Endur  10K
   SPCOA  24-18AWG UL1015

   Material:

    Housing: PC                    Flame rating: V-0                      Temperature: 130°C             Blocking plate: Steel
   Cover: PC                         Flame rating: V-0                     Temperature: 130°C             Terminal spring: stainless steel
   Push block: PA66              Flame rating: V-0                    Temperature: 130°C             Stationary terminal:Copper alloy
   Actuating Tip:Copper         Spring: Steel                          LPush spring : steel              Button : Stainless steel
   Locking plate: Zinc Plating Iron

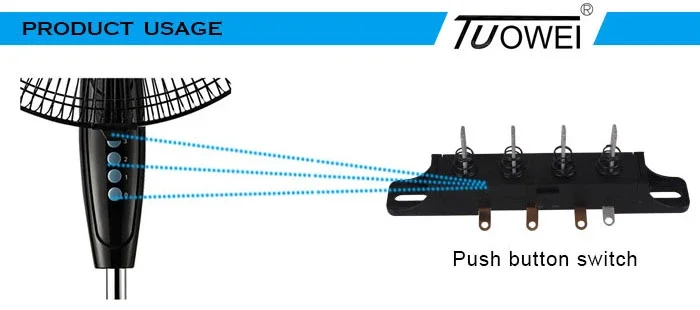

   Apply to:
   Electric Electric FAN and other home appliances

 P




19#



19

tz
