12V 120Ah Rechargeable Maintenance Free Deep Cycle electric car Battery
- Category: >>>
- Supplier: Jiangxi Wolf Power Technology Company Limited
Share on (60825919437):
Product Overview
Description

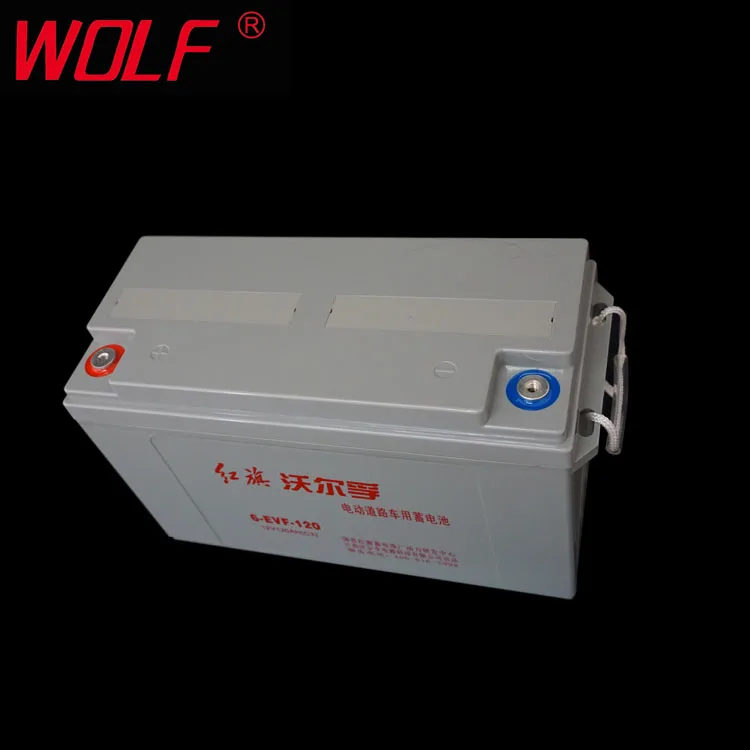

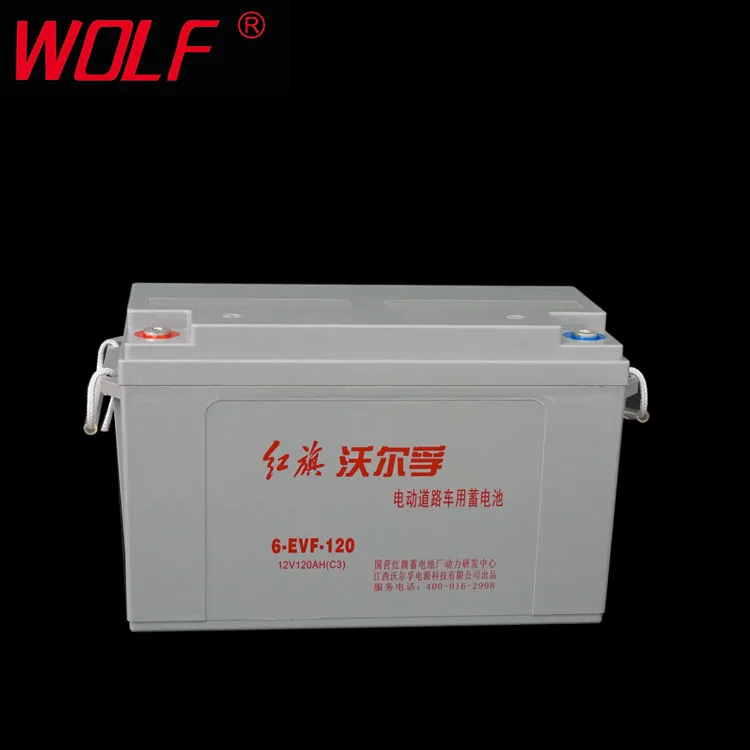

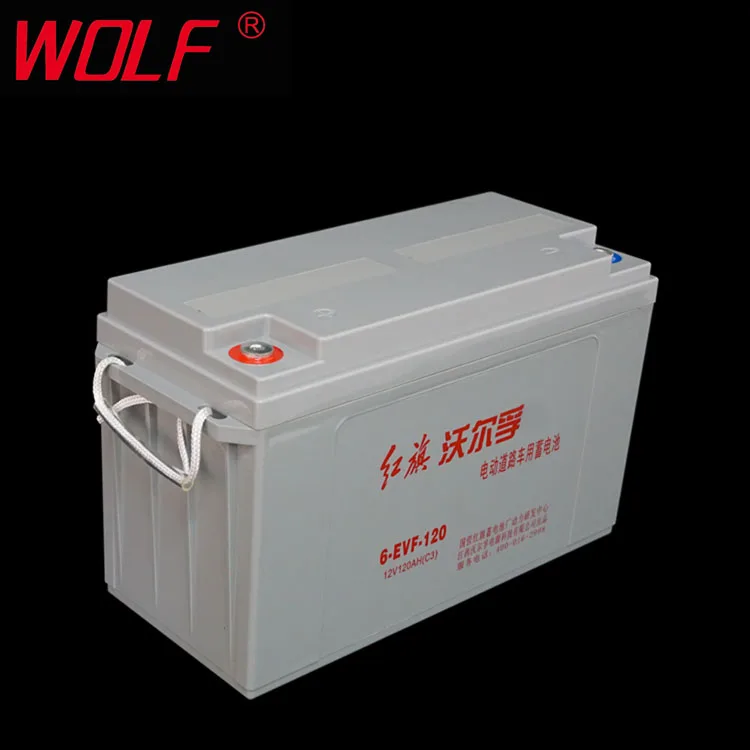

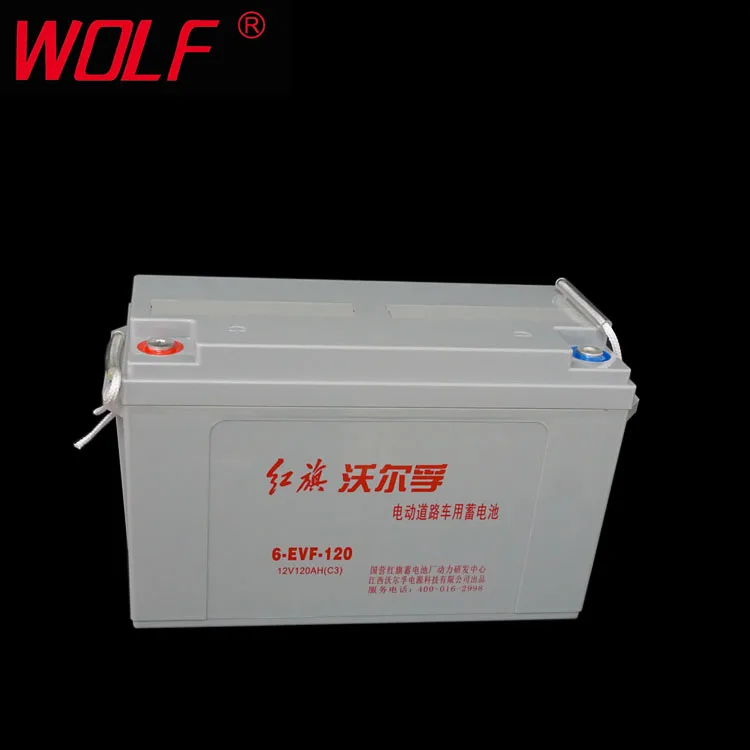

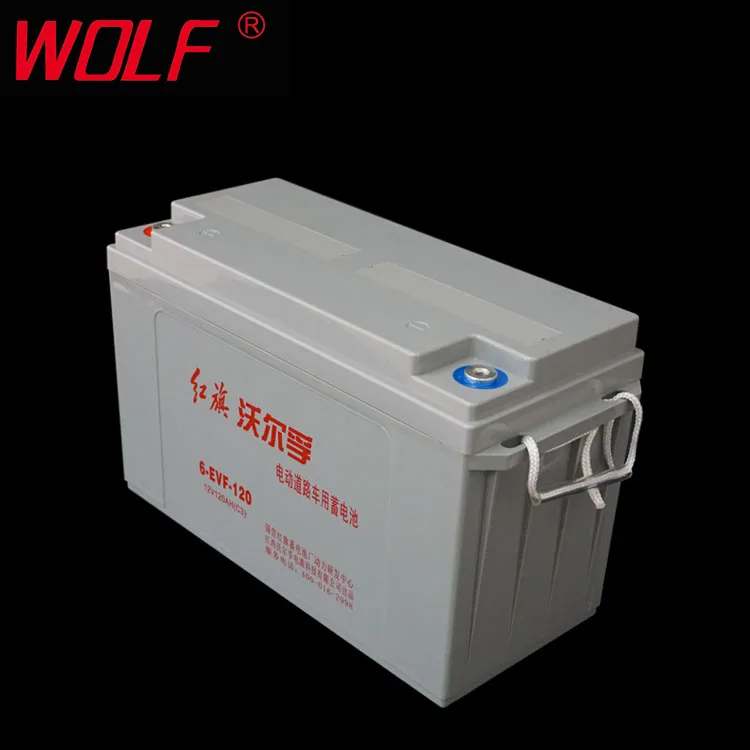

12V 120Ah Rechargeable Maintenance Free Deep-Cycle A0 electric car Battery
Product Description
Voltage range:6V,8V,12V
Capacity design:60-230AH
Application:
electric car battery also applied in electric tricycle, low-speed electric car, golf cart, electric sightseeing car, electric forklift, electric stacker, electric lifting platform, electric floor washer, electric sweeper, electric garbage truck, etc.

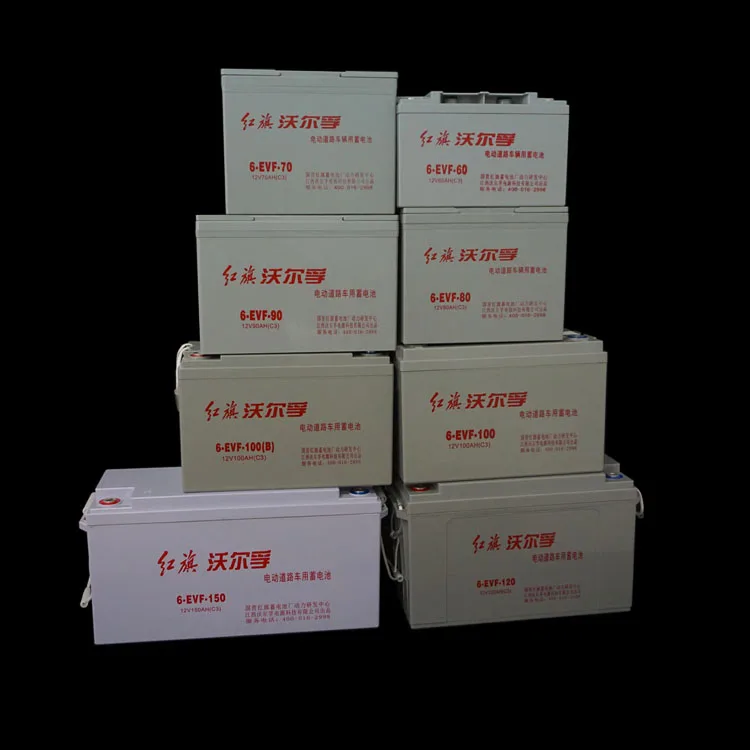

EVF Series Models
Model and Specification:
Model | Rated Voltage (V) | Rated Capacity (AH) | Reference Weight(KG) | Reference Dimensions |
L*W*H(mm) | ||||
6-EVF-60 | 12 | 60 | 20±0.5 | 260*175*170 |
6-EVF-70 | 12 | 70 | 23±0.5 | 260*175*215 |
6-EVF-80 | 12 | 80 | 26±0.5 | 260*175*215 |
6-EVF-100 | 12 | 100 | 34±0.5 | 330*180*215 |
6-EVF-110 | 12 | 110 | 36±0.5 | 330*175*220 |

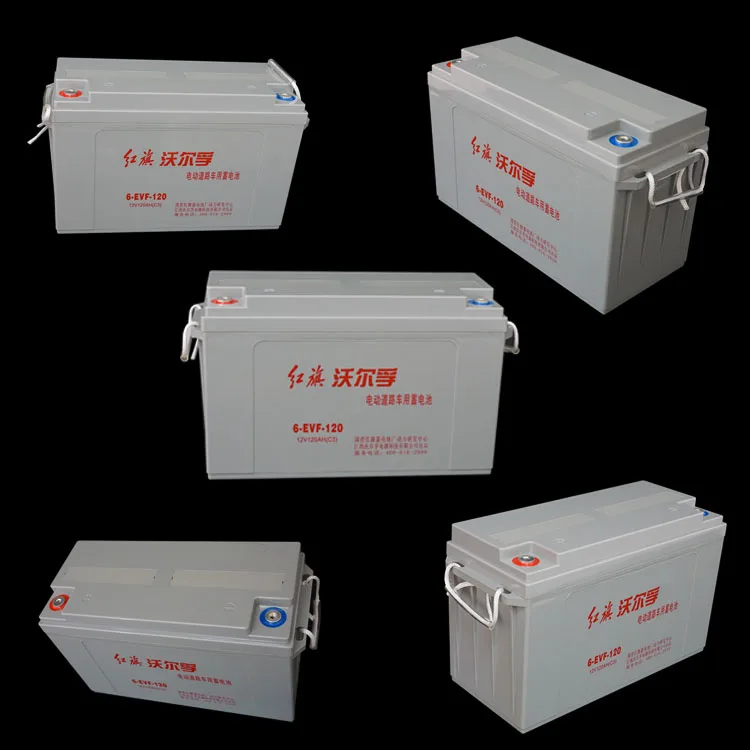

6-EVF-120 | 12 | 120 | 40±0.5 | 407*174*233 |
6-EVF-150L | 12 | 150 | 51±0.5 | 483*170*240 |
6-EVF-150H | 12 | 150 | 50±0.5 | 333*180*280 |
4-EVF-150L | 8 | 150 | 33.5±0.5 | 330*180*220 |
4-EVF-150H | 8 | 150 | 34.5±0.5 | 260*180*280 |
3-EVF-200L | 6 | 200 | 33±0.5 | 330*180*220 |
3-EVF-200H | 6 | 200 | 34±0.5 | 260*180*275 |
EVF Battery Charging
| Current | Voltage | Time | Transition Conditions | Temperature Compensation |
T1 constant | constant current | Charging to | 2h | Charging to until the | yes |
T1 constant | constant current | Charging to | 7h | Charging to until the | yes |
T3 constant voltage | limited current | Constant voltage | 2h | Constant voltage and | yes |
T4 Floating charge | limited current | Constant voltage U3=2.35V/cell | 4h | Charging time reach to 4h | none |
| Shut down |
|
|
|
1.Equalizing charge method:help to maintain and restore the capacity of battery
2.Constant voltage U2=2.5V/cell,limited current 0.02C(A)charging,time≤2h,none in Winter,2-3times in Summer
3.Feed system: allow maximum feeding current:2.0C(A),at the maximum current,
feeding time:2-3 seconds
4.Pulse current charge: when using the pulse charging,please contact technical department in advance.
Charge and discharge characteristics:
Allow the maximum discharge current:(≤5SEC)5C
Allow maximum charging current:0.5C
Standard charging current:0.15C
Cycle of charging voltage:2.45V/cell(20-25℃)
Electric Car Battery Performance Curve:
EVF Product Uses
Application:
Electric car battery also applied in electric tricycle, low-speed electric car, golf cart, electric sightseeing car, electric forklift, electric stacker, electric lifting platform, electric floor washer, electric sweeper, electric garbage truck, etc.
Company Information
WOLF established in 2018, but we have more than 20 years of production experience. Is a professional battery manufacturer integrating science, industry and trade.
We adhere to the spirit of innovation, integrity and win-win to create value for customers and contribute to the cause of power supply.
Packaging & Shipping
Package:we can print your logo on the forklift battery case, and you can offer your logo.
Shipping:Used our forwarder or your forwarder you can shoose
FAQ
Q1.What’s your terms of payment?
A: 100% or 30% disport in advance, 70% balance pay off against the copy bill of loading. We will show you the photos of the products and packages before you pay the balance.
Q2: What’s kinds of battery will you provide?
A: We have three type battery: There are many different model battery here, we can supply 12v 58ah-150ah battery, 8v 150ah battery, 6v 200ah battery. Support OEM
Q3: Operating temperature
A: Discharge: -15--40℃ Charge: 0--40℃ Storage:-15--40℃
Q4: Can you print my logo on the battery cover?
A: Yes, OEM is available,we can print your logo on the battery case, and you can offer your logo.
