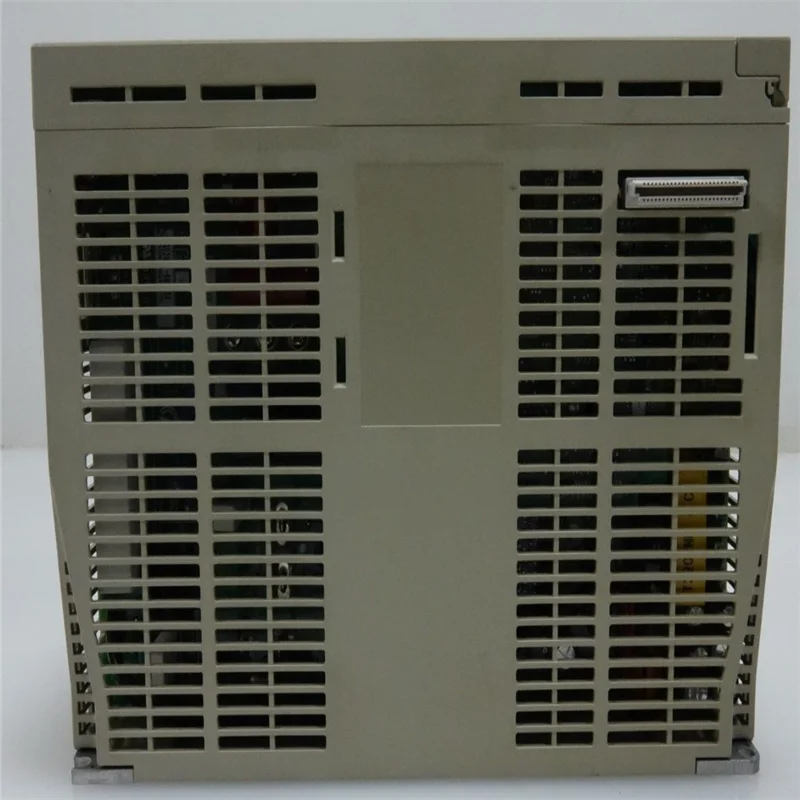

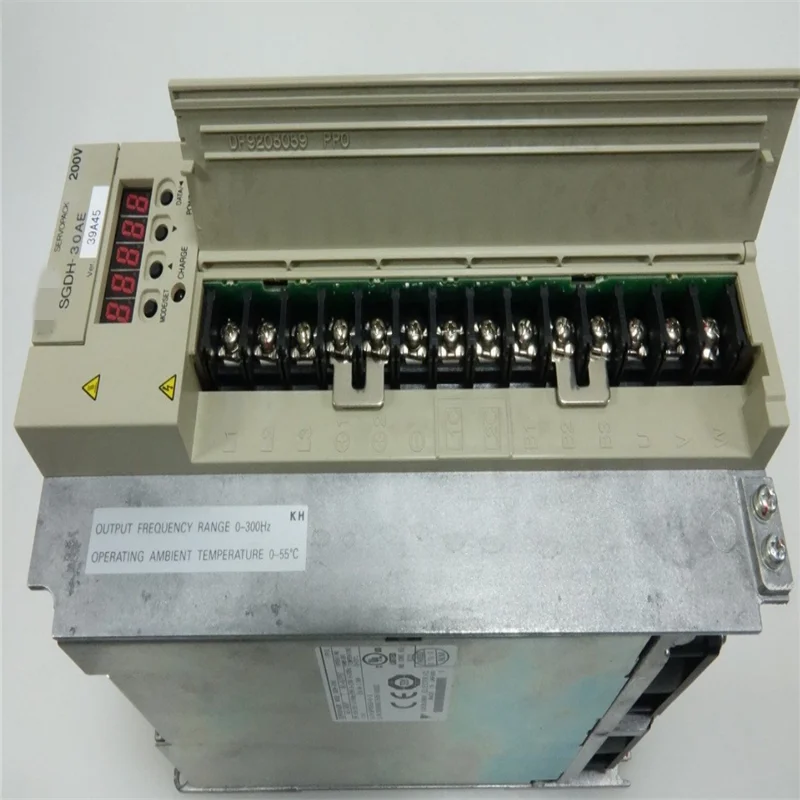

NEW Servopack sgdh Servo Drive SGDH 30AE

Manufacturer Part NumberSGDH-30AE

Product typeServo

Amplifier Phase3

Control functionServo Control
Supply voltage200 V ac

Current rating24.8 A

Voltage rating30 V dc (Open Collector Circuit Voltage)
Width110 mm

Depth185 mm

Height250 mm
Minimum operating temperature0 °C

Maximum operating temperature40 °C

The LEGEND SGDG amplifier is an economical solution for torque-control applications which utilize the speed and position loop of the SMC-4000 controller. The LEGEND-MC SMC-3010 can be attached to the amplifier for single-axis positioning applications. Plug-and-play cables for Sigma II linear and rotary servomotors and SMC-4000 controllers make start-up and installation easy. Serial encoder technology allows the amplifier to automatically recognize the motor. The LEGEND amplifier is available in four sizes from 100 watts to 1.5 kW with input voltage from 90-253 VAC
