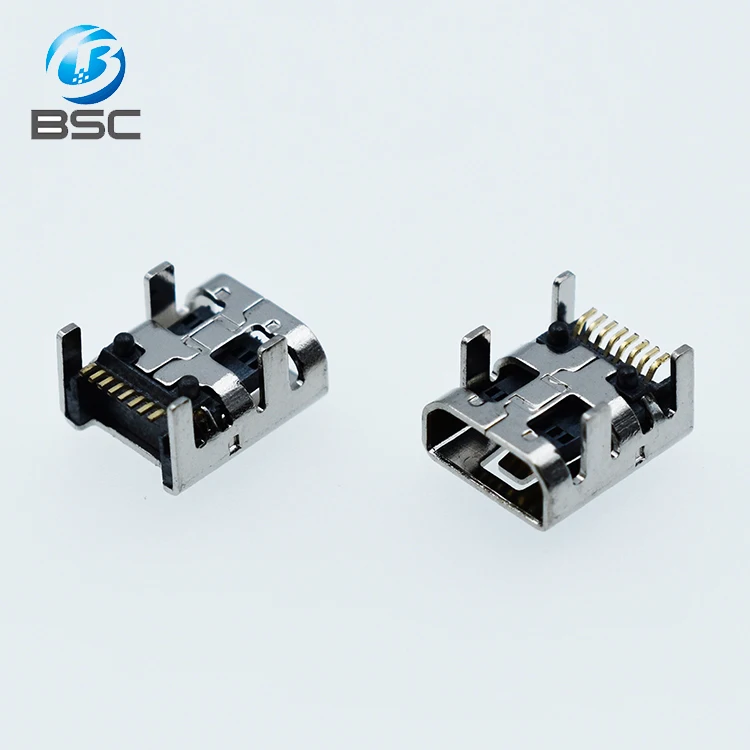

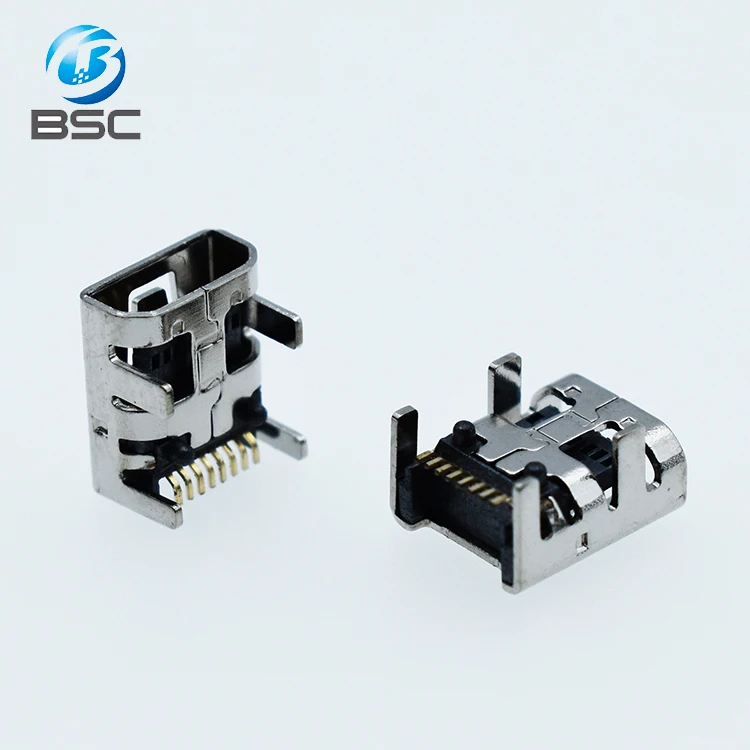

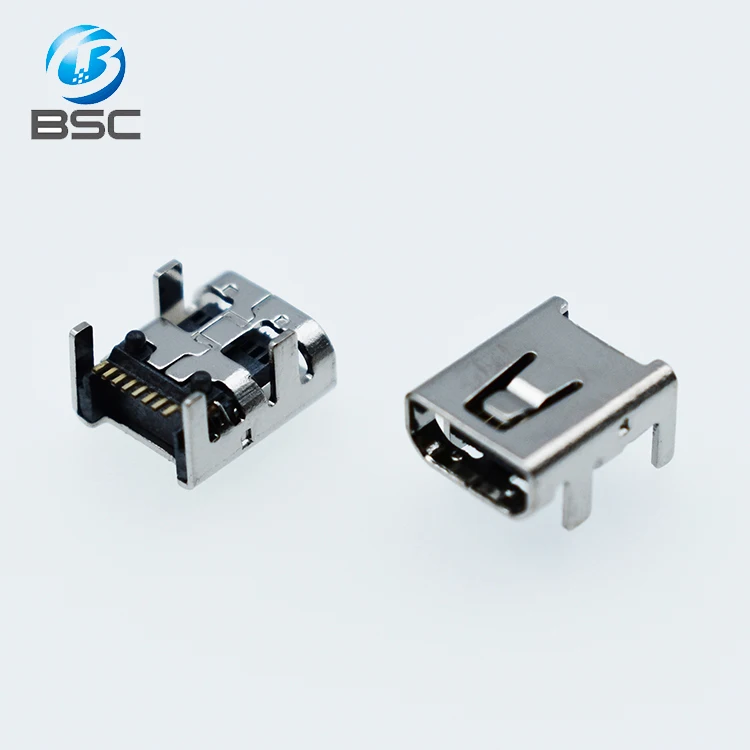

DIP MINI USB 8pin right angel female jack charging connector for PCB for Digital Camera China Supplier

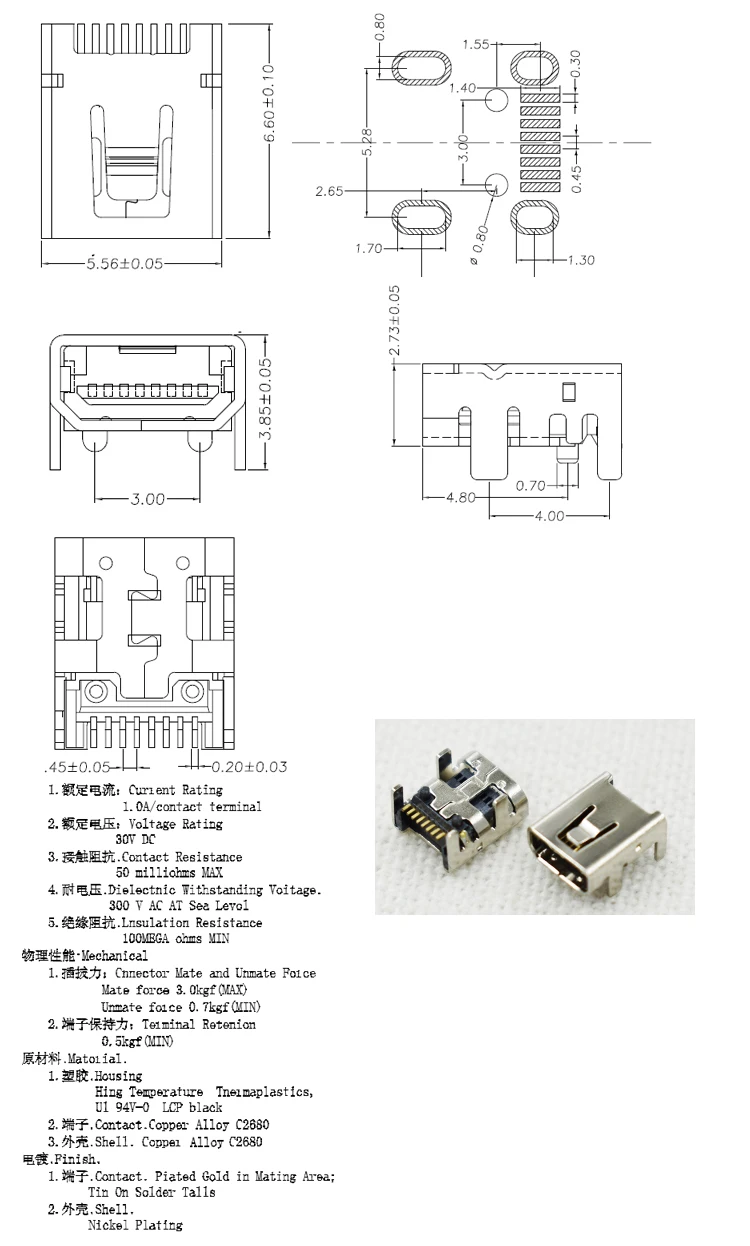

Specifications:
Electrical
1.Current Rating:1.0A/Contact terminal
2.Voltage Rating:30V DC
3.Contact Resistance:50 milliohms MAX
4.Dielectnic Withstanding Voltage: 300V AC Sea Levol
5.Insulation Resistance:100 MEGA ohms MIN
Mechanical
1.Connector Mate and Unmate Force:Mate force 3.0 kgf(MAX) Unmate force 0.7kgf(MIN)
2.Terminal Retenion:0.5kgf(MIN)
Material:
1.Housing: High Temperature UL 94V-0 LCP Black
2.Contact:Copper Alloy C2680
3.Shell:Copper Alloy C2680
Finish.
1.Contact:Plated Gold in Mating Area
Tin on Solder Tails
2.Shell:Nickel Plating
Product Description
Email: bella(at)bsc-elec.com
Skype:belle.wu3340
Contact me to get the PDF file
Packaging & Shipping
Our Services
1. More than 7 years experience in Connector industry, pls provide drawing or send sample to us, then we will send you our drawing or sample for you approval;
2. 100% tested before shipping out to guarantee the best quality;
3. OEM available
5. Fast delivery time, Best production capacity, Best price;
