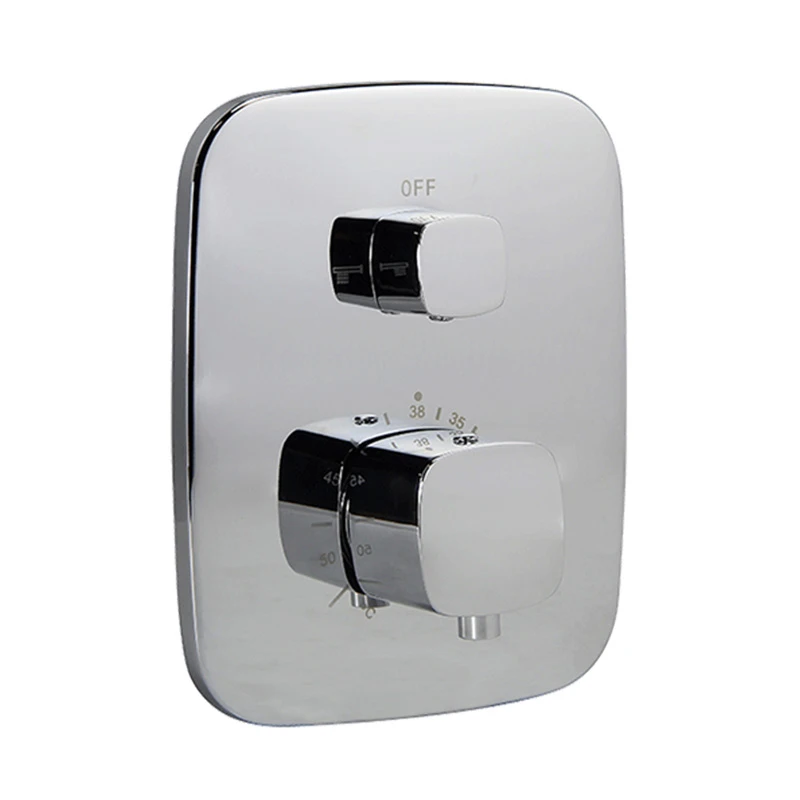

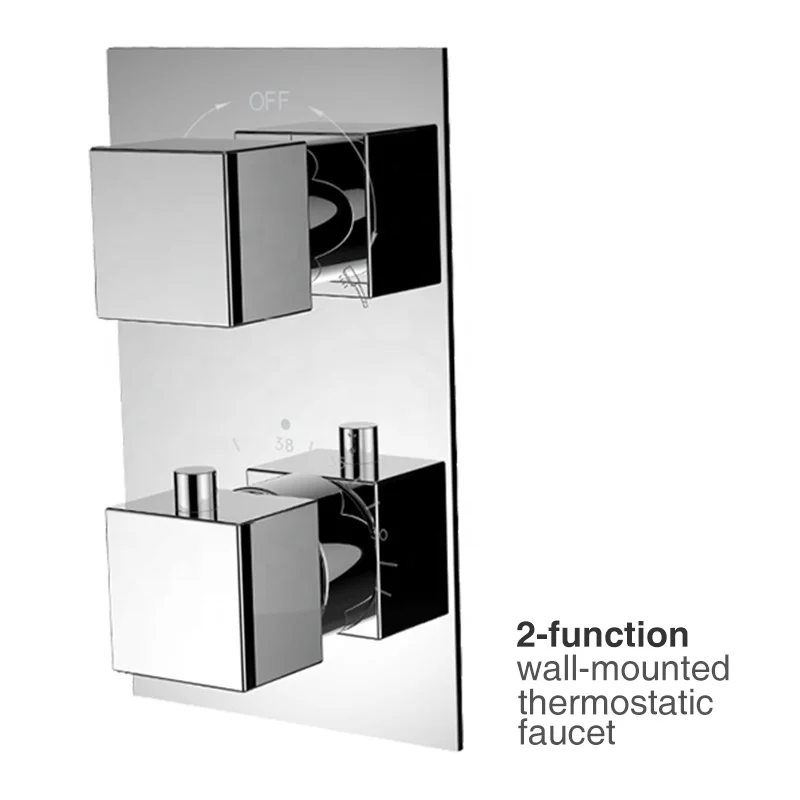

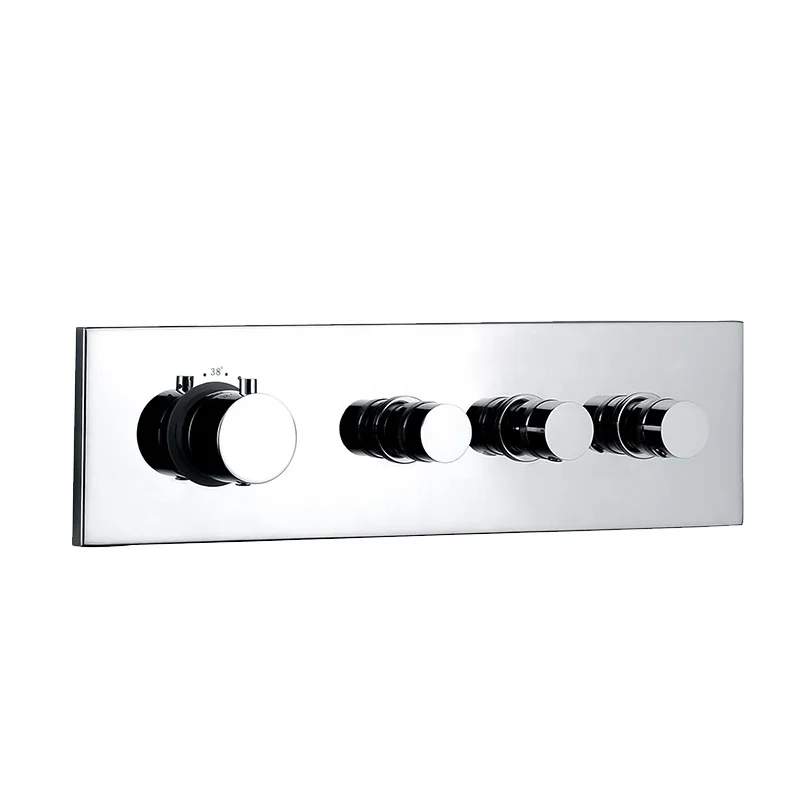

HIMARK wall mounted bathroom robinet mitigeur de douche thermostatique concealed thermostatic faucet shower mixer diverter valve

Share on (60825949242):


Price:

Quantity:


Product Overview

Description



Product Description


HIMARK CE CUPC bathroom part chuveiro ducha robinet mitigeur de douche kraan thermostatic faucet shower mixer diverter valve

Its glistening chrome finish, due to HIMARK finish for scratch and tarnish-resistant surfaces for a lifetime of beauty technology, enhances its clean, minimalist shape and pure design. Complete your shower with this thermostatic shower water mixer valve, featuring a streamlined style ideal for modern bathrooms.





Technical Details


Thermostatic Shower Faucet
Product description
HIMARK CE CUPC bathroom part chuveiro ducha robinet mitigeur de douche kraan thermostatic faucet shower mixer diverter valve
Material
Cu≥59% Brass main body and zinc alloy handle
The Thickness of chrome plating
Nickel>8um  Chrome>0.2um

Standard apply
cUPC
EN1111
Guarantee
2 Years
Brand Name
HIMARK
Place of origin
Guangdong
Cold water temperature
4℃-29℃
Hot water temperature
50℃-80℃
Temperature range
20℃-50℃
Security stop
38℃
Operating pressure
0.05 Mpa-0.8 Mpa
Water flow
Bath/shower mixer ≥ 18L/min
Samples delivery time
10-15days
Delivery time
20ft container is 30-45days;
40ft container is 45-60 days.
Laser logo
YES (on handle)
OEM and ODM
Acceptable

Recommend pressure
0.1 Mpa-0.5 Mpa
if>0.5Mpa Installation of a flow reducer is recommended
Cold water supply failure test
Within 5 seconds after cold water supply fails, outflow  rate automatically drops to 1.9L/Min, outflow quantity:≤150ml
Outflow temperature Auto-adjusting sensitivity
When inlet water temperature or pressure varies, outlet water temperature change will be less than ±2℃


Features




Thermal shock and scalding can happen very easily. Safeguarding against them is one of the most important things you can do for household, especially if that includes young children or elderly adults. The most effective way to do so is by installing anti-scald devices at fixtures, especially the shower. The two primary types are pressure-balance valves and thermostatic valves.





Equipped with a simple turn of the knob that can be set the temperature to your desired according to personal preference, physical condition or different seasons.

HIMARK pioneered waterway design to keep our faucet surfaces cool when we touched, which completely avoid the risk of the human body burns





HIMARK SMA intelligent thermostatic cartridge mixes the hot and cold water to your pre-selected temperature and reacts instantly to any changes in the pressure or temperature of the water supply by re-adjusting the mix of hot and cold water. If there is a failure in your cold water supply, the thermostatic cartridge will automatically shut down.





\t\t\t\t\t\t\t\t\tTechnologies \t\t\t\t\t\t\t




New Thermostatic Cartridge

Using the intelligent thermostatic cartridge of SMA nickel titanium alloy,and Nickel titanium elements are extremely sensitive.

In 0.2 seconds,the water temperature error is controlled at about ±1°C to achieve accurate temperature control.

Anti-calcification & impurities.








Integrated Functional Cartridge

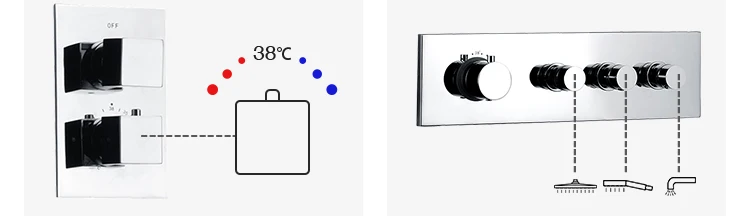

Leading cartridge technology, ON/OFF water is controlled with one diverter. The four gears control is more convenient and easy, and the comfortable shower can be easily enjoyed.



\t\t\t\t\t\t\t\t\tInstallation Guide \t\t\t\t\t\t\t

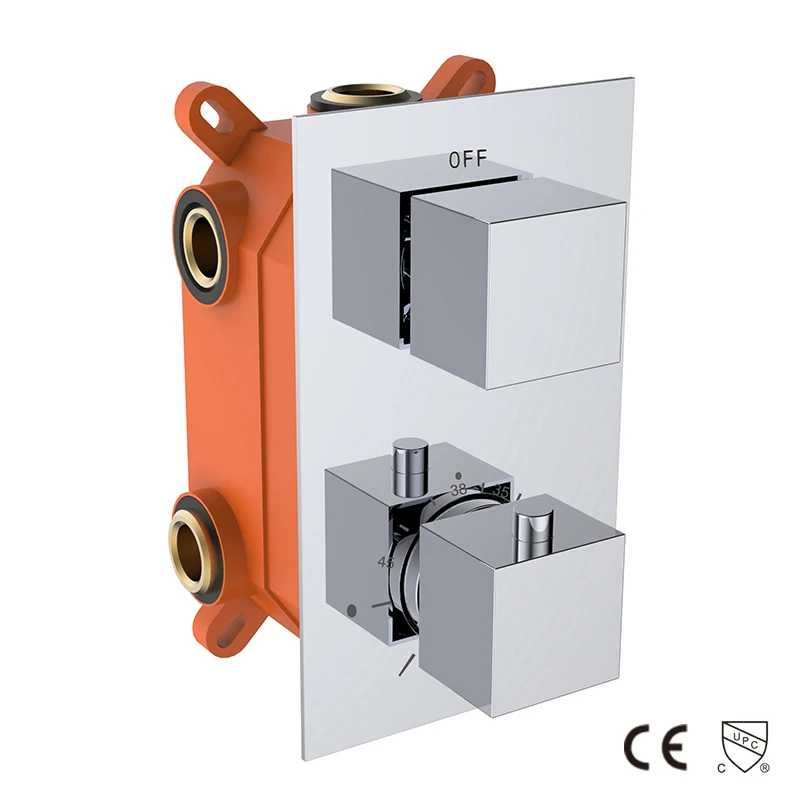

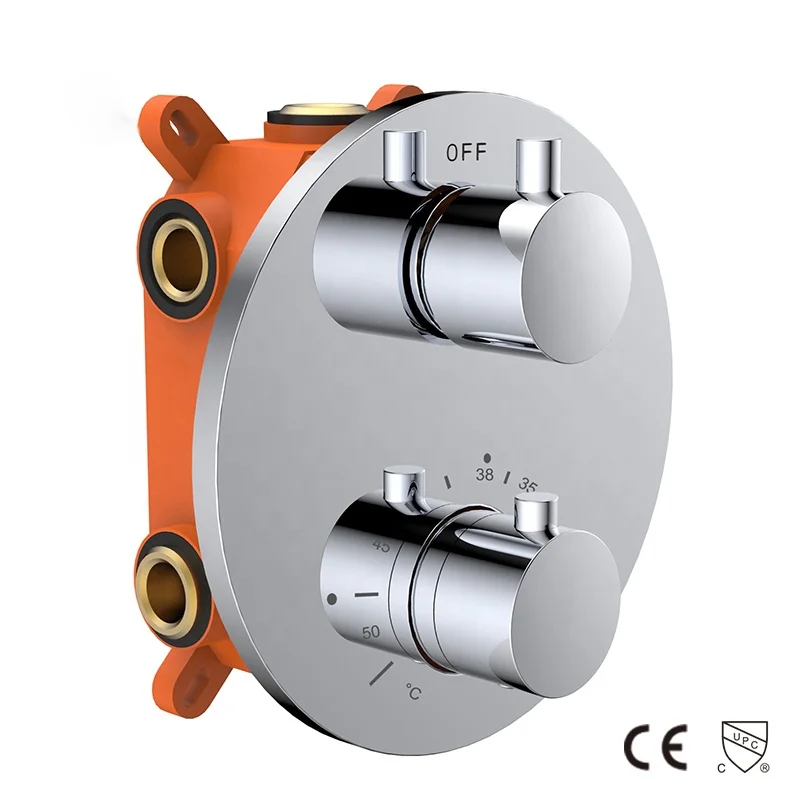

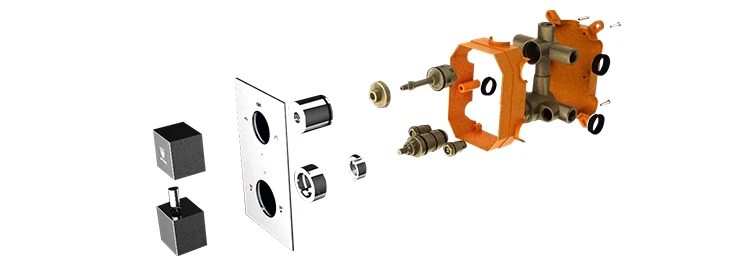

HIMARK new built-in system makes wall installation of the thermostatic mixer easier even before tiling or plaster works and allows for the adjustment of the valve in the right position and guides for required depth of the wall recess. A safe system that protects the mixer from debris and gives easy access for the maintenance and replacement of the cartridges and filters.





Production Capacity





Intelligent and environment-friendly production system and efficient process management are the most powerful quality assurance. HIMARK has a complete intelligent and environment-friendly bathroom hardware products production system!





HIMARK production base consists of comprehensive departments including raw material testing center, mould manufacturing center, automatic polishing center, precision welding center, gravity casting center, PVD vacuum plating center, CNC intelligent machine center, air pressure and water pressure testing center, salt spray testing center and so on.





\t\t\t\t\t\t\t\t\tSpeedinessDelivery \t\t\t\t\t\t\t




Date of delivery is the symbol of enterprise strength, efficiency and management!

HIMARK adopts advanced information management systems, such as CRM,ERP,WMS, etc., to support accurate and standard warehouse management processes and ensure efficient production and operation capability. Provide you with quick response for delivery capability.
