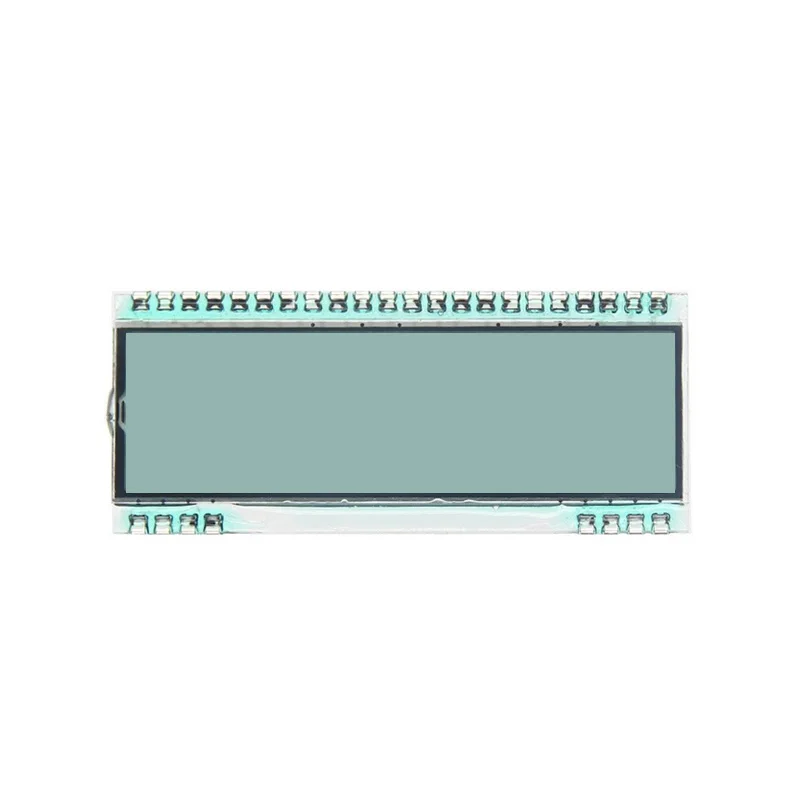

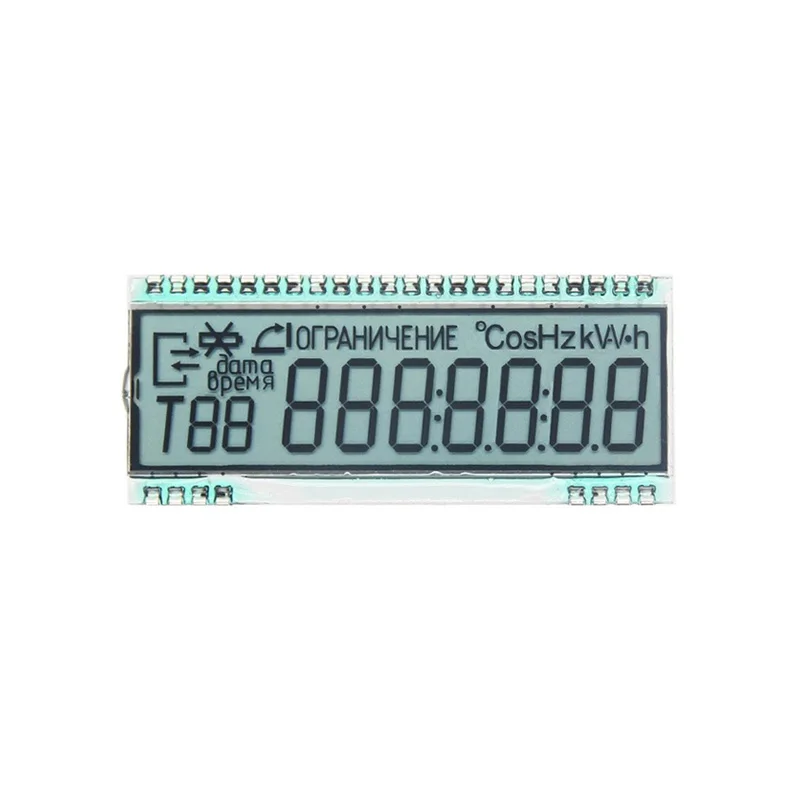

1. Segment type: Segment 2. LCD type: HTN 3. Backlight: Optional 4. Color of backlight: Selectable 5. Temperature range: Super wide (-40c-+85c) 6. Viewing angle: 6h 7. Size: 59.00x25.00 mm We have developed and produced a big variety of LCD displays for meter products. Send your inquries!
NO
ITEM
SPECIFICATION
UNIT
1
Display Format
128x64
dot
2
Outline Dimension
57.6x40.5
mm
3
Viewing Area
53.6x28.6
mm
4
Dot Size
0.35x0.36
mm
5
Interface
Parallel 6800 or 8080
6
Built-in Controller
ST7567

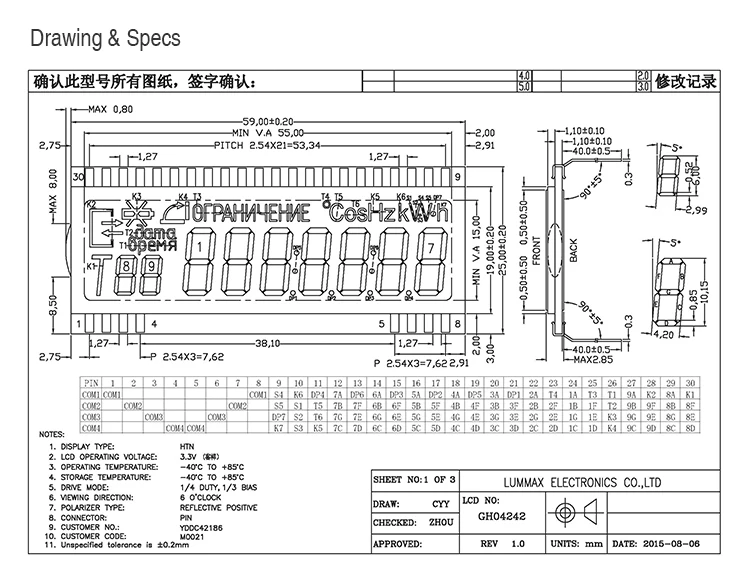

Drawing & Specs

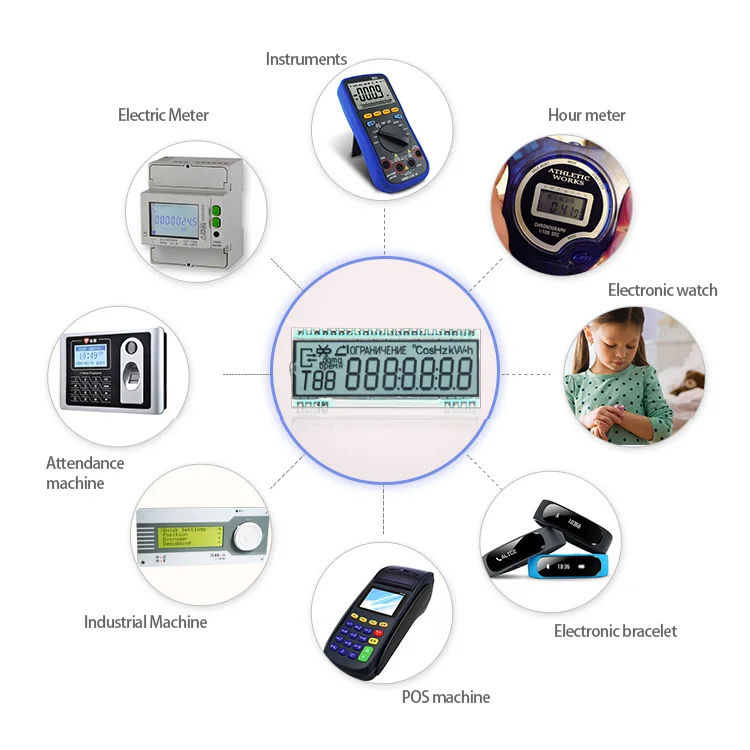

Applications

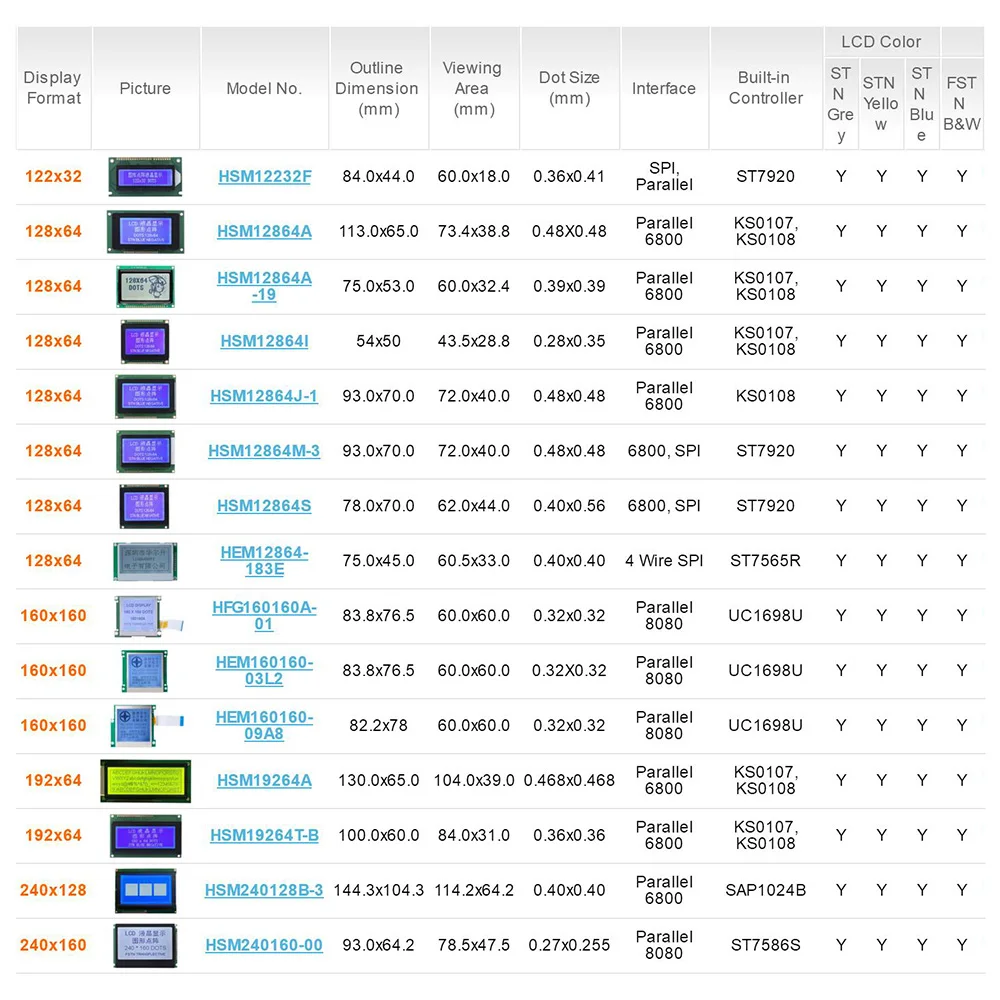

More LCD Displays
Character LCD Module
Graphic LCD Module-COB
Graphic LCD Module-COG
Company Overview
Established in 2004. Specialized in LCD, TFT, OLED and resistive & capacitive touch panel products. 8,000 square meters of factory workshop. Over 400 employees, including15 R&D staff and 40 QC personnel. Our major customers include: HITACHI, EMERSON, SIEMENS, JABIL, WKK and ASTROTECH GROUP etc. TUV (SUD) certification of ISO9001:2008.
Manufacturing
Why Us
1. AN ISO 9001:2008 Certified company 2. 14 years' experience of LCD display R&D and production. 3. Highly trained and experienced LCD and LCM engineers 4. Professional sales team who can efficiently provide the optimum display solution. Cost and time saving. 5. Quick drawing creation: LCD panel 2 days, LCD module 3 days 6. Quick sample delivery: LCD panel 12 days, LCD module 20 days 7. We have our own LCD glass production line which can guarantee high quality and low cost 8. Warranty period: 100,000 hours for LCD panel. 50,000 hours for LED backlight
