40W solar power wind hybrid system street light with wind generator price
- Category: >>>
- Supplier: Yangzhou Liwei Lighting Electrical Co. Ltd.
Share on (60826011898):
Product Overview
Description
Products Description
Operation principle

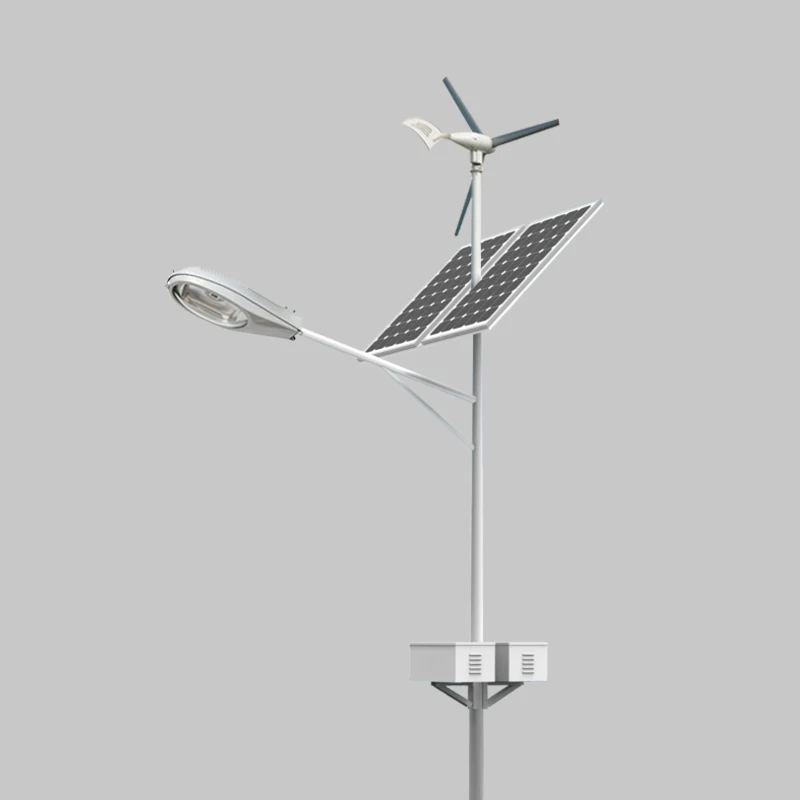

The Solar&wind street Light is a revolutionary product by utilizing Photovoltaic effect and wind power. It is designed to constantly absorb solar energy in daylight,wind energy all the day and convert to electricity, the intelligent controller could precisely control the charge, discharge and well preserve electricity into the battery.
And start to iluminate, which is powered by the battery, once the iluminance of ground reduced to 15 lux in night time, or solar panel voltage drop to 5V below. The intelligent controller not only protects the battery from over-charging,over-discharging, but also can control the light switch-on,the time of swicth-on and optimize the brightness effectively according to the real-time environment.
And start to iluminate, which is powered by the battery, once the iluminance of ground reduced to 15 lux in night time, or solar panel voltage drop to 5V below. The intelligent controller not only protects the battery from over-charging,over-discharging, but also can control the light switch-on,the time of swicth-on and optimize the brightness effectively according to the real-time environment.
Unique design of body shockproof makes it operate steadily;connected to pole by flange plate, simple and reliable.
● High efficient, Aluminum frame, tempered glass.
● 10 years warranty for solar panels: 20 years power generation capacity.
●Lamp housing: die-casting aluminum, glass
cover, IP65, lifespan: more than 20 years
●Over-charging/discharging protection,
reverse-connection protection
● Hot dip-galvanized(HDG)only, HDG plus powder coated.
●With Arm, Bracket, Flange, Fittings.
E. Intelligent Solar Controller
(PWM/MPPT Type)
(PWM/MPPT Type)
●Dual USB charging port
●Display battery voltage and power
●12V/24V automatic adaptation
●Adjustable light control time control
●Top grade lead materials, purity near 100%.
●Contains nano-scale gel electrolyte.
●Sealed without electrolyte leakage.
●Superior performance in high and cold environment
●Suitable for Pole Flange Size.
solar wind street light | 8-12Hrs 2-3 Nights Lighting |
Wind turbine | Voltage:12, 24 VDC;Blades:3 Pcs Nylon Fiber;Blades:3 Pcs Nylon Fiber |

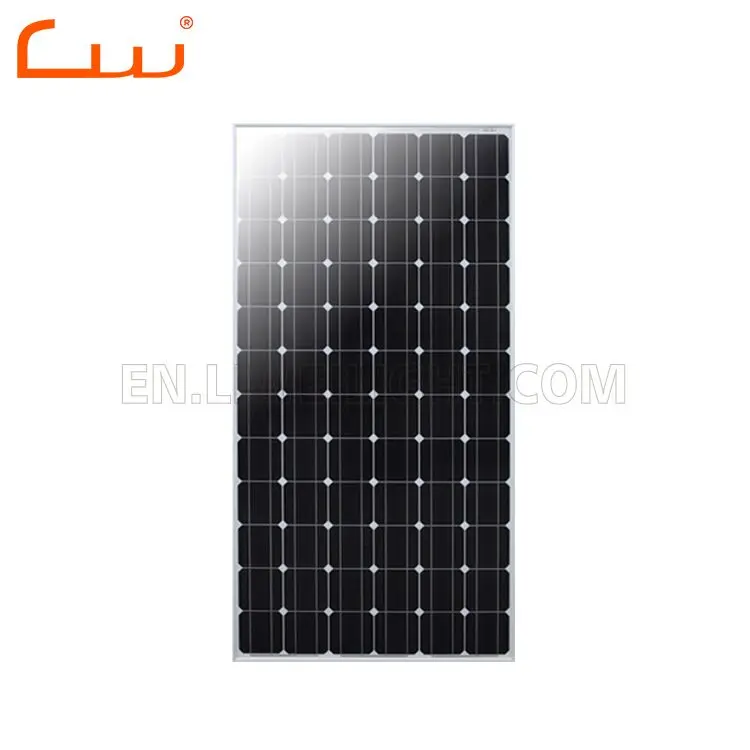

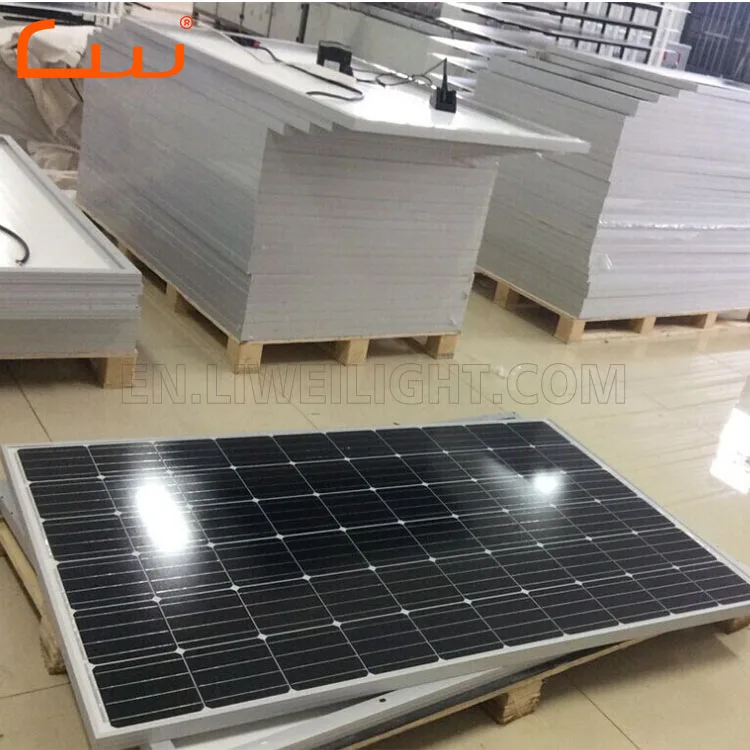

Solar Panel: | 80W/12V,17% Efficiency. |
Lifespan:20-25 years | Mono Crystalline Silicon.High Efficiency. |
Gelled Battery | 80Ah/12V,Sealed Type,Gelled. |
Lifespan:5-8 years | Deep Cycle.Maintenance Free. |
Intelligent Solar Controller | 10A/12V, Automatic Light and Time Control. |
PWM Type | Over-charging/discharging Protection. |
Lifespan:5-10 years | Reverse-connection Protection |

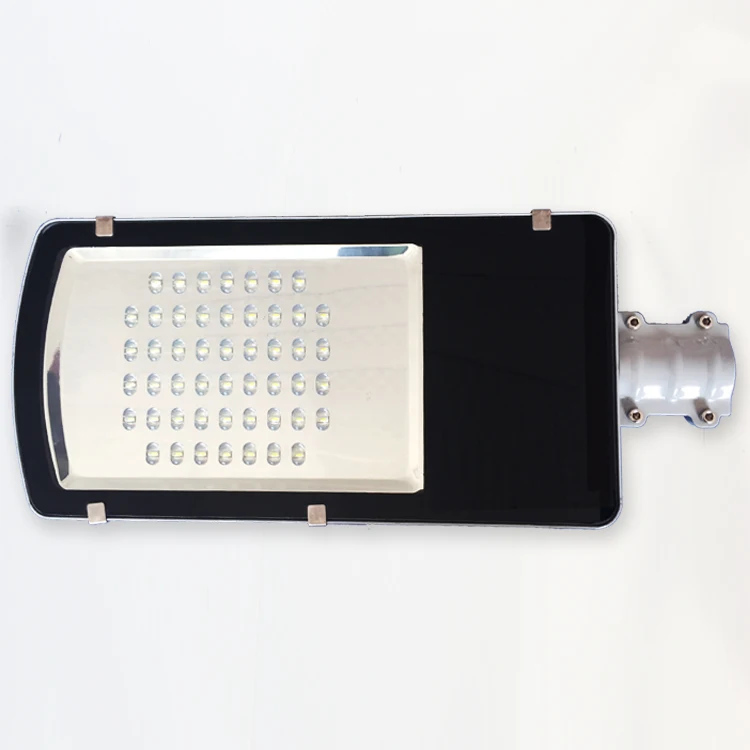

Light source: High Power LED | 40W*1PC,LED,White Color,130LM/W,30Lux,6000K, |
Lifespan:>80000Hrs | IP65,120 Degree Angle. |

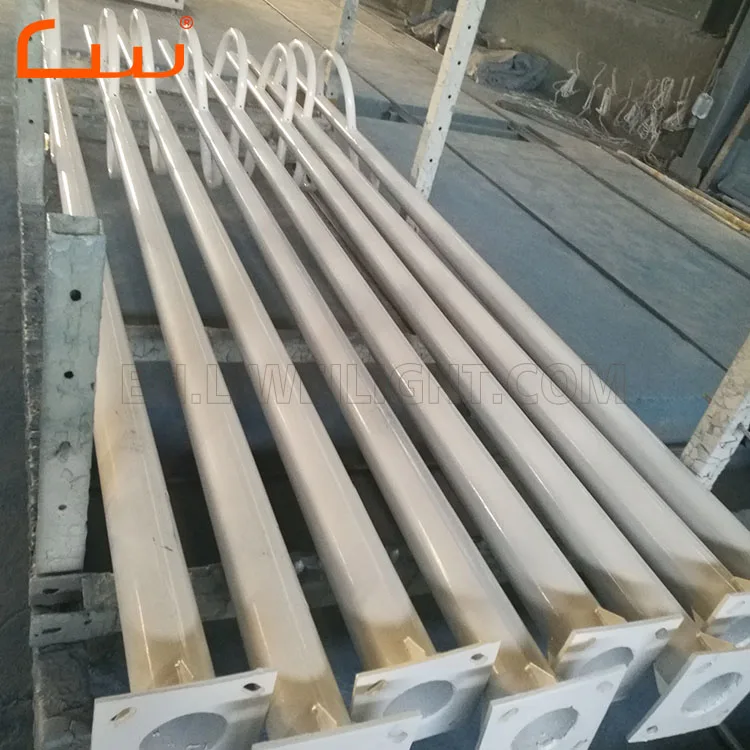

Pole | 6M Height,Steel,Hot-Dip Galvanized.With Arm,Bracket, |
Lifespan: More than 20 years | Flange,Fittings,Cable,Etc.Resistant to Wind: ≥150KM/H |
