Q25 автоматический роторный резак из нержавеющей стали с тонкими стенками

Main specification

1. Q25, Q25A, Q32, Q32A, Q40, Q40A, Q80, Q80A and other types of pipe cutting machines, cutting max pipe diameter 25mm, 32mm, 40mm, 80mm. A refers to the fully automatic loading model.

2. Semi-automatic machine can realize automatic feeding and sizing of single pipe, and the cutting time of single pipe can reach 2 seconds. It can realize continuous cutting of single pipe with high cutting efficiency.

3. Fully automatic machine with single row pipe feeder and bundle pipe feeder can realize automatic feeding and continuous cutting of bundled or row pipe.

4. This machine is automatic controlled by PLC. It can cut the pipe continuously according to the size set by the user, which greatly improves the processing efficiency of the machine.

5. Chamfering function, discharging and storage device can be added according to user's specific functional requirements. It can also be made without calibration and matching according to the special processing requirements of customers.

6. The standard tungsten steel blade of this machine can be grinded repeatedly in full length, which greatly reduces the cost of machine tool compared with traditional circular saw blade.

7. The feeding mechanism of DC motor can adjust the feeding speed conveniently.

8. Water cooling device can be added to realize the thick cutting.

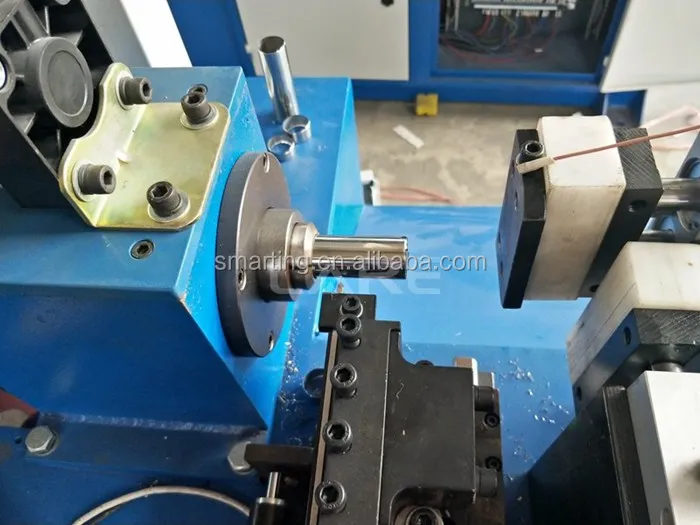

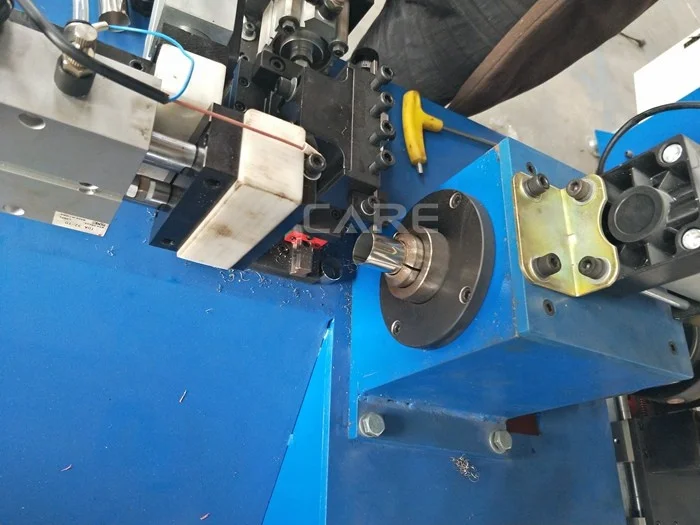

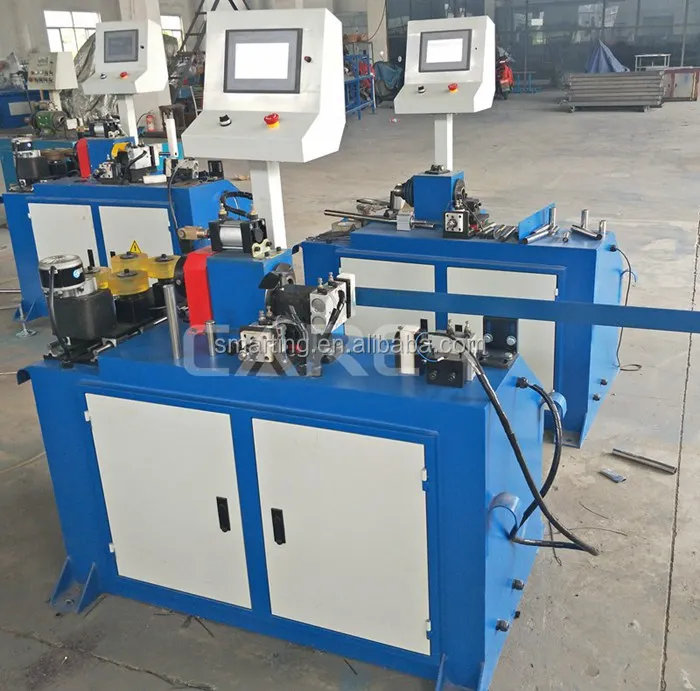

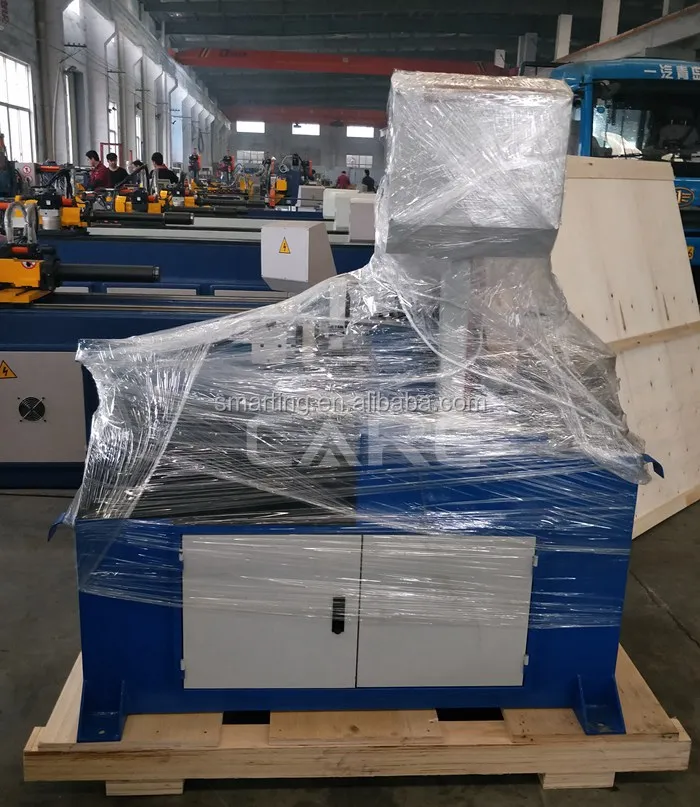

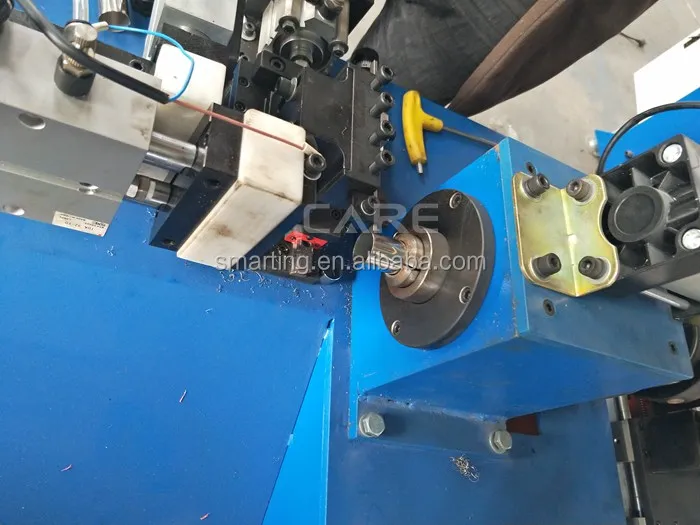

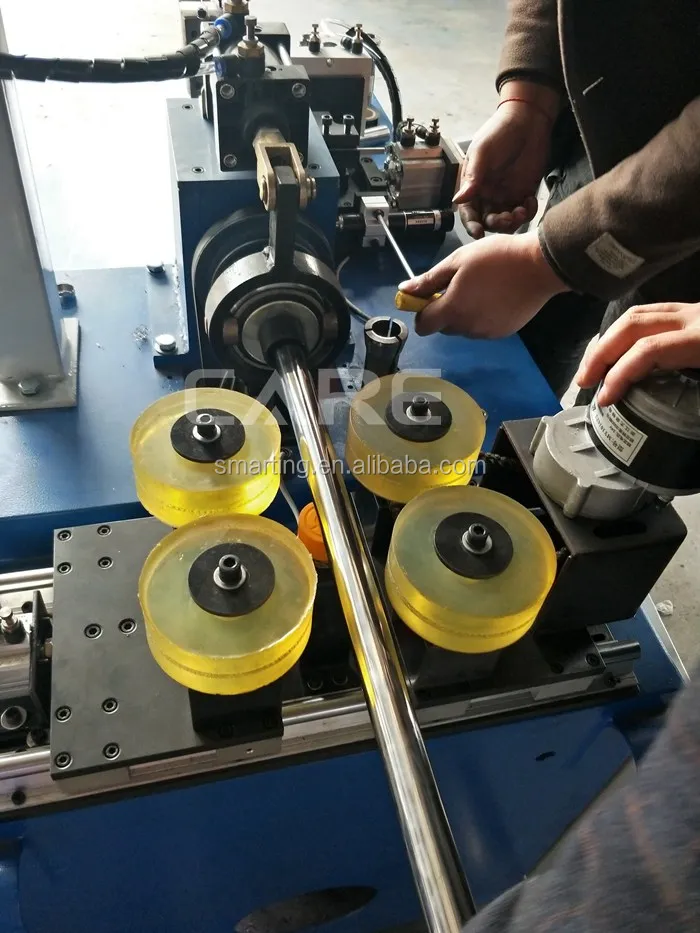

 Machine photo
