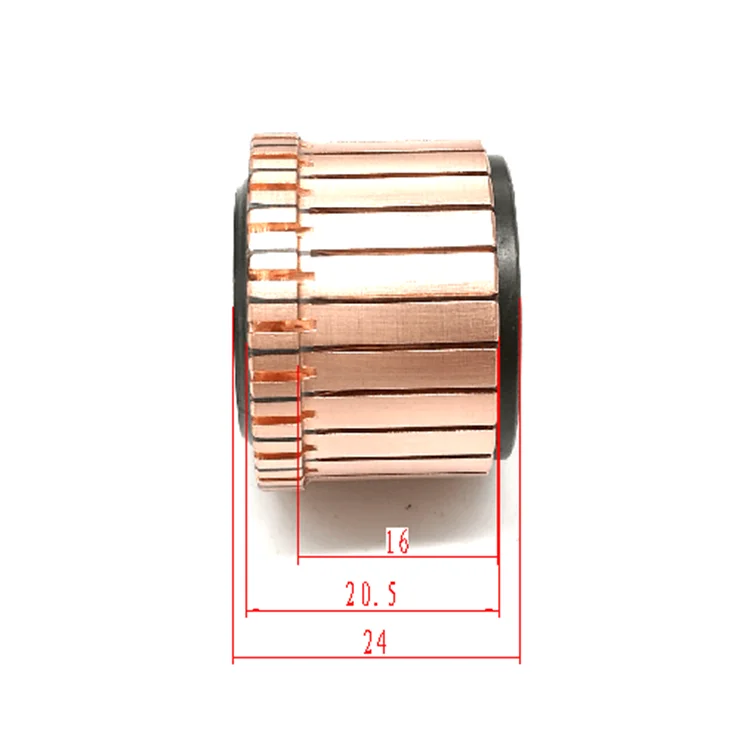

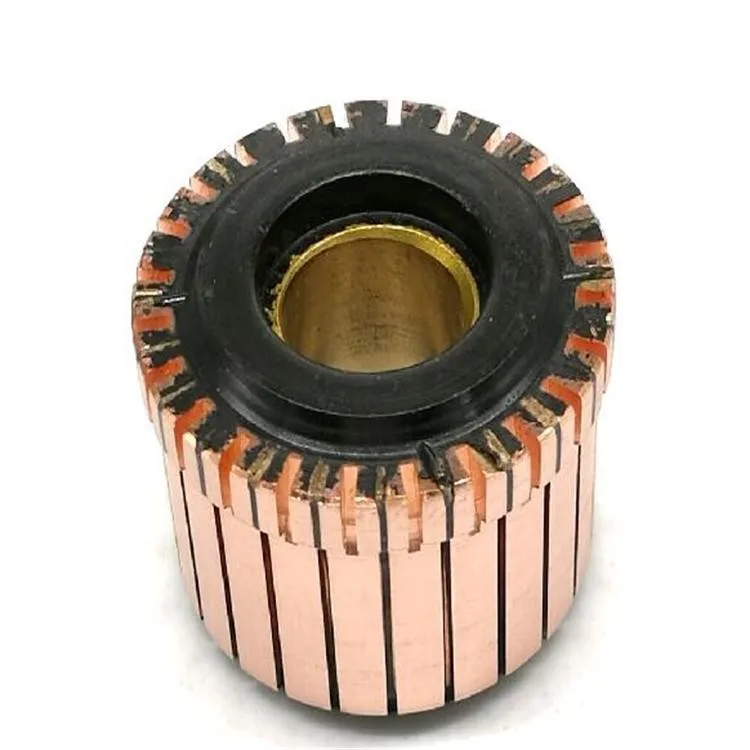

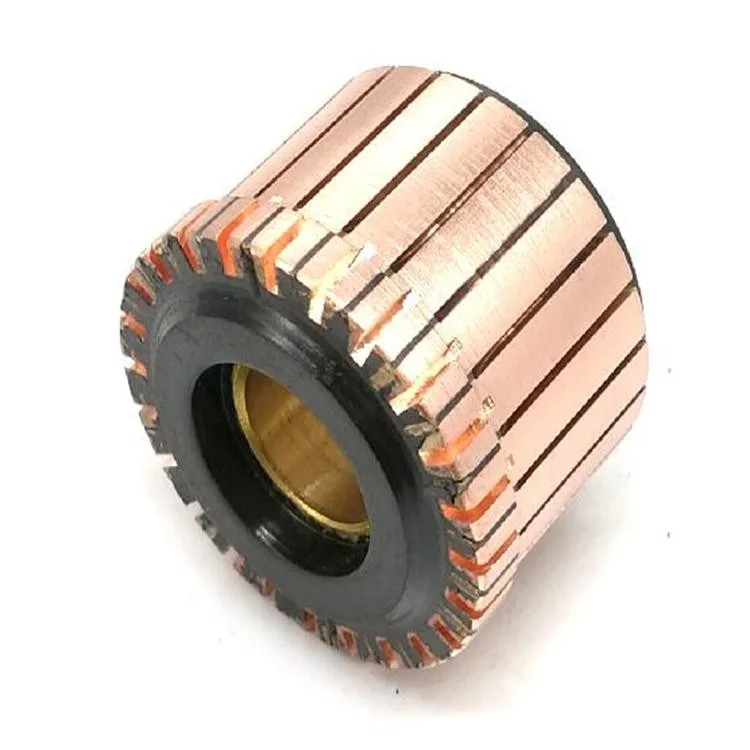

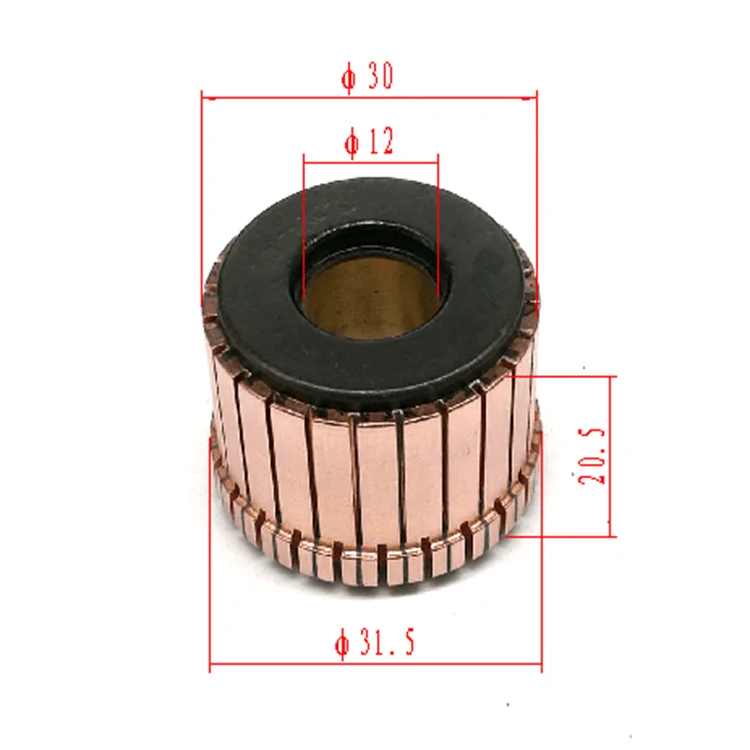

OD30* ID12*H24.5 24 groove commutator for electric drill power tools . high quality and free samples
OD30* ID12*H24.5-24 groove commutator for electric drill power tools . high quality and free samples
OD30* ID12*H24.5-24 groove commutator for electric drill power tools . high quality and free samples
OD30* ID12*H24.5-24 groove commutator for electric drill power tools . high quality and free samples
OD30* ID12*H24.5-24 groove commutator for electric drill power tools . high quality and free samples

OD30* ID12*H24.5 24 groove commutator for electric drill power tools . high quality and free samples

Share on (60826444264):


Price:

Quantity:


Product Overview

Description


products description
Technical parameter
\t
Material
\t
0.03% or 0.08%silver/ Copper/ bakelite CN6551
\t
Structure
\t
Segmented hook/ groove commutator
\t
 Usage
\t
AC/DC motor spare parts
\t
Voltage
\t
12V 24V 48V 60V
\t
Sample
\t
 Free(In Stock )
\t
Delivery
\t
5-30 wokingdays
\t
Packing
\t
Plastic box/carton/pallet/customized
\t
Term of trade
\t
FOB shanghai/ ningbo/.......
\t
Transport
\t
By sea/ air/ train/Fedex/Dhl......
\t
Payment
\t
T/T ,paypal ,western union......
\t
Production capacity
\t
1,000,000pcs/month
\t
 Service& Warranty
\t
Best service for all customers, with 12  months' warranty
\t
1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4± 0.1, width 0.5± 0.05 ) should be tolerated.
\t
2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl.
\t
3. Spin Test: Under 180±2 ℃ , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003.
\t
4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.
Product Uses

1.Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine whisk, juicer, soymilk, and for other household appliances

2. commutator for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan Cooling water tank radiator ,and for other auto eletronic machines .

3.Commutator for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .

4. Commutator for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.
