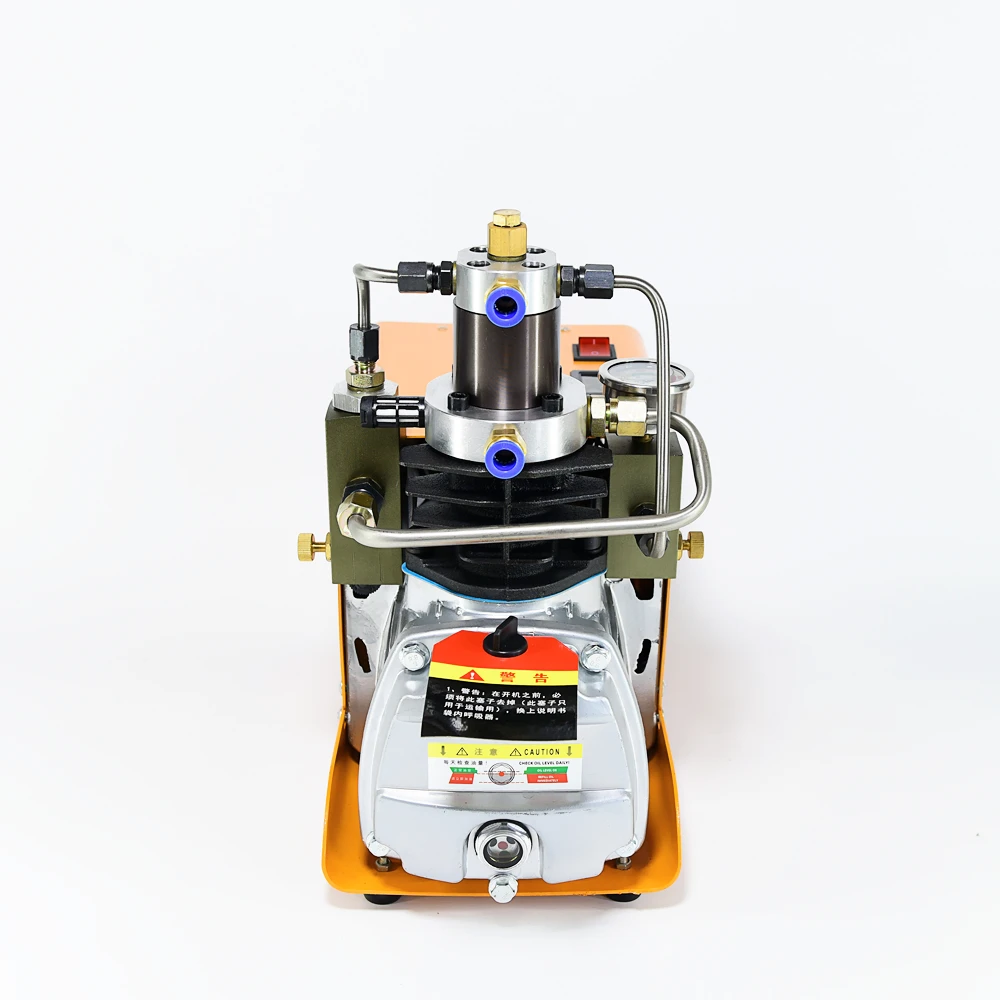

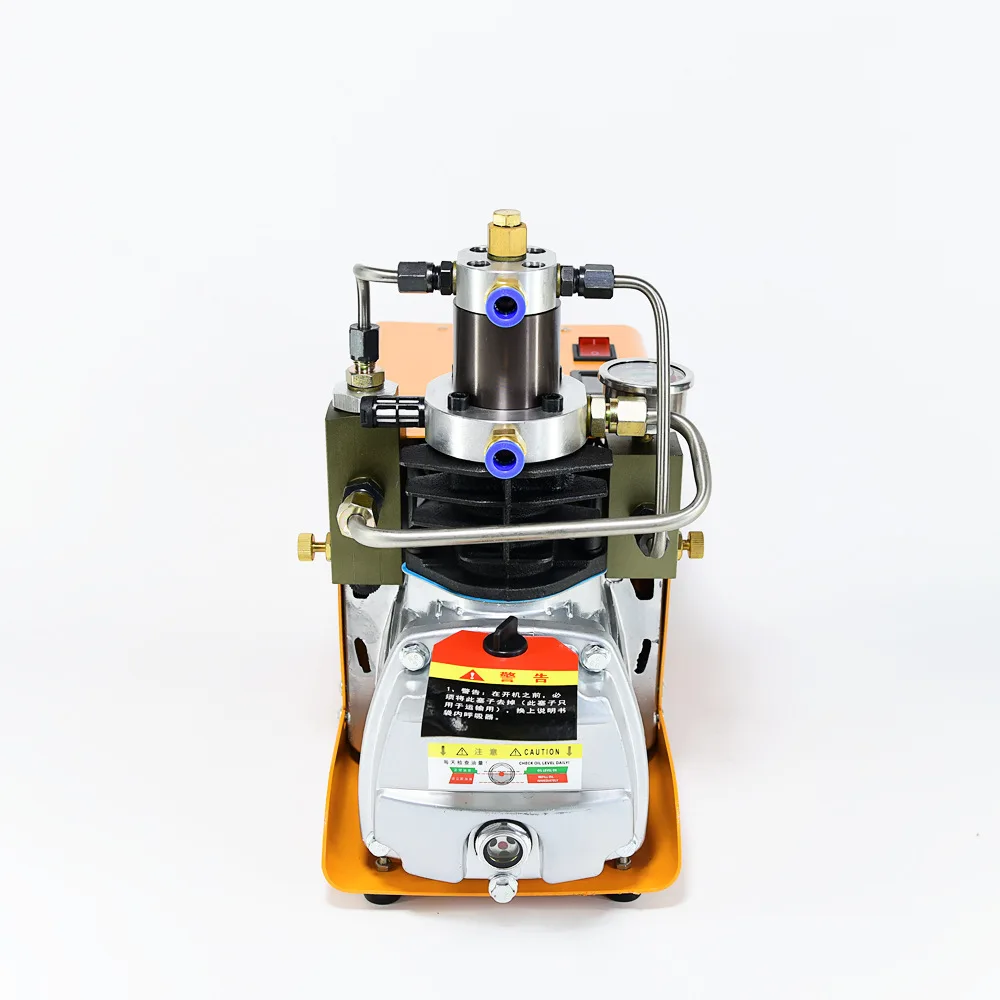

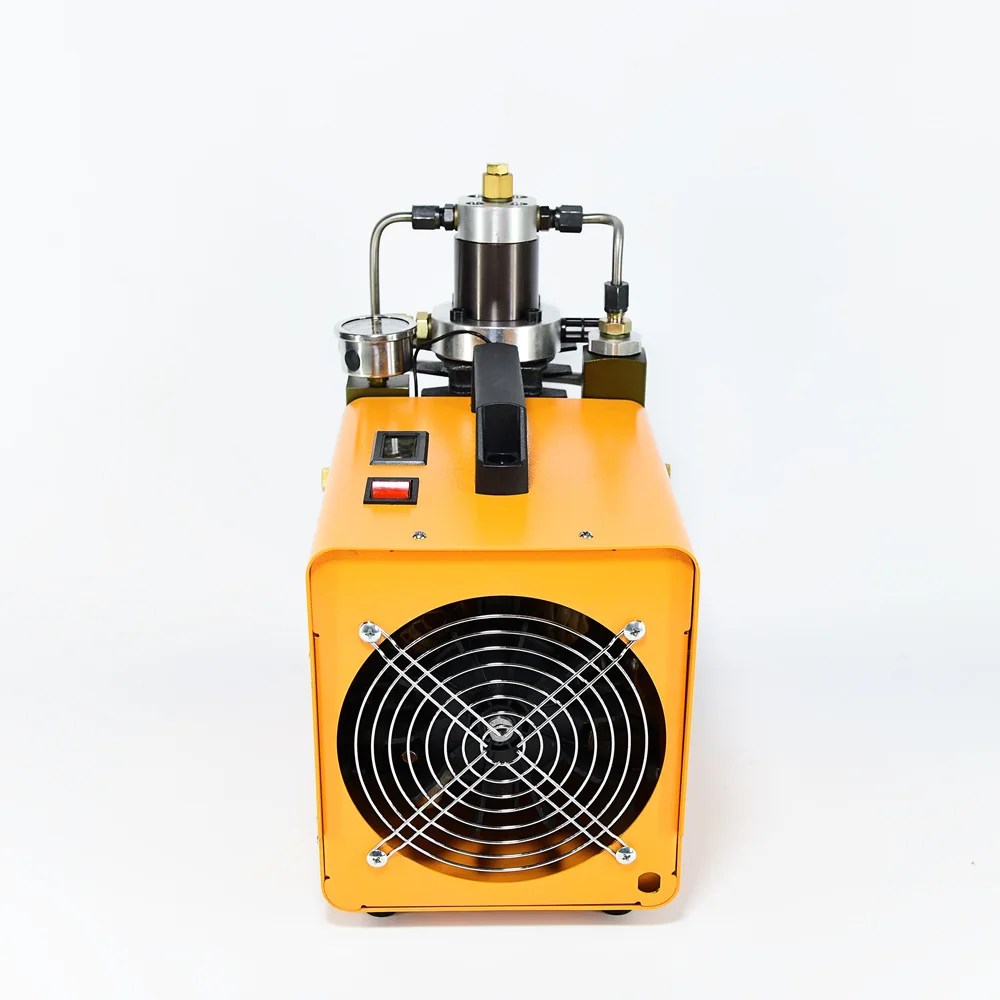

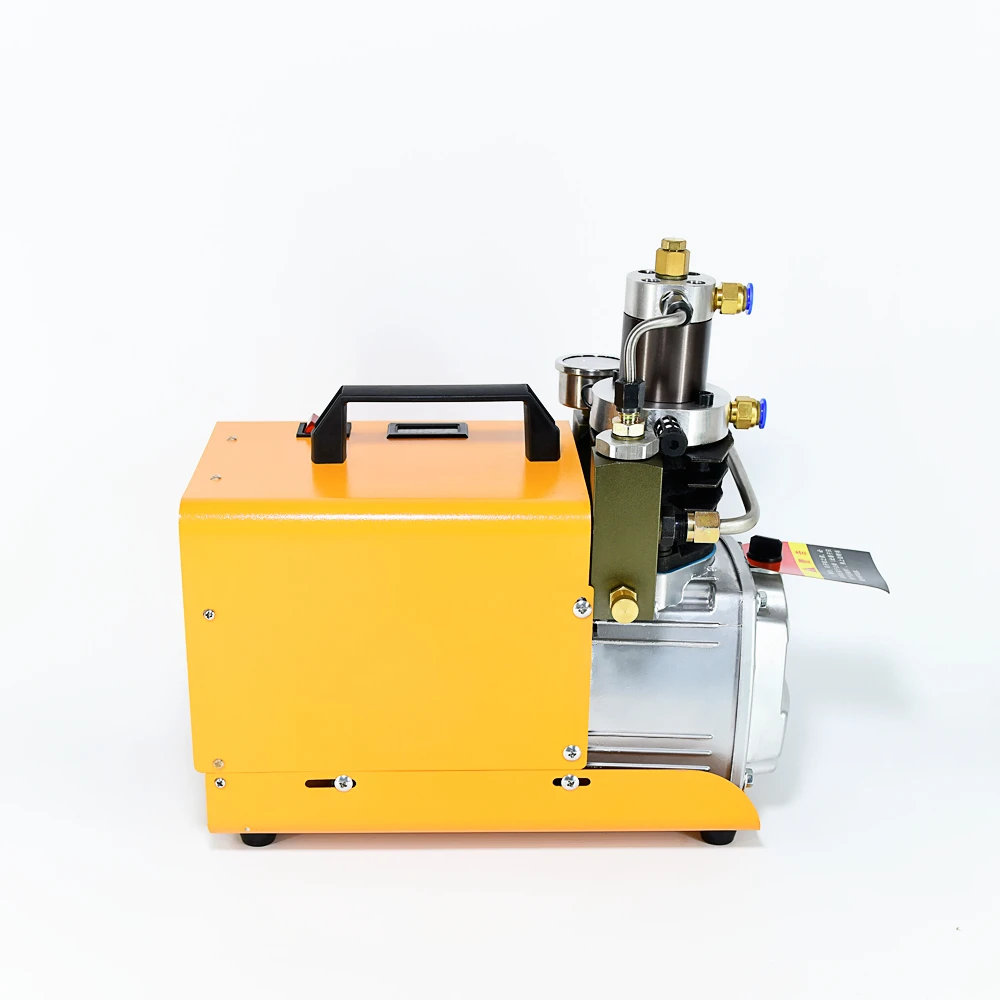

Acecare Hot Sale 4500 psi 300bar High Pressure Air Compressor Enhanced Version

1. Replace the breathing plug.

2. Check the oil, if you don't have it, you need to add oil. The oil of the compressor is No. 46 hydraulic oil, the model is ISO vg46. (Add to the red dot location.)

3. Only the pressure gauge of setting pressure type needs to be installed, and other types have been installed. Tighten the gauge with a wrench.

4. The table for setting the pressure section has a connection cable to be inserted.

5. Find a adapter, connect the water pipe, and drain the pump. The more cold water the better.

6. Connect the power cord and there is a pump power plug next to the incoming line.

7. The pump can only be turned on after normal circulation water supply.

8. Set the pressure gauge to the desired pressure. It will automatically stop after the pressure. It is best not to exceed 30MPa/300Bar/4500psi. If the pressure function is not set, manual shutdown is repuired.

9. Do not exceed 70 temperature gauge, the more cold water the better.

10. Loosen the pressure relief screw before stating the machine, and then tighten it after turning it on.

11. After stopping the machine, first relieve the pressure and then take the joint.

12. The other styles are installed the same way. Be sure to observe the amount of oil, replace the breathing plug, and install the pump.
