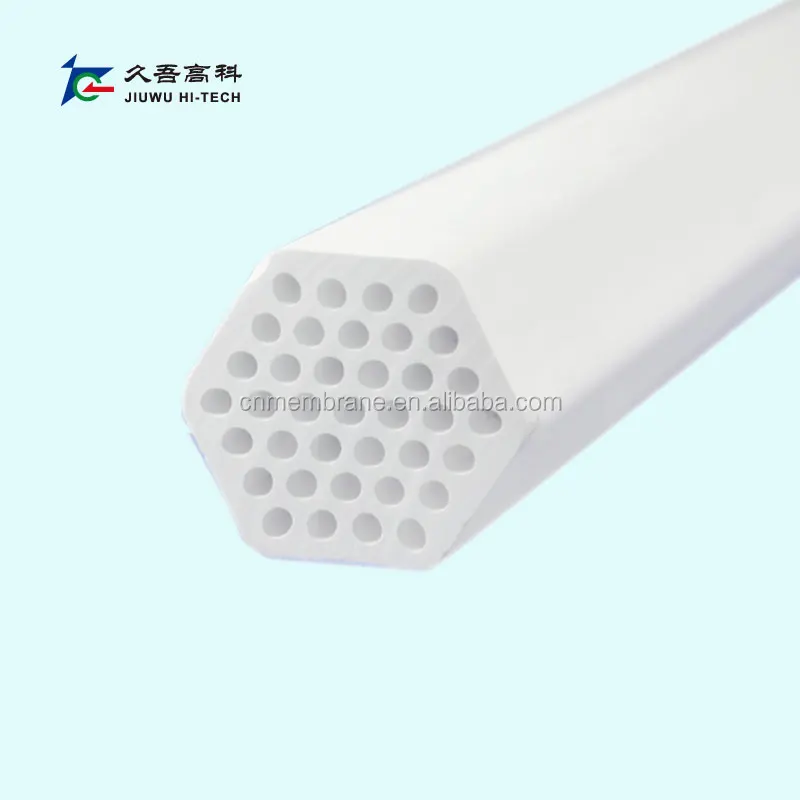

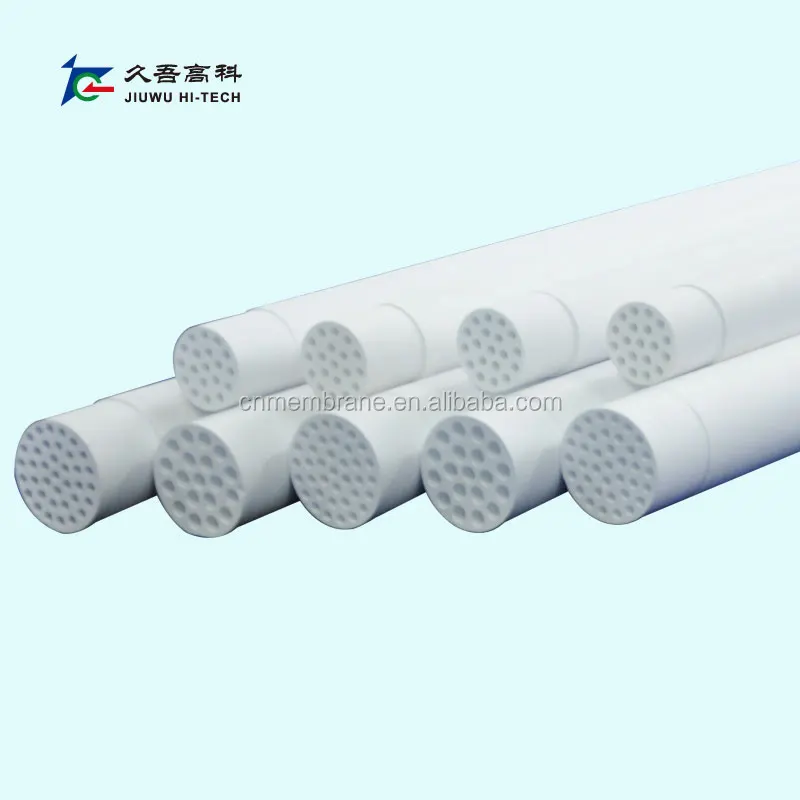

JIUWU The pore size 200nm Microfiltration Porous Ceramic Membrane Element for Remove Proteins
- Category: >>>
- Supplier: Jiangsu Jiuwu Hi-Tech Co. Ltd.
Share on (60826468700):
Product Overview
Description
Product Description
Ceramic membrane | Model | CMF19040 CMF37036 |
Raw Material | α-Alumina/Zirconia | |
Pore size | 50 nm, 200nm | |
Length | 1200 mm | |
Membrane area | 0.24 m2, 0.29 m2, 0.418 m2, 0.5 m2 | |
Outside diameter | 30 mm, 40mm | |
Channel Diameter | 4.0 mm, 3.6mm | |
Channel Qty | 19, 37 | |
Gross Weight | 1.5 kg, 2.5kg | |
Construction | Multi-channel tubular element | |
| ||
Operating conditions | Typical Operating Pressure | 29-145 psi (2-10 bar) |
Maximum Operating Temperature | 302°F (150°C) | |
Maximum Cleaning Temperature | 176°F (80°C) | |
Allowable pH - Continuous operation | 0-14 | |
Allowable pH - Clean-In-Place (CIP) | 0-14 | |
| ||
Application area | Food & Beverage | |
Bio- pharm | ||
Chemical & Petro- Chemical | ||
Water & Wastewater treatment | ||
Features | Advantages |
Exceptional mechanical resistance | Suited to high fouling liquids, viscous products, high concentration factors |
Ability to withstand upset conditions and high frequency backpulsing cycles | |
Long service life | |
Wide chemical and pH compatibility(0-14) | Easily sanitizable and sterilizable |
Suited to treating acid or alkaline feed | |
Long service life | |
Excellent thermal stability | Suited to continuous hot temperature operation and numerous CIP cycles |
Long service life | |
Cross-flow filtration | Continuous process |
No filter cake | |
Easy cleaning, CIP | |
Excellent inorganic materials | Easy maintenance, low maintenance cost |
Long work life |
Packaging & Shipping
Destination | Express delivery | Air cargo and ship cargo |
America | √ | √ |
Europe | √ | √ |
Southeast Asia | √ | √ |
Africa | √ | √ |
Company Information
JIANGSU JIUWU HI-TECH CO.,LTD (referred to as "JIUWU HI-TECH") was founded in 1997. In 2017, JIUWU HI-TECH has listed on Shenzhen stock exchange (stock code: 300631). Now it becomes the largest ceramic membrane manufacturer in the world.
JIUWU HI-TECH has many unique applications in the world, more than 50 patents about ceramic membrane, system and process application. JIUWU HI-TECH’s products could be used in many applications, such as Food &Beverage, Bio-pharm, Environmental and Chemical industry, etc.
FAQ
How to start your equipment with ceramic membrane elements?
After mounting the equipment: Fill the equipment with desalted water. Do not use normal water, chalk inside normal water can reduce the flow rate. Start your equipment and start a normal filtration run. After approx. 10 min. go to max. transmembrane pressure. If necessary start a normal cleaning run with membrane cleaners. Then rinse the equipment and refill with the fluid you wish to filter. Start filtration.
