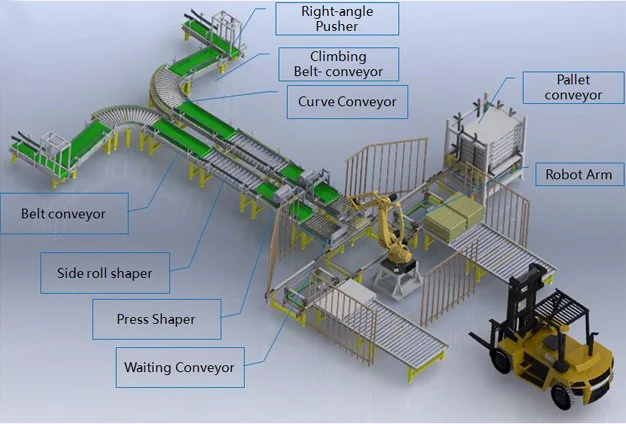

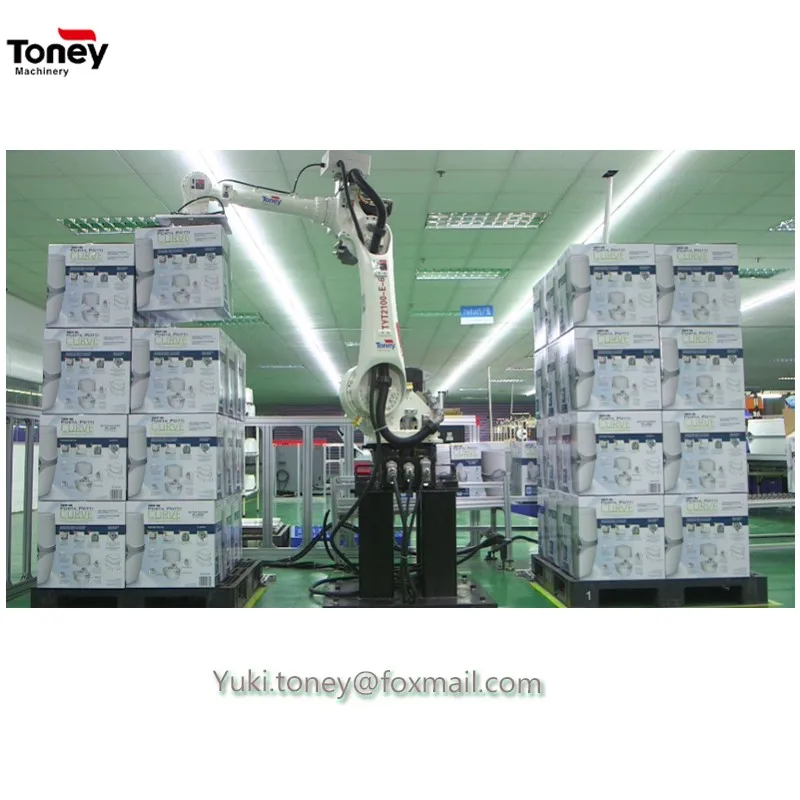

Industrial robot for fully automatic stacking line

Product Overview

Description



TONEY ROBOT composed by two parts ,one is Controller and another is the Manipulator.Palletizing robot can classify itself into three types: box palletizing, woven bag palletizing, bulk palletizing.



GRIPPER DESIGN

Simplified motion control program; simple structure, low failure rate and easy maintenance; a variety of grippers suitable for various applications.



OPERATING SYSTEM

Less demonstration points enable easier field debugging and improve field efficiency greatly. Most intuitive teaching and playback mode with easy playback in complex palletizing forms.

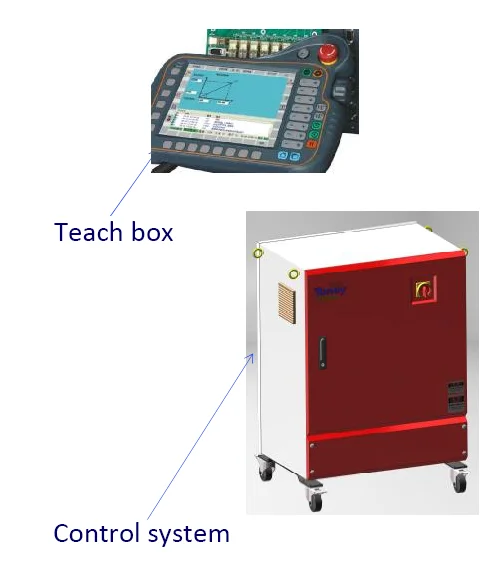

DEMONSTRATOR

Generous, compact and friendly human-computer interaction interface; Humanized layout of buttons; Highly reliable design of buttons and touch screen.

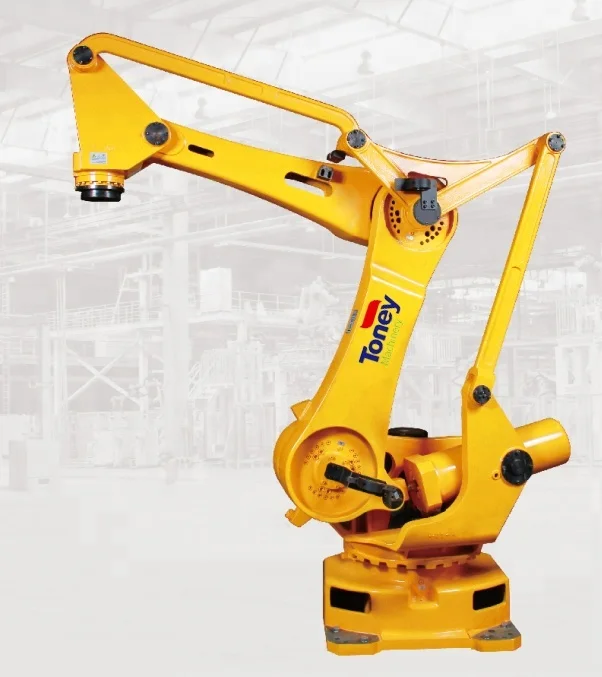

Model		TYT2800-F-4
Axis Number		4
Payload		130KG
Repositioning Accuracy (mm)		±0.2
Max. speed for single axis	Axis 1	120º/S
	Axis 2	110º/S
	Axis 3	105º/S
	Axis 4	355º/S
	Axis 5	/
	Axis 6	/
Max. Working Range	Axis 1	±178º
	Axis 2	+42º/-85º
	Axis 3	+85º/-55º
	Axis 4	±360º
	Axis 5	/
	Axis 6	/
Max. Arm span		2820mm
Robot Arm Protection Class		IP65
Electrical Controller Protection Class		IP43
Installation Method		Arbitrary Angle
Robot  Body Weight		1100KG







ROBOTIC ARM FEATURES:

1)This palletizing robot is widely used in Chemical,beverage, food,beer, plastic,air conditioner industry ect .

2)Automatically pack and stack the carton ,bagged  ,canned ,boxed and bottled products .

3)The simple structure ,less components  make it easy maintenance and low maintenance cost.

4)The Robot Palletizer takes less space and more flexible and accurate .

5)All the control can be implemented on the touch screen of the control box , easy operation .

6)The robot can work continuously for a long time, reduce a lot of labor and labor cost, more productive.



WHY CHOOSE US:



Toney machinery is a Taiwan company Located in Dongguan city, we own the factory with 15000m2 . become public company at April 25th,2016. professional for plastic auxiliary equipment and automation equipment with more than 20 years.





 CONTACT INFORMATIONS:



PACKING AND SHIPMENT

Packed with film inside and full closed ply wooden box/fumigation wooden box

The close shipping port is SHENZHEN or GUANGZHOU

Shipping by sea or by air plane.
