Prestressed Post Tension Hydraulic Jack Hollow Cylinder 250 Ton

Product Overview

Description

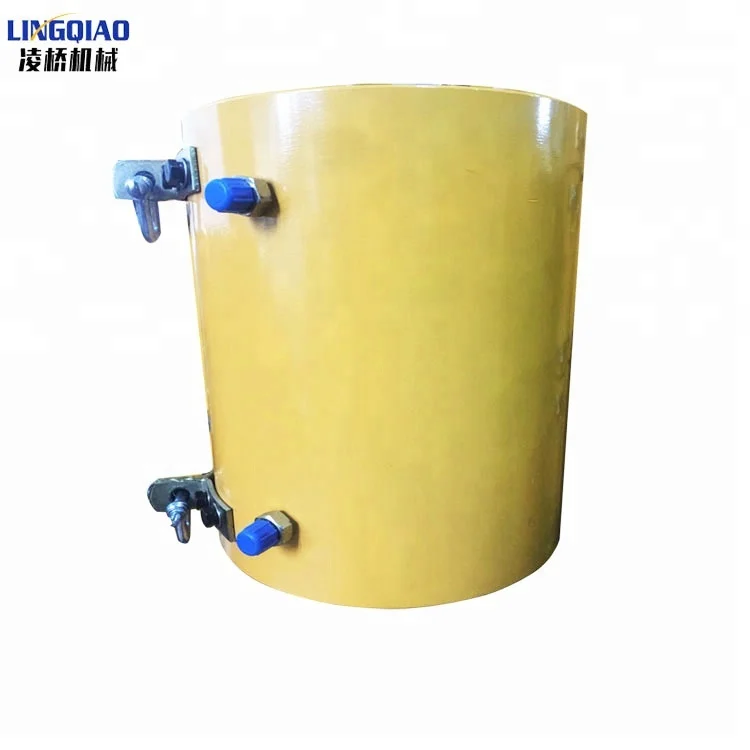

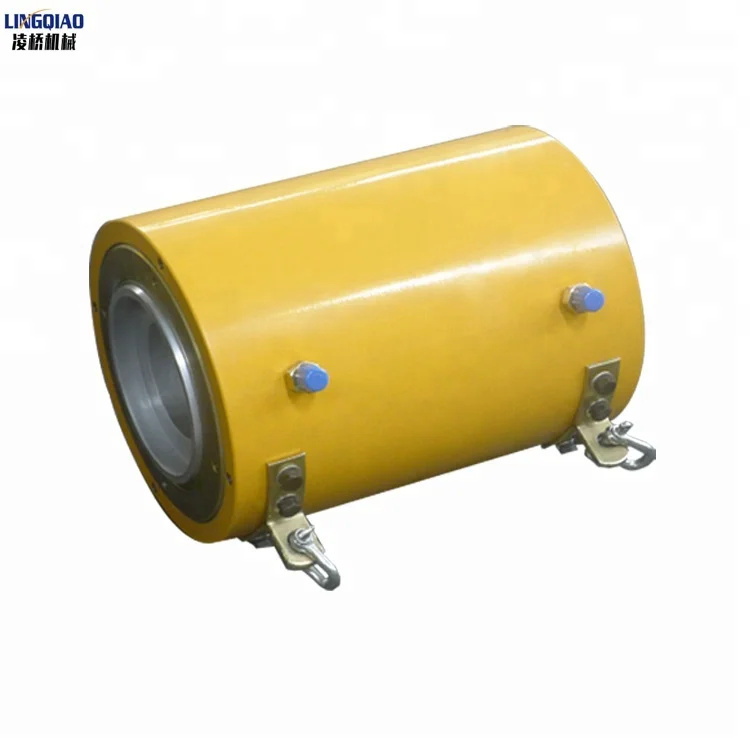

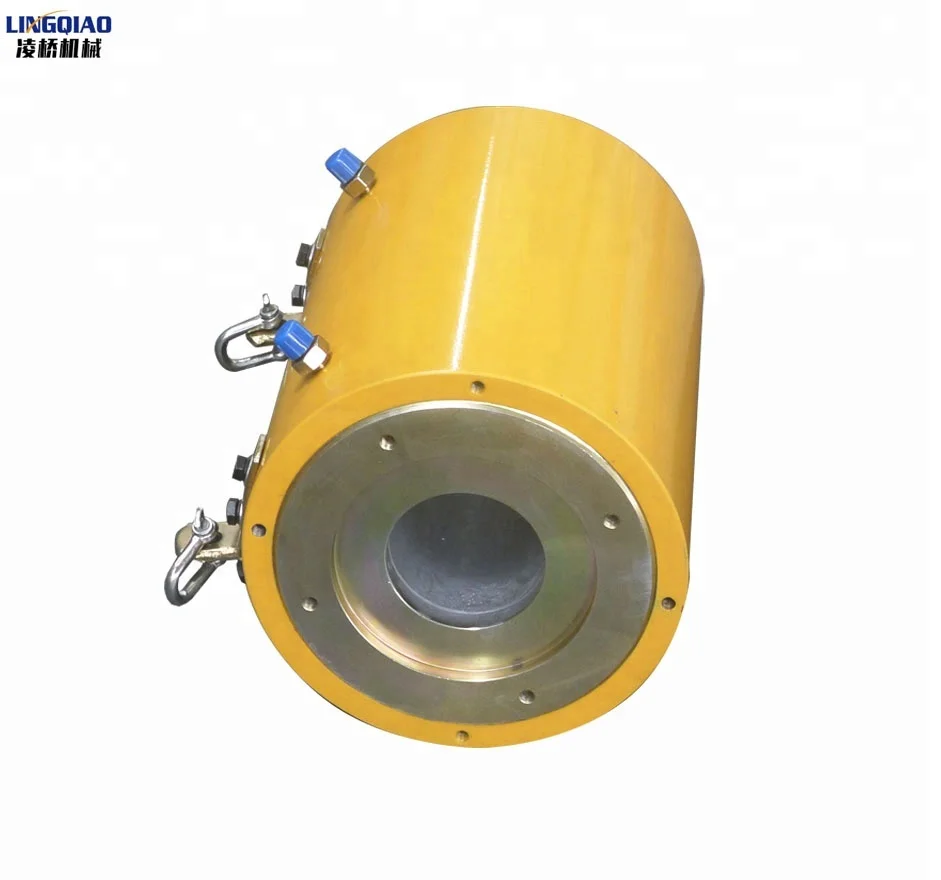

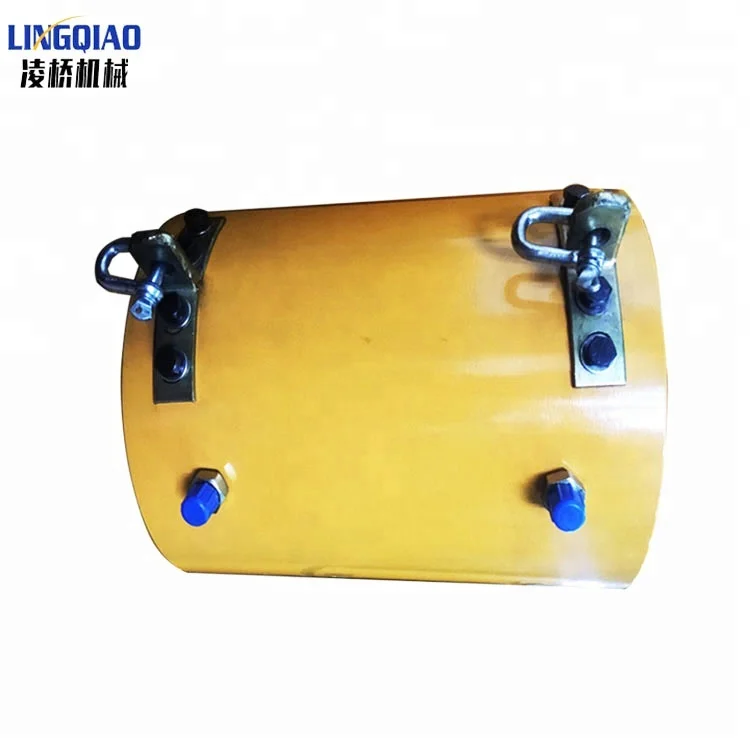

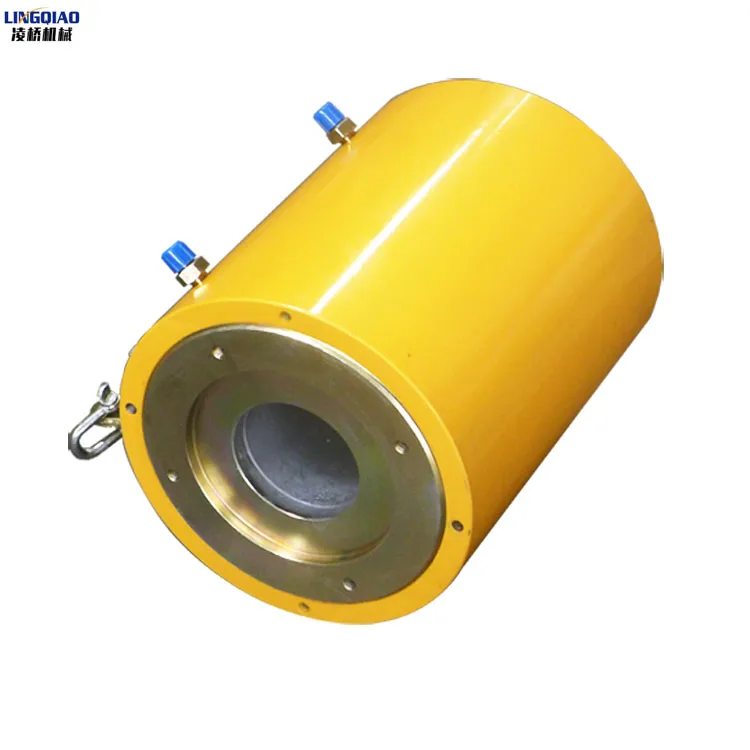

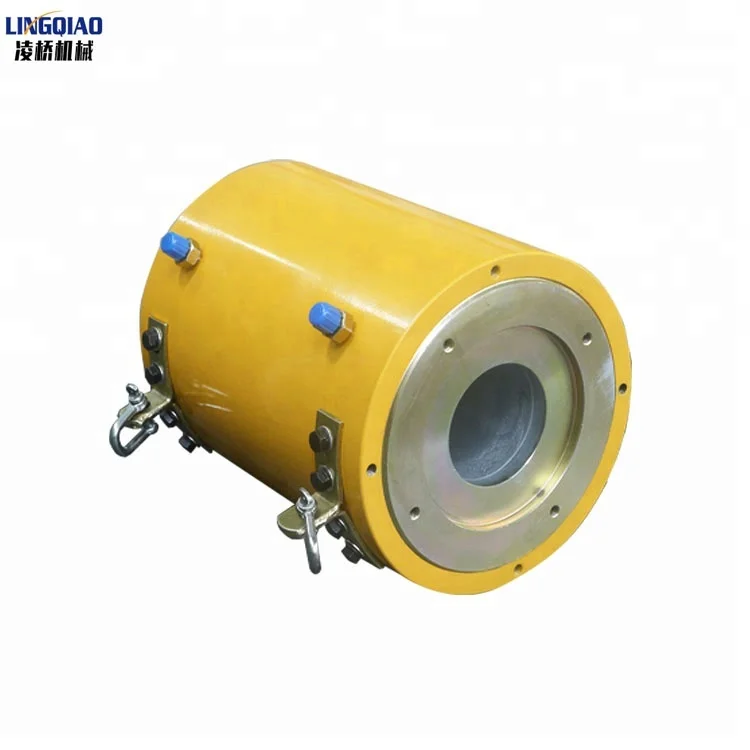

 Prestressed  Post Tension  Hydraulic Jack Hollow Cylinder 250 Ton





Specifications of :

Type	Nominal tension force          KN	Nominal        oil pressure   MPg	Tension  piston area        M²	Return  piston area     M²	Return    oil pressure   MPa	Coss-core  aperture        MM	Stroke for tension     MM	Overall size  ΦA×L      MM	Mass                KG
YCW70B	705	51	1.382×10-²	0.636×10-²	<25	Φ60	200	Φ188×330	40
YCW100B	973	51	1.908×10-²	0.534×10-²	<25	Φ78	200	Φ216×337	60
YCW150B	1493	51	2.927×10-²	1.609×10-²	<25	Φ103	200	Φ283×376	117
YCW200B	1998	53	3.769×10-²	2.168×10-²	<25	Φ120	200	Φ310×378	130
YCW250B	2480	54	4.594×10-²	2.803×10-²	<25	Φ140	200	Φ345×382	188
YCW300B	3011	51	5.904×10-²	3.518×10-²	<25	Φ145	200	Φ385×382	230
YCW350B	3529	52	6.786×10-²	3.463×10-²	<25	Φ165	200	Φ410×389	280
YCW400B	3927	52	7.611×10-²	4.595×10-²	<25	Φ175	200	Φ440×389	315
YCW450B	4490	51	8.804×10-²	5.788×10-²	<25	Φ175	200	Φ465×413	364
YCW500B	5026	50	10.05×10-²	4,775×10-²	<25	Φ196	200	Φ495×418	445
YCW600B	6050	50	12.1×10-²	6.83×10-²	<25	Φ196	200	Φ530×443	550
YCW650B	6566	50	13.13×10-²	6.291×10-²	<25	Φ240	200	Φ570×445	610

 Installation method and hydraulic system diagram:

• Put strands into reserved place, expose strands 200-250mm longer than working length of jack at the tensile end. Avoid furcal and rough end of strands after cutting by the thin grinder.


• Put strands-ends through the tool anchor head, then push the tool anchor head to anchor spacer till fasten at the mouth.


• Anchor clamp jaws: bind each couple of clamp jaws with a rubber ring, push them into the cone aperture of anchor spacer along the strands till fixation.


• Restraining plate: designed for working anchor head, which matches the aperture.


•  Jack: bind strand-ends with iron wire to hang the jack, and put the supporting month of front jack on the restraining plate to center the coaxial of jack.


•  Install tool anchor on the supported mouth of the piston.

1	Restraining plate
2	Clamp jaw for working anchor head
3	Working anchor head
4	Strand
5	Anchor spacer
6	Cylinder
7	Piston
8	Tool anchor head
9	Clamp jaw for Tool anchor head
10	Overflow valve
11	Globe valve
12	Oil back-flow valve
13	High pressure pump
14	Throttle valve
15	Relief valve
16	Pressure meter
17	One-way valve

 hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacksv hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks hydraulic building jacks



Factory production:



Application:

YCW-B Series Jacks are light core-through jacks with multifunctions, which fit for various anchorages(group anchor) in prestressing tension operation. The device can be utilized widely in post-tensioning operation for immense constructions, prestressed concrete bridges, ground anchorage, marine constructions, foundation anchorage, etc.
