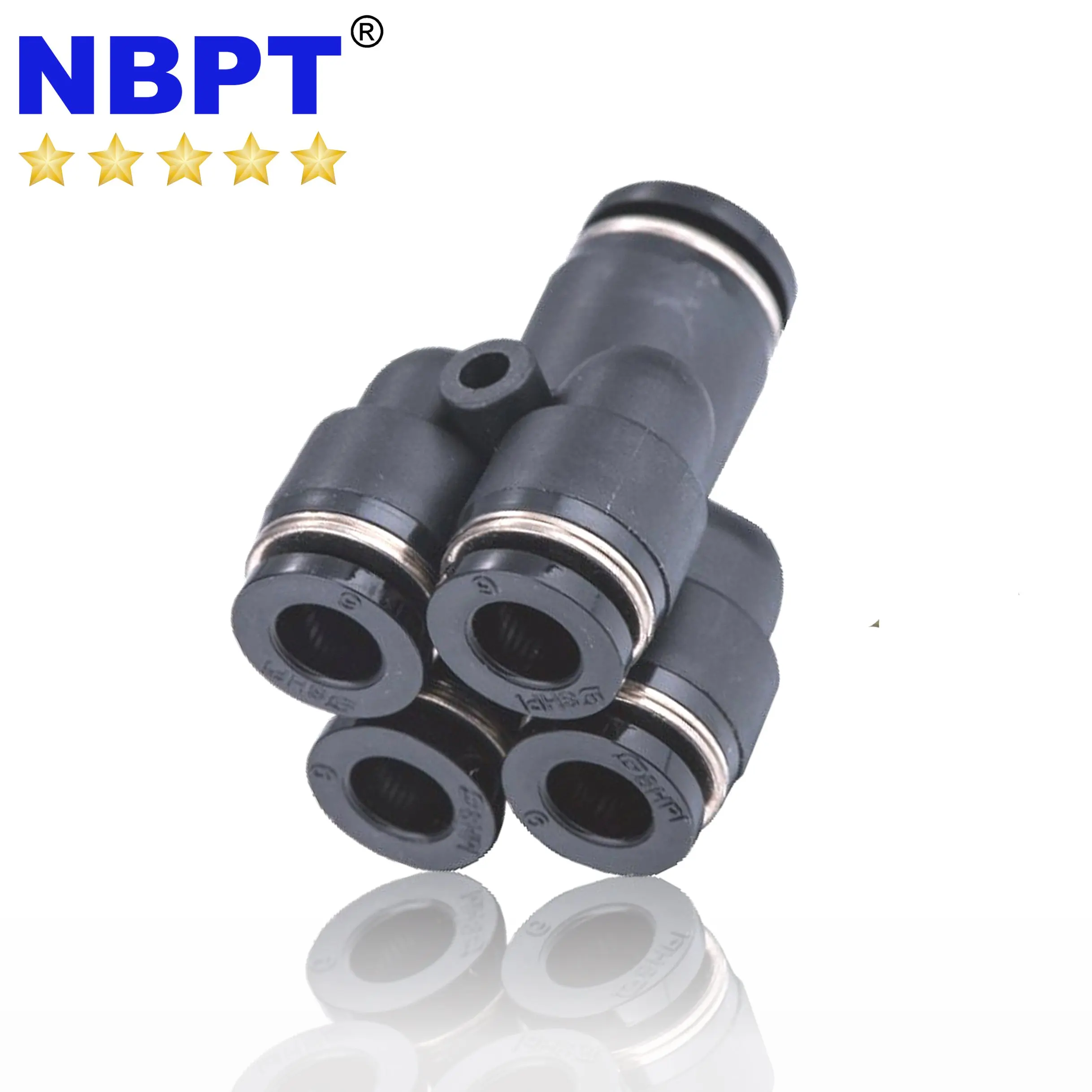

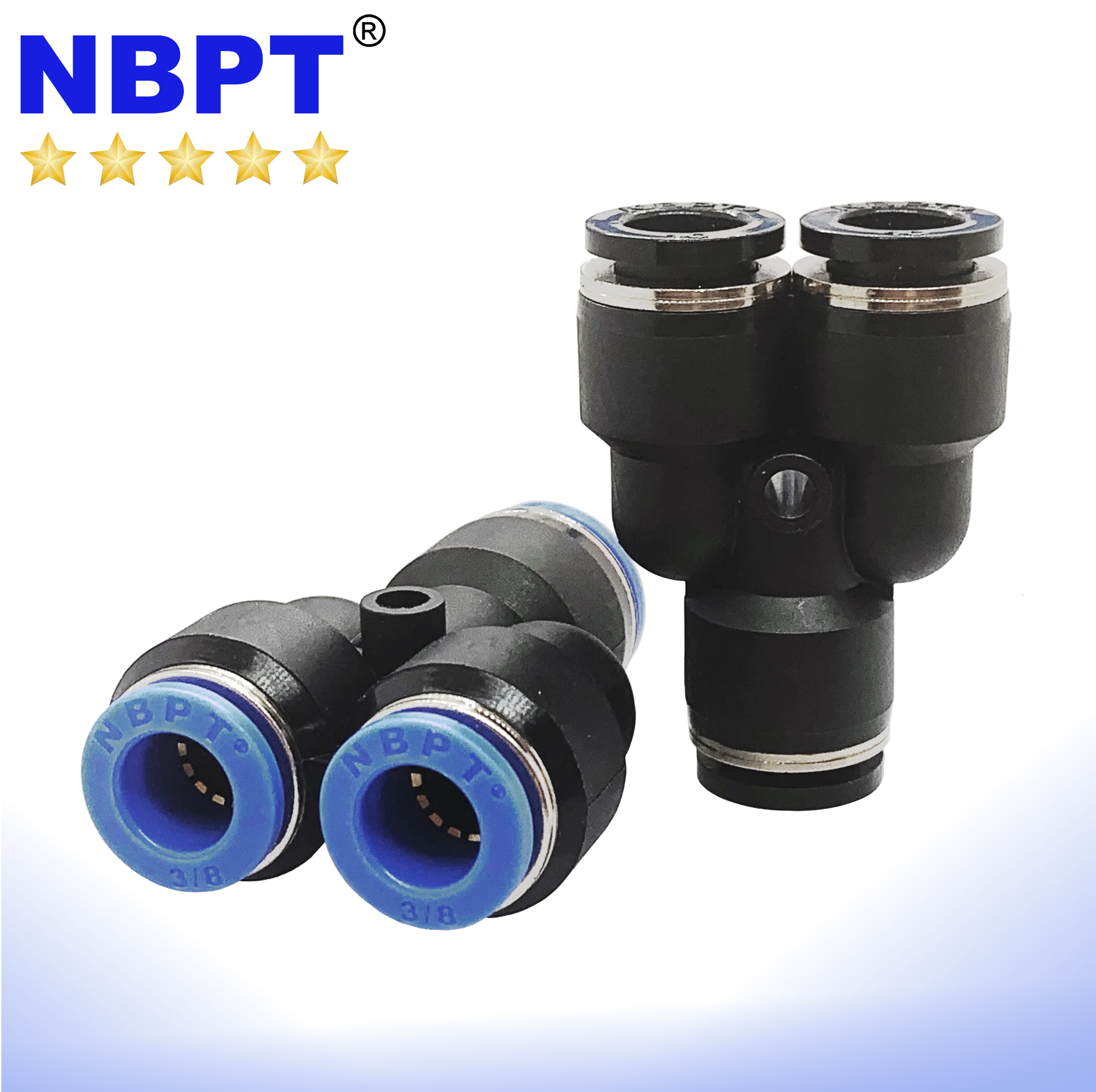

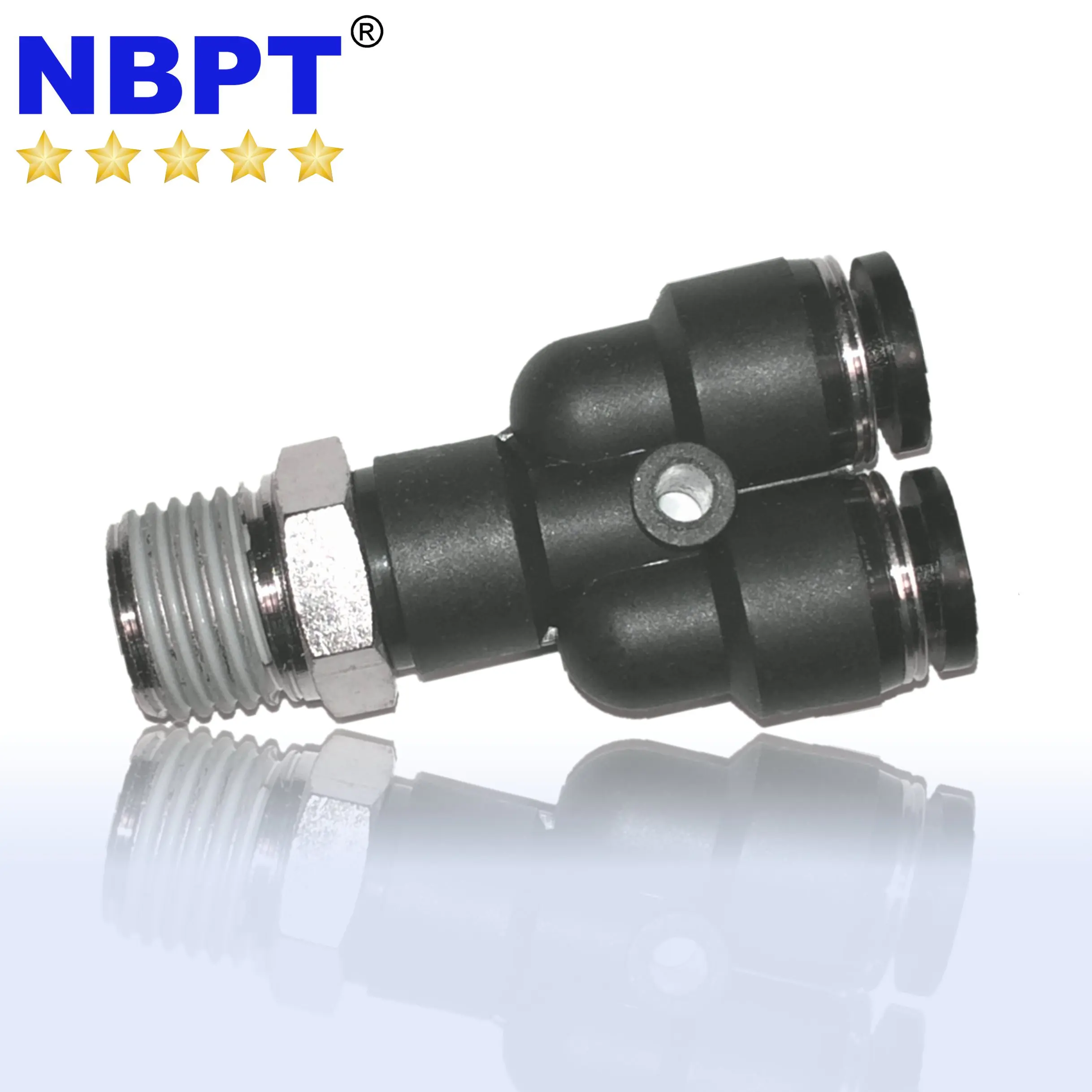

Yee PY Pneumatic Splitter Connector Pneumatic Y Fitting Plastic One Touch Fitting by NBPT

Product Overview

Description

Fluid	Air,water
Operating Pressure	0~1.0Mpa
Negative Pressure	–100Kpa(10Torr)
Operating Temperature	0~60°C
Applicable	Nylon and Polyurethane



ü  Nickel plated high-quality Brass for maximum performance and protection

ü  Specially designed for Polyurethane and Nylon  tube connection

ü  Quick and easy installation and removal, fittings can be reused multiple times

ü  Available in  BSPT, BSPP, NPT, UNF, SAE and ISO thread types

ü  BSPP  thread standard equipped with an O-ring

ü  NPT  and BSPT  threads are  PTFE coated, no additional sealant is needed

ü  NBPT  threads are thicker and heavier than most of our competitors

ü  Hexagonal hole thru allows for easy access in tight spaces with an hex Allen wrench

ü  Fittings are extensively tested under vibration for leaks at  10kg/cm2 (140 psi)

ü  Specially design inner seal is capable to perform at temperature of up to 75 C

ü  Hardened Stainless Steel Lock Claw provides extended lifetime and performance

ü  Customized release sleeve color: black, blue, red, grey, orange, green

ü  Certification: GB/T 19001-2016/ ISO 9001-2015
