New 8 meter lithium battery zero emission electric bus
- Category: Bus >>>
- Supplier: Shiyan Rockrich Industry & Trade Co. Ltd.
Share on (60826627371):
Product Overview
Description
Product Description
|
Overall specification |
Overall length (mm) |
8529 |
|
|
|
Overall width (mm) |
2430 |
|
|
|
Overall height (mm) |
3150 |
|
|
|
Wheelbase (mm) |
4250 |
|
|
|
Front/rear overhang (mm) |
1911/2368 |
|
|
|
Front/rear wheel tread (mm) |
1970/1805 |
|
|
|
Approach/departure angle |
11°/9° |
|
|
|
Max. GVW (kg) |
12700 |
|
|
|
Min. Turning diameter (m) |
11 |
|
|
|
Min. Ground clearance (mm) |
220 |
|
|
|
Max. Gradeability (%) |
≥18 |
|
|
|
Max. Speed (km/h) |
69 |
|
|
|
Seat |
17-31 |
|
|
|
Max. Passenger capacity |
73 |
|
|
Driving specification |
Electric motor controller |
Controlling mode |
Turning Torque |
|
|
|
Model No. |
KTZ57X40SD02 |
|
|
Main motor |
Model No. |
TZ365SD02 |
|
|
Driving battery |
Driving source |
BAK Battery Co., Ltd,battery LFP LiFePO4 |
|
|
|
Capacity |
127.5kwh (144Wh,463.7V/275Ah) |
|
|
|
Type |
Permanent magnet synchronous motor |
|
|
|
Peak power (kw) |
165KW /2800rpm/2000N.m |
|
Chassis Specification |
Chassis model |
two step |
|
|
|
Chassis brand |
Dongfeng |
|
|
|
Suspension |
Leaf spring front:3/rear:4 |
|
|
|
Front axle |
Dongfeng Dana 4.2T |
|
|
|
Rear axle |
Dongfeng Dana 8.5T |
|
|
|
Driving shaft |
Enhanced driving shaft |
|
|
|
Braking |
Front disc / rear drum |
|
|
|
ABS |
Yes |
|
|
|
Adjustable arm |
Automatic ,Chinese brand |
|
|
|
Tire |
255/70R22.5-16PR |
|
|
|
Storage battery |
DC/DC+12V/150AH x2 maintenance-free storage battery |
|

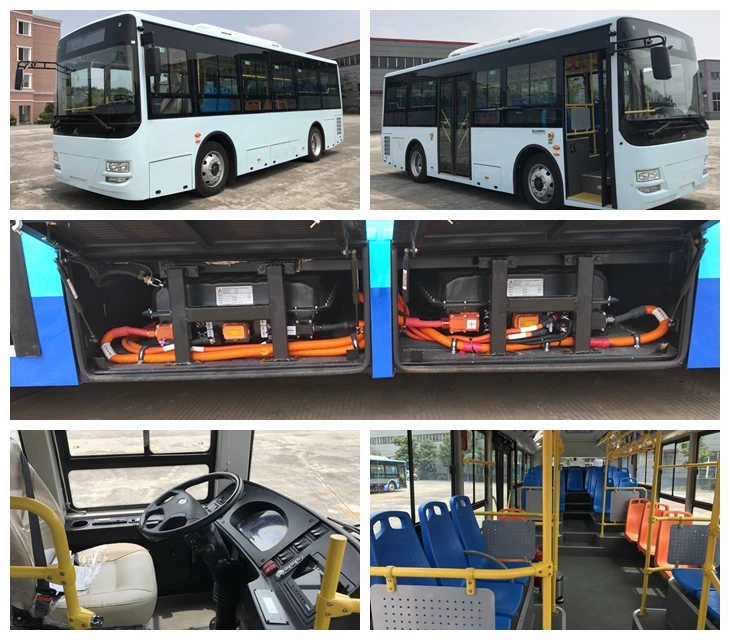

Detail picture
1. Mature and reliable technology of chassis and suspension.
2. 4250mm wheel base and spacious standing area.
3. Ultra-large capacity battery and ultra-long driving range to 300km

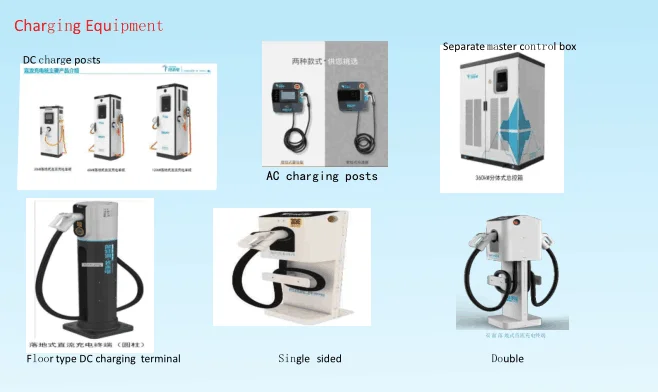

Charging Equipment
Work Flow
Packing & Delivey
Company Profile
ShiYan RockRich
Shiyan RockRich Industry & Trade Co., Ltd. is a professional exporter of trucks,buses, special vehicles and parts. Our company is located in the Wudang Mountain Scenic Area and Shiyan Dongfeng commercial vehicle production base.We can provide 4X2,6X4,8X4 dumper truck ,tractor head truck, cargo truck and special trucks. Also provide 6 m to 12m city buses, coach buses, professional school buses, 4X4 off-road buses, trailer type RV, self-propelled RV etc. Currently, Our products have been sold to 20 overseas countries and regions, Marketing service network coverage Africa, Southeast Asia, Oceania, Latin America and Central and South America etc.
FAQ
1. What is the warranty?
You can enjoy technical support by phone or email forever . We will provide a prompt solution. We also , offer the most convenient and efficient spare parts support with competitive price.
2. What is the delivery time?
The delivery time is usually within 15 workdays after we received your prepayment.
3. Do you provide customized service?
Yes. We offer customized service as you needs for the performance , included special requirements .
4. What is the payment method?
By TT ,L/C at sight and Trade Assurance , etc.
5. Why us ?
We guarantee professional one-stop service, competitive price with high performance and prompt response.
