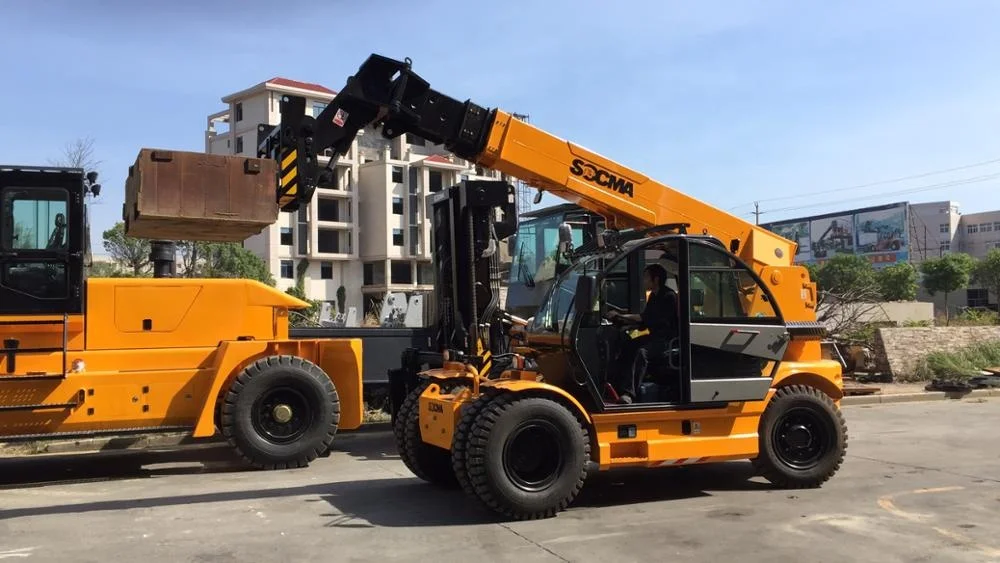

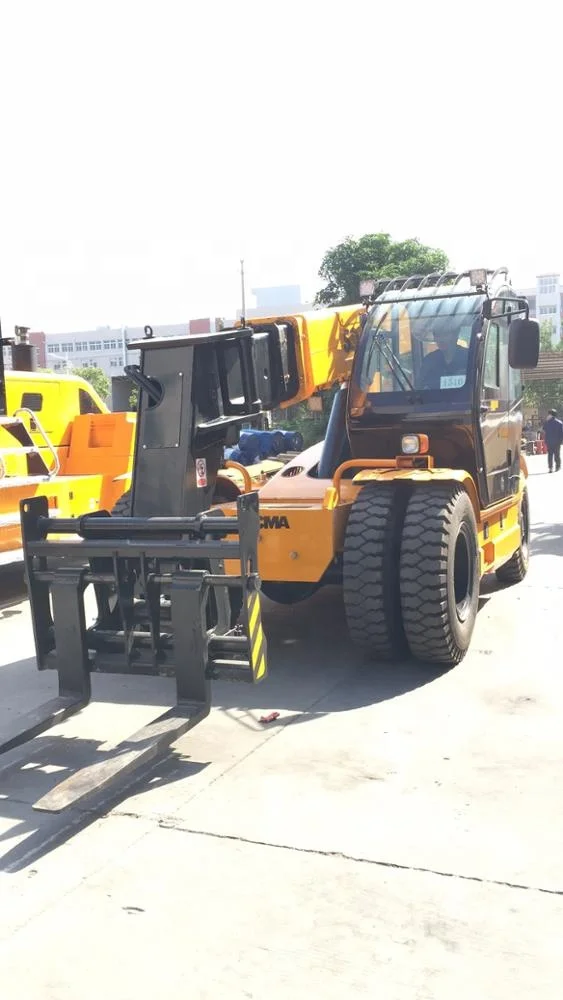

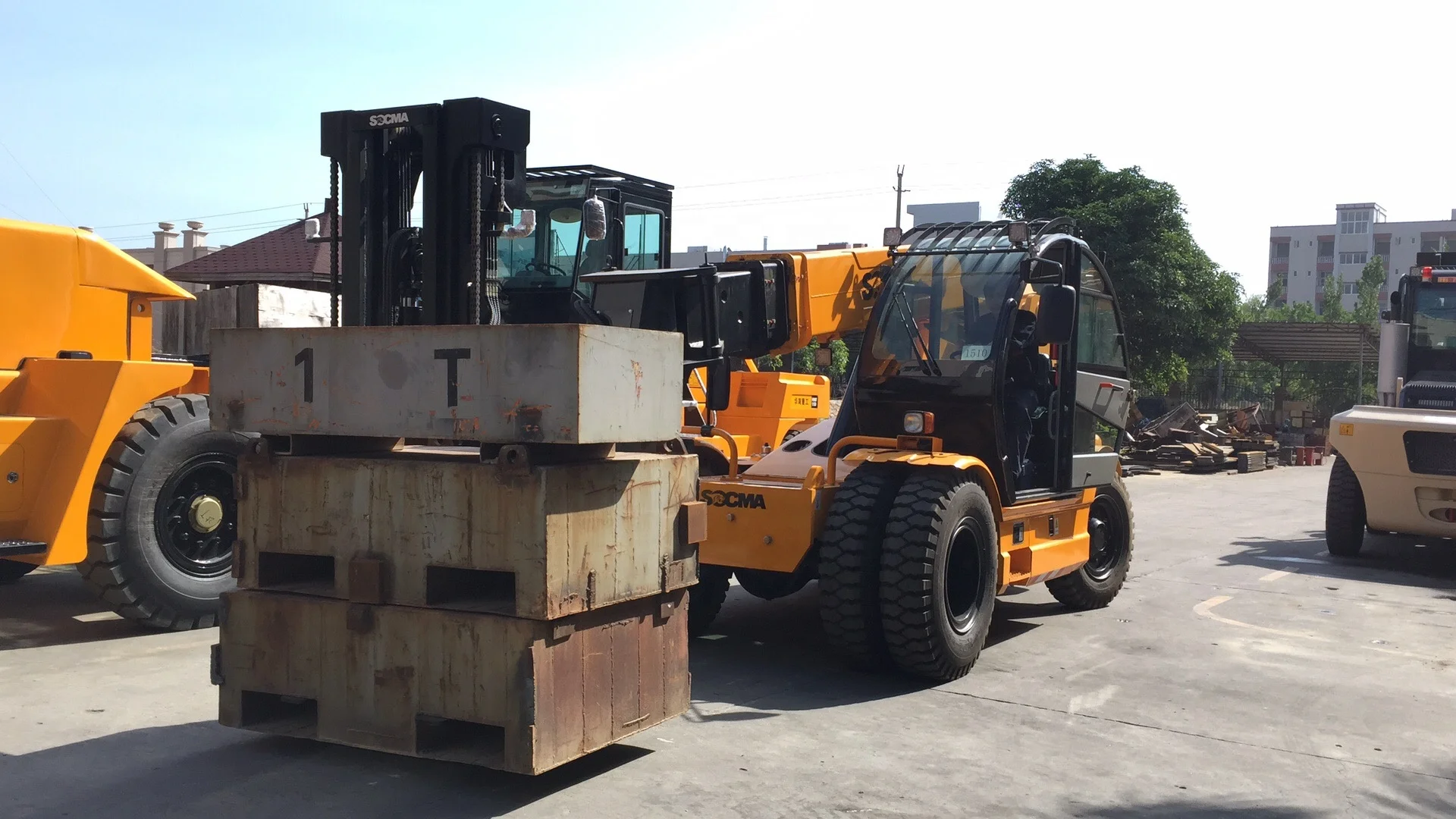

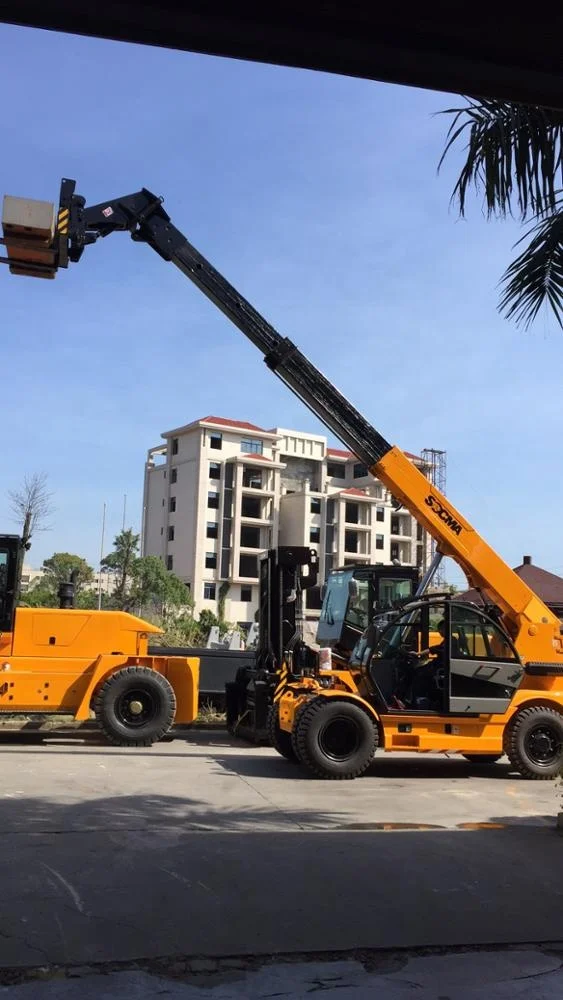

5 tons 5t telescopic forklift telehandler
- Category: >>>
- Supplier: Fujian Southchina Heavy Machinery Manufacture Co. Ltd.
Share on (60826648366):
Product Overview
Description
Photo | Description Of Goods |
| Model:HNT50H 1. Hydraulic transmission 2. Engine: Cummins 4BTA3.9-C100II 3. Load Capacity:5000kg 4. Load center:500mm 6. Triplex telescopic arm 7. Max. Lifting Height:8800mm 8. Air Con Cabin 9. Double front wheels |
Optional |
Loader Bucket |
Man Lift Cage |
Outrigger |
Solid tyre |
Items | Unit | Deviation allowed | HNT50-2 | ||
Basic parameter | Rated load | kg | - | 5000 | |
Load center | mm | - | 500 | ||
Load capacity @ max. Forward reach | kg | - | 2000 | ||
Basic boom max. Lifting height | mm | ±1.5% | 5300 | ||
Max. Lifting height | mm | ±1.5% | 8800 | ||
Max. Horizontal reach | mm | ±1.5% | 5470 | ||
Min. Horizontal reach | mm | ±1.5% | 1270 | ||
Min. Ground clearance | mm | ±1.5% | 310 | ||
Min. Turning radius (outer tyre center) | mm | ≤105% | 6800 | ||
Angle | Boom frame upward angle | ° | ±1.0 | 60 | |
Boom frame downward angle | ° | ±1.0 | -12 | ||
Operating weight | kg | ±5% | 13000 | ||
Overall dimension | Length (with fork) | mm | ±2% |
| |
Width | mm | ±2% | 5900 | ||
Height | mm | ±2% | 2350 | ||
Wheel tread | mm | ±1% | 1638/1845 | ||
Wheel base | mm | ±1% | 2988 | ||
Rated power / Rated turning speed | kW/rpm | - | 74/2200 | ||
Driving system | Max. Travelling speed (unloaded) | km/h | ±10% | 25 | |
Gradeability | % | - | ≥20% | ||
Tyre | Front (4 pcs) | - | - | 11.00-20 | |
| Rear(2 pcs) | - | - | 9.00-20 | ||
Engine | Cummins | - | 4BTA3.9-C100II | ||
Warrantty time: one year or 2000hours, due to first arrival.
Transportation: By 40HQ container per unit
Payment: 30% TT deposit, 70% TT before shipment
Delivery time : 40 days after receipt of deposit
