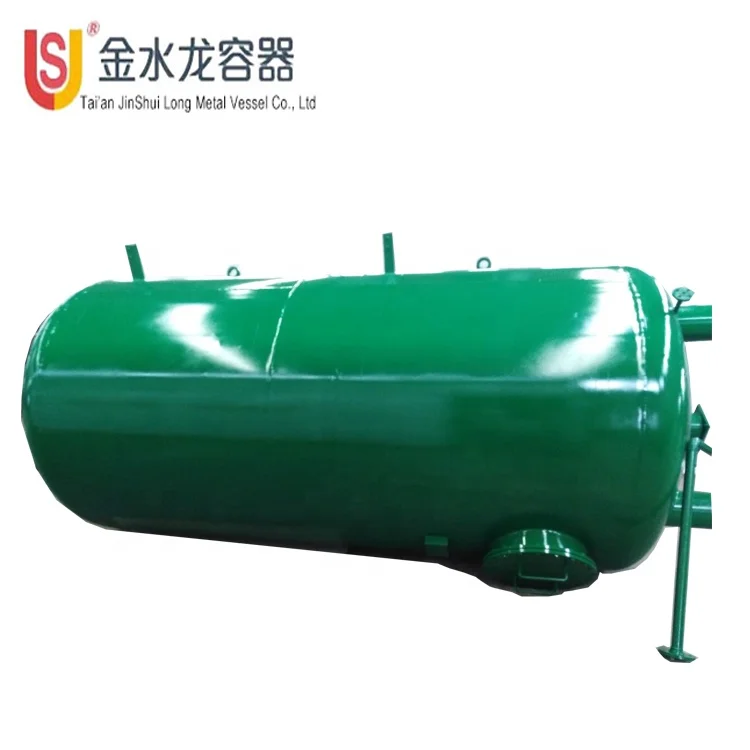

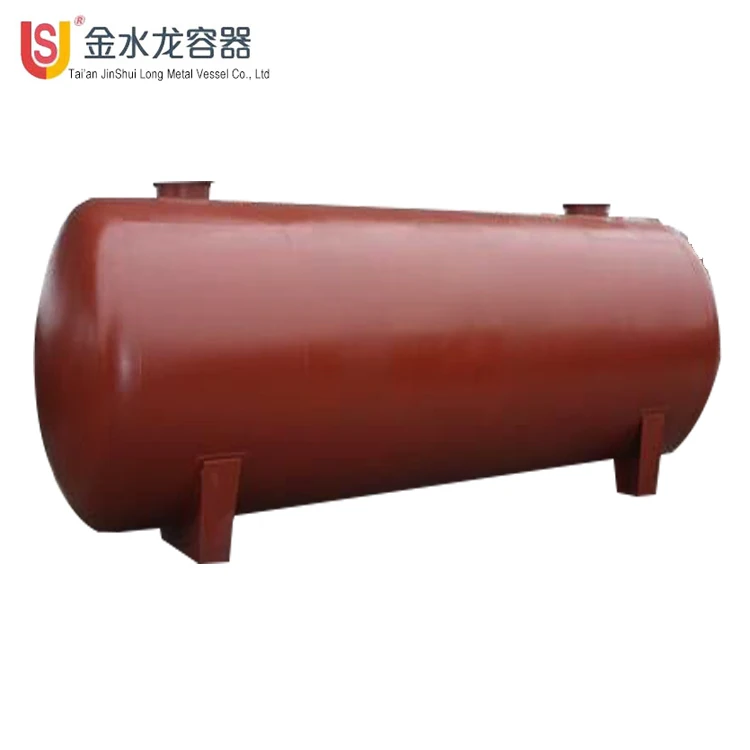

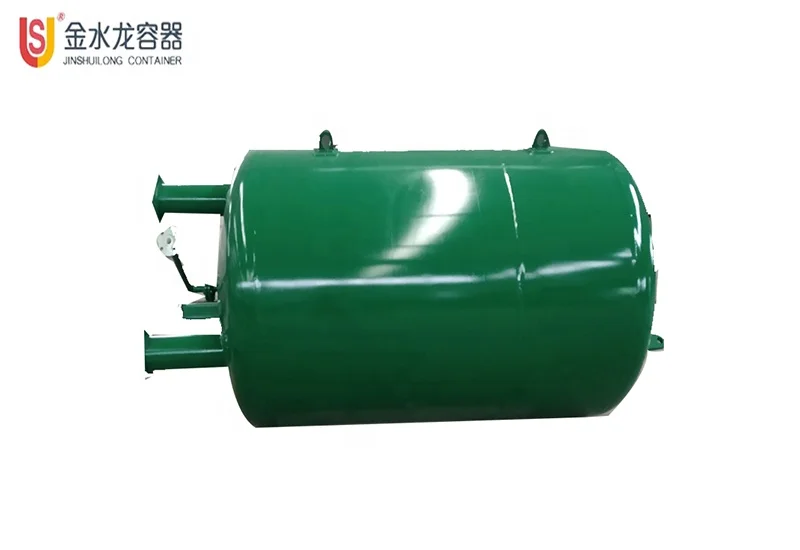

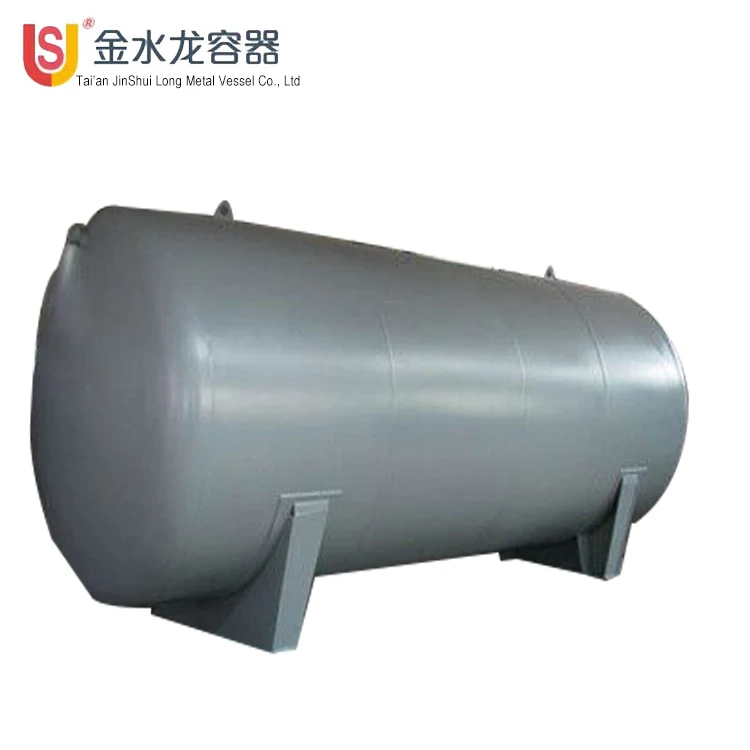

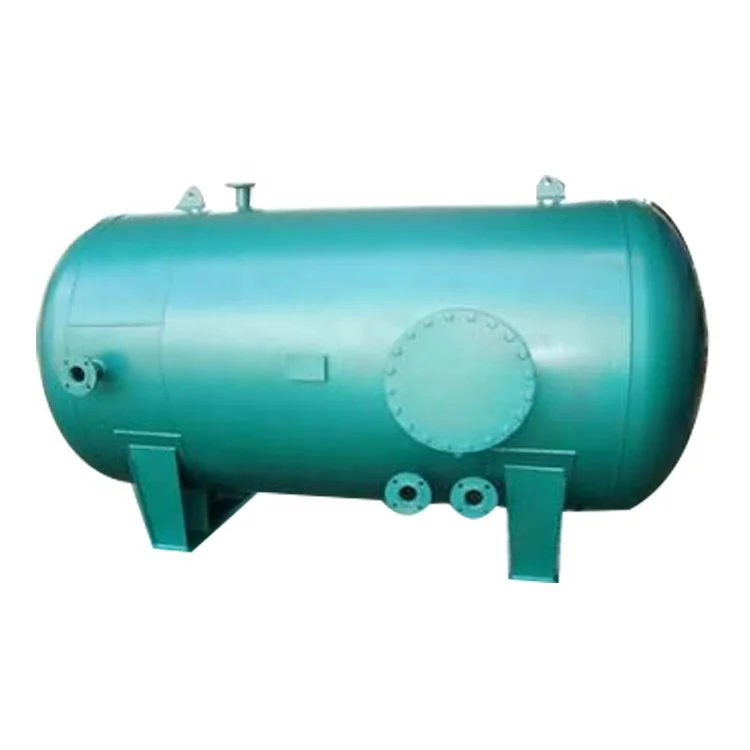

Jinshuilong 50m3 price underground fuel diesel oil storage tank
- Category: >>>
- Supplier: Taian Jin Shui Long Metal Vessel Co. Ltd.
Share on (60826651980):
Product Overview
Description
PRODUCT OVERVIEW
Portable Mobile petrol diesel station
The Containerized mobile fuel station is also called a Mobile filling station. It is a ground-mounted mobile station that
integrates oil storage tanks, fuel dispensers, video surveillance, and explosion-proof technology. By filling explosion-proof
material in a certain density way to fill the storage tank that stores flammable and explosive liquid, there will be no explosion accidents when encountering open flames, static electricity, impact, lightning strikes, gunshots, welding, accidental violent impact accidents.
integrates oil storage tanks, fuel dispensers, video surveillance, and explosion-proof technology. By filling explosion-proof
material in a certain density way to fill the storage tank that stores flammable and explosive liquid, there will be no explosion accidents when encountering open flames, static electricity, impact, lightning strikes, gunshots, welding, accidental violent impact accidents.
PRODUCT ADVANTAGE
Low operating cost
Skid mounted gas station has low cost, small floor space, convenient movement and high investment insurance rate.
Safe and reliable
The safety and explosion-proof function of the barrier and explosion-proof storage tank is not affected by the change of internal and external conditions, and no additional auxiliary equipment is needed, so the danger of explosion and fire accident can be eliminated under any circumstances.
Easy installation and migration
Skid mounted gas station is easy to install, transport, lift, once in place, skid mounted structure, easy to move, short time for station construction, time saving, quick investment.
Antistatic accumulation
In the process of loading and unloading oil, the metal container can be connected to the wall of the static electricity to prevent
the accumulation of static electricity
the accumulation of static electricity
Fire extinguishing
If the oil measuring hole is on fire, the flame height does not exceed 30 cm, just use the fire blanket to cover the oil measuring hole, the flame can be extinguished.
PRODUCT SPECIFICATIONS
10Capacity (M3) | 10 | 15 | 20 | 30 | 40 | 50 |
internal diameter(mm) | 2200 | 2200 | 2200 | 2200 | 2200 | 2500 |
Tank of the length (mm) | 3000 | 5000 | 5200 | 8000 | 10000 | 11000 |
Gap between two layer(mm) | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 | 0.1-3.5 |
Inner steel tank thickness(mm) | ≥3 | ≥3 | ≥3 | ≥3 | ≥3 | ≥3 |
Head thickness (mm) | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
External tank thickness(mm) | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
Manhole quantity | 2 | 2 | 2 | 2 | 2 | 2 |
Manhole diameter(mm) | 600 | 600 | 600 | 600 | 600 | 600 |
