Product Overview
Description
Product Description
Attention:
When order qty. reaches 12 piece, there is discount.
Please make payment after the price(s) in the order revised.
2019-10-8: from today on, we ship version 2.
Manual for verion 2:
www.suzhoulily.com/pdf/ZL-6290A_en_V2.0b.pdf
Manual for previous version:
www.suzhoulily.com/pdf/ZL-6290A_en_V1.3.pdf
Note:
When 2 set-points are set to same value, and 2 hysteresis are set to same value, it will be same as stc1000/itc1000.
When 2 set-points are not same value, it could be a system like wine cabinet, or energy saving control for fish pool or incubator (not cooling immediately after heating stops).
The added NC (Normal Close) output can indicate: the heater stops.
ZL-6290A
Temperature Controller
Version 2.0b
Introduction
ZL-6290A (ZL-1000) is similar to STC-1000 and ITC-1000, with enhanced specification.
It has two outputs, one for cooling, and one for heating, to regulate temperature to a set-point.

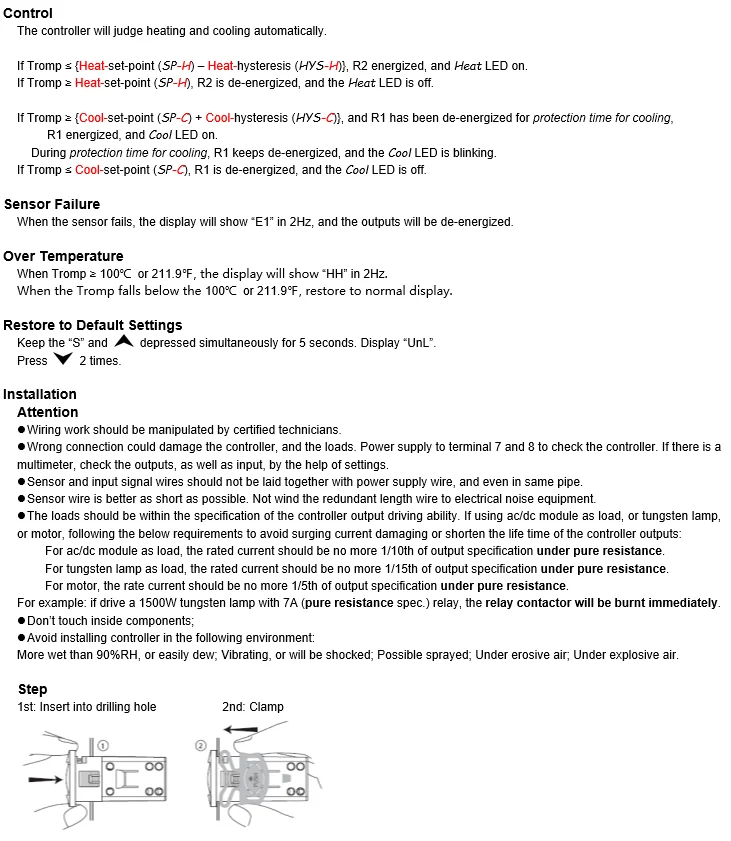

It will judge heating or cooling mode automatically: if the room temperature is higher than set point, cooling mode; else heating mode.
More settings make application, such as incubator control, much better.
Specification

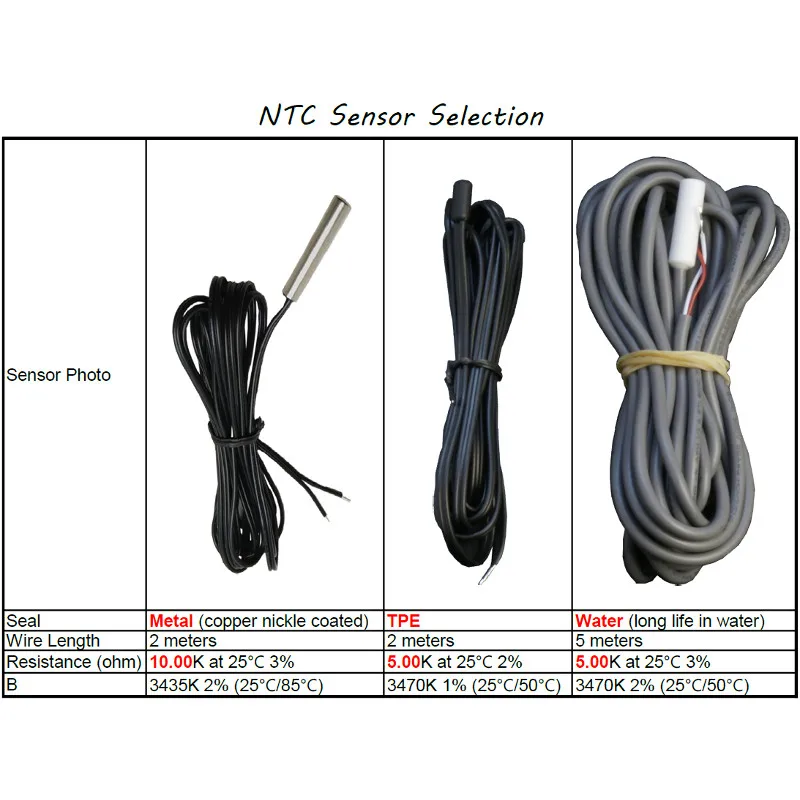

Sensor: NTC
R25℃ = 10K, B25/85℃ = 3435K; R25℃ = 5K, B25/50℃ = 3470K
Setting range: -50.0 ~ 99.0℃, or -58.0 ~ 210.2℉
Display range: -50.0 ~ 99.9℃, or -58.0 ~ 211.8℉
Terminal: 2*1.5mm2 or 1*2.5mm2

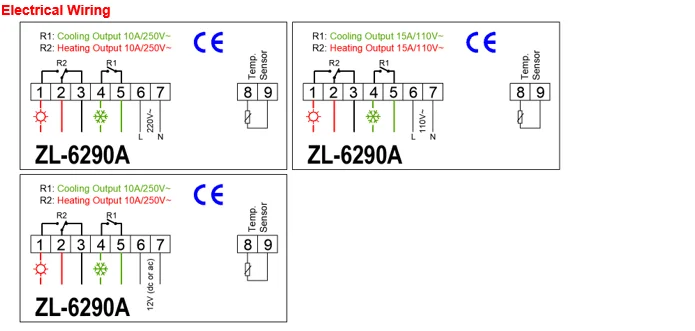

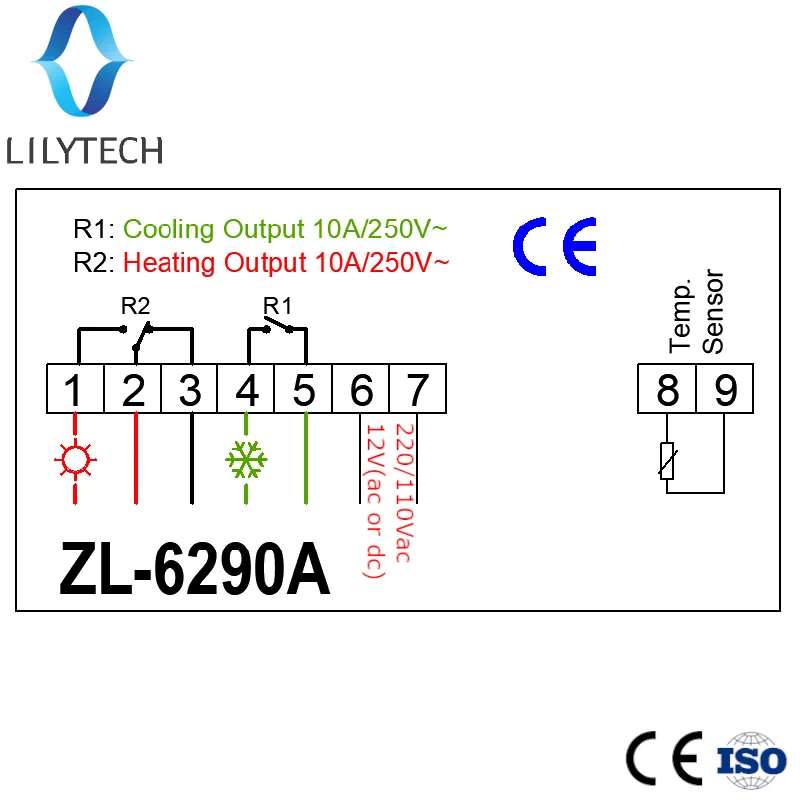

Outputs: 10A * 2, 250Vac (under pure resistance load)
Working: -10~45℃, 5~85%RH without dew
Case materials: PC + ABS fire proof
Protection level: IP65 (Front side only)
Dimension: W78 x H34.5 x D71 (mm)
Installation drilling: W71 x H29 (mm)

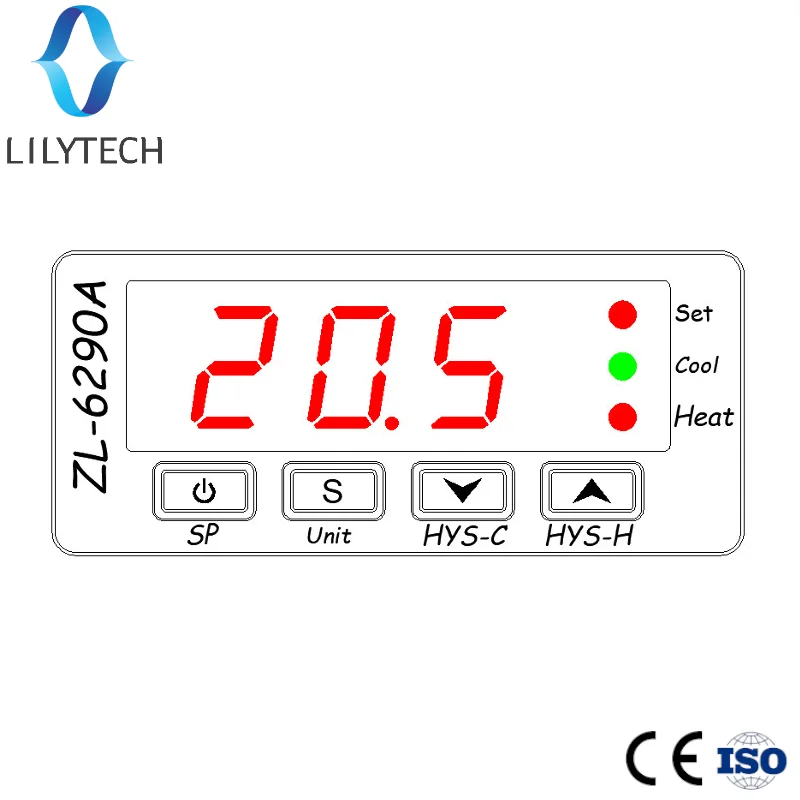

Keypad and Display
CE LVD Certification:
CE EMC Certifcation:
ISO Certification:
Packaging & Shipping
One piece packing: 11 * 9 * 7.5 cm, 0.246kg
One carton packing: 33 * 37 * 47 cm, 16.7kg, 64 pcs
