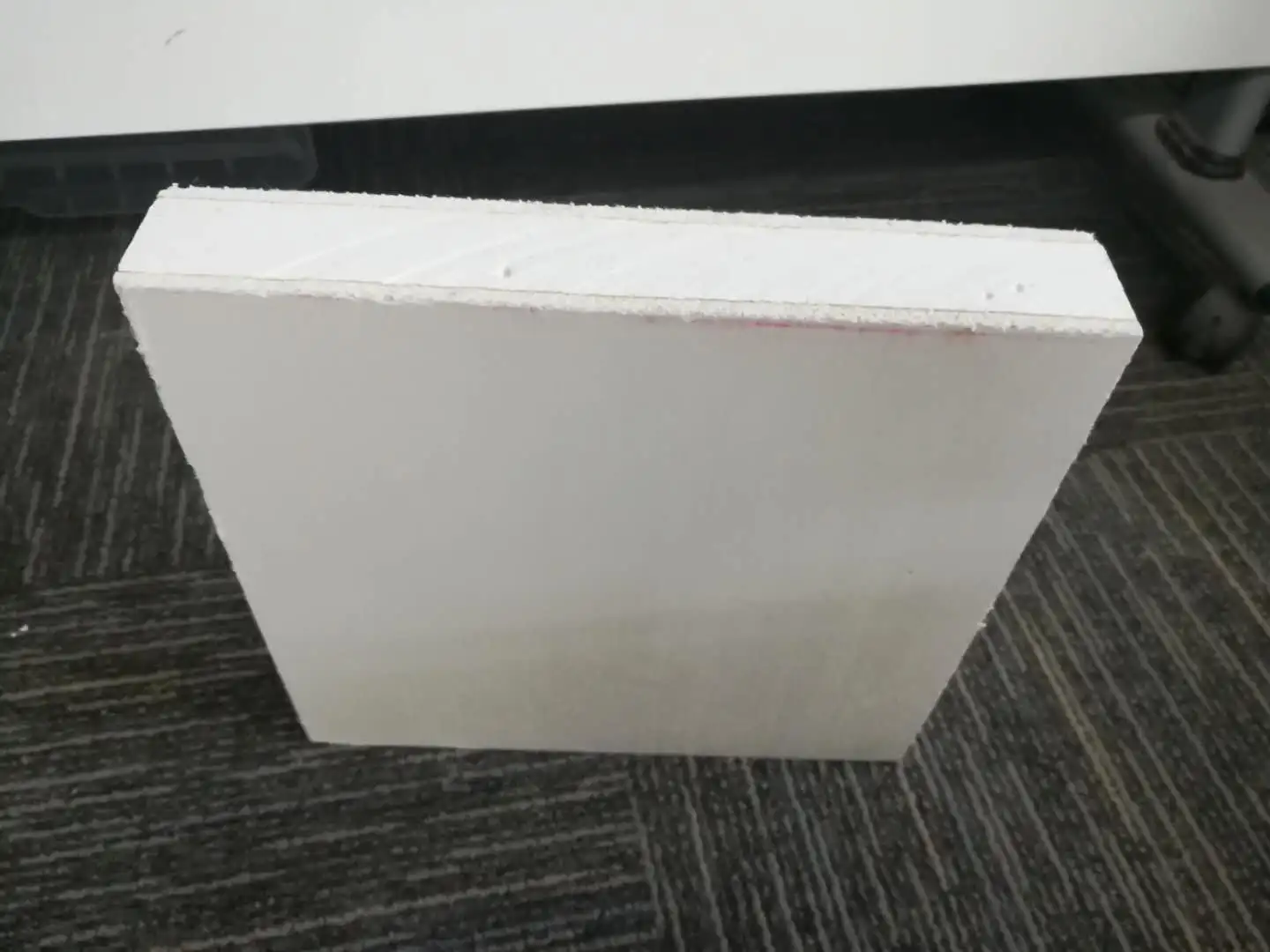

Onekin lightweight fire ban door core 100% asbestos free easy construction mgo foamed panel 30~50mm thickness

Product Overview

Description



Onekin Group

www.wallpanel-supplier.com



 Onekin lightweight fire ban door core 100% asbestos free easy construction mgo foamed panel 30~50mm thickness



Backgroud: Onekin is a company which focus on mgo related products over 15 years. With years efforts of exploring, we have mature products - mgo board & mgo panel. While customers are expecting wider use of magnesium oxide. Then fire door core panel was born.



 Onekin fire door core panel specification

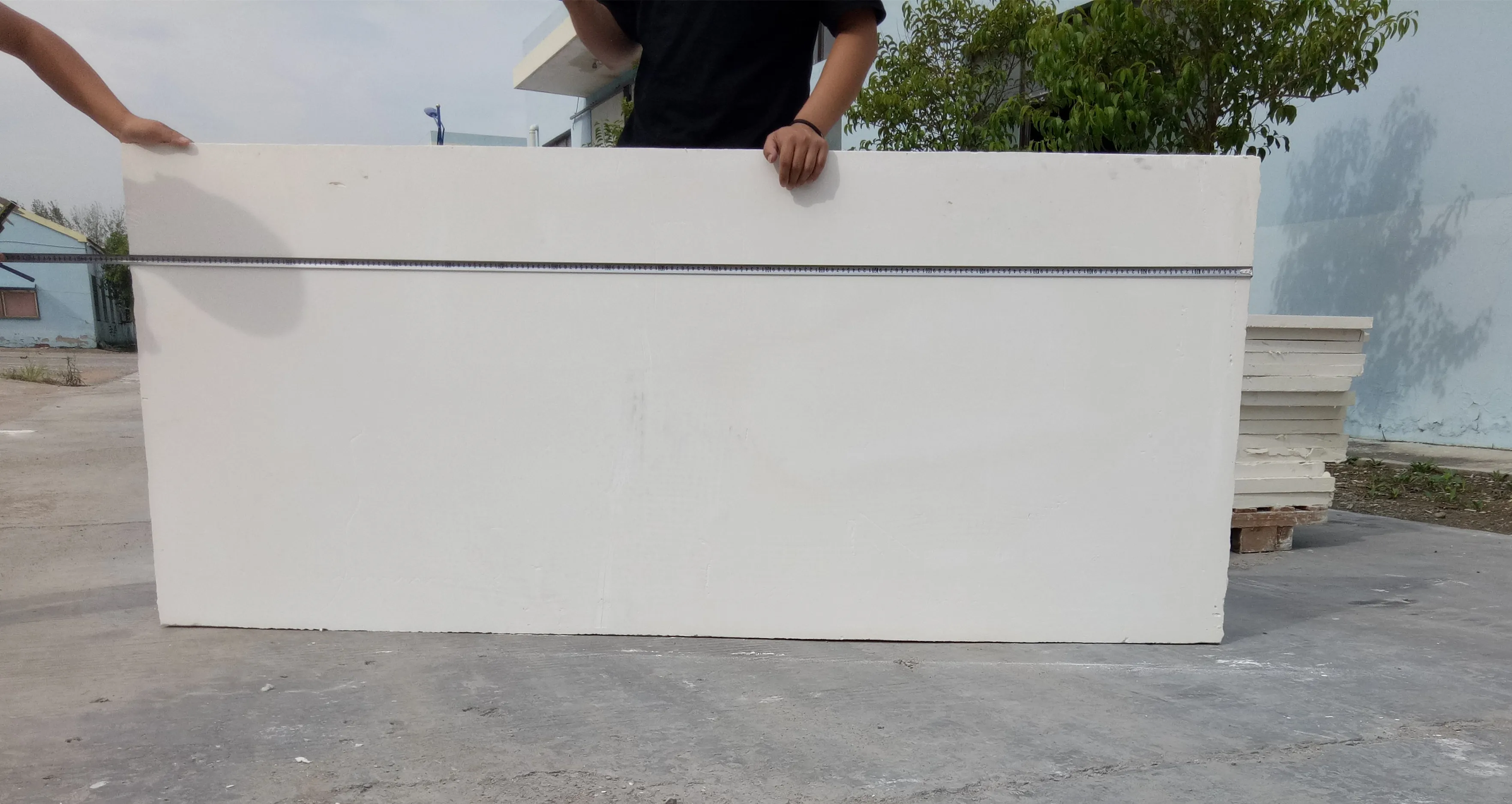

Size: 2100*900mm

Density: 300~500kgs/m3

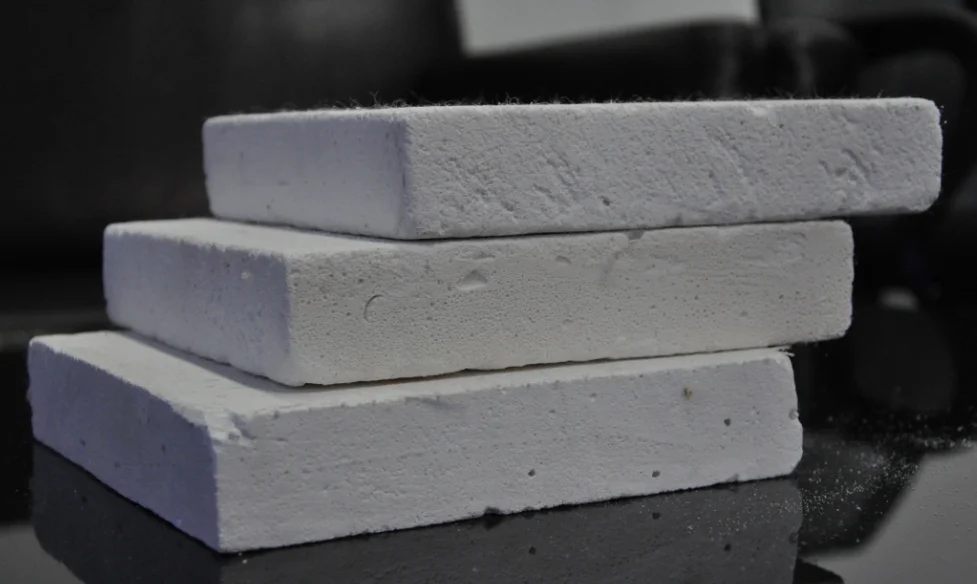

Material type: foamed mgo

Use: fire door

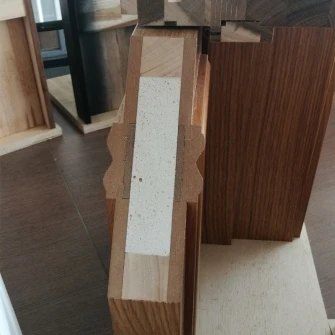

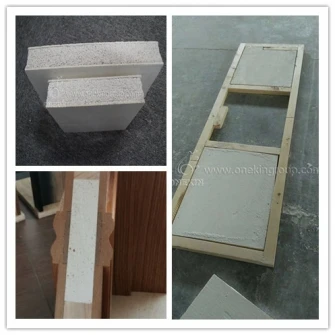

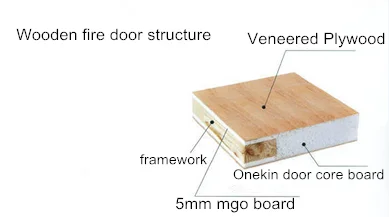

 Suggest structure





Onekin lightweight fire ban door core 100% asbestos free easy construction mgo foamed panel 30~50mm thickness Advantage:



Lightweight: 300~500kgs/m3, very lightweight compared with traditional fire door core material

Healthy: 100% asbestos free, no toxic elements







Onekin lightweight fire ban door core 100% asbestos free easy construction mgo foamed panel 30~50mm thickness Fire rating reference

 since Onekin fire door core panel is new to most customers, below showed fire rating time as a reference.

customers can always adjust thickness & density to meet their requirement.

Fire rating time (minuts)	Onekin fire door core	remarks
30	32mm, 330kgs/m3	can adjust thickness & density to meet requirement.
60	35mm, 400kgs/m3
90	40mm, 450kgs/m3
120	50mm, 480kgs/m3

 remarks: can add mgo boards on both sides to meet higher standard requirement.

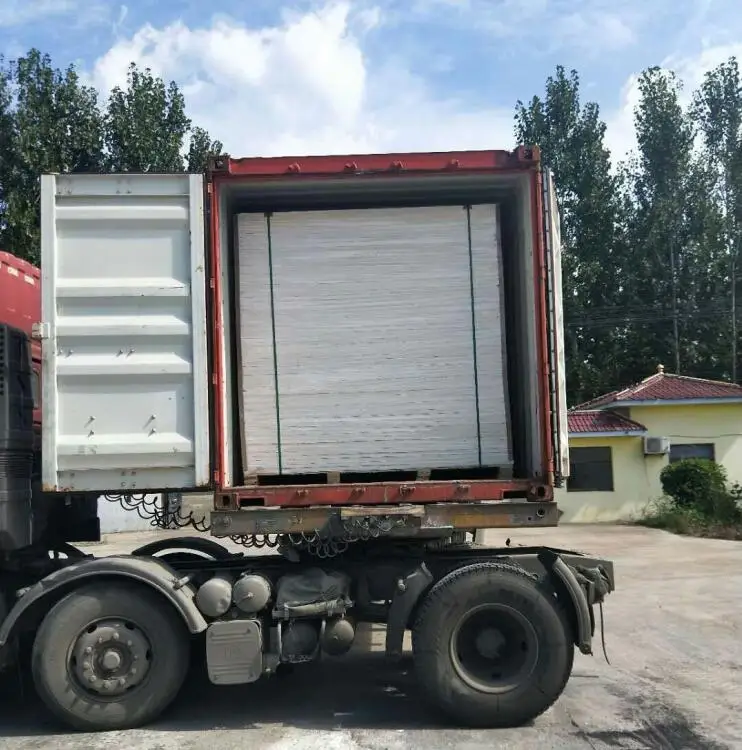

Onekin lightweight fire ban door core 100% asbestos free easy construction mgo foamed panel 30~50mm thickness Packing & shipping



 Onekin fire door core use pallet packing, with transparent fime wracking around. to make sure it's safe from water, as well as not damaged by long distance transfer.

packing: pallet, with transparent fime.







Quality checking



 Onekin values quality, which is the basic that helps us to cooperate with customers.

for win-win situation with customers.

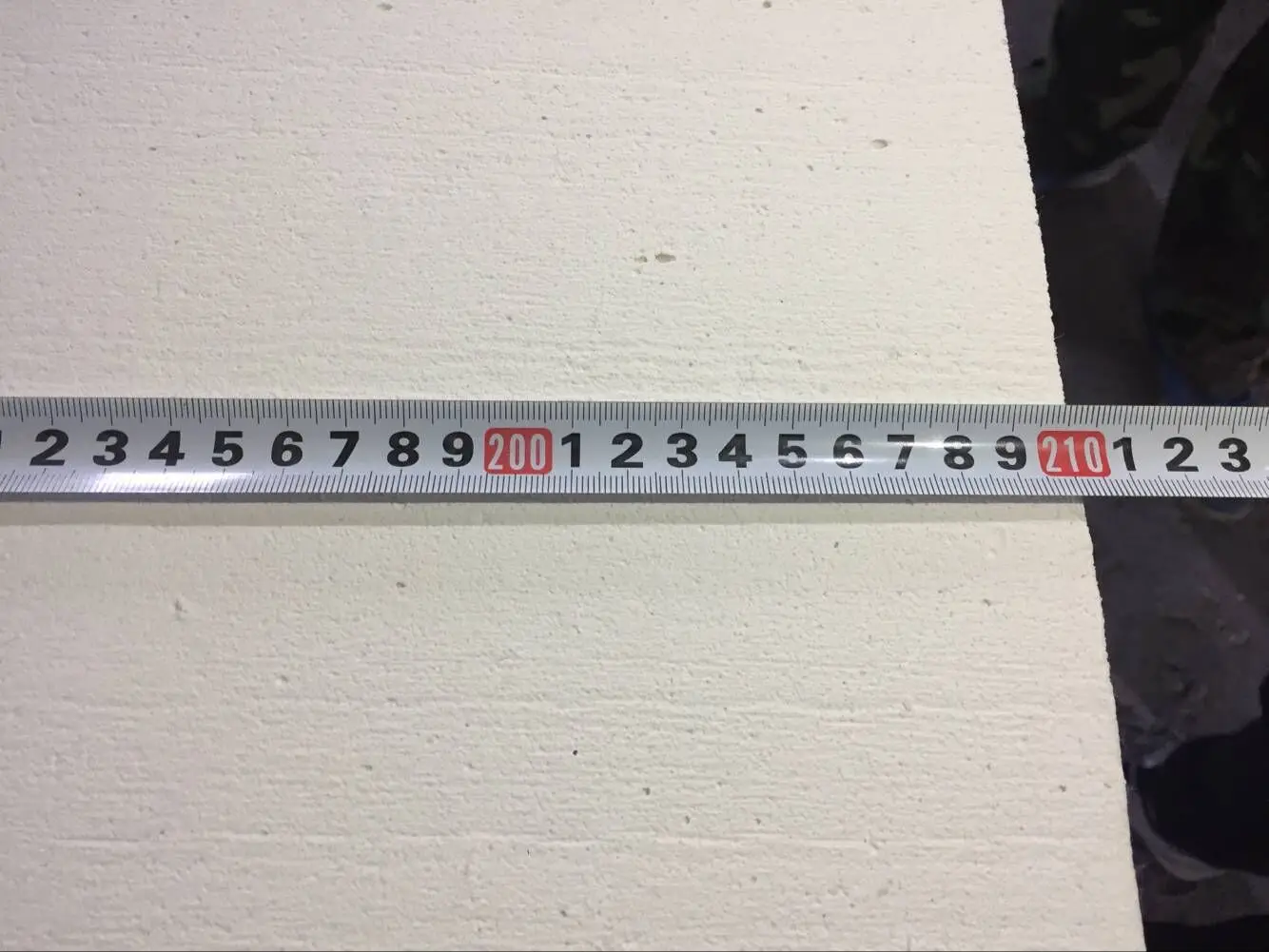

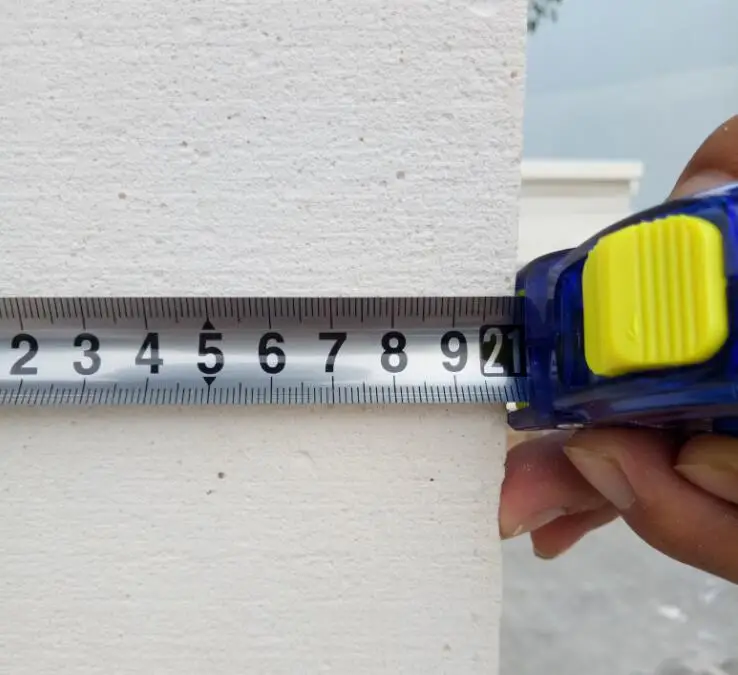

checking for length & surface clean

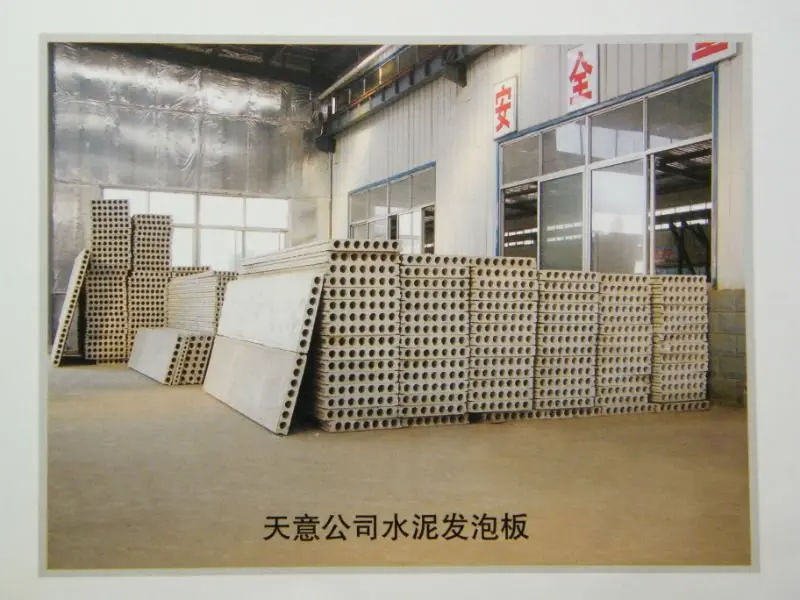

Onekin company
