Трубчатый нагревательный элемент для водонагревателя/солнечной батареи
Трубчатый нагревательный элемент для водонагревателя/солнечной батареи
Трубчатый нагревательный элемент для водонагревателя/солнечной батареи
Трубчатый нагревательный элемент для водонагревателя/солнечной батареи
Трубчатый нагревательный элемент для водонагревателя/солнечной батареи
Трубчатый нагревательный элемент для водонагревателя/солнечной батареи
Трубчатый нагревательный элемент для водонагревателя/солнечной батареи

Трубчатый нагревательный элемент для водонагревателя/солнечной батареи

Share on (60826954831):


Price:

Quantity:


Product Overview

Description


Product Description

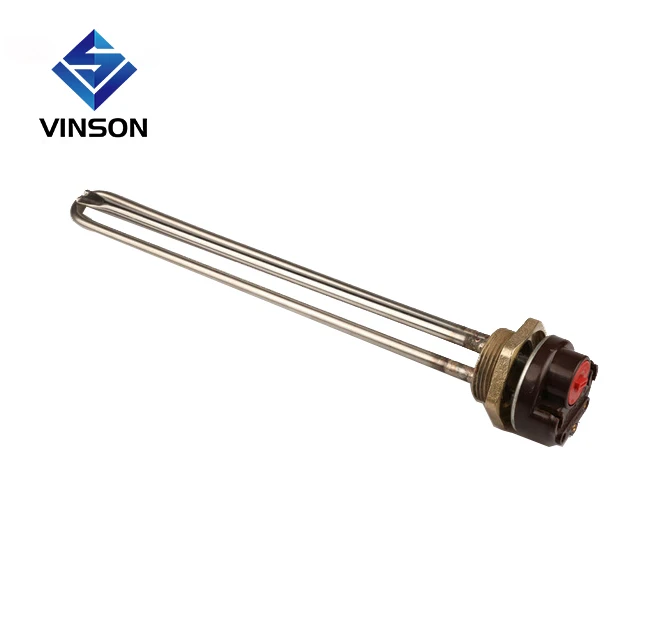

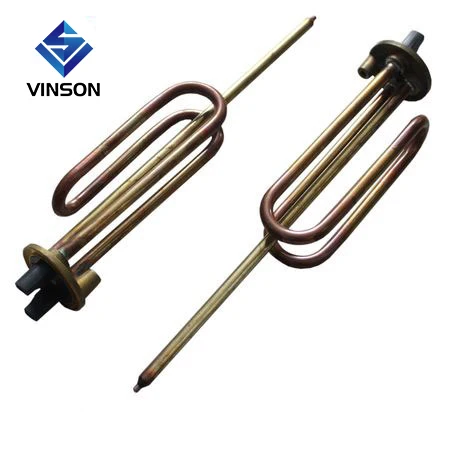

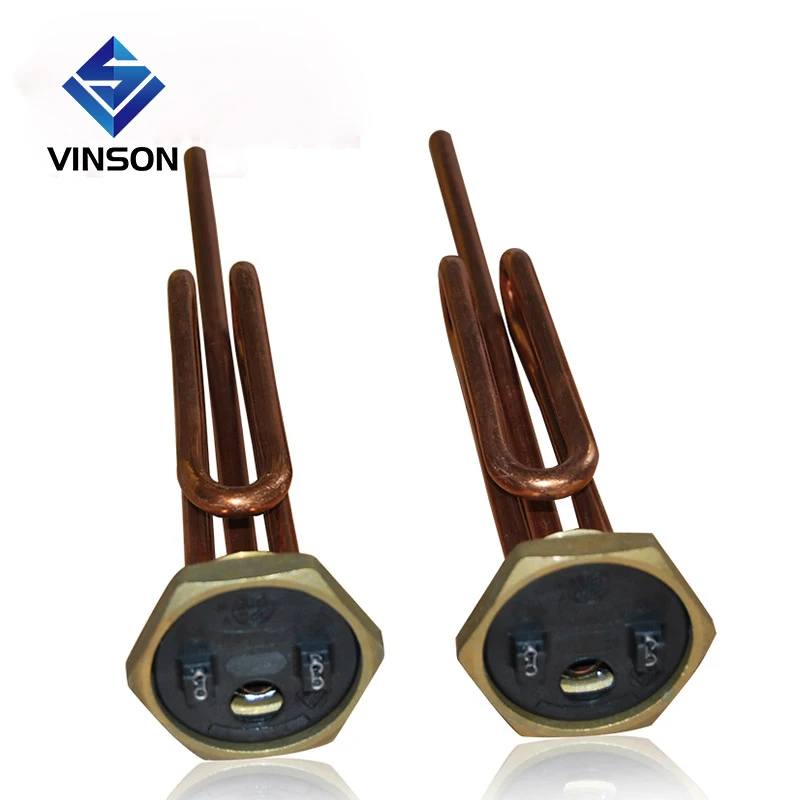

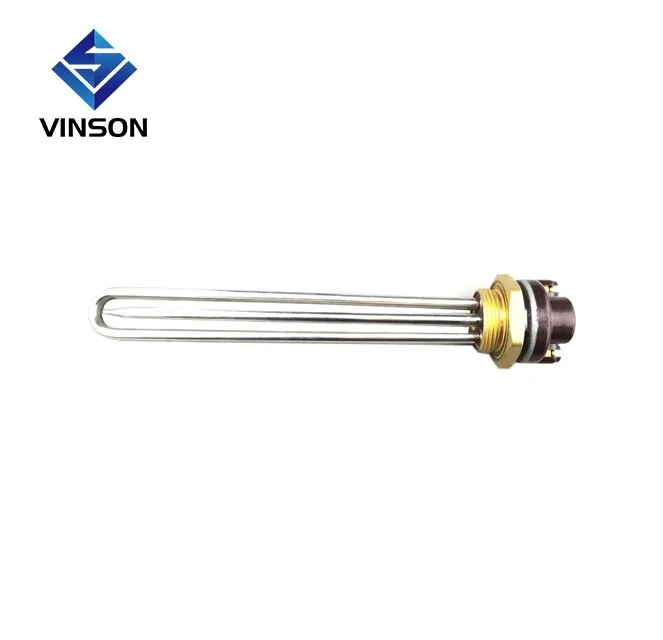

Tubular heater heating element for water heater/solar

The electric heating tube is a metal tube, along the tube in the center of the central axis of the spiral electric heating alloy wire (nickel chromium, iron chromium alloy) filled with the gap with a good insulation thermal conductivity of magnesia sand, Or ceramic seal. Electric heating tube is a special electrical components into electrical energy, because of its cheap, easy to use, easy installation, no pollution, is widely used in a variety of heating occasions, stainless steel heating tube life is very long, generally designed to use Life of more than 10,000 hours.



Main Features

\t
  Electric heater tubular heating element with thermostat
\t
Body Material
\t
T2 Copper;SUS304;SUS316L;SUS310S,and so on.
\t
Pipe Size
\t
8mm
\t
Watt & Voltage
\t
Customized
\t
 Overall Dimensions
\t
OEM, customized in drawing or samples
\t
Electrical Performance
\t
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA
\t
Surface Treatment
\t
 Natural color bright, polish
\t
Flange material
\t
The weight of 1 1/4" copper flange is about 110g,1 1/4"SS flange.No serious leakage solder inside of flange
\t
Paraller error of ends face and terminal
\t
0.5mm
Product details

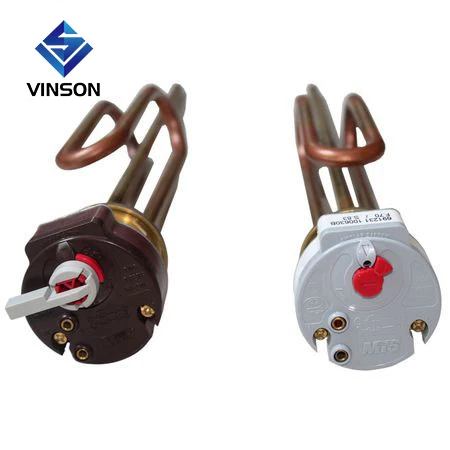

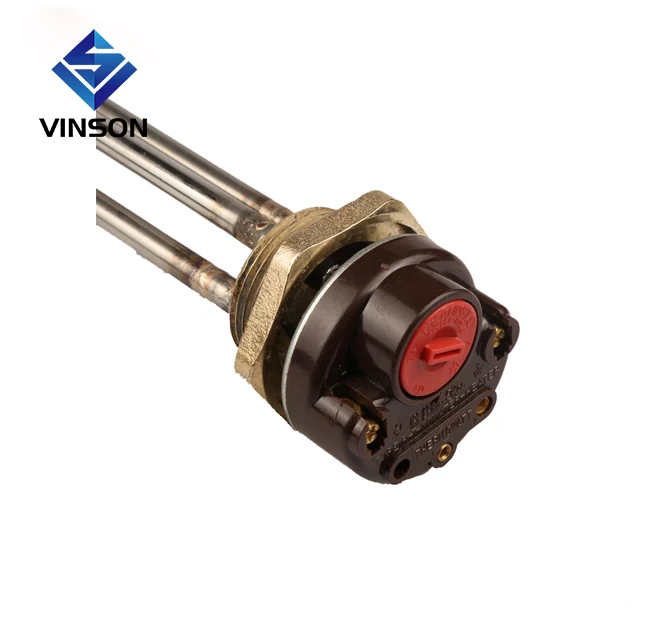

Electric heater tubular heating element with thermostat


- 2KW & 3KW or above available
-220V to 240V 50HZ
- Thermostat temperature 0 to 80 oC
- Liftetime 6000hours and more



Electric heater tubular heating element with thermostat


This list includes: 1 pcs of Electrical immersion element

Connection size:
1.25" (BSP, DN32)
Power: 1500W
With thermostat: you can fix the temperature at: 30,40, 55,70,85 cel.degree.
Voltage: 220V
Material: copper



Typical Application of Electric heater tubular heating element with thermostat


1. Caustic Cyanide used in gold processing
2.Hot water storag
3.Asphalt Wax
4.Caustic solutions Detergent
5.Sterilizing equipment
6.Heating oils
7.Plastic processing&packaging machinery

Related Products

         Tubular heater


               Finner Heater



                   Cartridge heater


Certifications
Packing & Delivery
\t
Packaging
\t
Size
\t
40(L) * 28 (W) * 28 (D)
\t
Weight
\t
20KG of Tubular heater heating element for water heater/solar
\t
Packaging Details
\t
The normal package is Carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
