RV5.5-3.5 AWG12-10 Copper Terminal Ends Pre-Insulating Cable Ring Termination Joint

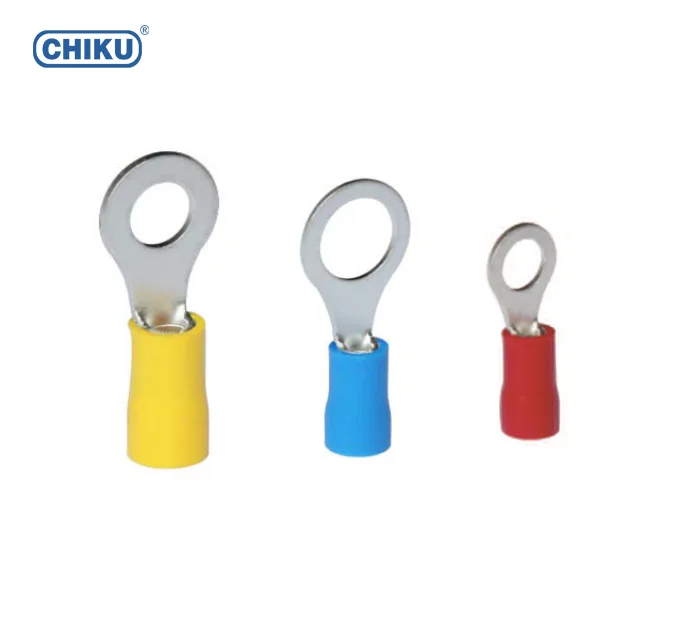

Insulated Ring Terminal
Max current:lmax=48A ,Material:copper , Insulating material:vinyl.nylon thickness:1.0mm

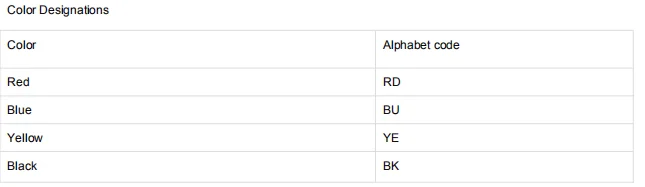

Color
| USA screw
| screw dia. (mm) | Cable size ( mm²) | Dimensions(mm) | Type
| Pcs Pkt
| ||||
B | L | F | H | DΦ | ||||||
YE | #6 | 3.7 | 4~6mm² (A.W.G12~10) (12~10) | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | RV5.5-3.5 | 50 |
#8 | 4.3 | 7.2 | 21.4 | 5.9 | RVS5.5-4 | 50 | ||||
#8 | 4.3 | 9.5 | 25.5 | 8.3 | RVL5.5-4 | 50 | ||||
#10 | 5.3 | 9.5 | 25.5 | 8.3 | RV5.5-5 | 50 | ||||
1/4 | 6.4 | 12.0 | 31.5 | 13.0 | RV5.5-6 | 50 | ||||
5/16 | 8.4 | 15.0 | 33.7 | 13.7 | RV5.5-8 | 50 | ||||
3/8 | 10.5 | 15.0 | 33.7 | 13.7 | RV5.5-10 | 50 | ||||
1/2 | 13.0 | 19.2 | .38.1 | 16.0 | RV5.5-12 | 50 | ||||
