Containerized Mobile Water Purification System for Drinking
Product Description
| Containerized / Mobile water treatment plants are an optimum and high flexible way of the fast obtaining of pure water from wells, open resources, side and shore wells, sea and brackish water. They provide and ensure perfectly clean water for permanents as well as emergency assurance of different water quality standards. |
- 500LPH Mobile water treatment system technical specification
| No. | Name | Specification |
| 1 | Worktime | 24H/day |
| 2 | Control | Automatic and manual |
| 3 | Power | 380v,50hz,5.5kw |
| 4 | System structure | trailer system |
| 5 | sbumarine sewage pump | 1T/H,10-20M,0.75KW |
| 6 | Producing water tank | 500L,PE |
| 7 | generator | 5.5KW |
| 8 | RO system | Q=0.5t/h |
| 9 | Size of the trailer | Approximately 4m*2m*2.3m |
| 10 | Produced water quality | drink water or others |
| 11 | RO membrane | DOW |
| 12 | Water pump | CNP |
| 13 | pipe | UPVC or SS304 |
| 14 | precision filter | SS304 |
| 15 | UF filter | UF1IB160,20m2/pcs |

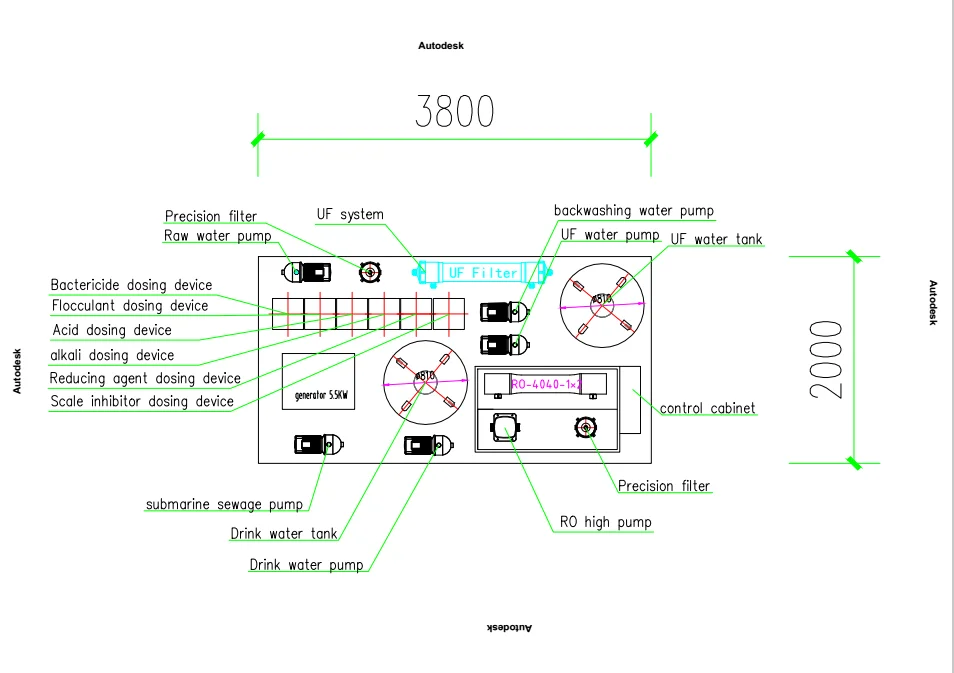

- System Drawing
Features
Features of containerized water treatment system
- Installed in the ISO 20ft and 40ft container, trailer and truck or other packed unit.
- Suitable for purify different water sources, such as top water, well water, underground water, sea water etc.
- Used for drinking water plant, industrial application, production of ultra pure water.
- Can be moved to anywhere outside, it very useful to supply clean water to people when earthquake, flood, tsunami happend and other disasters reliving.

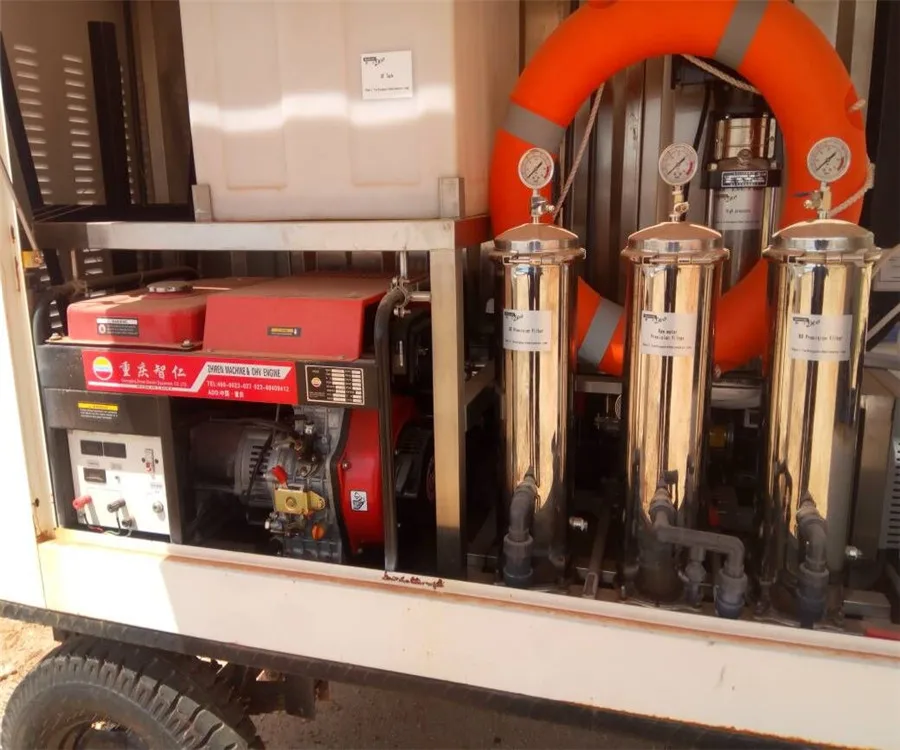

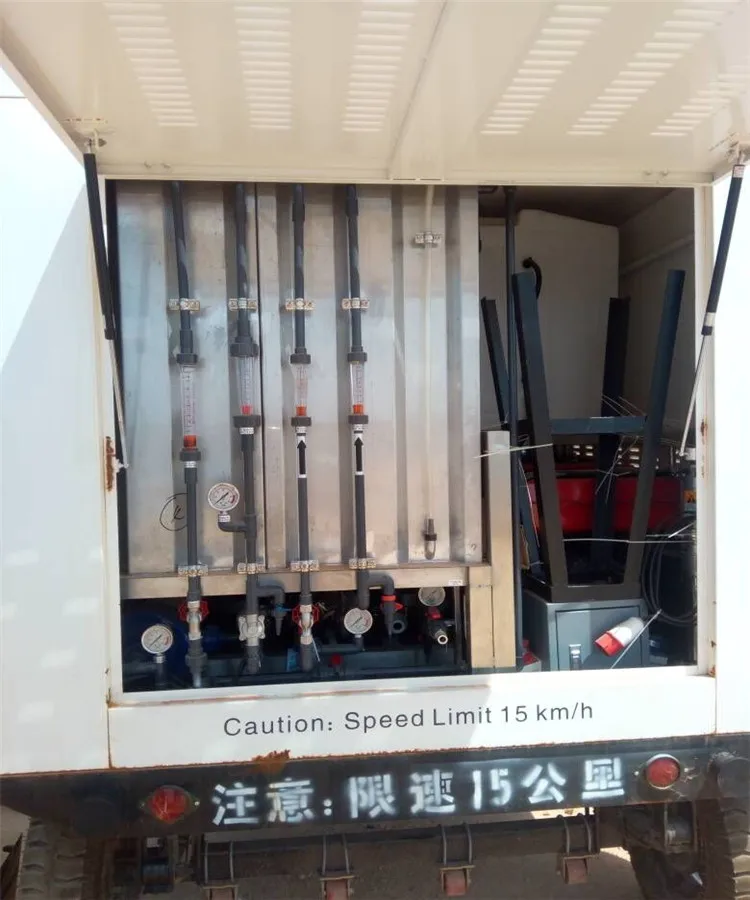

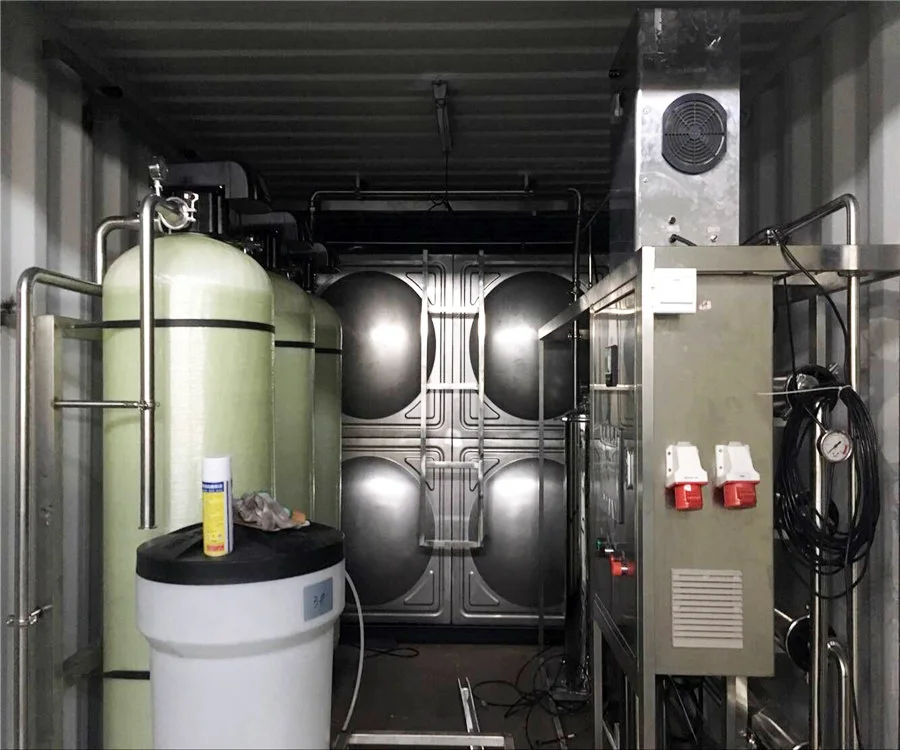

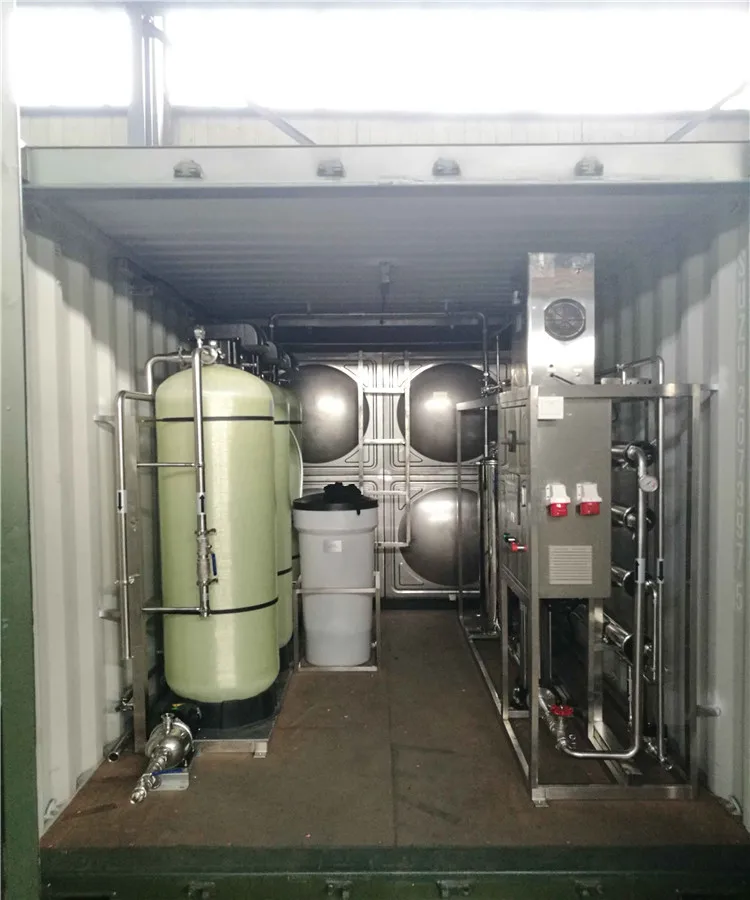

Detailed Images
Overviews

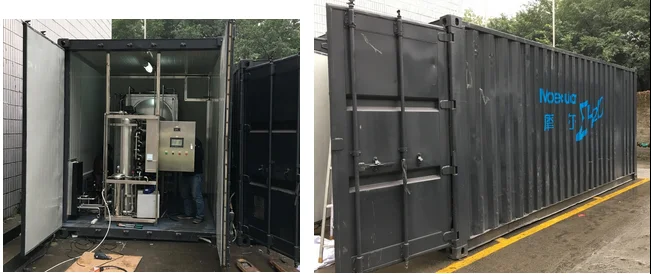

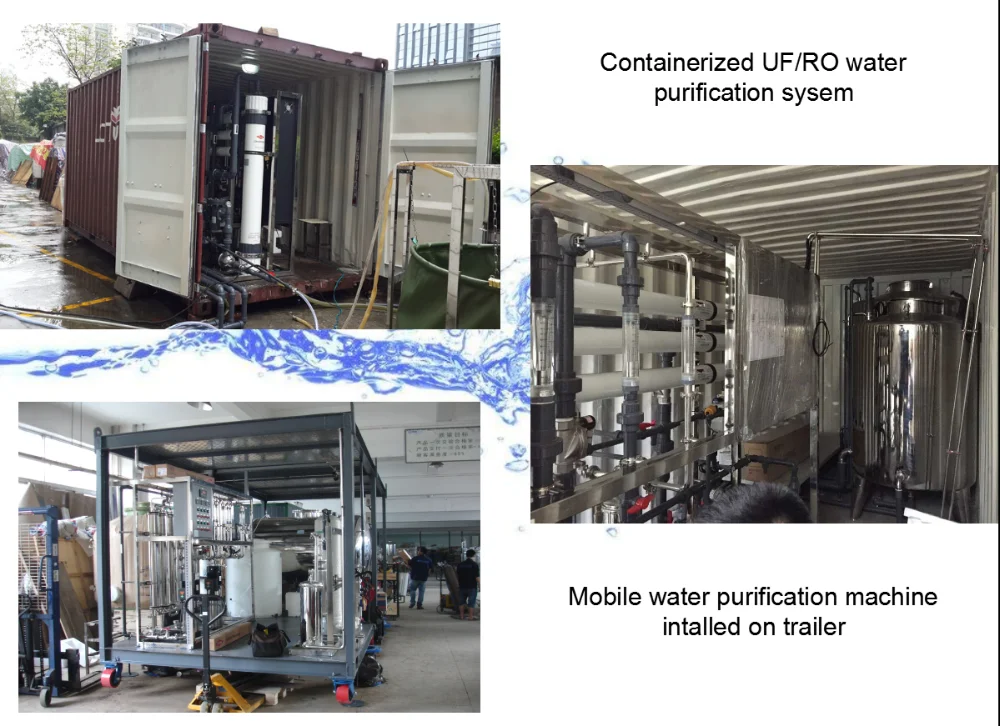

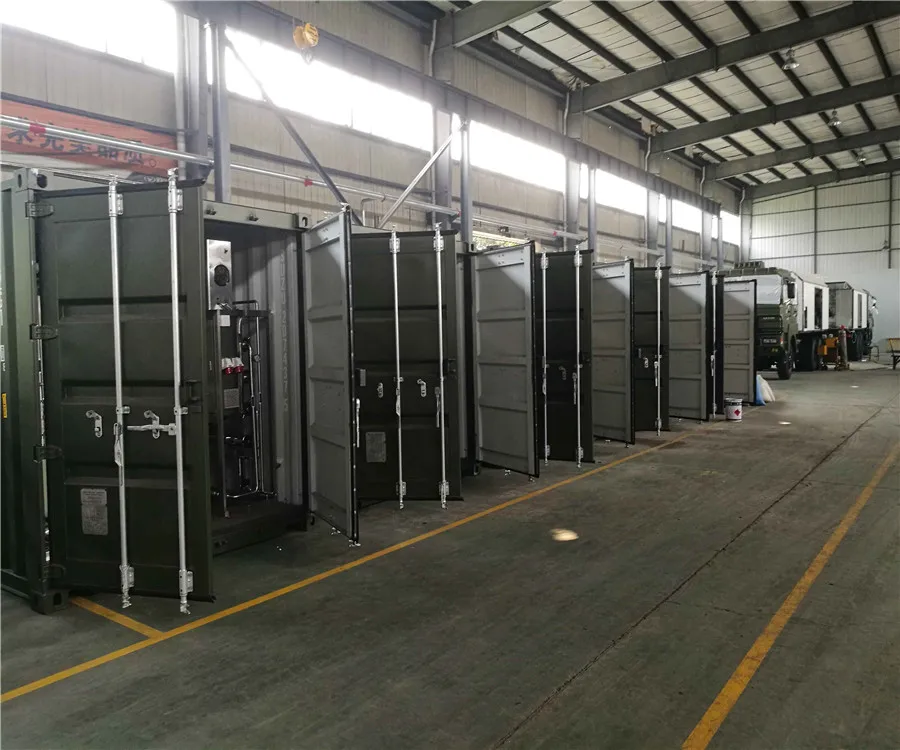

Following are two mobile water systems we design for customers:
Technical progress
Water intake point→ Lift pump→ Cyclone desander→ Quartz sand filter → Activated carbon filter→ Scale inhibitor feeding device→ Security filter→ High pressure pump→ RO device→ Drinking water tank→ Delivery pump→ UV sterilizer→ Water consuming point
Packaging & Shipping
Packing: Wooden Case or Carton
Shipping time: About 30 days
