GPS/GSM/GPRS Smart phone APP car alarm system with remote engine start

Product Overview

Description

 Control Module:

Work Voltage	DC12V­­­­±2V
Static Current	15mA
Working Frequency	433.92mhZ



Remote Control:

Static Current	<10uA
Battery Specifications	CR2032
Working Frequency	433.92MHz



Product Description



Main features of the Smartphone APP Control:
1. Two-way communications

2. No distance limitation

3. Operations via Smartphone APP

4. Real-time car status dynamic display on APP

5. With both GPRS data and SMS message controls

6. Arm/Lock, Disarm/Unlock, Trunk Release, Car Finding

7. Remote engine start/stop (For car without OEM(Original))push start)

8. Car temperature display

9. Car battery level display

10. Remote fuel cut off

11. Real-time location check and track history replay via Google map

12. Be notified when your car alarm was triggered

13. With built-in backup battery and power disconnect alert

14. Data protocol communications between the GPS/GSM/GPRS module and the alarm module



Main features of the Car Alarm:

1. Working with aftermarket remote controls

2. Aftermarket remote controls with code hopping and anti-scanning technology

3. Remote engine start with aftermarket remote control (For car without OEM(Original))push start)

4. Remote arming/disarming

5. Silent arming/disarming

6. Auto rearming

7. Remote trunk release

8. Trunk release output Pos./Neg. Selection

9. Alarm triggers by shock sensor/doors/trunk/hood/ignition

10. Additional port for ultrasonic sensor

11. Pos./Neg. door trigger selection

12. Both starter kill relay and fuel cut off relay are included

13. Door open alert while driving (Selectable by Dip Switch)

14. Car finder

15. Panic

16. Automatic central door lock/unlock

17. Shock sensor bypass

18. False alarm prevention

19. Anti-hijacking by aftermarket remote control

20. Anti-hijacking by driver door (Selectable with Dip Switch)

21. Power window output

22. Auto arming ON/OFF (Selectable with Dip Switch)

23. Auto arming with or without door locking (Selectable with Dip Switch)

24. Single pulse/double pulse unlock (Selectable with Dip Switch)

25. Dome light delay (Selectable with Dip Switch)

26. Siren/horn output selection (Selectable with both Dip Switch and Jumper)

27. Locking time selectable by Jumper (0.5 second/3.5 seconds)

28. Closing door reminder when arming

29. Valet mode

30. Emergency override

31. Power interrupted memory

32. LED status indicator

33. Remote control code learning

34. Universal bypass module included(mainly for Japanese & Korean cars)

Interface of the smartphone APP:

Car status indications on APP while the alarm is armed:

Car status indications on APP while the alarm is disarmed:

 Car location on APP:

 Car tracking on APP:

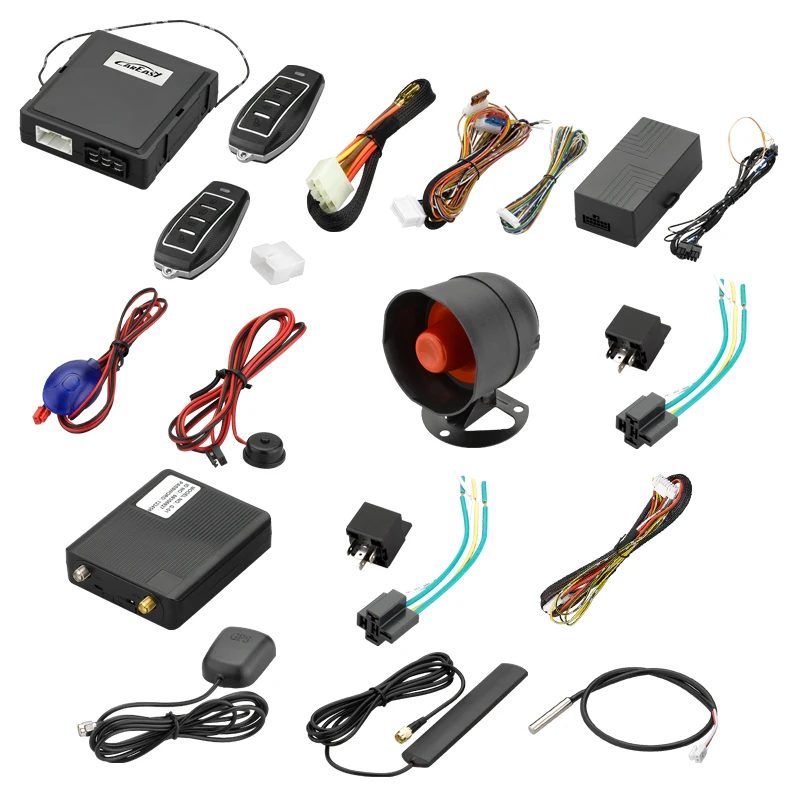

Kit of the car alarm

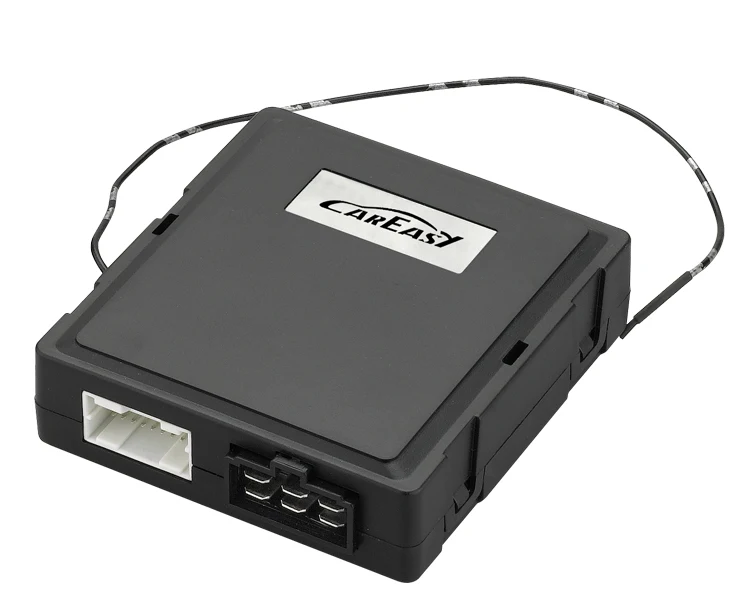

Control Module

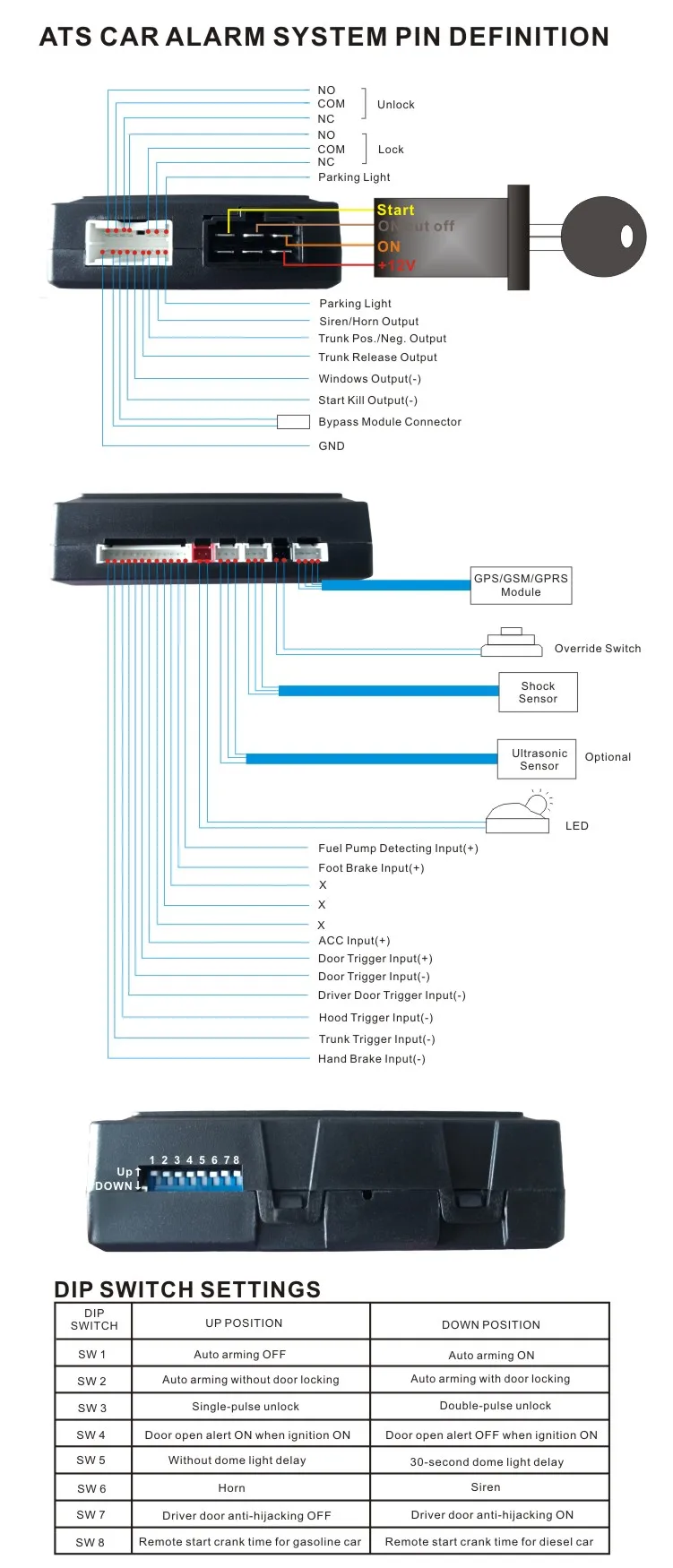

Pin definition

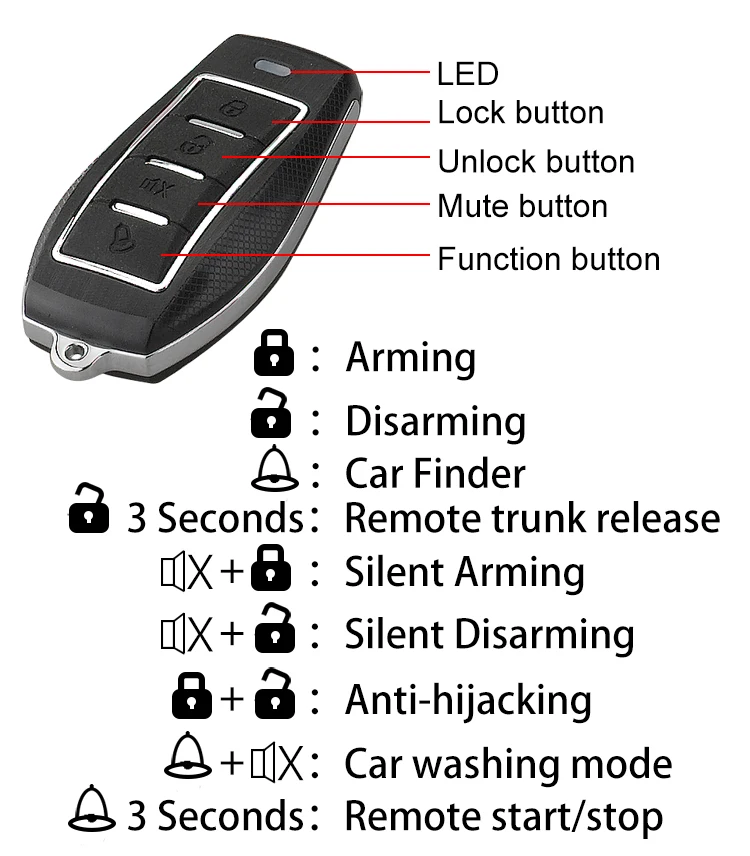

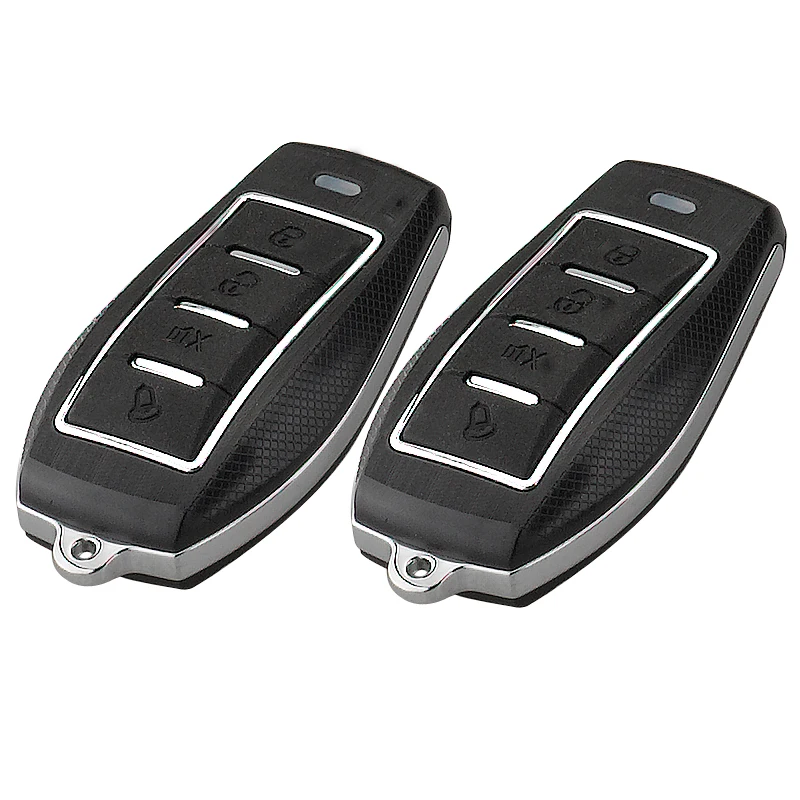

Remote control operation

GPS/GSM/GPRS module

Gift box
