Driver safety warning alarm system driver fatigue monitor alarm system anti sleep alarm for cars

1.  F3 is suitable for both 12V and 24V vehicle,  and have good high voltage protection.

2.  F3 has low consumption, average current less then 100mA in 12V car, and 60mA in 24V car, similar with leakage from the battery,

3.  F3 has high voltage output 3.3V to other devices (such as GPS tracker).

Functions:

1.  Fatigue Detection and Warning

2.  Driver Feature Self-Calibration

3.  Over-speed Alerts

4.  Support Analog Image Output

5.  Support RS232 Communications

6.  Support Fatigue Detection and Warning Signal interface with Vibration Cushion or other device.

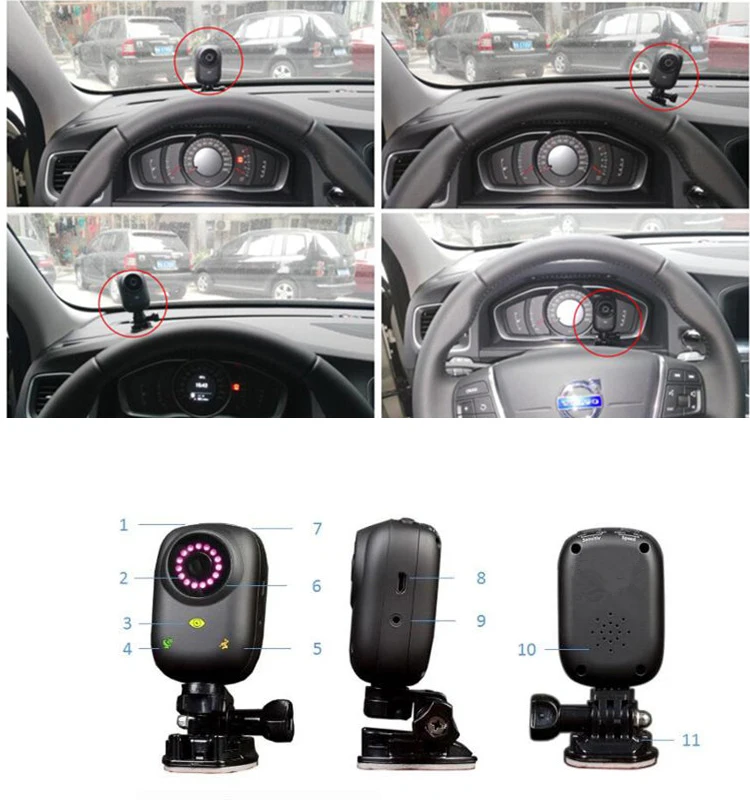

1: On/Off

2: Lens

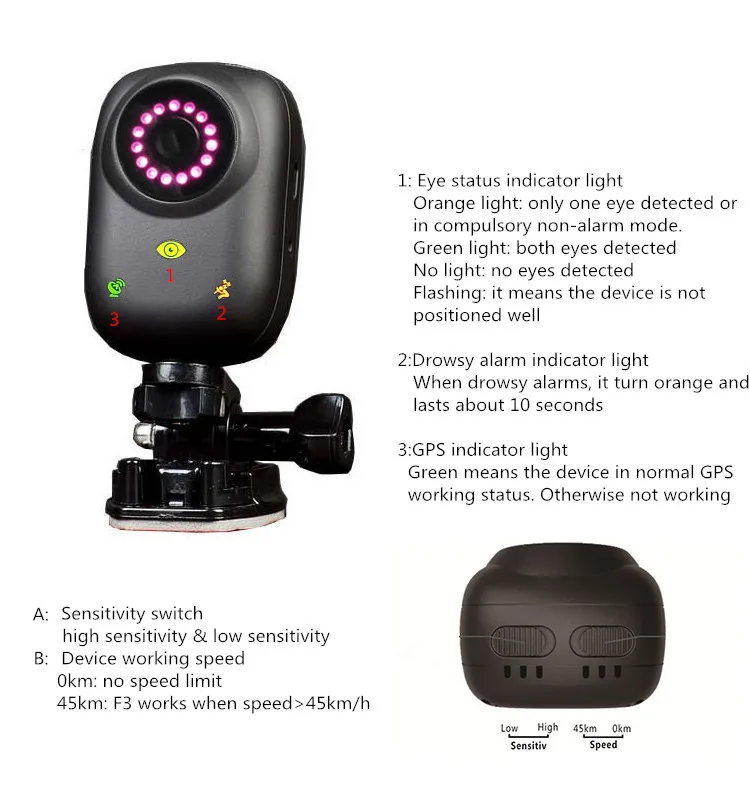

3: Working status light

4: GPS signal light

5: Fatigue status light

6: Infrared LED

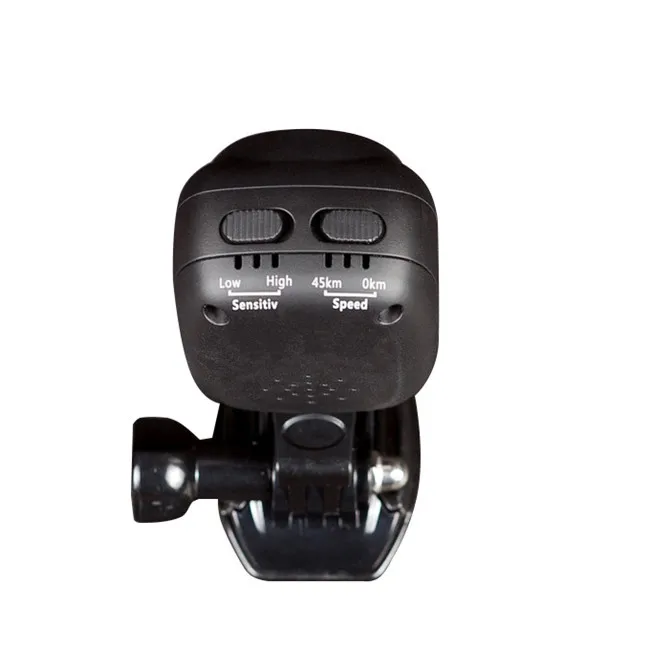

7: Sensitivity switch

8: Signal output socket

9: DC power socket

10: Speaker

11: Pedestal

How does it work?

Step 1: Camera Monitor

Non-contact infared camera captures human eyelid and retina status

Step2: Algorithm

Analyze the driver’s fatigue status according to PERCLOS algorithm

Step3: Issue Alarm

Step4: Vibration reminder (extra)

We supply vibration design for vibration pad, vibration pillow.

It has no noise but only vibration, to avoid bothering passengers.

Step5: Center monitoring (extra)

F3 support drowsiness data to transfer to the center monitor.

 Carton and foam

1. Is the infrared light harmful to my eyes and body?

Definitely no. The average light outlet power is less than 0.2W, and mostly died down when spreading in a 30°angle and meter distance, less than 1/10 of indoor nature light, just because the infrared light can’t been seen when mixed with other lights, you don’t aware the existing.

2. I’m worry about too much noisy alarms.

Don’t worry, the device have have speed limit switch, if the speed less than 45km/h, the alarm never been triggered.

3. If I must drive under fatigue status, is this unit useful?

Yes, some trunk drivers always drive under fatigue status, some people used to dozy when driving in on the highway, or if you have sleepless night but must drive today. F3’s main target is not to detect the fatigue driving, but the instant of dozing off, giving out alarms in that instant to wake you up.

4. Is it difficult to install?

No, it’s very easy, just stick the main unit in front of the driver, and connect power from cigarette socket, no need any engineer or garage!

5. Will it affect my sight?

No, it’s much smaller than a GPS navigator, and no need you to stare at it, just leave it alone after you have adjusted the angle toward your eyes.

6. Why the device don’t alarm when I closed my eyes?

It have 3 reasons:

First, the device need to recognize the driver’s face in the first 10-20 seconds after powered on, it can’t be triggered in this period.

Second, the device is smart, if you have big body movement, or speaking, or turned you head, it will recognize that you are in sober status and wouldn’t give our alarms until 5-7 seconds.

Third, you are too near, far, low or high, means you are not in center of the camera’s shot area, please adjust your seat and the direction ball.

On the other hand, if you have no movement, speaking, driving in a high speak, and your eyelid is lower and lower, it will give out alarms in 2 seconds as long as your eye closed or pupil can’t be detected.

7. It just don’t work at all, what’s the problem?

The system require 12V power and instant electric current 400-500mA, please check your power supply, if the voltage is low, or electric current is not enough, the device may have green light on, but not alarm.
